SMC Type MGPM25X100 Rod Guide Pneumatic Air Cylinder

Product Overview

Description

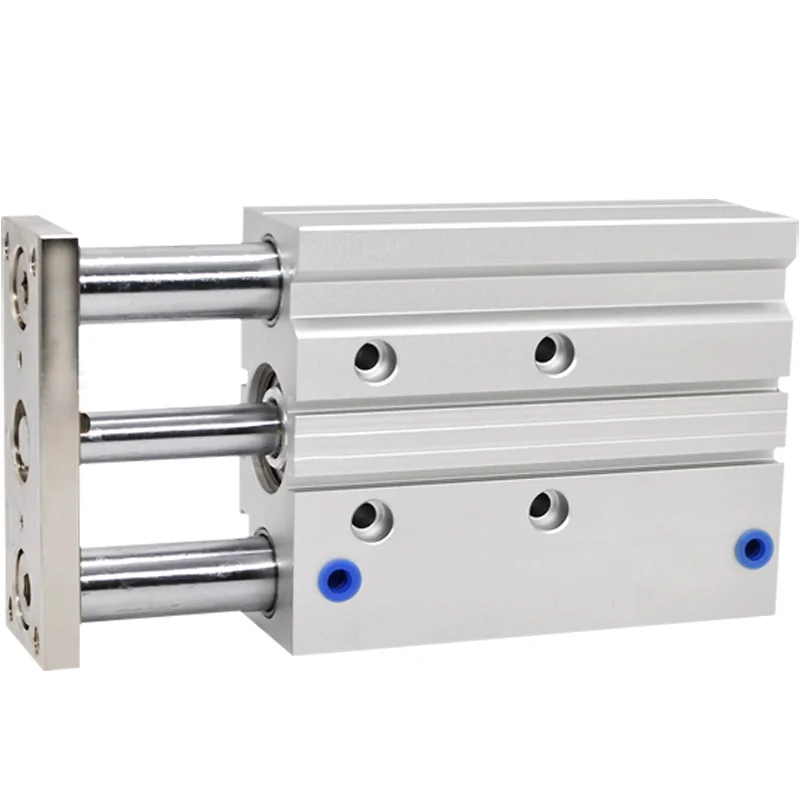

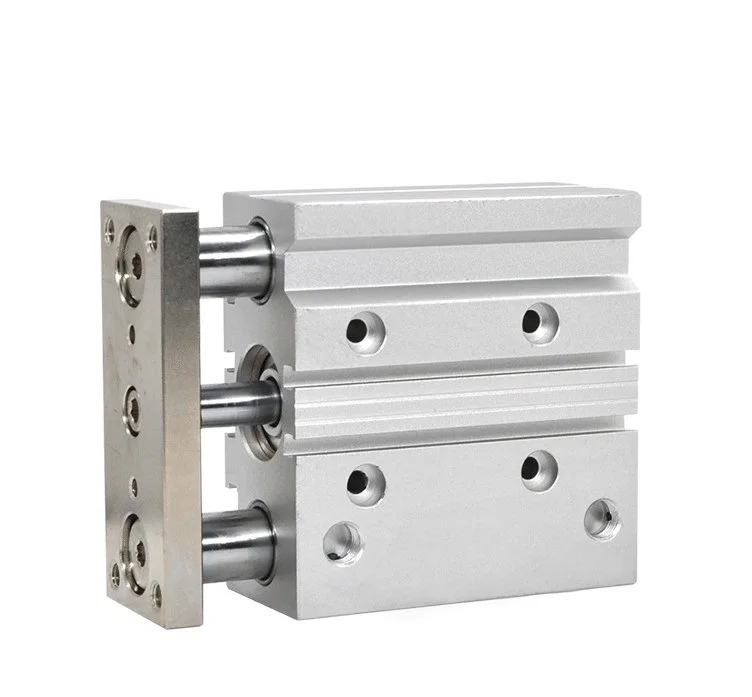

SMC Type MGPM25X100 Rod Guide Pneumatic Air Cylinder

Features:

1.MGP Series Air Cylinders.

2.Equivalent to SMC MGP Series Air Cylinders, with the same appearance.

With guide rod..

3.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.

4.Double acting, Single rod

5.Rubber bumper.

6.Built-in magnet is standard.



How to Order:

Specification:



Bore size (mm)	12	16	20	25	32	40	50	63
Fluid	Filtered air
Action	Double acting, single rod
operating pressure	0.12~1.0MPa		0.1~1.0MPa
Proof pressure	1.5 MPa
working temperature	-10 to 60°C (No freezing)
Cushion	Rubber bumper
Lubrication	Non-lubrication
Port size	M5x0.8		G1/8				G1/4



Standard Stroke:

Bore(mm)	Standard stroke
12~16	10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250
20~25	10, 20, 30, 40, 50. 75, 100, 125, 150, 200, 250, 300, 350, 400
32~ 63	25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 350, 400





Main Mterial:

o	Description	Material
01	Cylinder Body	Aluminium Alloy
02	Piston	Aluminium Alloy
03	Piston Rod	Carbon Steel
04	Guide Rod	Carbon Steel
05	Guide Plate	Carbon Steel
06	Guide Plate Mounting Nut	Carbon Steel
07	Cushion Gasket	Polyurethane
08	Slide Bearing	Powder Metallurgy
09	Steel Ball	Carbon Steel
10	Piston Seal	NBR
11	Rod Seal	NBR
