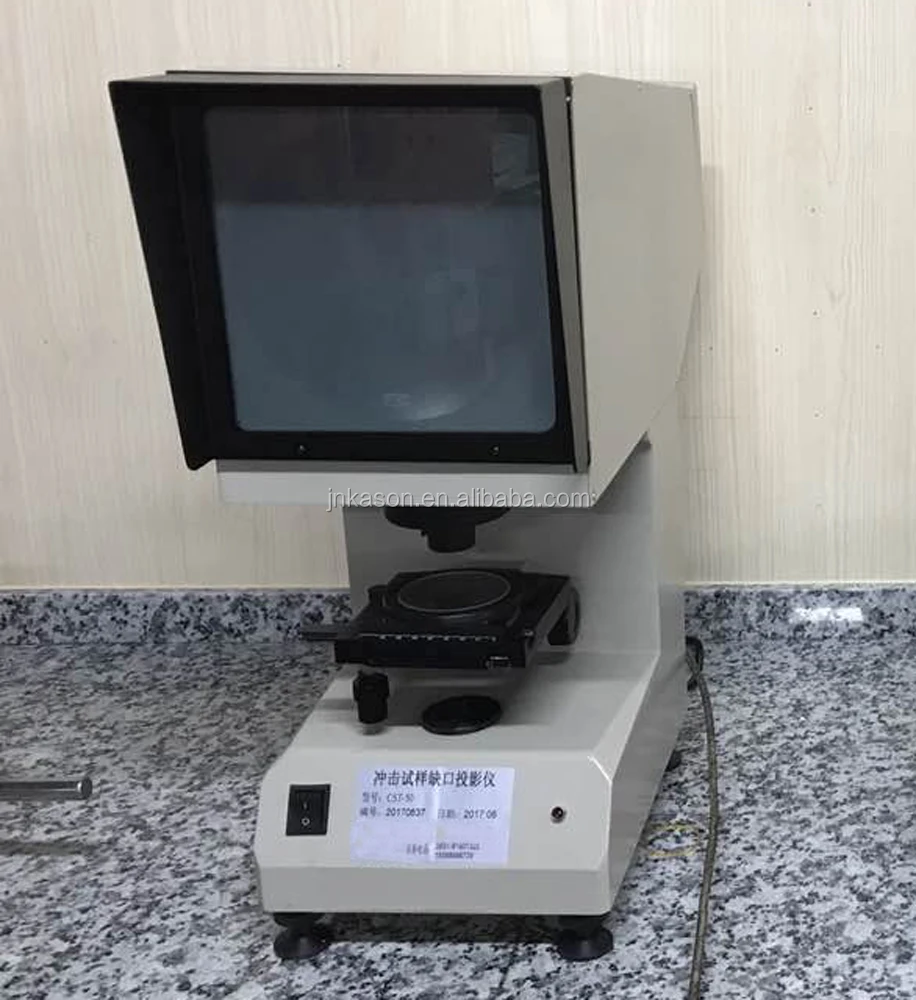

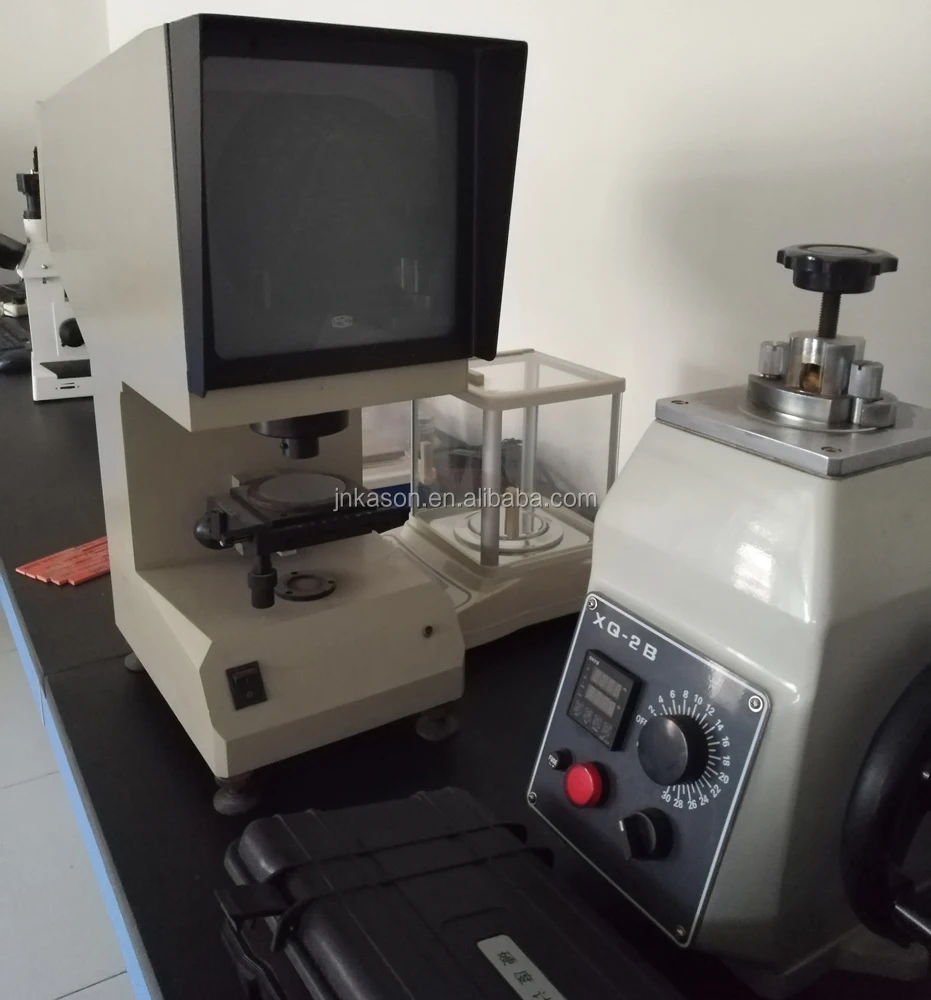

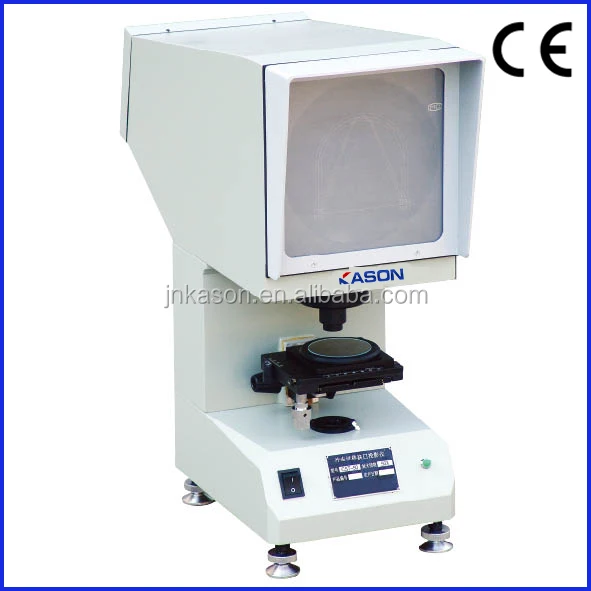

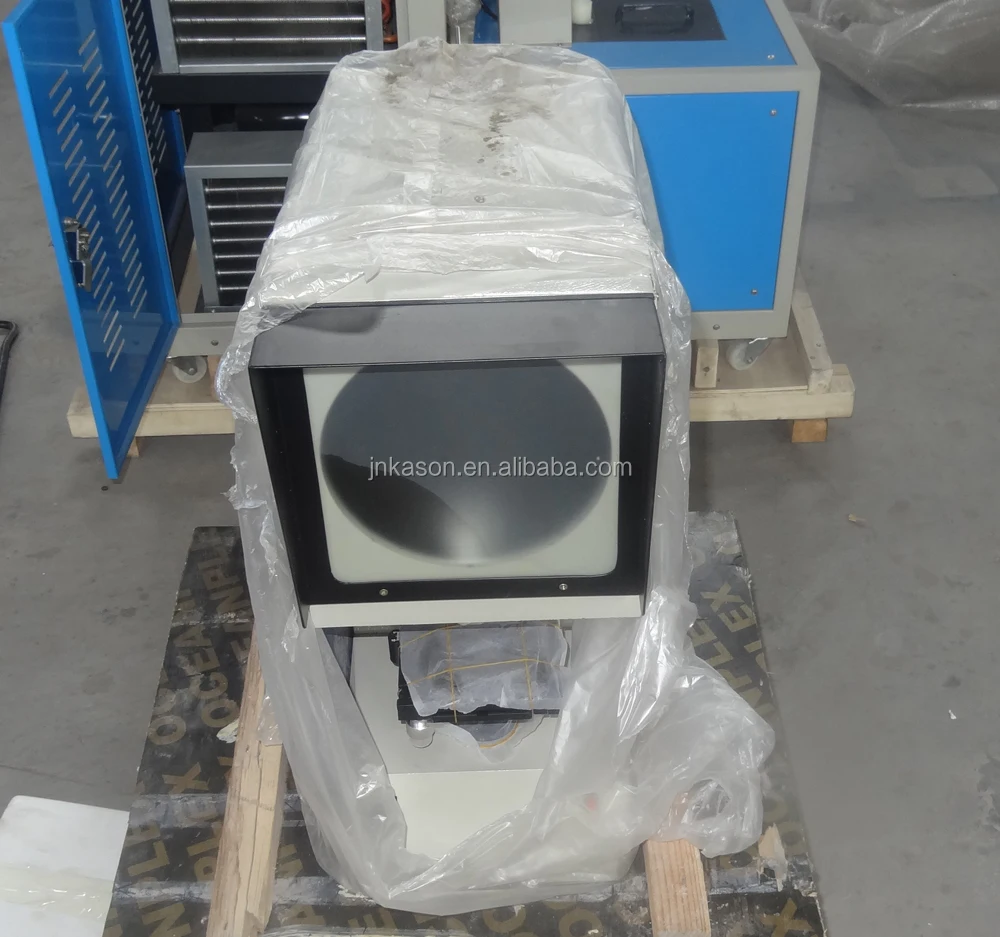

CST 50 Impact Specimen u/v Notch Profile Projector Measuring Specimen Projector

Product Overview

Description

CST-50 Impact Specimen u/v Notch  Measuring Profile Projector



1. Application

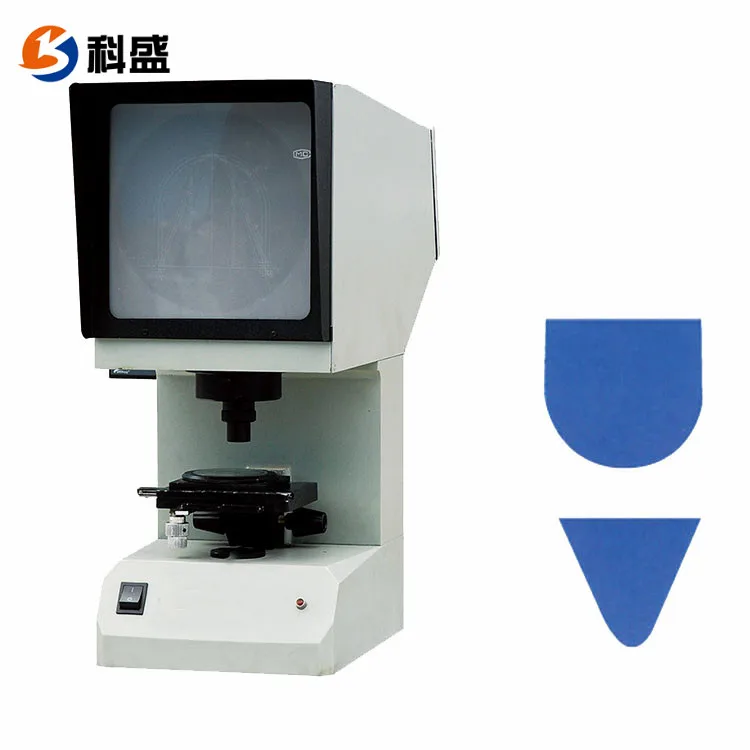

CTS-50 is a kind of special projector, which amplifies and projects the U or V-shaped profiles of the measured parts to the screen to check their profiles and shapes with high accuracy utilizing the optical projection method. It is widely used to check the U and V-shaped notch of the impact specimen with the features of easy operation, simple structure, direct inspection and high effectiveness.



2. Main Technical Parameters

Diameter of the Screen	200mm
Magnification of the instrument	50X
Objective magnification	2.5X
Working table square shape	110x125mm
Diameter of round worktable	90mm
Diameter of working screen	70mm
Stroke of working table	Longitude: ±10mm,Latitude: ±10mm, Rise and fall: ±12mm
Eye-field diameter	3.8mm
Working distance	22.89mm
Scope of revolving of the worktable	360°
Power supply	220V,50HZ,150W
Dimension	515×224×603mm
Light source(tungsten halogen lamp)	12V,100W
Weight	18kg



3.Configuration

Host----1set

Base adjustment button---4 Pcs

Power line----1Pcs

Halogen tungsten lamp----2Pcs

Flat glass plate ---1Pcs



CST-50 Metal Impact Sample gap Projector  Profile Projector
