Product Overview
Description
Detailed Introduction:

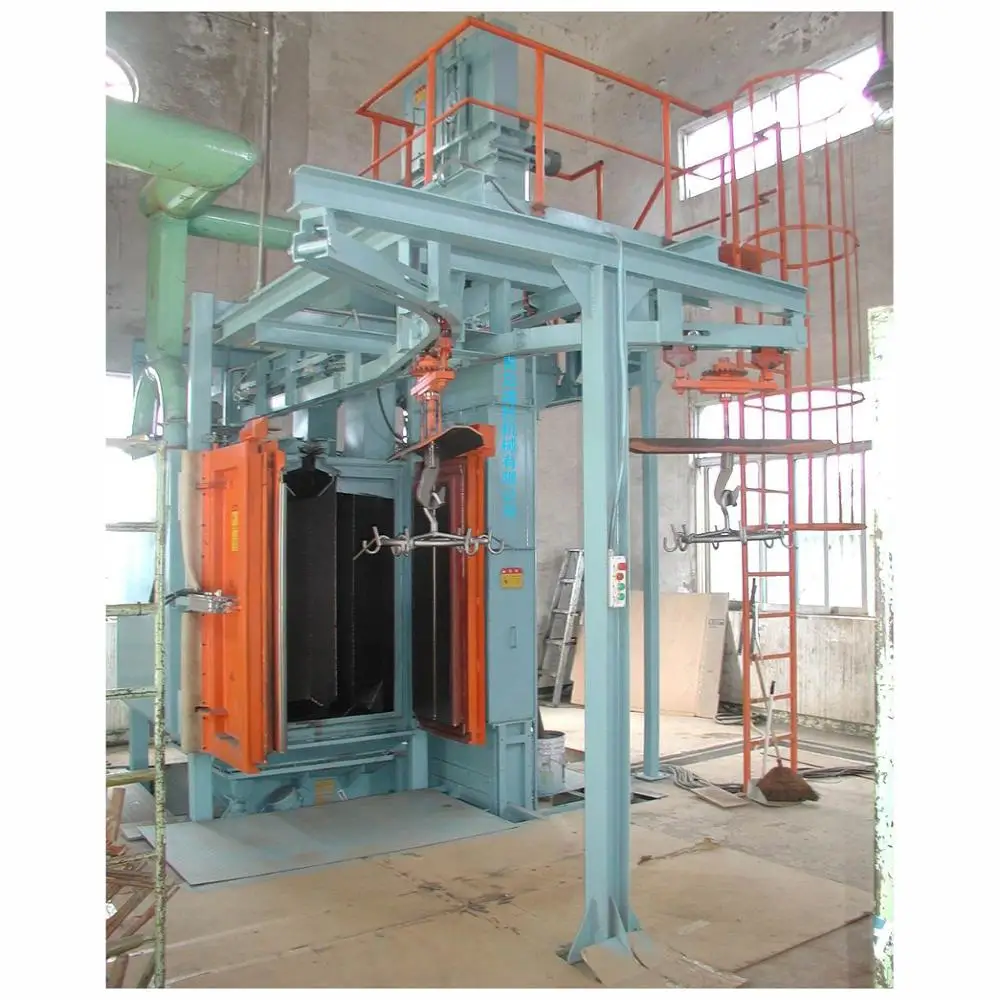

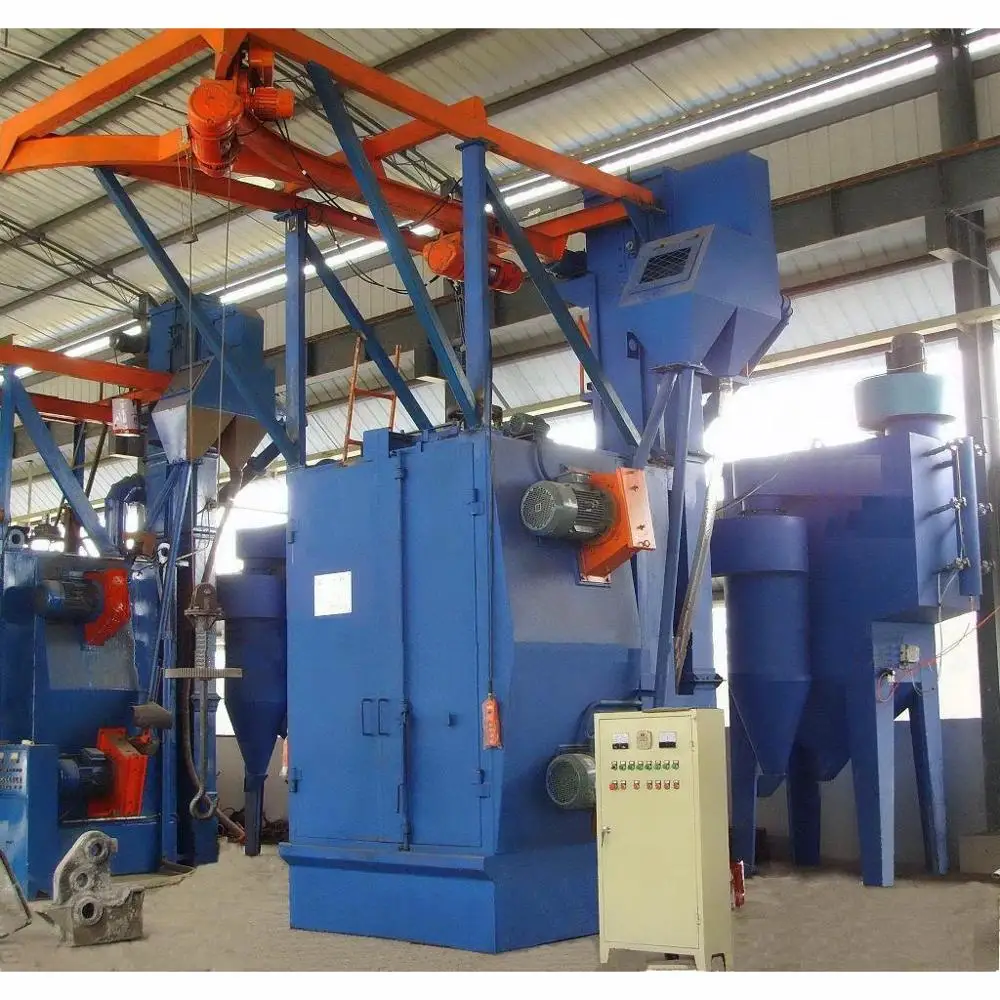

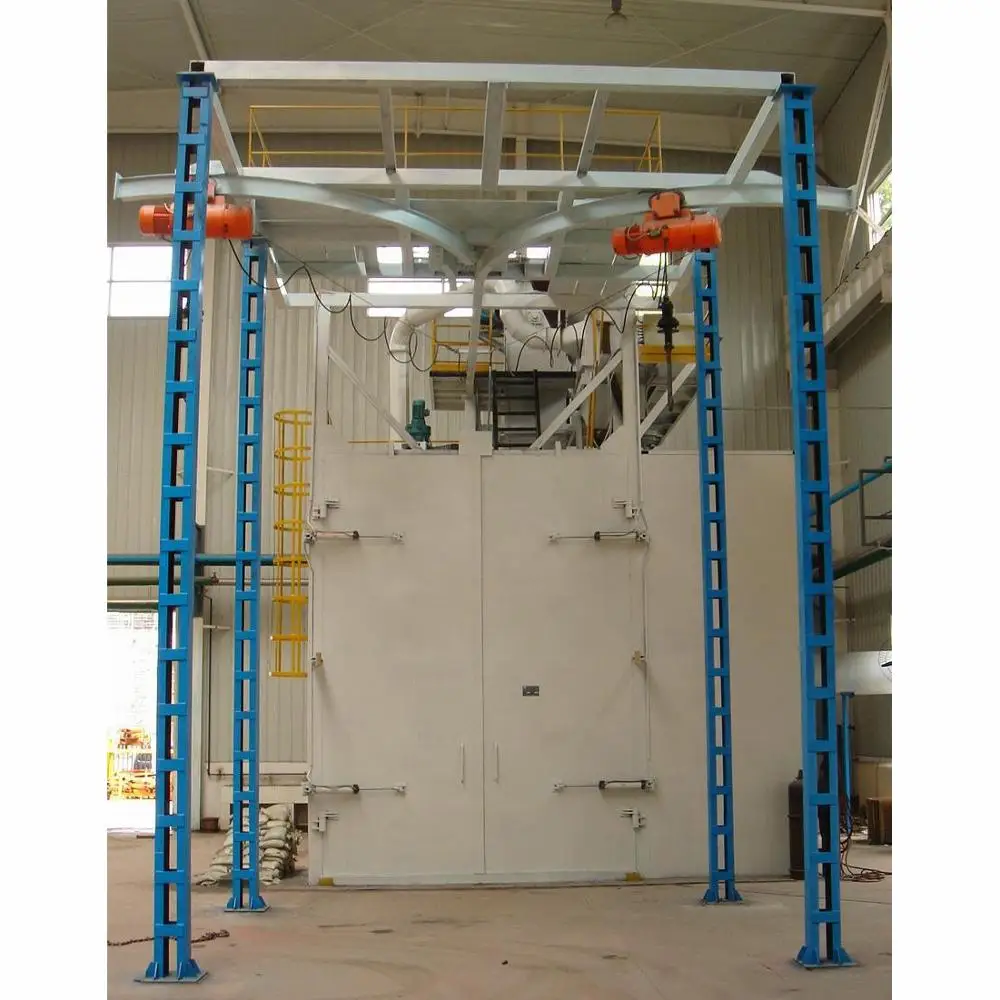

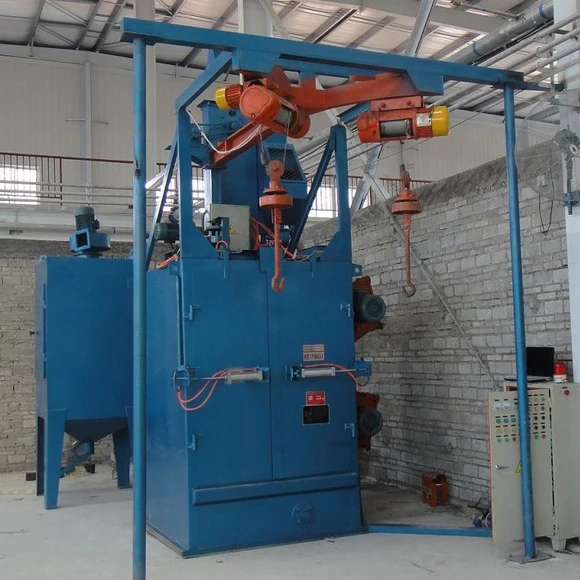

Q378 rotary hook type hanger shot blasting cleaning machine
Q37 Series Overhead Rail Spinner Hanger Shot-blasting Machine is mainly used for the surface cleaning of casting, structural components, non-ferrous alloy parts and other parts. This series shot peening machine has various specifications, such as single hook, double hook-type, lifting and not lifting style and many other models. It has the advantages of no pit, compact structure and high productivity.
model | Q376 | Q376B | Q378C | Q3710 | Q3720 | Q3730 | Q3750 | Q37100 |
maxi cleaning weight(kg) | 500 | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 10000 |
hang maxi outer size(mm) | 600X1200 | 700X1200 | 1000X1600 | 1200X1800 | 1400X2200 | 1600X2300 | 1800X2500 | 3000X3000 |
shot blasting capacity (kg/min) | 2X200 | 2X200 | 2X250 | 3X250 | 3X250 | 3X250 | 4X250 | 5X250 |
hpist lifting capacity(T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
separator separating volume(T/h) | 24 | 24 | 30 | 30 | 45 | 45 | 60 | 75 |
total power(kw) | 22.5 | 23.5 | 39.65 | 47.5 | 56.2 | 65.45 | 85.45 | 97.65 |
ventilation volume(m³/h) | 4000 | 4000 | 5000 | 5000 | 9000 | 11000 | 14000 | 16000 |
