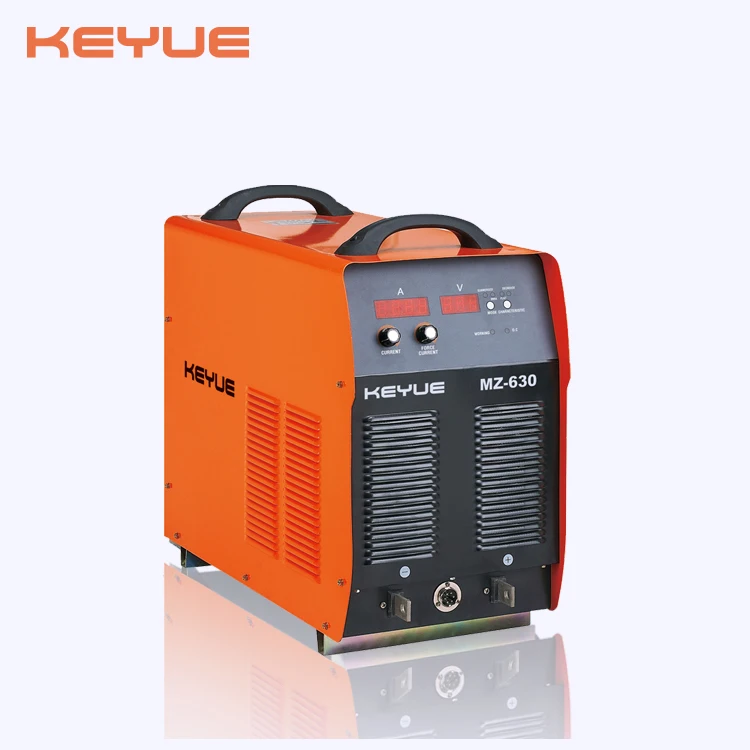

MZ 630 IGBT Inverter Automatic Submerged Arc tank welding machine
- Category: Submerged Arc Welding Equipment >>>
- Supplier: Keyue Welding Equipment Co. Ltd. [Zhejiang China]Keyue
Share on (60005432844):
Product Overview
Description
Product description
Product feature
- Multi-Process capable: Submerged arc welding (SAW), MMA, Gouging
- Heavy duty: 100%
- Wire diameter : 3.0mm to 6.0mm
- Convenient work with: Manipulator and Rotator
| Model | MZ-630 |
| Input voltage(V) | 3PH AC380V±15% |
| Input power(KVA) | 35 |
| Input current (A) | 53 |
| Output current(A) | 60-630 |
| No-load voltage (V) | 90±10% |
| Duty Cycle% (40℃ 10min) | 630A 100% |
| Efficiency (%) | 80 |
| Protection grade | IP21 |
| Insulation grade | F |
| Output characteristic | Decrease characteristic Flat characteristic |
| Net weight (KG) | 52 |
| Gross weight (KG) | 63 |
| Gross weight pf tractor(KG) | 54 |
| Dimension of tractor package (mm) | 1020*480*740 |
| Dimension of machine (mm) | 700*350*638 |
| Dimension of package (mm) | 760*480*710 |
