AIRTAC Air Filter GF Series Air Filter Pneumatic Filter

Product Overview

Description

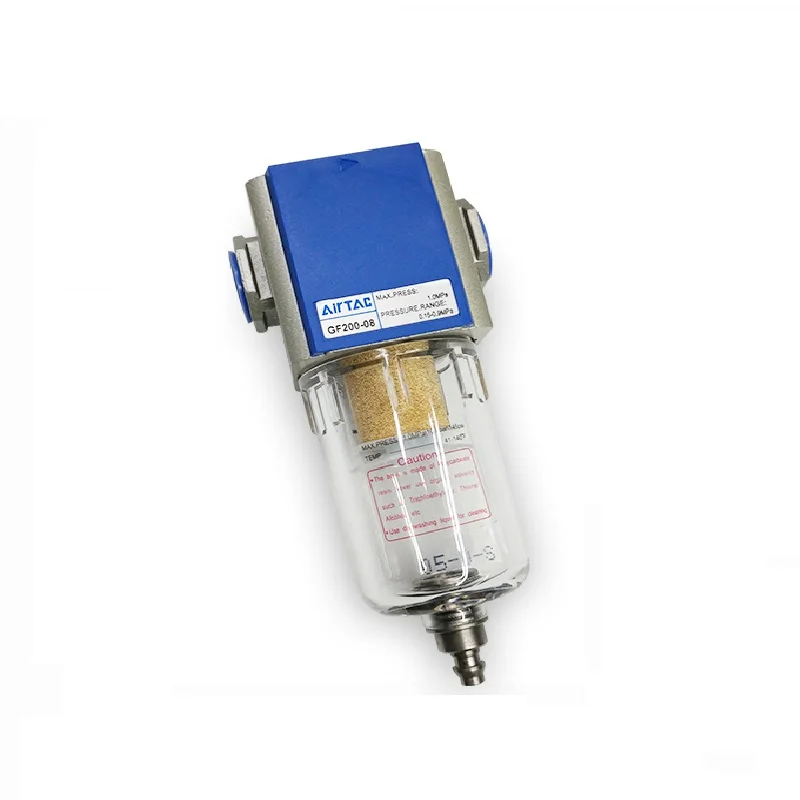

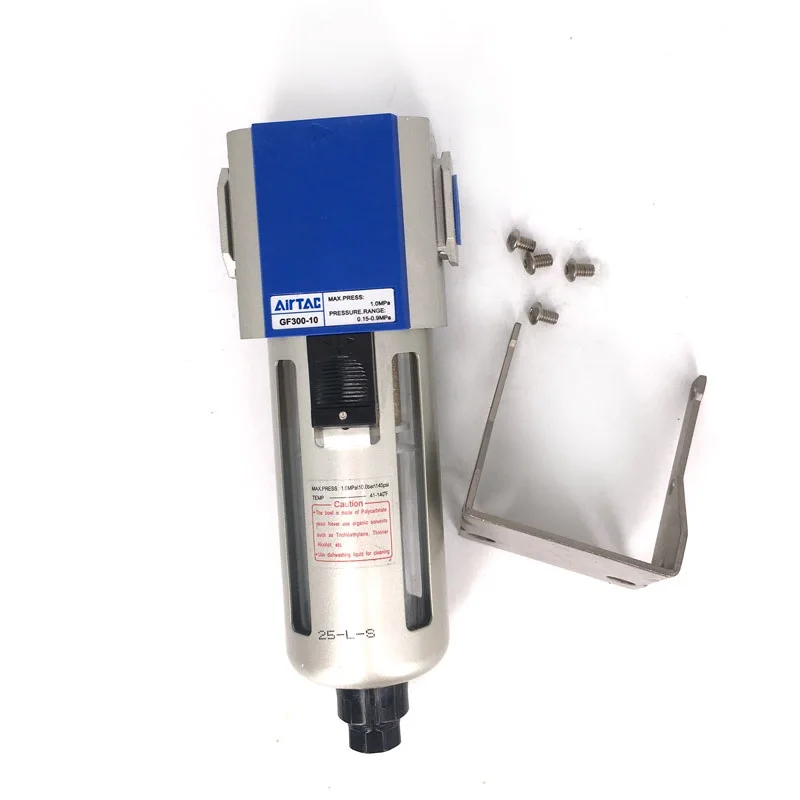

AIRTAC Air Filter-GF Series Air Filter-Pneumatic Filter

Features:

1.GF series air filter is equivalent to AIRTAC

2.PT,G and NPT thread are all available.

3.Port size:1/8", 1/4", 3/8" to 1/2"

4.Auto drain is available.

5.Long service of life, easy to control and maintain.

How To Order:

Specification:

Model		GF200-06	GF200-08	GF300-08	GF300-10	GF300-15	GF400-10	GF400-15
Working fluid		Air
Port size		PT1/8	PT1/4	PT1/4	PT3/8	PT1/2	PT3/8	PT1/2
Filtration		40um or 5um
Adjustable pressure range		0.15~0.9MPa
Working pressure		1.0MPa
Proof pressure		1.5MPa
Working temperature		5~60°C
Bowl drain capacity		10ml		40ml			80ml
Propositional lubrication		ISO VG32 or the samelevel lubrication
Weight		133g		360g			680g



Dimensions and Sizes:

Shippment
1: Usually we ship your order by sea or by air...
2: We do our best to ship your order within 1 week after receiving your payment
3: We'll tell you the tracking number once your order has been sent.
