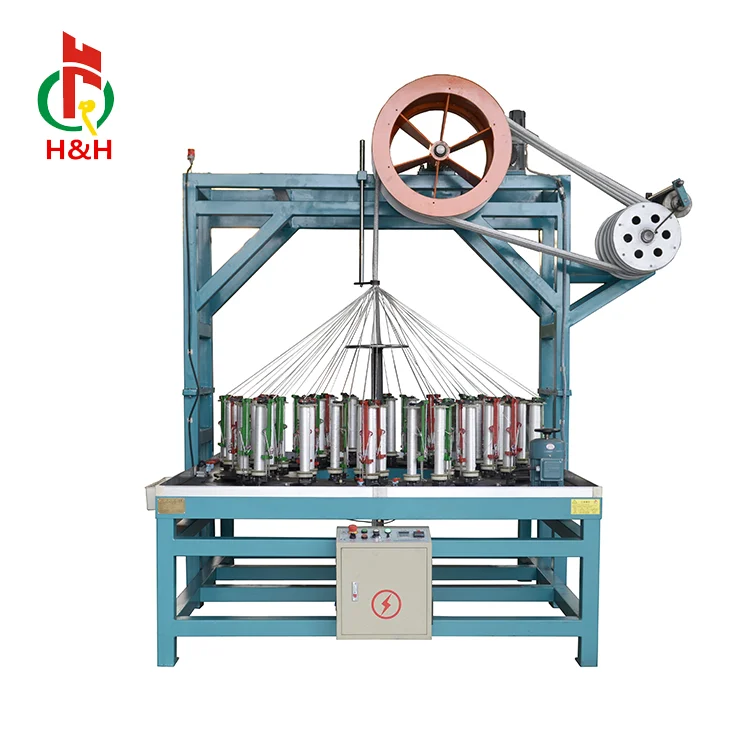

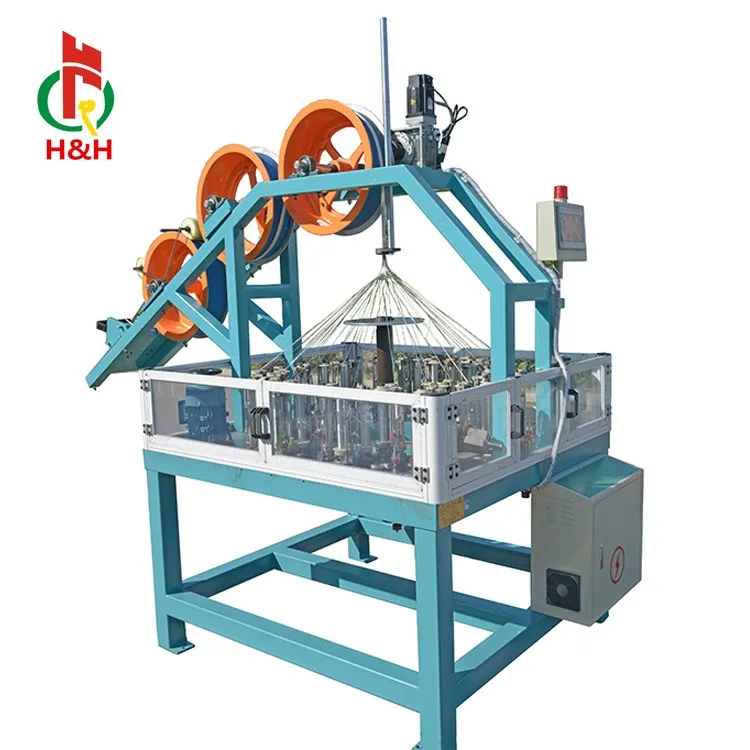

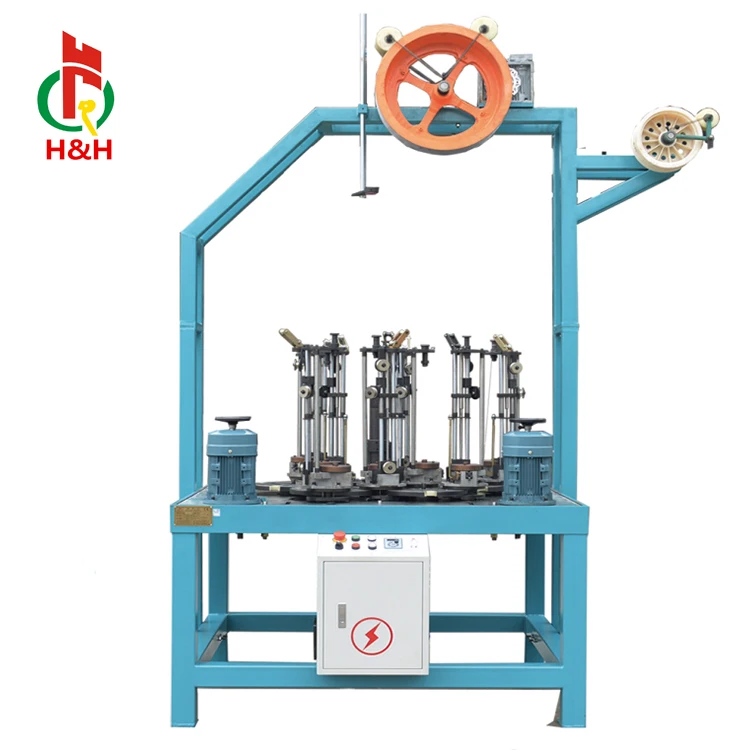

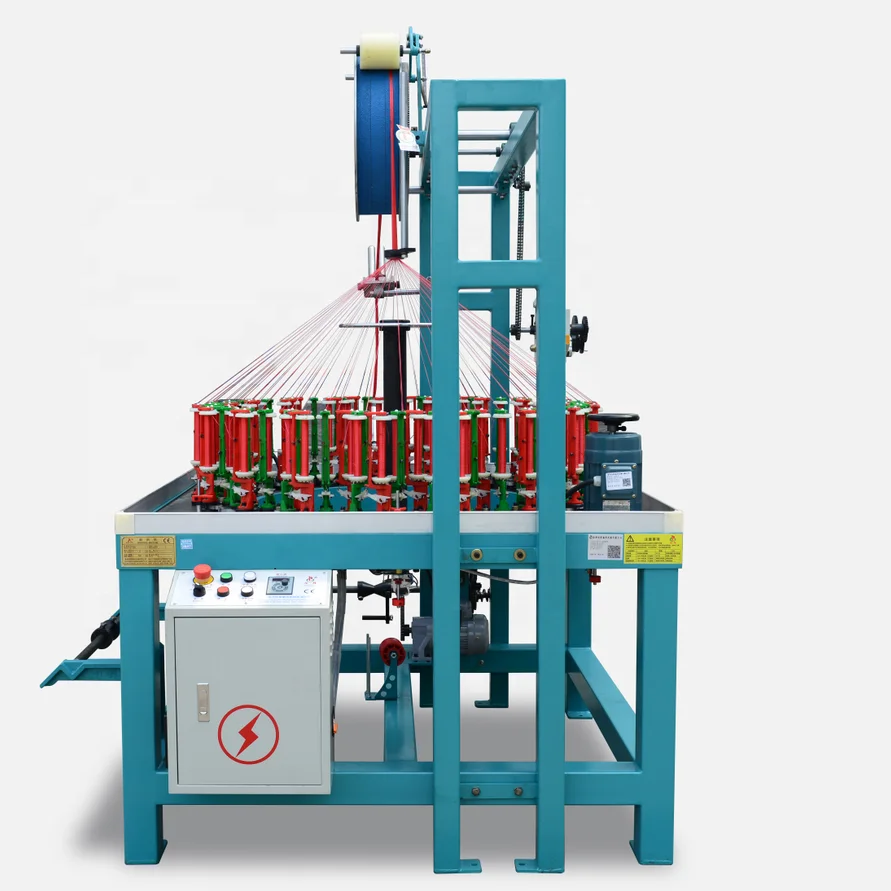

Henghui High Speed 48 spindle Braiding Machine for Flexible Earth Strap Tinned Copper Braid Battery Strap

Share on (60005776308):


Price:$4,500.00 - $4,600.00

Quantity:


Product Overview

Description



Products Description


Xuzhou Henghui Braiding Machine Co. Ltd.
More than 1000 kinds braiding machines, there is always one for you here !
From 3-120 spindles:
rope braiding machine(small and giant);
fashion belt braiding machine,
cords and strings braiding machine,
fashion shoelace braiding machine,
ribbon & lace braiding machine,
fiber glass sleeve braiding machine,
hose braiding machine(flexible hose, water hose, PET hose, etc),
wire &cable braiding machine(high temperature wire, coaxial cable),
tipping machine, bobbin winding machine , etc.

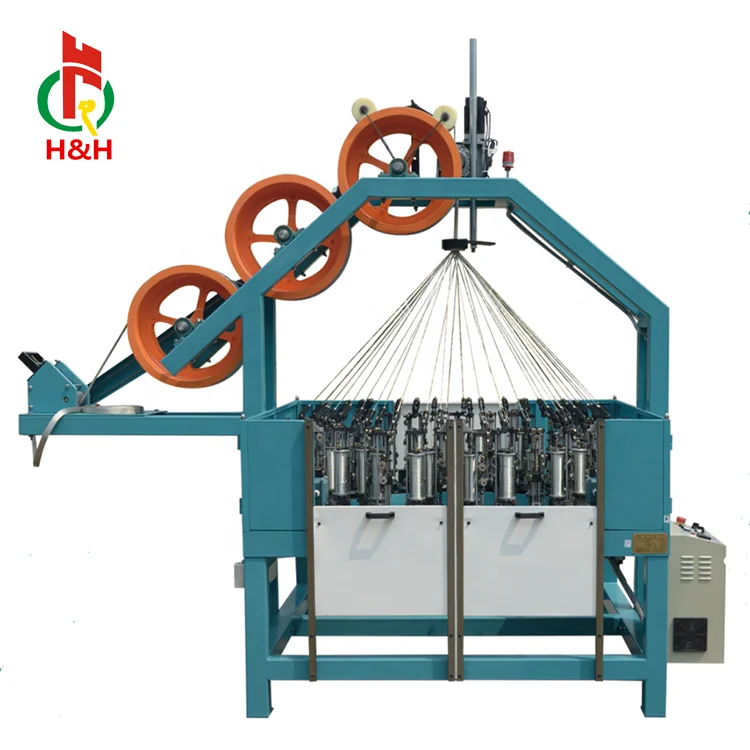

Wire Conduction Band Braiding Machine:


Model
KBL-48-110 Braiding Machine
Bobbin size
56*161mm
Horn gear speed
230rpm
Motor
2.6kw
Wire diameter
0.15mm
Braided size
Max 30mm
Output
60-100m/h
Pitch size
50-300mm
Packing size
1500*1800*1950mm


Advantages:
Wire & cable braiding machinery is functional,including meter counter,auto stop motion,recording,motor overload protection during production,and can be braided with a variety of materials by replacing the spindles.Multiple configurations are available and can be customized to meet a wide range of braiding needs -- various yarns,fiberglass,carbon fiber,asbestos,graphite,and various composite material.



Application:

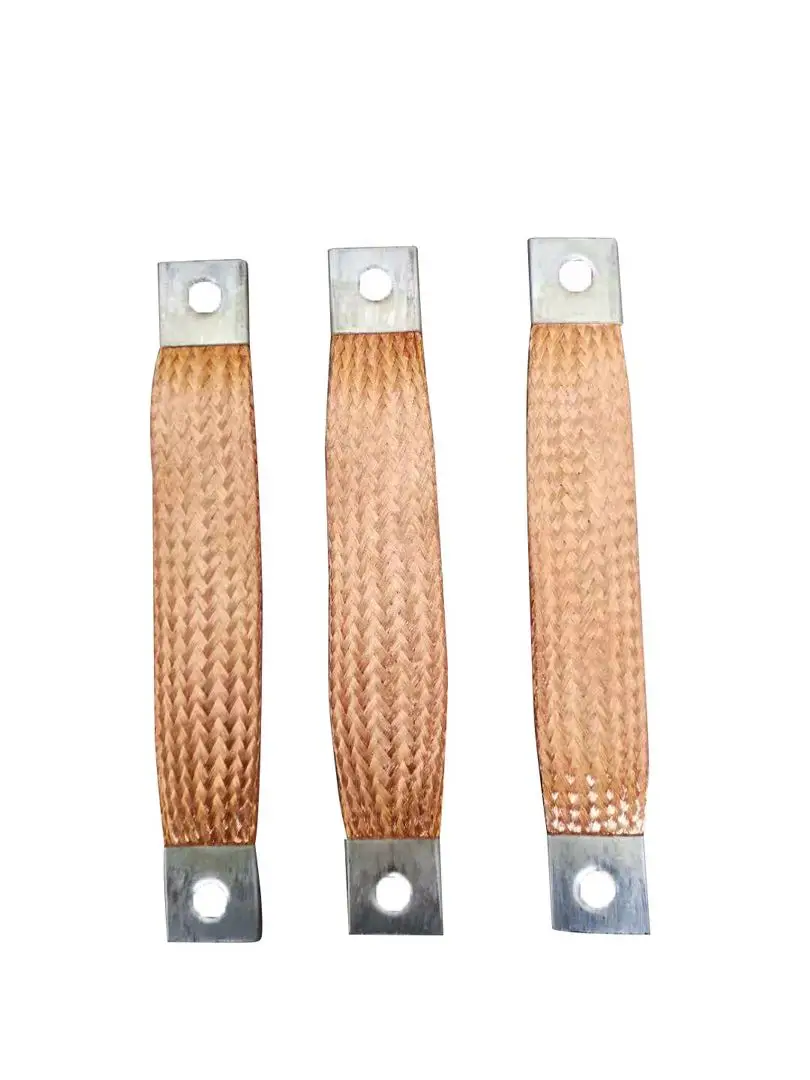

This serie machines are mainly for braiding:communications cable,signal cable,USB cable,high temperature wire,insulation wire,iron wire,special cable,rice cooker power cable,conduction band,shield cable,control cable,shielding layer of cable,coaxical cable,etc.

Material:
Copper,aluminum,magnesium wire,tin wire,stainless steel wire,other metal wire,PP,PE,carbon fiber,fiberglass.



Product Show








Assistant -

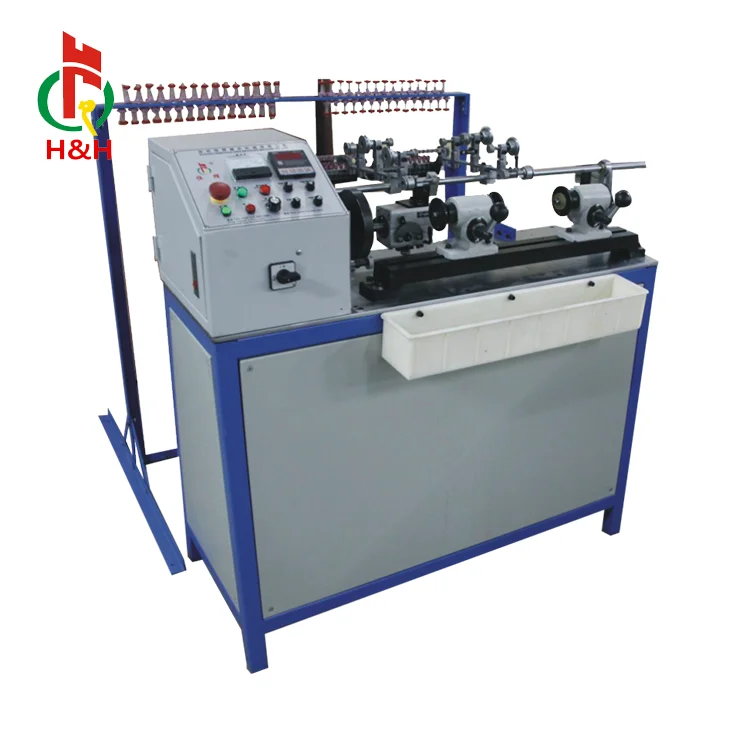

Bobbin Winder

Model:BSJ-2

Head:2 heads

Motor power:0.55kw

Bobbin size: customized by bobbin size

Packing size:1300*900*1300mm






Assistant -

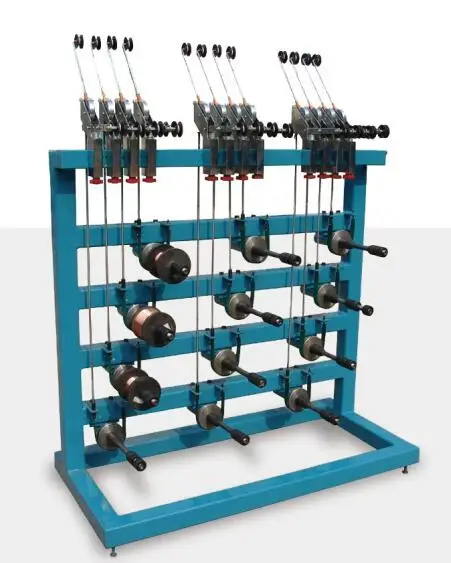

Wire Pay-off Stand

Diameter of single wire:0.01-0.2mm

Wires in one strand: 1 - 20 wires


Usage:
to make the metal wire or the yarn
with tension has stable tension
so that the materials can be winded
well onto the bobbin.







Please note:
If you want to consult other more machine models information,
welcome to contact me through the following contact information,
thank you.



Contact Information




Packing & Shipping




Our Company


Xuzhou Henghui Braiding Machine Company is the largest braidng machine factory in China .here are kinds of braiding machiens for different braided production . 3 spindle to 300 spindles , like the shoelace braiding machine , rope braiding machine , cord braiding machine , string braiding machine , wire and cable braiding machine,line braiding machine , zigzag lace braiding machine , elastic braiding machine , mooring rope braiding machines, glassfiber braiding machine ,fishing net cord braiding machine ,candle wicks braiding machine , harness cord braiding machines and so on.

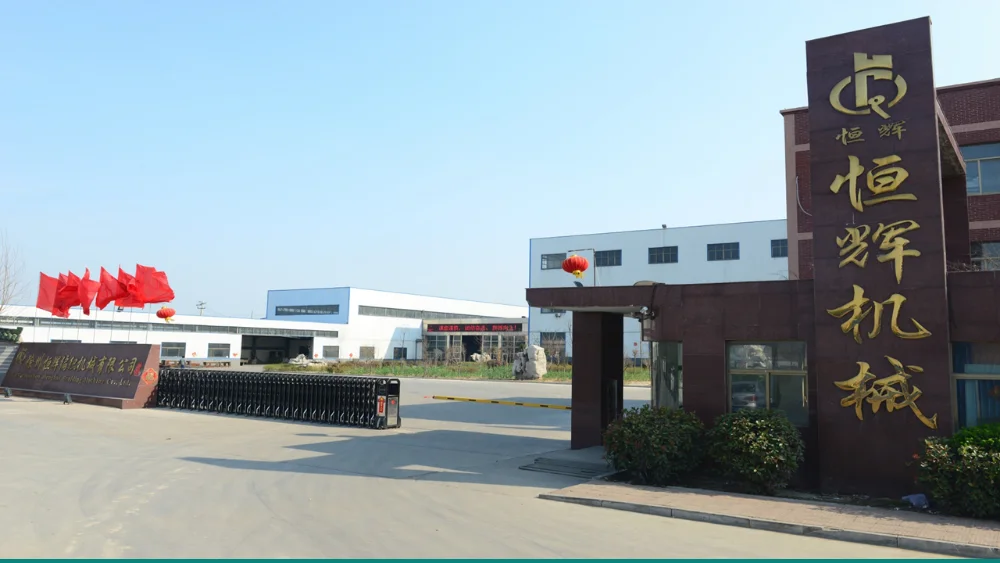

Factory

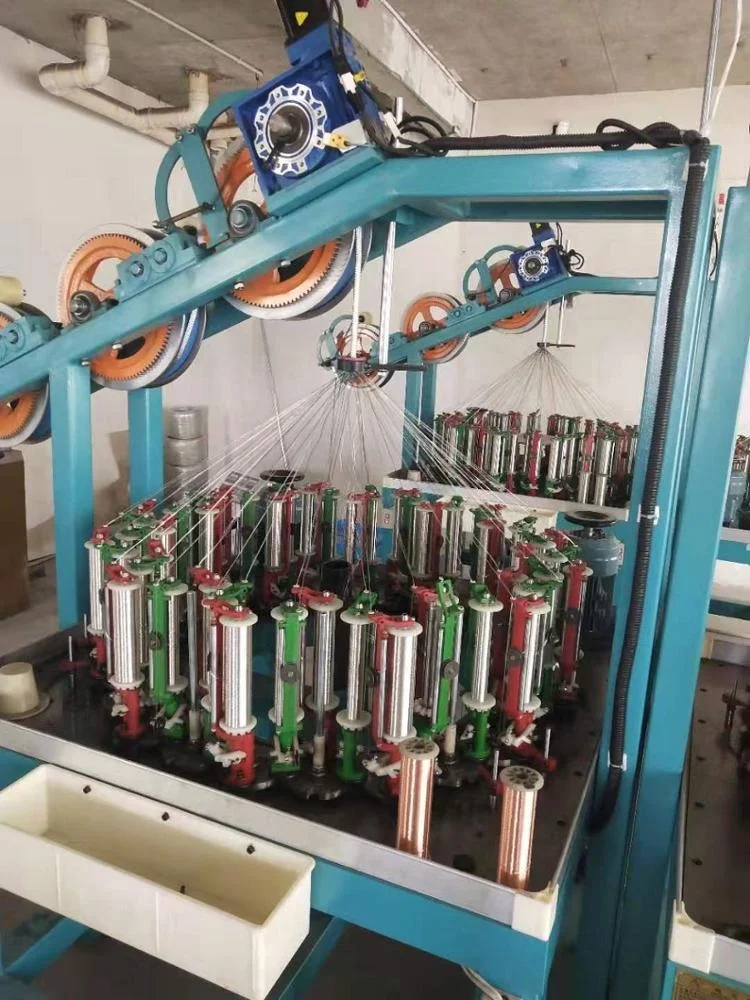

Workshop





Production Equipments





Exhibitions



Our Certifications




Our Clients




FAQ


Q:Are you a manufacturer or trading company?
A: we are a manufacturer, we have 36 years experience in the design and manufacture of braiding machine

Q:What informations should I offer to get a detailed quotation from you?
A: Rope diameter ,rope usefull, sample rope picture ,braid material,the best you know machine model or Machine photo you find from other factories or before your machine bobbin size

Q:What is the most important thing to make sure before order?
A:Machine working power: 220V/60HZ/3PHASE, 380V/50HZ/3PHASE ,440V/50HZ/3PHASE or others

Q:Can you install the machine and make the machine running stablely for us after machine arrive?
A:Our machine is mostly ready for running directly, as we already debugged the machine before shipping, you just need to follow our manual.
For first time doing this business, we suggest you to study in our factory freely.
If neccessory, our technicians are available to service overseas,you only need to afford his air ticket, Accommodation.

Q: What should we do if the machine strike during working?
Our machine has 1 year guarantee, for easy worn down spare parts ,we have already shipped some together with the machine. In this guarantee year, these spare parts are free, you only need to pay freight cost.
We after-sales technician are always available to offer technician support by long-distance or overseas.
In some countries ,we have office or agent, you can directly ask our oversea technician to solve the problem in your factory.

Q:Where is your factory located? How can I visit there?
A: Our factory is located in Xuzhou city Jiangsu province , China.You can fly to shanghai hongqiao airport directly.From hongqiao airport or station to our factory just 3 hours by train, All our clients are from home or abroad, are warmly welcome to visit us!
