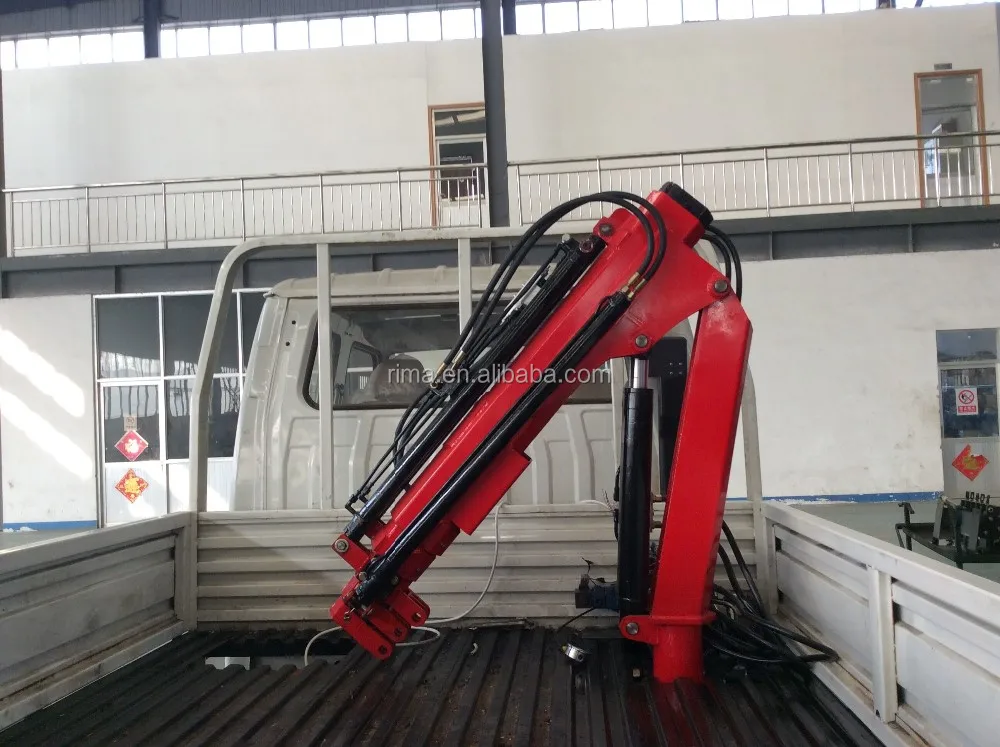

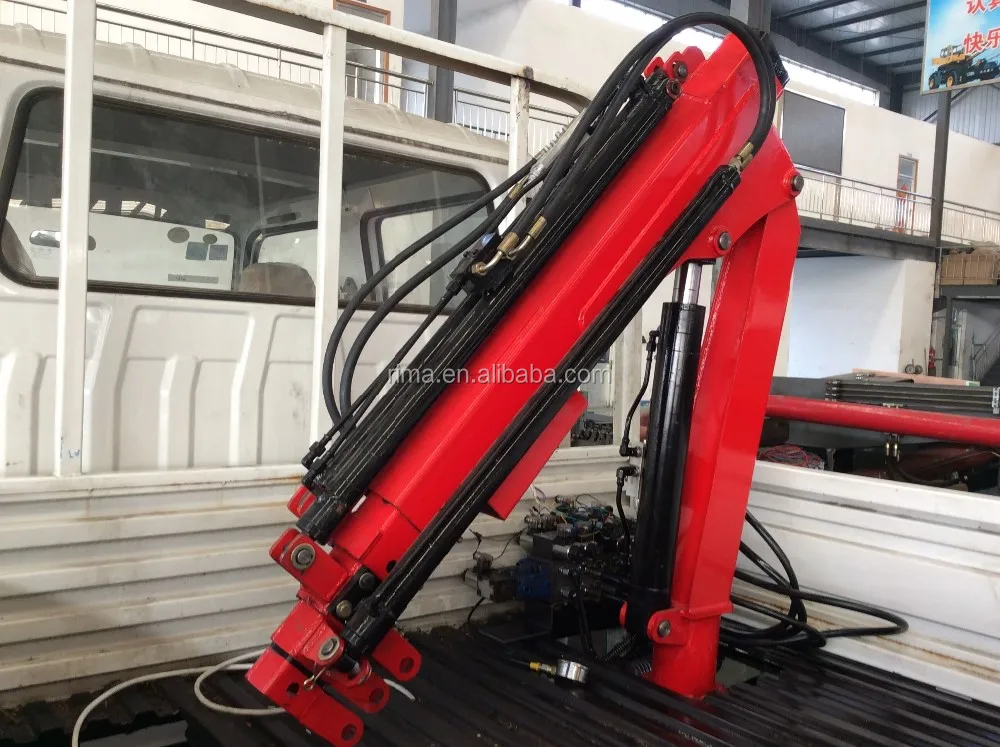

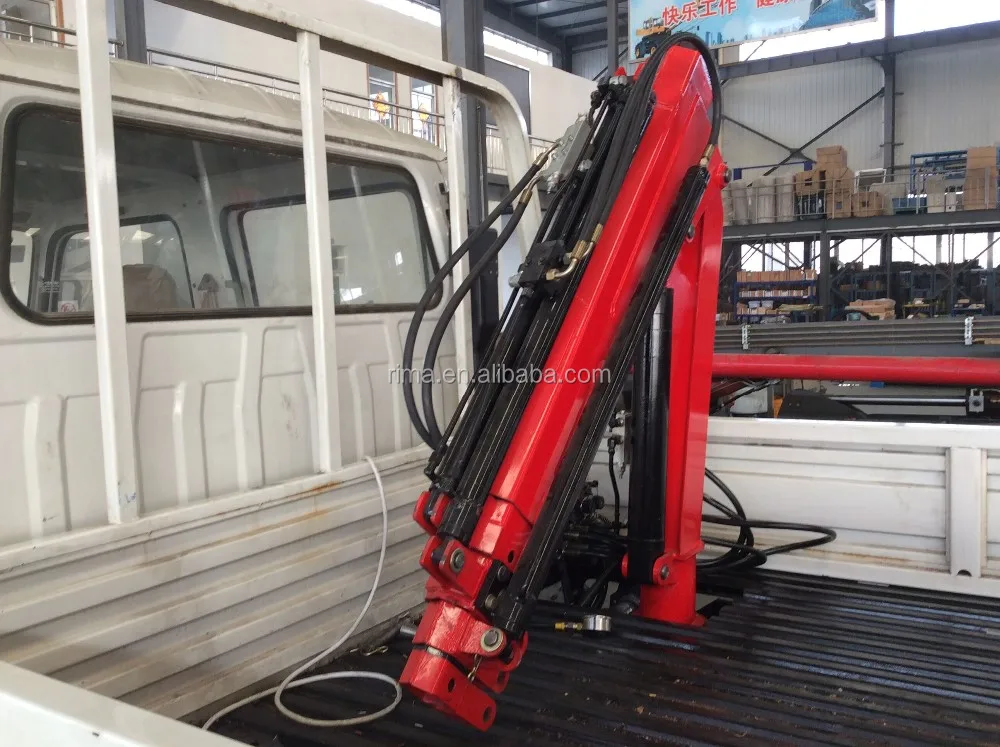

1 ton pickup hydraulic crane

Model

MLC1000

Load moment

1.5tm

Lifting capacity at min. reach

1.3-1200m/kg

Lifting capacity at max. reach

3.5-250m/kg

Mix Reach

3.5m

Telescopic boom

3 section

Slewing angle

370°

Slewing cylinder

2 pcs

Electro - hydraulic proportional control system

Height above chassis

1000mm

Max. lifting height above base

3.2m

Pump performance

2-3L/min

Working pressure

15.5Mpa

Separate electro-hydraulic pump

24 V

Height above chassis

1565mm

Oil capacity in base

8L

Power

24V

Weight

200kg
