Product Overview

Description

               heat shrink cable repair sleeves













Heat shrink cable repair sleeves for telecom cables are fiber reinforced heat shrink closures designed for the protection of cable joints for the non-pressurized telecom cables network.

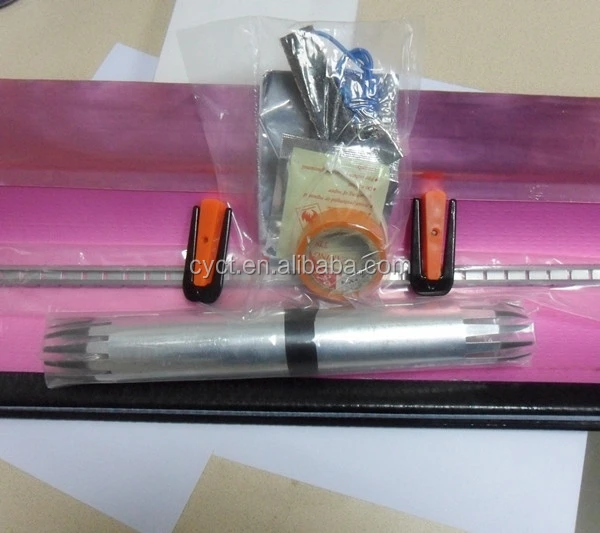

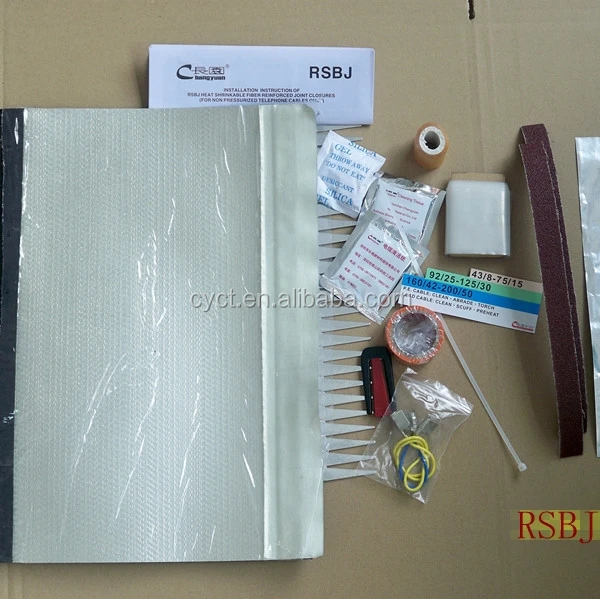

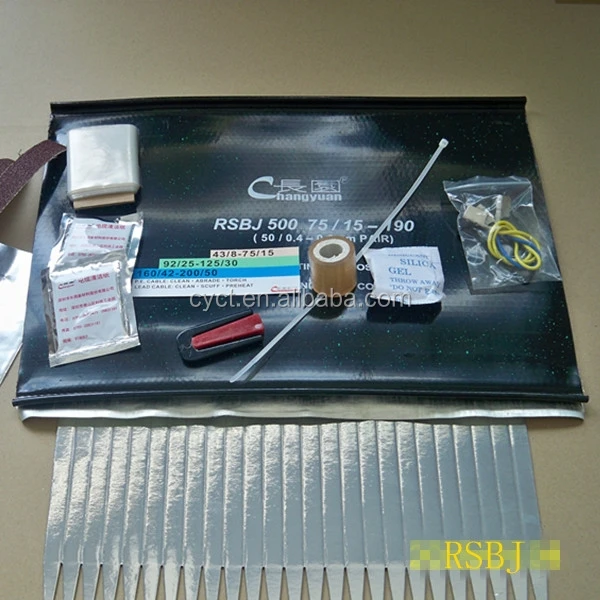

 CYG heat shrink repair sleeve mainly consists of a heat shrink, reinforced and wraparound sleeve and a wrap-around metal canister/cardboard liner.











Specification of heat shrink cable repair sleeves  :



No.	Tyco Equivalent Model	Max splice bundle diameter, D	Min cable diameter, d	Splice length, L
RSBJ 43/8-350	XAGA 550 43/8-350	43	8	350
RSBJ 55/12-150	XAGA 500-55/12-150	55	12	150
RSBJ 75/15-250	XAGA 550 75/15-250	75	15	250
RSBJ 75/15-500	XAGA 550 75/15-500	75	15	500
RSBJ 92/25-500	XAGA 550 92/25-500	92	25	500
RSBJ 122/30-500	XAGA 550 122/30-500	122	30	500
RSBJ 122/30-650	XAGA 550 122/30-650	122	30	650
RSBJ 160/42-720	XAGA 550 160/42-720	160	42	720
RSBJ 200/50-500	XAGA 550 200/50-500	200	50	500
RSBJ 200/50-720	XAGA 550 200/50-720	200	50	720





CYG heat shrink repair sleeve is equal to XAGA 500 heat shrinkable joint closures with hard paper liner is used on cables with the capacity up to 800 pairs. Branched closures can also be installed (max 3 cables from each side).









Pls. feel free to contact us for more details of  heat shrink cable repair sleeves.
