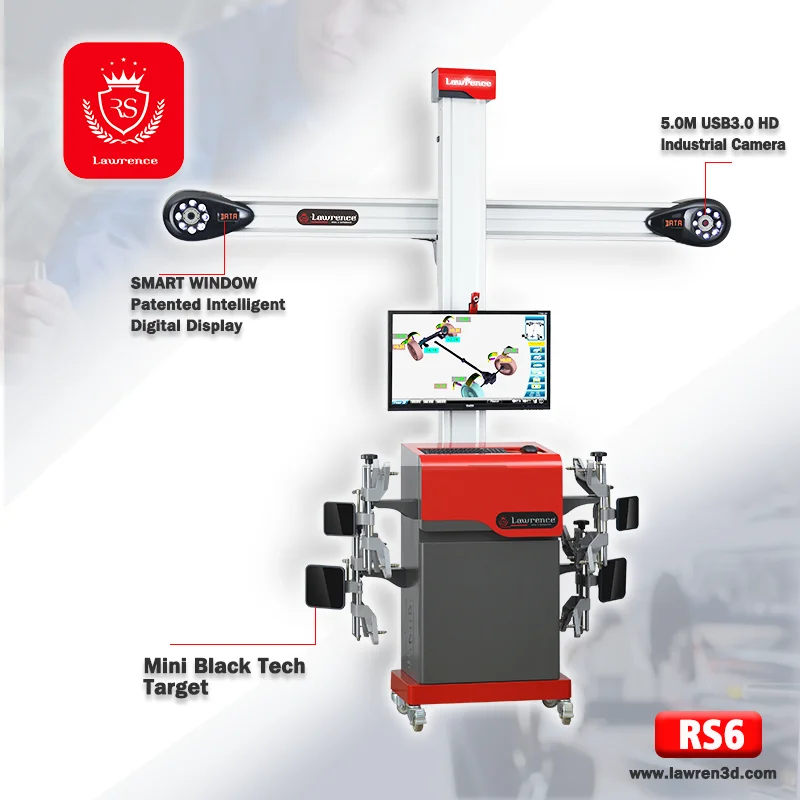

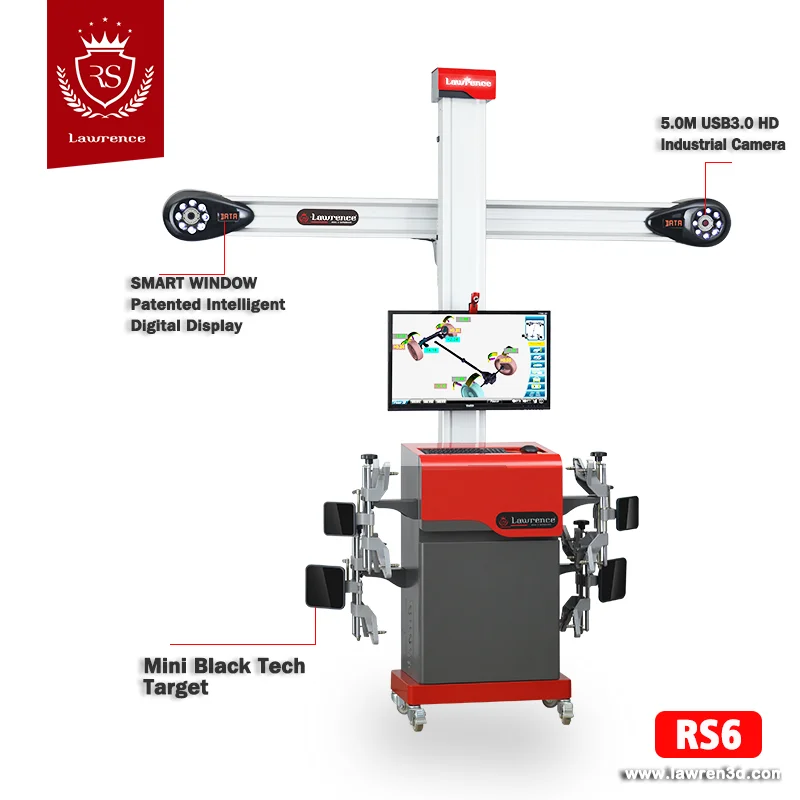

Lawrence RS6 garage equipment 3d software  wheel alignment machine



3d wheel alignment   RS-6

Four wheel alignment system, Auto 3D wheel aligner system
Intuitive,simple and easy to operate
Pushing cars back/forth to measure
high precision and quality

3D dynamic simulation  measurement

technology, leading both in China and abroad.



1  Standard Configuration:

Exquisite movable small cabinet	Intelligent Auto Lifting pole	high performance computer	32''LCD monitor	HP printer	special target disk
deluxe clamping tire clamps	PC Camera	Steering lock &  pedal presser	transition blocks of turntable	wedge-shaped pads	turntables



 2  Software Features:

Standard Software:

deluxe three dimensional X3D platform Software	Intelligent outside Brightness recognition
PC Camera showing vehicles on platform function	Voice prompts



Basic Functions:

camber

Caster

Kingpin

Toe-in & Toe-out

Setback

Thrust angle



Extension Functions:

steering wheel correction function	Tire circling radius measurement	animation tutorial	axis deviation measurement	wheel deviation measurement
the vehicle lifting height,	lifting platform level measurement	volkswagon VAG adjustment	rising and jacking up adjustment	Max turning angel&Toe-out-on turn



3  3Dmax Dynamic Display System

It can make the observation of the real 3D profile of each wheel at any time vividly and conveniently.





4  No Electronic Components

There is no electronic components, thus none of electronic circuits trouble will occur. And the solid-state target disks made of special materials are sturdy and durable.

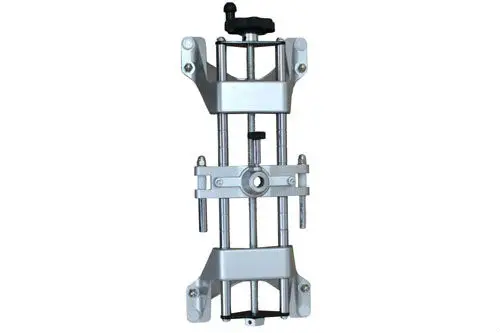

5  Four-point Wheel Clamps

It is suitable for various wheels with diameters ranging 11" to 23". The holding tire clamps and the wheel clamps with maximum 27 " are optional.

6  3D Animation Technics

With the specific high-speed camera and the high-performance computers, it takes only one minute to complete the basic position measurement.

 7  Reminding Window

Helping users complete the measurement, it offers feedback and monitor the measurement process effectively.

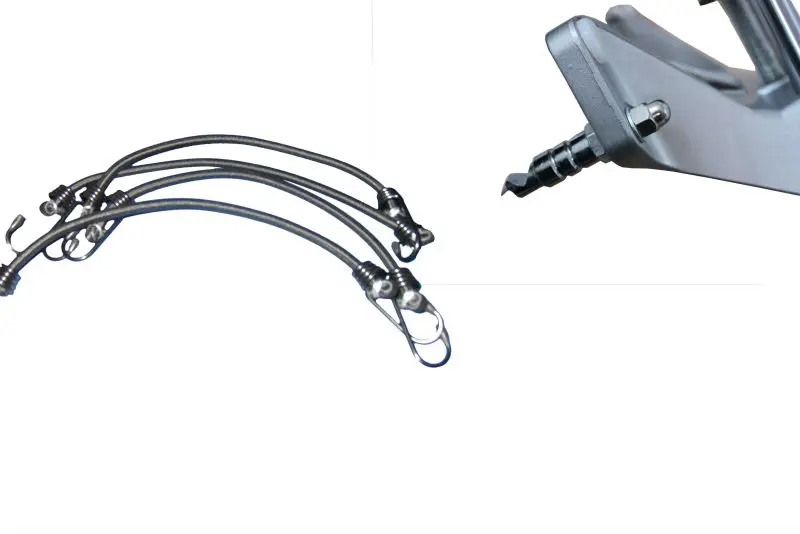

8  Pre-tightening Rotatable Jaw

Fitting for most of the external steel rim and coordinating with the anti-loose retractor, it effectively prevents clamps from falling.

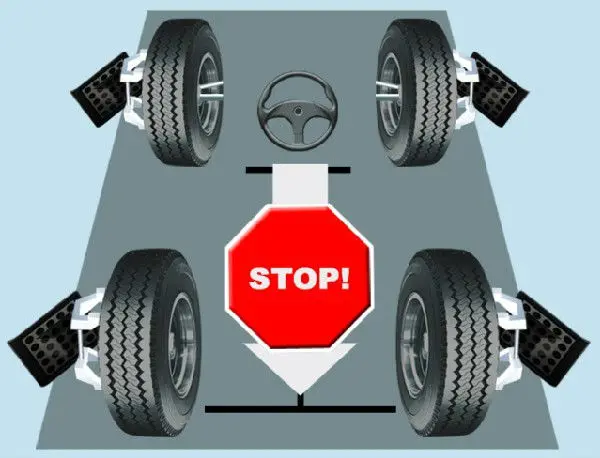

9  Pushing the Vehicle Once

The deviation caused by steel rim and mechanical components deformation, installation errors and other factors can be compensated comprehensively.





.

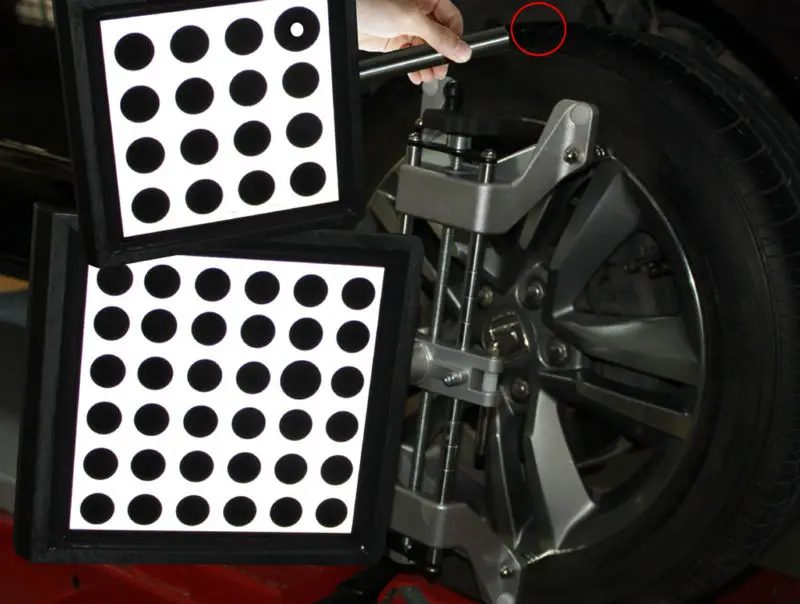

10  Body Height Measurement
Utilizing the target disks for height measrsuring (optional), the height of the vehicle body’s relative plane can be quickly measured.







11  3D Animation Adjustment Guidance
Various adjustment methods of chassis position parameter are available.



Measurement items	Accuracy	Measurement range
Show Precision	1´/1mm
Camber	±1´	±30°
Caster	±1´	±40°
Kingpin Inclination	±1´	±40°
Toe-in & Toe-out	±1´	±30°
Set back	±1´	±5°
Thrust angle	±1´	±5°



Lawrence Machinery Equipment Company Ltd. (USA) named as Dr M • Lawrence • Wilson is one of the three major U.S. companies with independent research and development of 3D four wheel aligning technology as well as with independent brand. And of which Lawrence Laboratory is the integrated laboratory which is mainly engaged in the visual image software processing and vehicle running status researching and each series of products strictly stick to the laboratory standards.



Guangzhou Lawrence Testing Equipment Co., Ltd. is the only Chinese enterprise authorized by Lawrence Machinery Equipment Company Ltd. (USA), which is responsible for production, sales and technical support of Brand “Lawrence” in the Asian-Pacific region.

 "Lawrence" X3D wheel aligner is the world's first adopting V3D +3Dmax technology platform of aligning system so far, of which the measurement adopts three-dimensional shoot technology and data displays in three-dimensional image mode. Make the measurement results more accurate, the effect more realistic and operation more simple and easy to learn.
