Copper winding ELCO fan motor 10w 230V

Share on (60007060114):


Price:RUB 306.39

Quantity:


Product Overview

Description



Product Description

Features:

YZF series Ac Refrigeration Spare Parts Condenser Fan Motor confirm to CCC ,CE,TUV ,UL,CSA standard ,with high efficiency ,good performance,energy saving , lowest noise ,high starting torque ,dustproof , anticorrosion ,long service time .

  • Output power : during 5W to 34W
  • Fan blade diameter : 150mm ( 6") ,170mm( 7") ,200mm ( 8"),230mm ( 9") ,250mm(10") ,300mm (12") .
  • Bracket height : 55mm,72mm,84mm,109mm
  • Direction of rotation : CW or CCW ( view from shaft end )
  • Bearing : Sleeve bearing (standard) or Ball bearing on request
  • Life expectancy : over 30000hours
  • Insulation : Class B . Class E and F on request
  • Direction of rotation: CW or CCW
  • Motor protection: Impedance / thermal protected
  • UL listed, TUV approved and CE certificated
  • Fan blade , bracket , range of Guards and Shrouds are available
  • Direction of airflow : Blowing or Sucking
  • Voltage: 110-120V/60Hz , 220-240V,400v/50hz , 400v
  • refrigeration fan motor sample is available

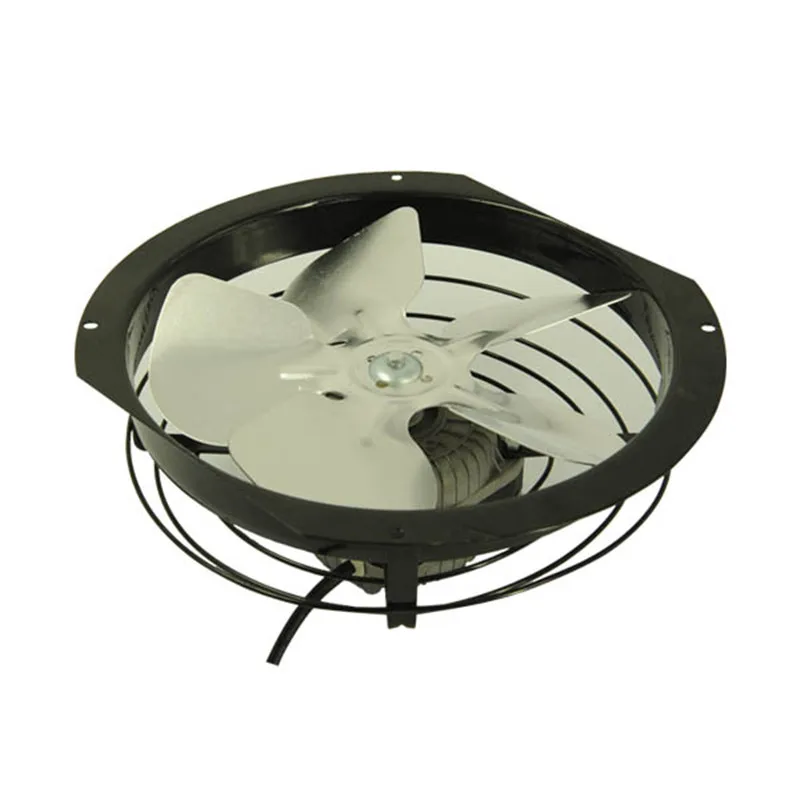

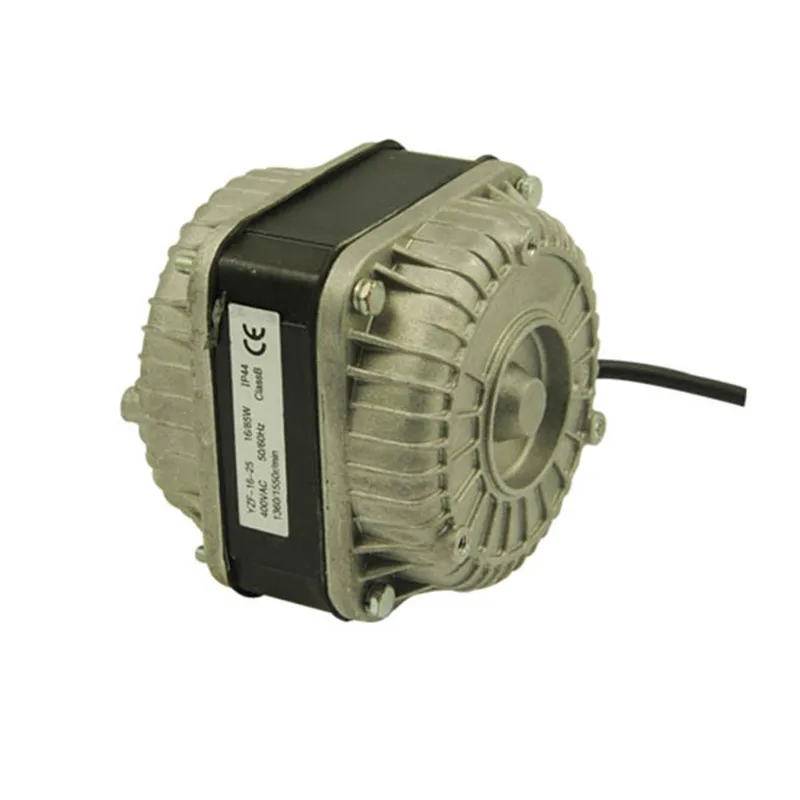

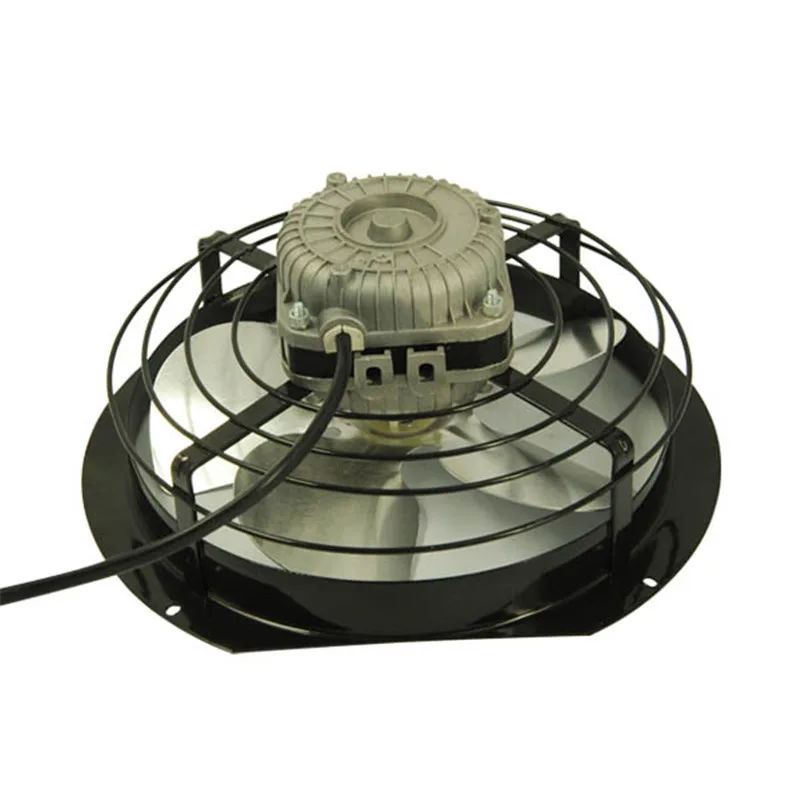

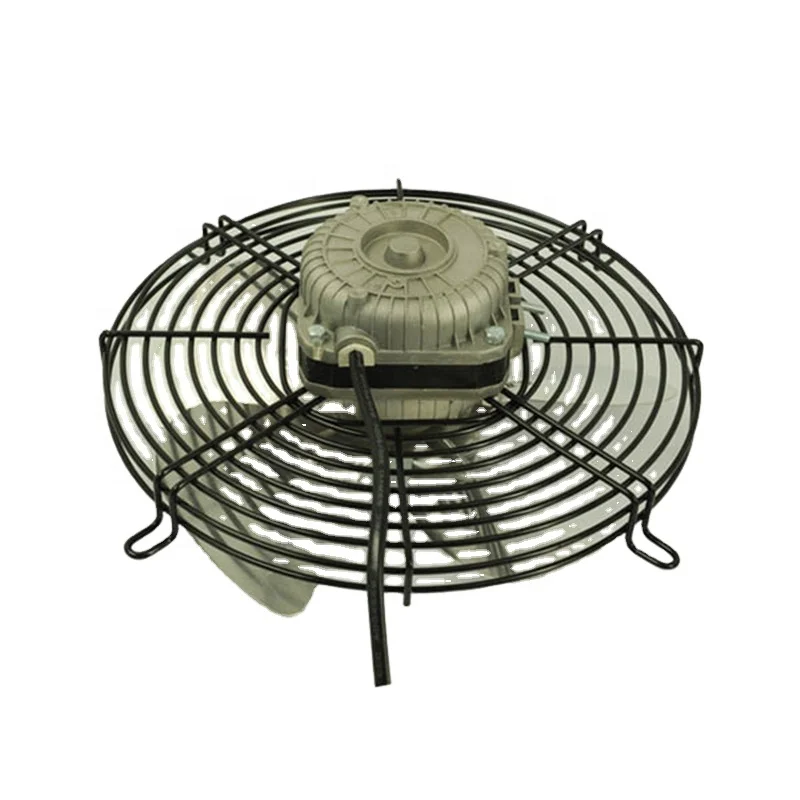

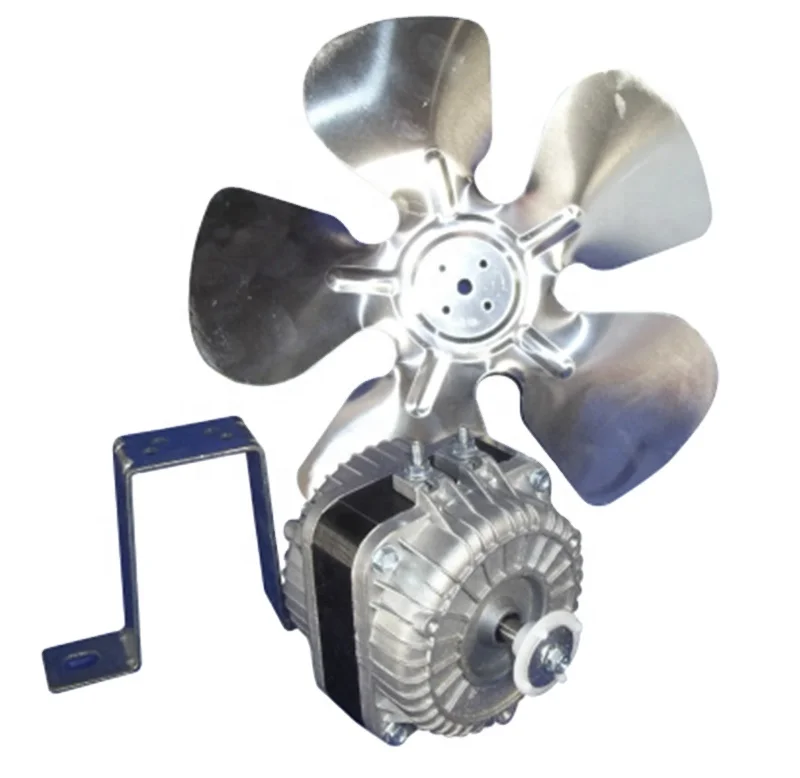

 Product Photos





DSC08816_



DSC08807_



Specification



Model Voltage Output Power
(W)
Current
(A)
Rotation Speed
(r/min)
Weight
(KGS)
Fan blade size
(mm)
Stator height
A
Height of Bracket
YZF3/10 110V 3 0.16 1300/1550 0.8 150 13 72
YZF5/13 115V 5 0.2 1300/1550 1 170 13 72
YZF7/15 120V 7 0.22 1300/1550 1.1 170 15 72
YZF10/20 220V 10 0.25 1300/1550 1.2 200 20 84
YZF16/25 230V 16 0.42 1300/1550 1.4 250 25 84
YZF18/28 240V 18 0.55 1300/1550 1.5 250 28 84
YZF25/30 400V 25 0.62 1300/1550 1.8 300 30 109
YZF34/40 400V 34 0.83 1300/1550 2 300 40 109
                 VOLTAGE :110-127,60HZ   220-240V,50/60HZ 400 V/50HZ





Item Name

Promotion High Quality Refrigeration Shaded Pole Condenser fan motors

Type

Condenser Fan Motor

Voltage

110/120/220/240V/400V  50/60Hz

Material

Aluminum cover with 100% copper wire

MOQ

500  PCS

Capacity

100,000 PCS / Week

Port of Loading

Ningbo ,Shanghai or Guangzhou ,China

Payment Terms

T/T, Western Union,L/C at sight

Warranty time

3 years

Package

Export carton or Pallet






Packaging & Shipping



1. Packing item:  Export Carton and Pallet .

2.Payment item : FOB ,C&F ,CIF ,EXW price term is available .For samples motor ,you can pay via Western Union,T/T. mass production order , please pay by T/T or L/C at sight . we aslo accept Online order by Alibaba Trade Assurance .

3.Delivery time : 30% -50% deposit ,balance before or against the copy of BL or irrevocable L/C.





Our Services

                                                                                               WHY Choose Us

1. 18 years working experience for household appliance motors .

2.  we offer 3 years warranty for the whole products .

3.  Alibaba 7 years golden supplier .

4. Inspection :100% In coming, in process inspection before final packing.

5. OEM /ODM :we can make the sample as your sample or design drawing.

 6. Sample free of charge when we start to cooperate.Small orders,Mixed orders,Trial orders are accepted . Customers pay the charge of Freight .

7. Prompt replywe can reply your inquiry and email within 24 hours.

8.Fast DeliveryThe delivery time is within 4 weeks (depend on your QTY) after receiving the deposit.

9. Professional Motor Manufacture with 6 production lines and 215 skilled workers .
10.ertifications:Passed the ISO9001:2008 and international certificate as CE,TUV,SGS,UL,CSA,RoHS.ect.
