Компактный пневматический цилиндр серии AIRTAC ТИПА SDA

Product Overview

Description

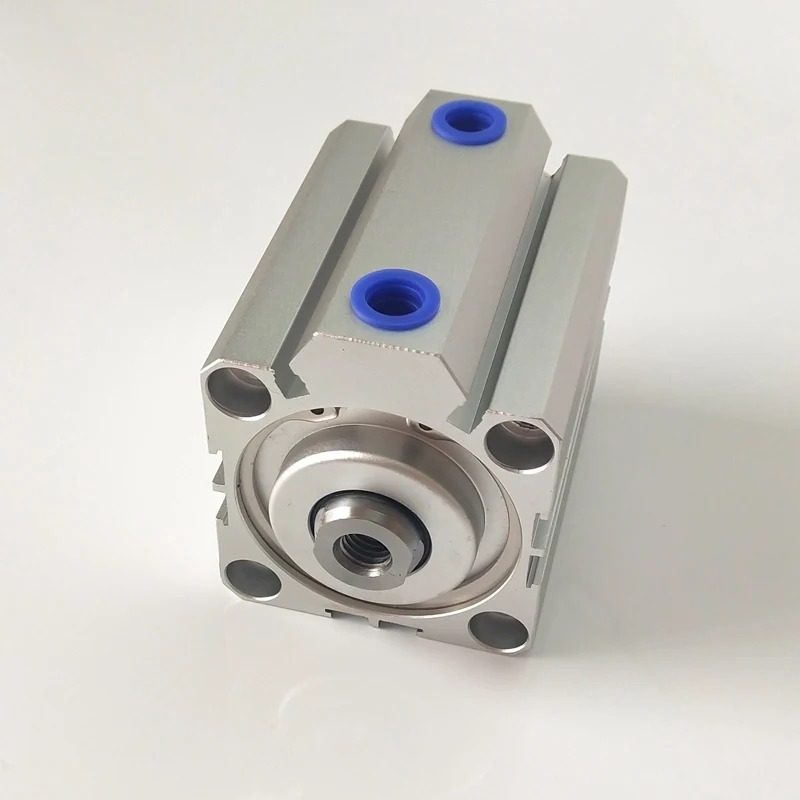

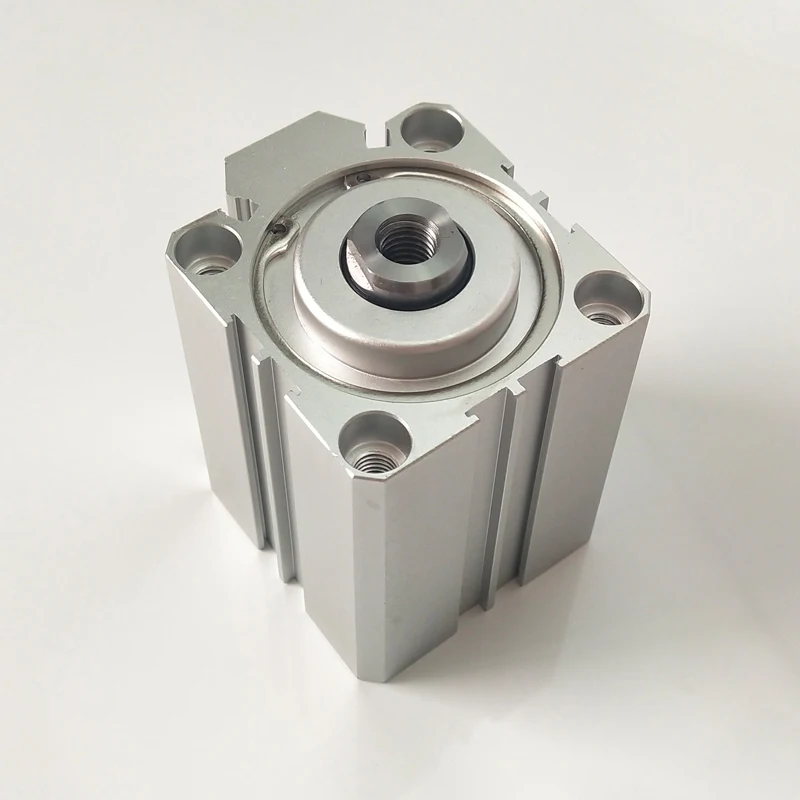

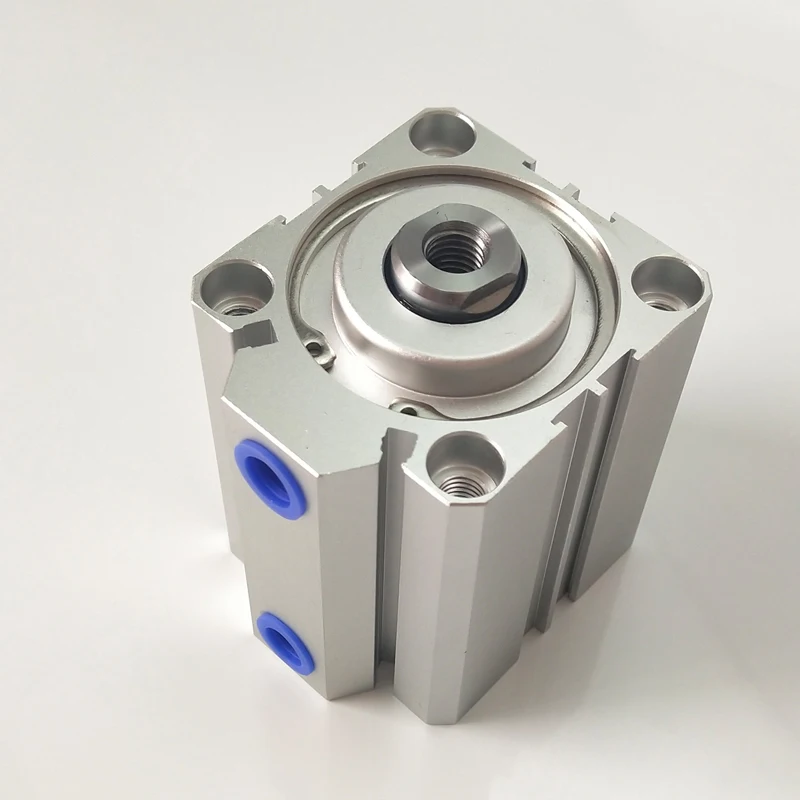

AIRTAC Type SDA Series Compact Pneumatic Cylinder

Features:

1.SDA Series Magnetic Pneumatic Cylidners .

2.Equivalent to AIRTAC SDA Series Magnetic Pneumatic Cylidners , with the same appearance.

3.Compact design.

4.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.

5.Double acting, Single/Double rod

6.Single acting, Single rod, Spring return/extend.

7.Rubber bumper is standard.

8.Built-in magnet is optional.

9.Cylinder kits, barrel, piston is available.



How to Order:

Specification:

Bore size (mm)		12	16	20	25	32	40	50	63	80	100
Fluid		Air
Action	SDA/SDAD/SDAJ	Double acting, Single/Double rod
	SSA/STA	Single acting, Single rod, Spring return/extend								-
Minimum operating pressure	Double Acting	0.1 MPa
	Single Acting	0.2 MPa								-
Maximum operating pressure		1.0 MPa
Proof pressure		1.5 MPa
Ambient and fluid temperature		-20 to 80°C (No freezing)
Cushion		Rubber bumper
Lubrication		Non-lube
Piston rod dia.		6 mm		8 mm	10 mm	12 mm	16 mm	20 mm		25 mm	32 mm
Rod end thread	Female	M3×0.5		M4×0.7	M5×0.8	M6×1.0	M8×1.25	M10×1.5		M14×1.5	M18×1.5
	Male	M5×0.8		M6×1.0	M8×1.25	M10×1.5	M14×1.5	M18×1.5		M22×1.5	M26×1.8
Port size		M5×0.8				1/8		1/4		3/8



Main Material:



No.	Description	Material	Note
1	Cylinder barrel	Aluminium alloy	Hard anodized
2	Piston rod	High-alloy steel	Hard chrome plated
3	Rod cover	Aluminum alloy	Clear anodized
4	End cover	Aluminum alloy	Clear anodized
5	Piston	Aluminum alloy	Chromated
6	Seal	NBR	-
