Stainless Steel Titanium Alloy Zinc Hand Ratchet Wire Rope Tightener

Product Overview

Description

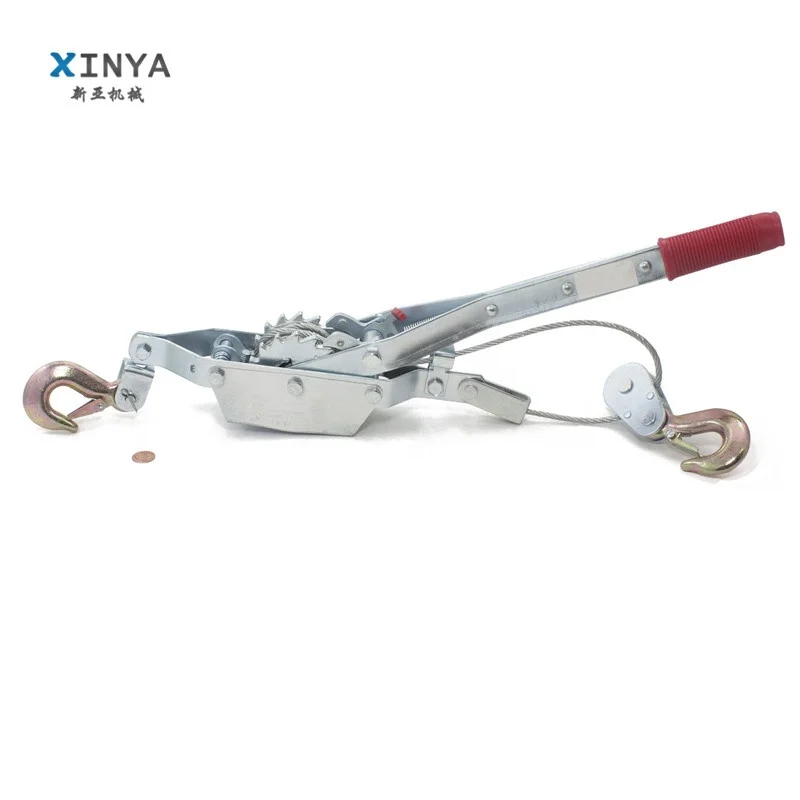

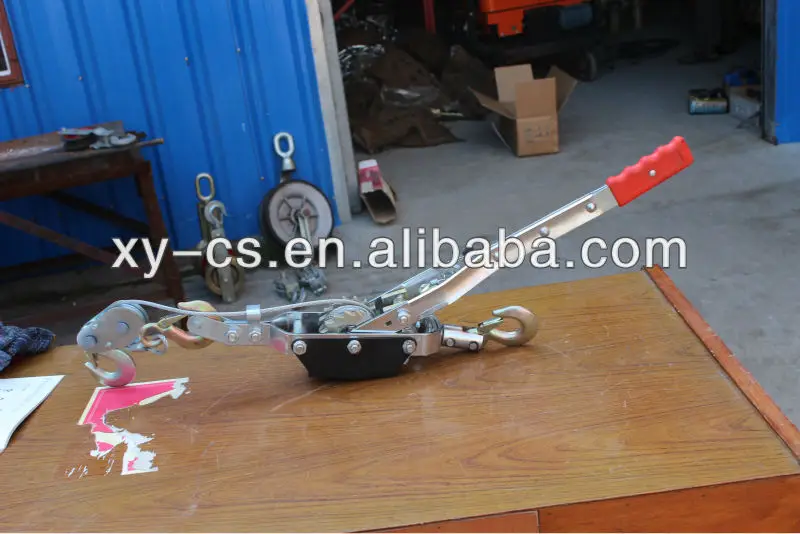

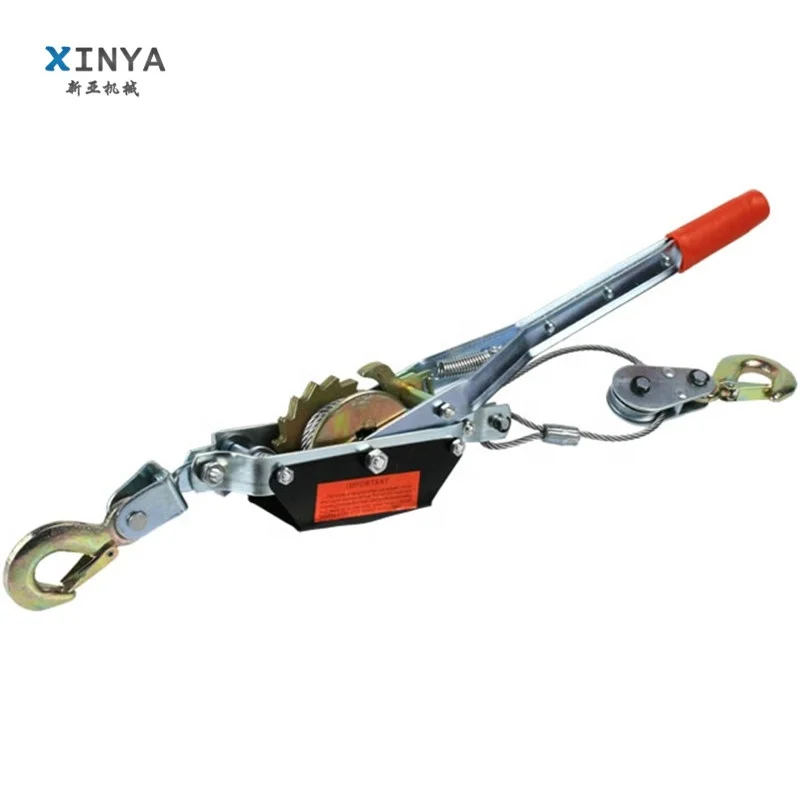

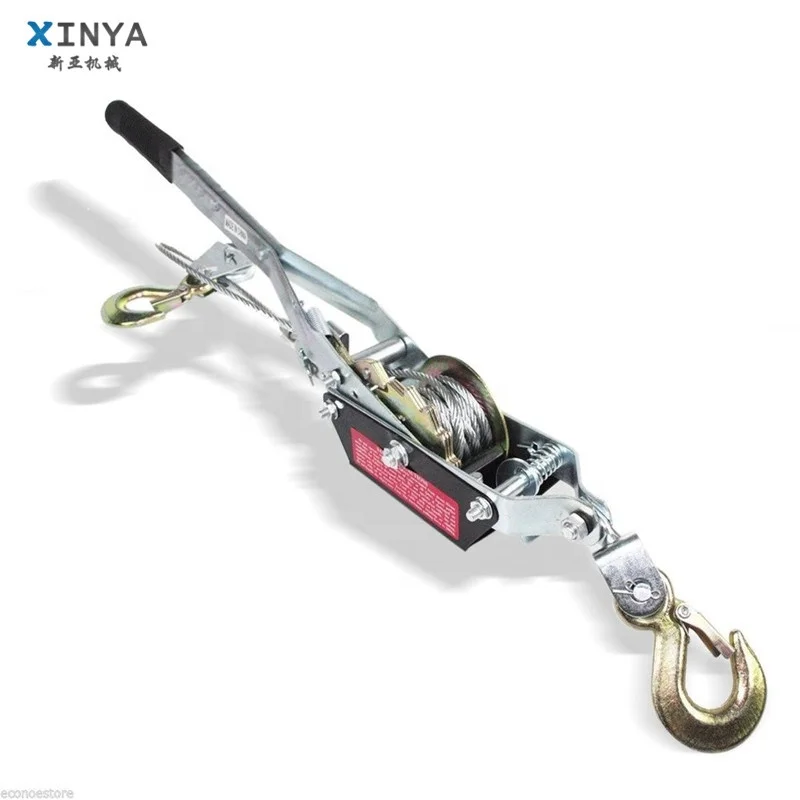

Hand Ratchet Wire Rope Tightener



Application

Hand Ratchet Wire Rope Tightener is used in power transmission construction, telecommunications engineering, tighten the wire or cable .



Features

The tightening mechanism is the double ratchet tooth type, it is safe and reliable, not easy to deformation.





Technical Data for Hand Ratchet Wire Rope Tightener

Product No.	Model Type	Rated Load(KN)	wire diameter & length(mm)	ratchet	weight(kg)
80149	HP-112	10	Φ4.8 * 2200	double	3
80150	HP-122	20	Φ5 * 3000	double	4.5
80151	HP-132	30	Φ6 * 3300	double	6.3
