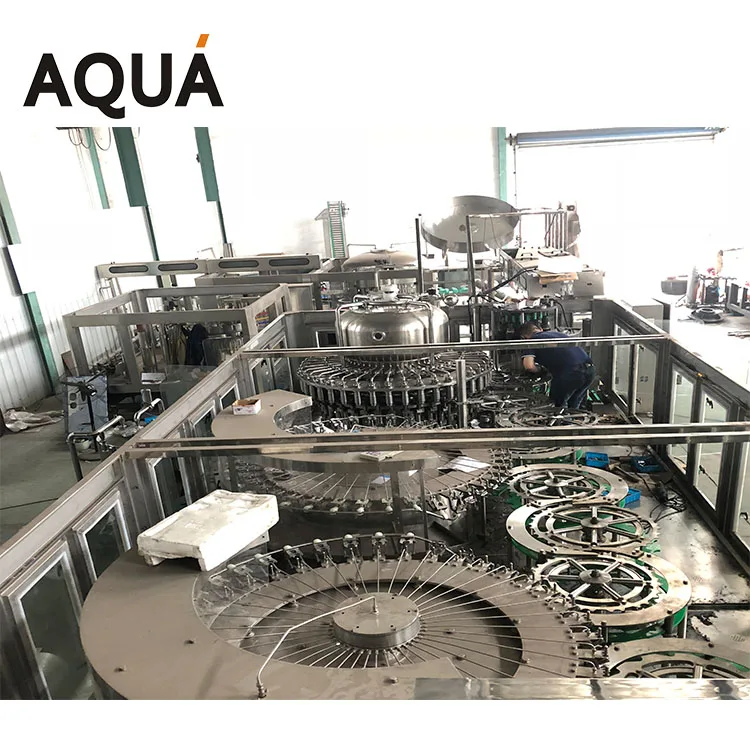

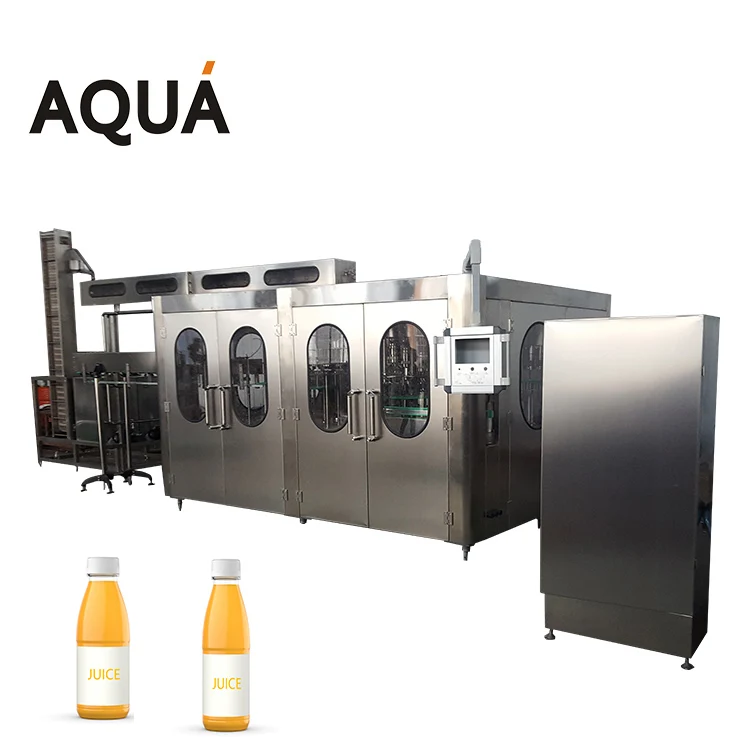

Integrated lemonade/orange fruit juice bottling plant/filling machine/production line
- Category: >>>
- Supplier: Zhangjiagang Aqua Machinery Co. Ltd.
Share on (60008073155):
Product Overview
Description
Integrated lemonade/orange fruit juice bottling plant/filling machine/production line

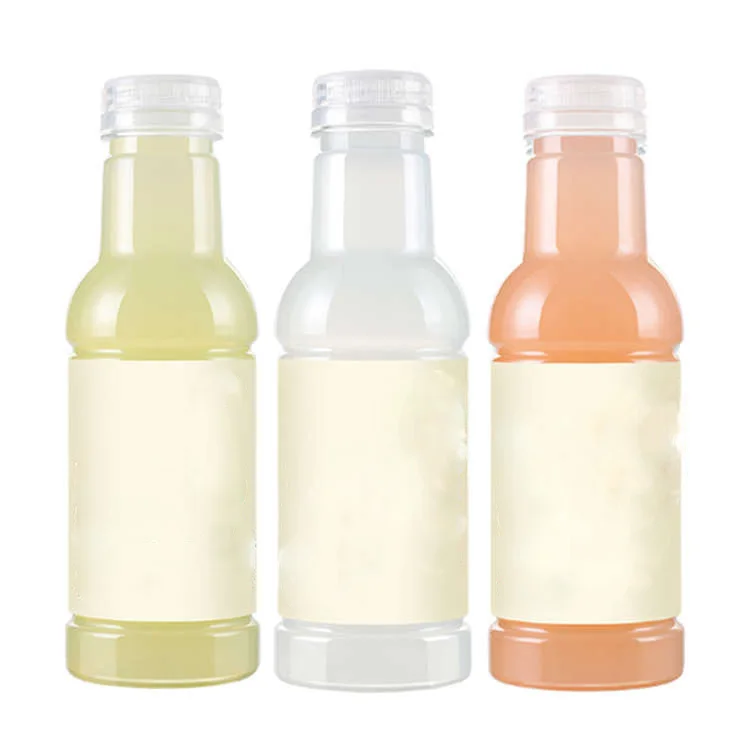

1. Product: Bottled Juice/Tea
2. Suitable bottle: 0.25-2L
3. Authentication: ISO,CE
Product Description of Juice Bottling Plant
1).The juice bottling plant is mainly used for bottling juice ,such as apple juice ,mango juice,orange juice,and other fruit juice.It can also be used for bottling water ,such as pure water and mineral water.
2).The juice bottling plant include washing part ,filling part,and sealing part,all of the process is automatic.
3). The juice bottling plant adopts hanging type conveying-bottle structure to make changing bottle model more convenient, faster and more east.
4). The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automaticly
5). Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.
6). The juice bottling plant is convenient to operate with higher auromation because everypart of the machine is inspected to run with photo electicity.
Technical Data Of Juice Bottling Plant
Model | CGFR 8-8-3 | CGFR 12-12-5 | CGFR 16-12-6 | CGFR 18-18-6 | CGFR 24-24-8 | CGFR 32-32-10 | CGFR 40-40-12 | CGFR 50-50-15 |
Washing No | 8 | 12 | 16 | 18 | 24 | 32 | 40 | 50 |
Filling No | 8 | 12 | 12 | 18 | 24 | 32 | 40 | 50 |
Capping No | 3 | 5 | 6 | 6 | 8 | 10 | 12 | 15 |
Production Capacity(500ml) | 2000 BPH | 3000 BPH | 4000BPH | 6000BPH | 8000BPH | 12000 BPH | 15000 BPH | 18000 BPH |
Install Capacity(KW) | 3.0 | 3.5 | 3.5 | 4 | 4.8 | 7.6 | 8.3 | 9.6 |
Total weight(kg) | 1500 | 2200 | 2500 | 3500 | 5500 | 8000 | 10000 | 12000 |
Overall size | 1900*1420*2000 | 2200*1600*2300 | 2450*1800*2400 | 2650*1900*2400 | 2900*2100*2400 | 4100*2400*2400 | 4550*2650*2400 | 5450*3210*2400 |

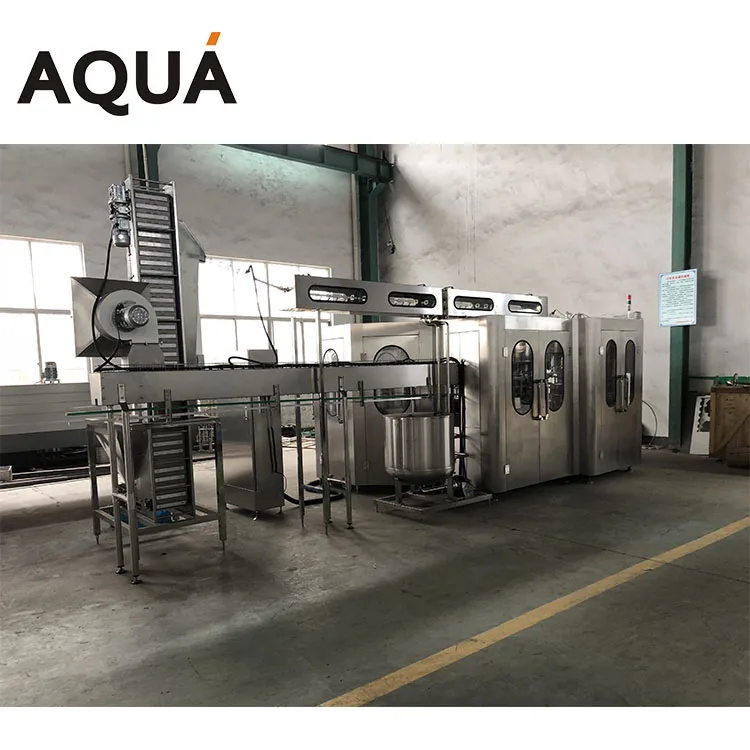

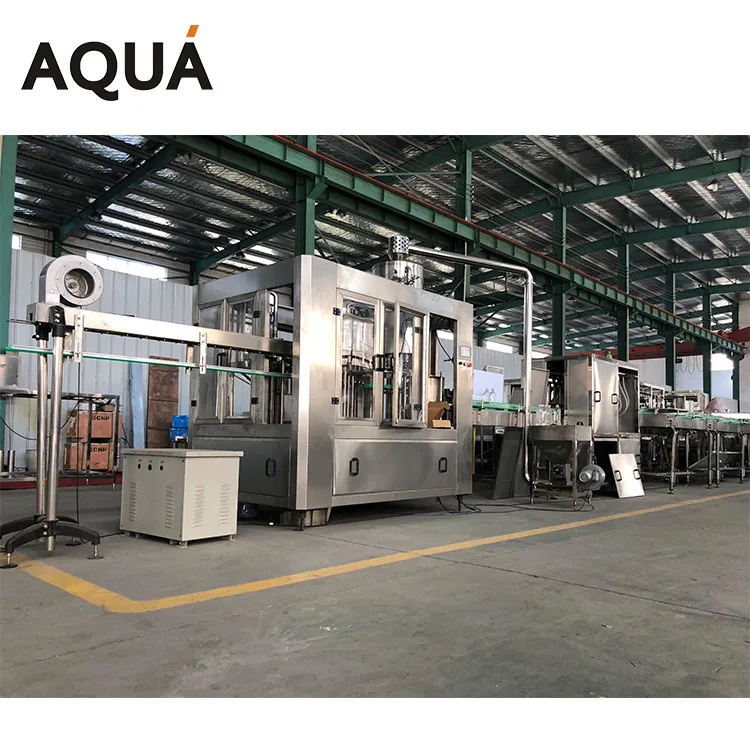

Pictures Of Juice Bottling Plant
l Stainless steel construction, fine which gives excellent appearance and can be easily disinfected.
l Tempering glass window, clear and steadily
l Excellent start wheel design to making it easily when needs to change machine height when bottles sizes are changed.
l Machine Base with process of three layers Antirust Pain ensure the forever antirust
l All seal where liquid may Leakage & base neck come with rubber, water proof
A) Juice Bottling Plant--Washing Part
l All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

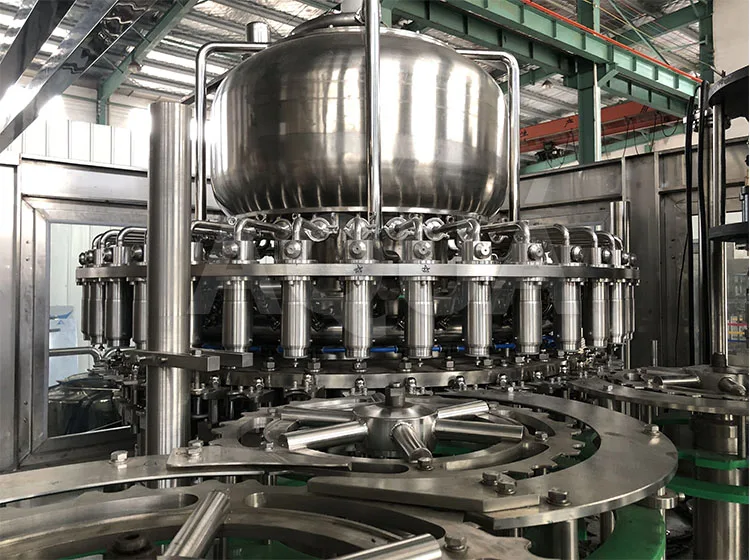

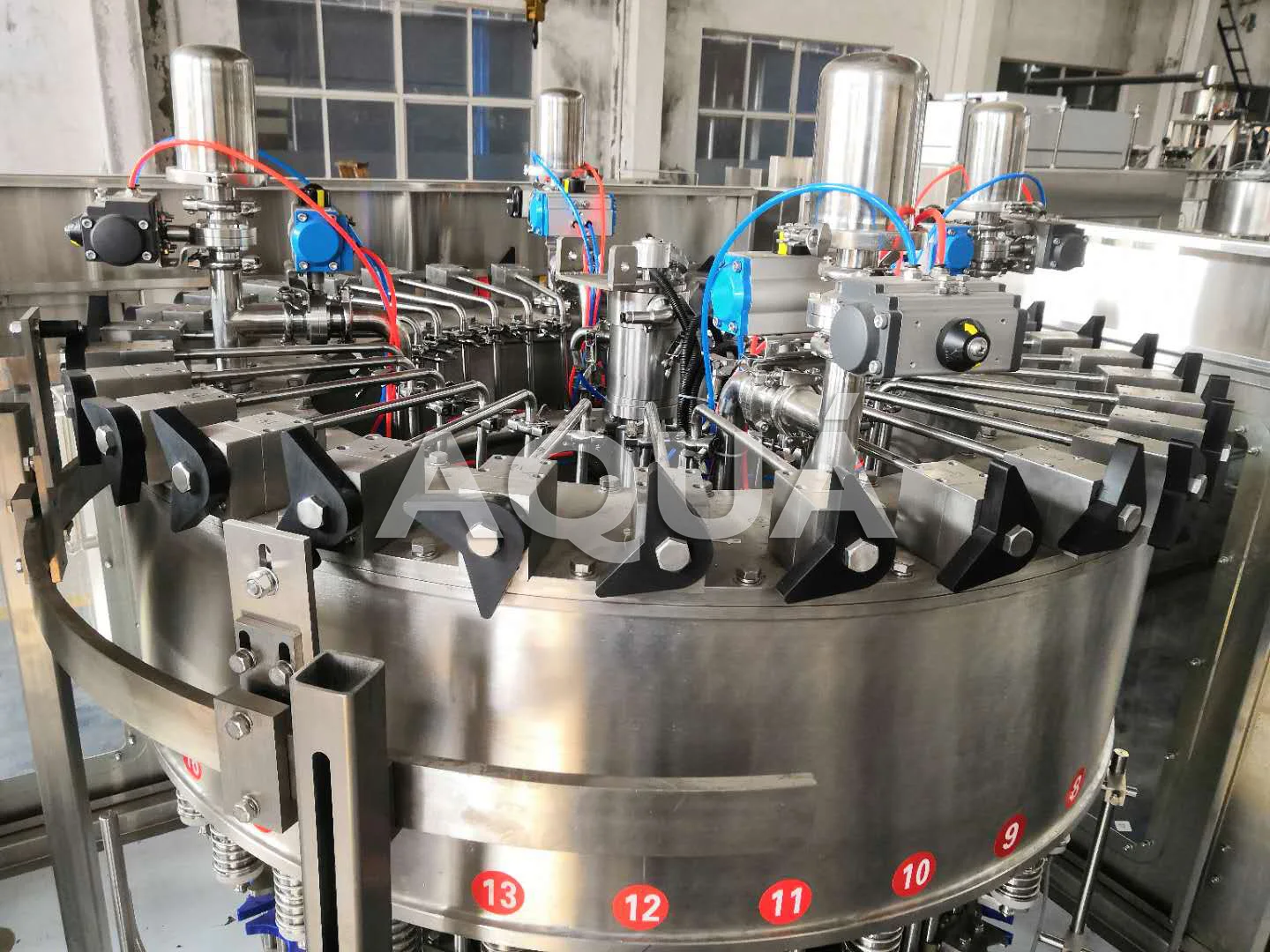

B) Juice Bottling Plant--Filling Part
l The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level
l Filling temperature is adjustable.
l Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
l All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

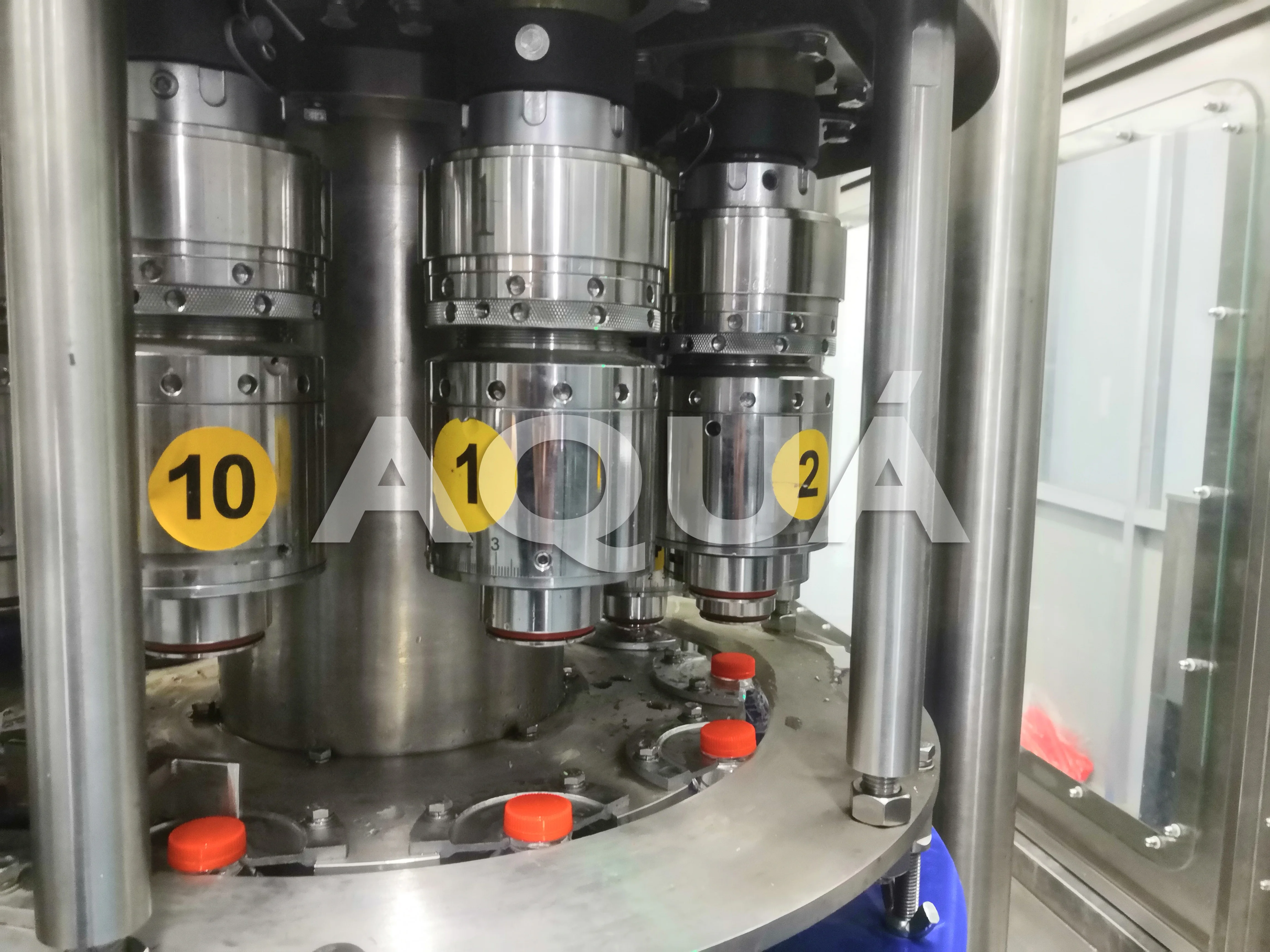

C) Juice Bottling Plant--Capping Part
l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
l All 304stainless steel construction
l Automatic stop when lack of caps

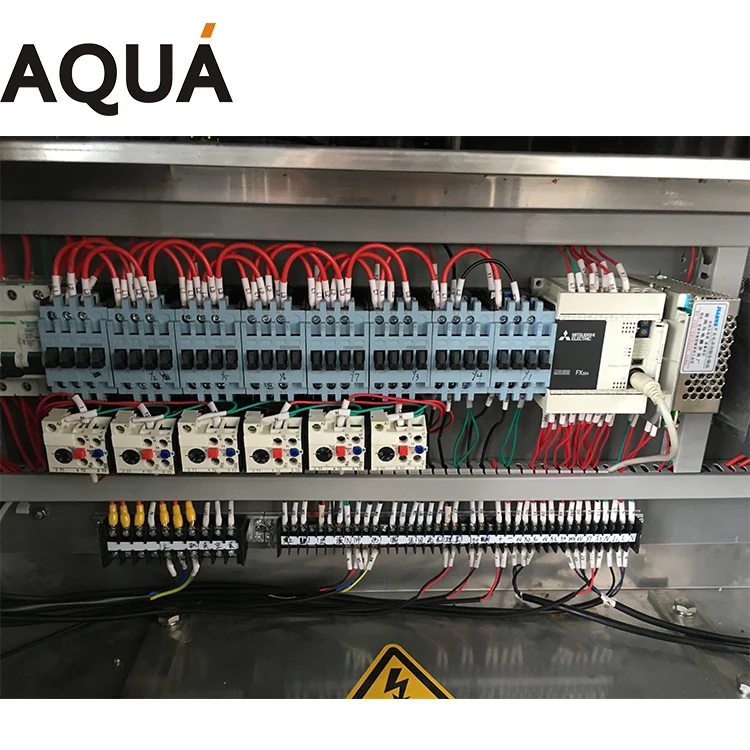

D) Juice Bottling Plant--Electric System
l When accident system automatic stop & alarm
l Emergency switch when accident
Company Information
Packaging & Shipping
The normal package is wooden box.If export to European countries,the wooden box will be fumigated.If container is too The normal package is wooden box.If export to European countries,the wooden box will be fumigated.If container is too tighter,we will use pe film for packing or pack it according to customers special request.,we will use pe film for packing or pack it according to customers special request.
Our Services
What service Aqua Machinery CO.,Ltd can offer you?
• Your inquiry related to our product & price will be replied within 24hours.
• Well-trained & experienced staff are to answer all your inquiries in English and Chinese.
• Working time: 8:30am ~6:00pm, Monday to Friday(UTC+8).
• Good after-sale service offered, please get back to us if you got any questions.
FAQ
1) what's the capacity? About how many bottles per hour?
2) What's the bottle volume?
3) Just filling machine or a whole juice production line?
4) What is the filling temperature?
5) Fresh fruit or mixing by powder?
Q&A
Q: Your Company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory for Beverage packing plant located in ZHANGJIAGANG.
Q:All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are
made by our technical team forBeverage Packing Plant.
Q: What is the ability of your factory?
A: About 50~100 lines per year for Beverage Packing Plant.
Q: Do you have any technical supports about your products?
A: We have a technical term to deal with all technical problems for Beverage Packing Plant.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system for Beverage Packing Plant.
Q: How do you make the quotation for clients?
A: The price depends on capacity and performance for Beverage Packing Plant.
