ZAT630 Marine Corrosion Proof Nitrogen Pressurized PTZ Dome Camera
- Category: >>>
- Supplier: Changzhou Zuoan Electronics Co. Ltd.
Share on (60008103548):
Product Overview
Description

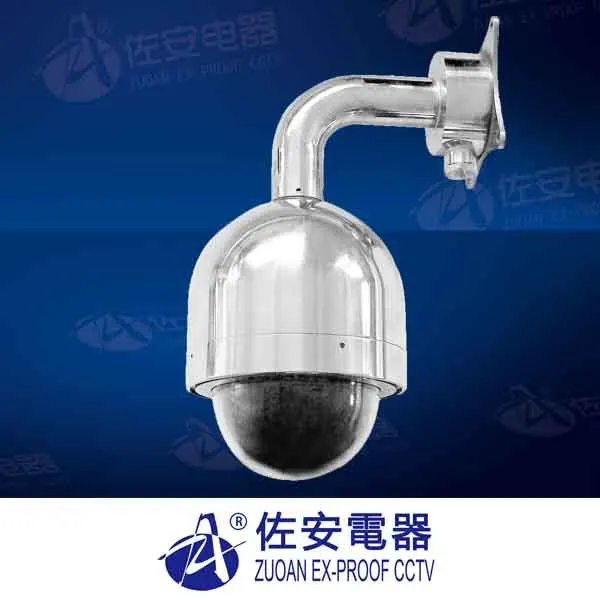

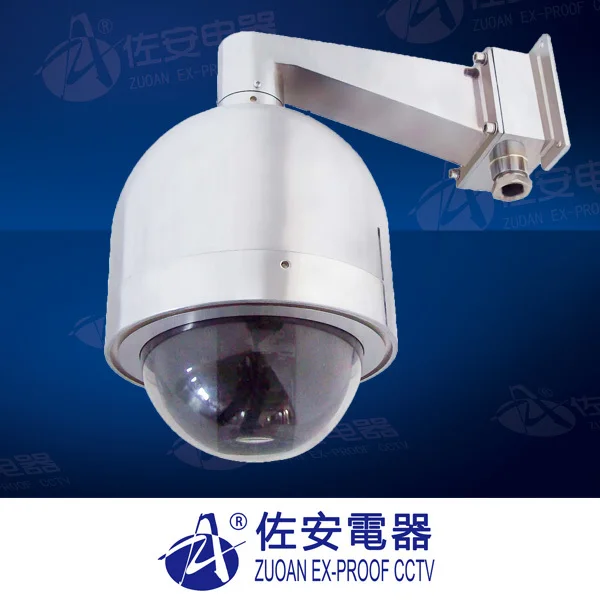

ZAT630 Marine Corrosion Proof Nitrogen Pressurized PTZ Dome Camera
Decription:
ZAT630 corrosion proof nitrogen pressurized PTZ dome camera is the first style high speed dome, which fills in the dome vacancy of supervision line. It is fit for the outside and inside.ZAT630 has the features of high speed location and preset accuracy. And double stainless steel shell ensures this device to work regularly even temperature reaches to 60 degree centigrade.
the corrosion proof housing is a ready-to-use kit, for all brand cctv camera.
Main features:
IP68 highest rated
SS316L camera housing
high speed dome camera
128/256 preset patrol
net weight: 12KG
wide range voltage
wall mounted or ceiling mounted
Applications:
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Product Parameter:
| Model | ZAT630-S | ZAT630-S-M | |
| Atmospheric pressure | 80KPa~106Kpa | ||
| Ambinet temperature | -25°C ~ 60°C (-13°F~140°F) | ||
| Relative Humidity | ≤95% (+25°c) | ||
| Certifications | CNEX: ·ExdⅡCT6 /·DIP A20 TA, T6 | ||
| CNEX certificate no. | CNEx:10.1061 | ||
| Ingress Protection | IP68 | ||
| Power supply | AC85-265V | ||
| Electric current | 2800mA | ||
| Material | SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms) | ||
| Package LxWxH | Φ205*445mm Φ8.1x17.5in | ||
| Net weight | 12KG /26.4LBS | ||
| Varibale angle | horizontal rotation: 360° continuous vertical rotation: 0 to +90° | ||
| Varibale speed | rotation speed: 200°/S | ||
| Preset patrol | 128 | 128 | ------ |
| Camera | Sony FCB-CX490 | ------ | ------ |
| Resolution | 560TVL | ------ | ------ |
| Image sensor | CCD | ------ | ------ |
| Control way | RS485 | ------ | ------ |
| Control protocol | PELCO-D/PELCO-P | ------ | ------ |
| Communication way | AV | ------ | ------ |
| Relative products | |||
| Flexibility tube | explosion proof flexibility tube,NGe25×1000, NGe25×1500, NGe25×2000 {φ25MM× 1000MM (L), φ25MM× 1500MM (L), φ25MM× 2000MM (L)} | ||

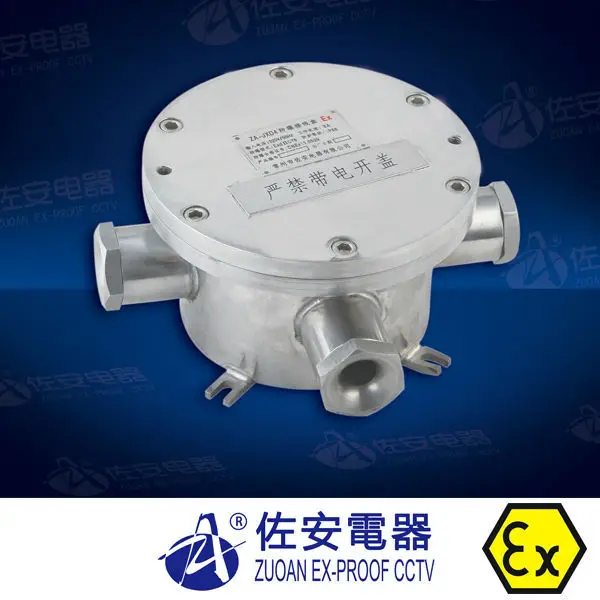

| Relative Products | ZAZ630-B, bracket for ZAT630 series, ZAJS400, ex-proof monitor ; ZAJ320, screen control panel; ZA-JXD4 junction box;ZAJ320 optical transceiver ; ZAJ300, ditital video server(DVS) box, ZAJ340, hard disco video; ZAJ340,network video recoder. | ||
