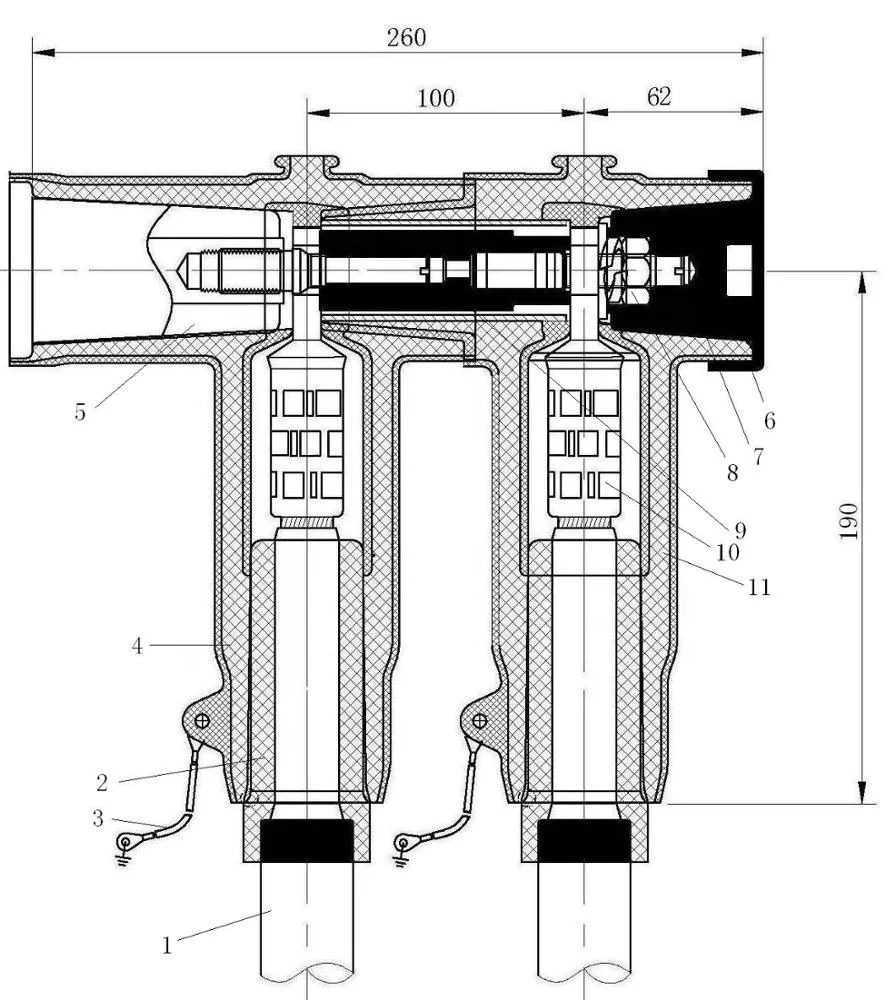

12/24kV 630A Separable plug in cable connector, t connector, rear connector

Product Overview

Description

These kits are designed to be installed on wire screened armoured and non-armoured polymeric insulated cables for 8.7/15(17.5kV ) ,12/20(24kV) 630A applications. The separable connector establishes the connection between any polymeric insulated cable onto transformer,switchgears, motors or other equipment.

For connection of polymeric cable to transformers, switchgears, motors and other equipment with a pre-moulded separable connector.
1. Rated Voltage: 24kV
2. Rated Current: 630A
3. AC Withstand voltage (5min): 54kV
4. Partial Discharged at 24kV: ≤10pC
5. Conductor cross section (mm²): 35-400mm²

6.Meet to  IEC standard.

7.aging -resistance.



Features:

1. Material: Silicone Rubber

2.Colour   : Black

3.Provides a fully screened and submersible system.

4.Fast and easy installation.

5.Mechanical connector.

6.No heat requirement.

 Benefits:

 1.Minimum skill required : no heat,torch or special tools are needed.

2.Provides totally safety in case of accidental touch.

3.Close positioning between 3 phases and to earth.

4.Immediately energisable.





The assembly is fully screened and has an integrated stress control element.Each kit contains all the necessary components to install one separable connector,including all connection devices.







630A Europe-style separable connector performance parameter



Rated voltage	KV	8.7/15(17.5)	12/20(36)	18/30(36)	26/35(40.5)
Rated current	A	630	630	630	630
A.C withstand voltage	KV/min	39/5	54/5	81/5	117/5
Partial discharge at	≤pC(KV)	≤10(15)	≤10(20)	≤10(31)	≤10(45)
Thermal short-circuit	kA/s	22.8/2	24/2	23/2	23/2
Dynamic short-circuit current(10ms)	kA	80.8	84	83	83
Conductor cross section	mm²	25-500	35-500	50-630	50-630



250A Europe-style separable connector performance parameter

Rated voltage	KV	8.7/15(17.5)	12/20(24)
Rated current	A	250	250
A.C withstand voltage	KV/min	39/5	54/5
Partial discharge at	≤pC(KV)	≤10/(15)	≤10(20)
Thermal short-circuit	kA/s	10/0.8	10/0.8
Dynamic short-circuit current(10ms)	KA	21.9	21.9
Conductor cross section	mm²	25-150	35-120



 Standard package,meanwhile we can pack the goods according to your request. We  quote EXW price shenzhen factory,the  customer can choose the shipping way  by yourself.







We do not provide free sample,and we can design and manufacture the product according to your request and drawing. The excellent after-sales service will satisfy you.
