Automatic Wall Cement Plastering Machine Render
US $1500-$2000
wall mortar plastering rendering machine wet concrete screed plastering spraying machine 380V,415v or diesel engine
- Category: Rendering Machines >>>
- Supplier: Wenzhou Engineering Machinery Co. Ltd.
Share on (60008370997):
Product Overview
Description

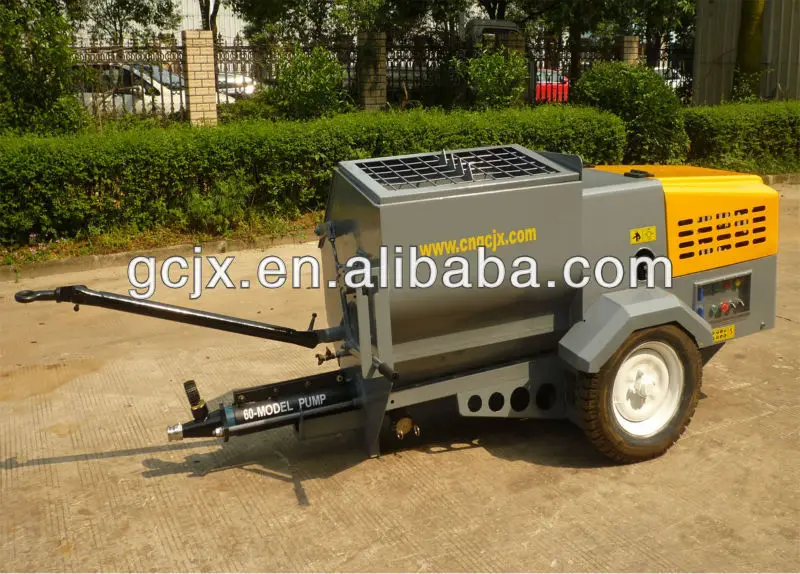

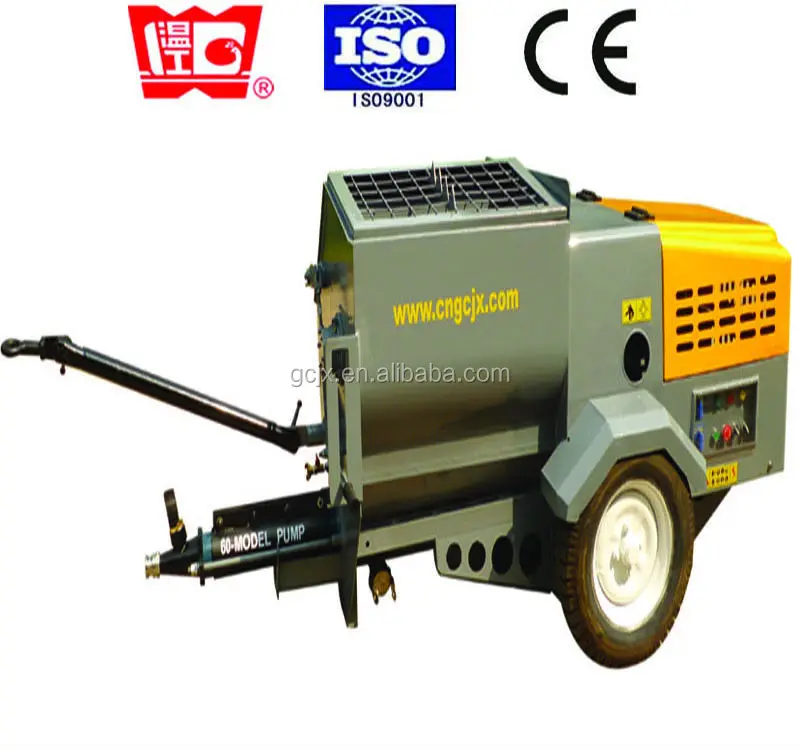

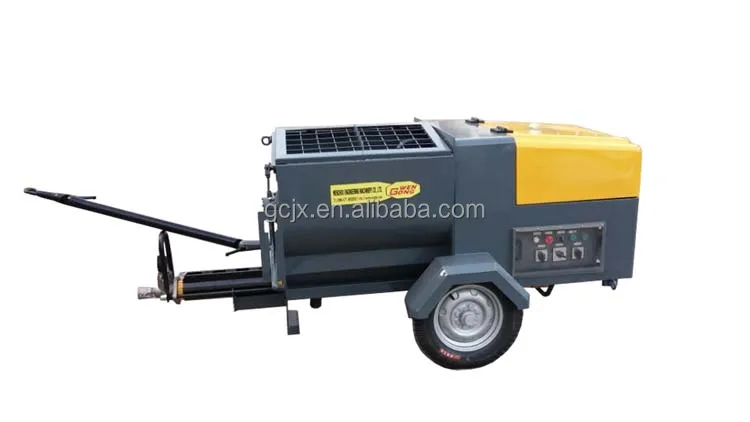

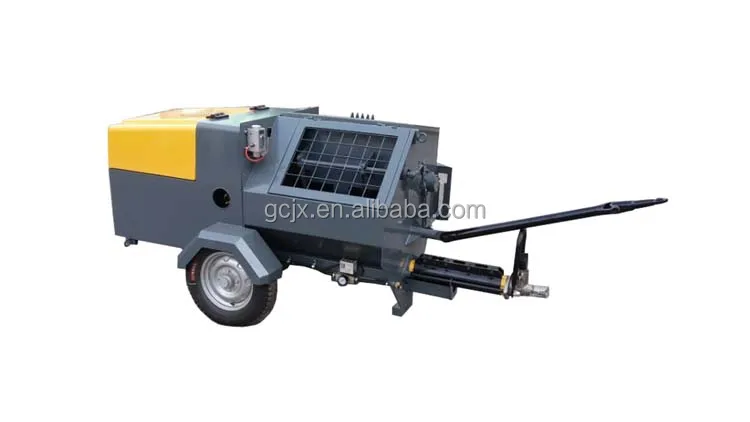

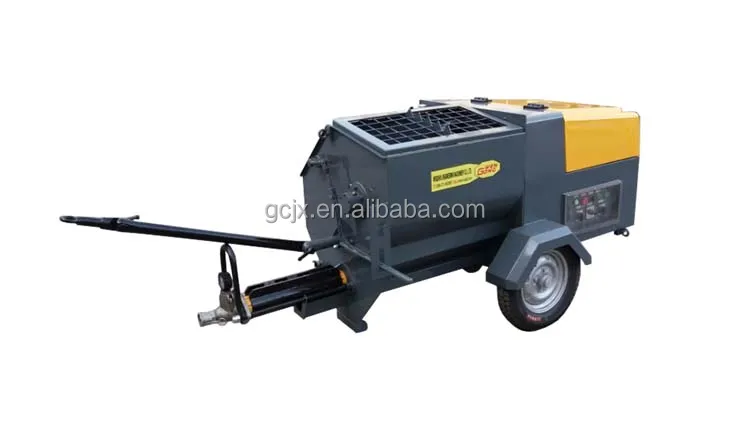

JP60D-W indian wall rendering machine
1. JP60D-W is the high efficiency machine introduced German technology.
2. It's applicable to large area plastering for plastering mortar, thermal insulation mortar, and thick layer of mortar and construction and application for masonry mortar, reinforced mortar, filling mortar, perfusion mortar, fiber mortar, self-leveling mortar.
3.With variable speed regulation, can freely choose output, pressure and controlling pressure according to mortar characteristics and use.
4.Sets the pressure protection system, and achieves the remote control. With simple design and high power, it equips with large output conveying pump with steady work. It has combined functions of mixing, pumping, bonding and plastering.
Technical parameters
Model | — | JP60D-W |
Supply power | — | 400V 50Hz |
Motor power | kw | 7.5 |
Maximum grain size | mm | 5 |
Output | l/min | 40 |
Delivery pressure | bar | 30 |
Horizontal delivery distance | m | 60 |
Vertical delivery distance | m | 40 |
Mixer power | kw | 3 |
Mixer volume | L | 250 |
Hopper volume | L | 230 |
Net weight | kg | 580 |
Dimension (L×W×H) | mm | 2600×1170×1100 |

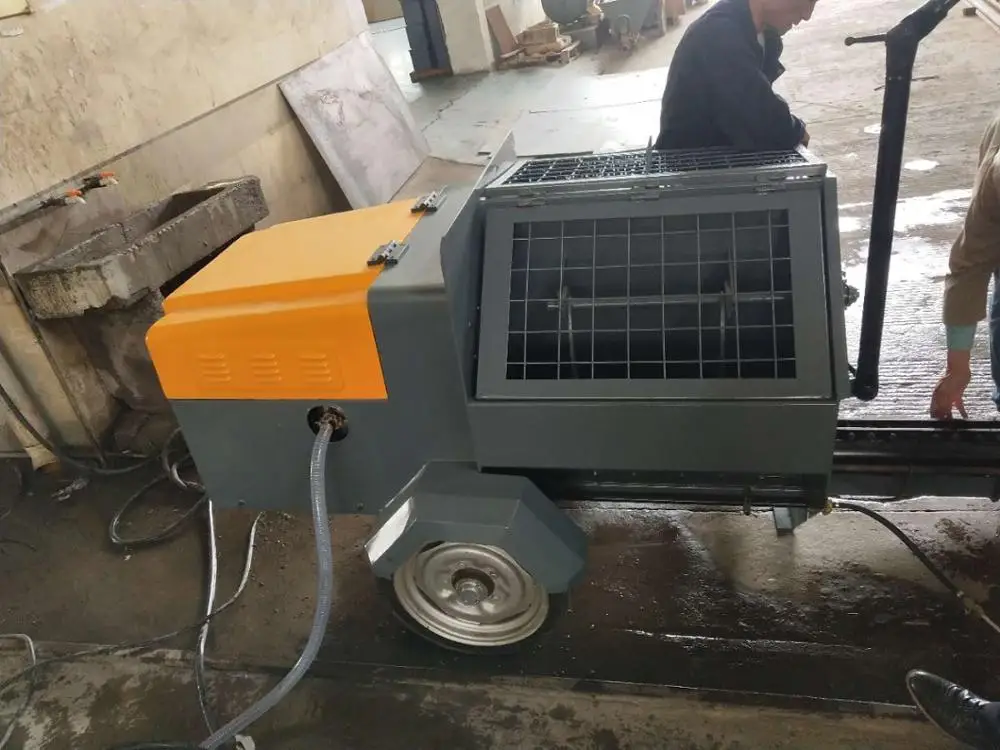

1. JP60D-W mortar spraying machine includes Mortar Mixer and pump:
The wet mixed mortar will be discharged from mixer tank
into below Worm pump tank system:
2. Spraying fireproof inslution mortar into 3D panle surface
3. wall screeding plaster machine can screed the mortar to floor
company information
Wenzhou Engineering Machinery Co., Ltd. is a member of China Construction Machinery Association, China Bulk Cement Association of Popularization & Development, is the first batch of key enterprises in Zhejiang Province. It is leader of China's mortar spraying technology, and recognized as one of the scale of strong enterprises for the manufacture of mortar spraying machine.
Wenzhou Engineering Machinery Co., Ltd. has been committed to the manufacture of concrete machinery for such a long time, based on the domestic leading technology, relying on international cooperation R & D advantages, together with Germany NORD, CELLMANN and other famous companies to import advanced management concepts and management models, improved product quality management system. Following the ISO9001 quality management system, and with full implementation and effective operation of it, we are able to ensure product’s quality and stability.
Our products are renowned because of high quality and a famous brand at home and abroad. In the 1970s, our company introduced the German plunger type, squeeze type, Screw concrete transportation, Mortar spraying technology into China. And nowadays the continuation of the current concrete pump, mortar spraying machine products from the Chinese market has expanded to Europe, South America, North America, Australia, the Middle East, Southeast Asia, Africa and other regions and countries. Our products with high quality and reliable performance services are popular with the trust of users around the world. Now we have been formed the ability that our annual output of various types of mortar spraying machine reaches 12000 sets.
Function&Application
Infinite number of possible applications
**Base coat plaster (interior and exterior)
**Scraped and floating render
**Sprayed and textured render
**Rough trowel finish render and
**bonding layers
**Masonry mortar
**Fire proofing
**Sealing slurry
**Injection mortar and filling mortar
**Dispersion plaster
**Glass-fibre-reinforced concrete
**Cementitious adhesive
**Repair mortar and Insulating plaster
**Loam rendering
**and much more
Exhibition & Visitng
Welcome to our factory!!!
It would be our great honor to show & test our machine for you.
***Clients from AUE/Saudi Arabia/Franch/ Chile/ India visited our factory.
***Exhibition every year---Welcome to our fair
Packaging & Shipping

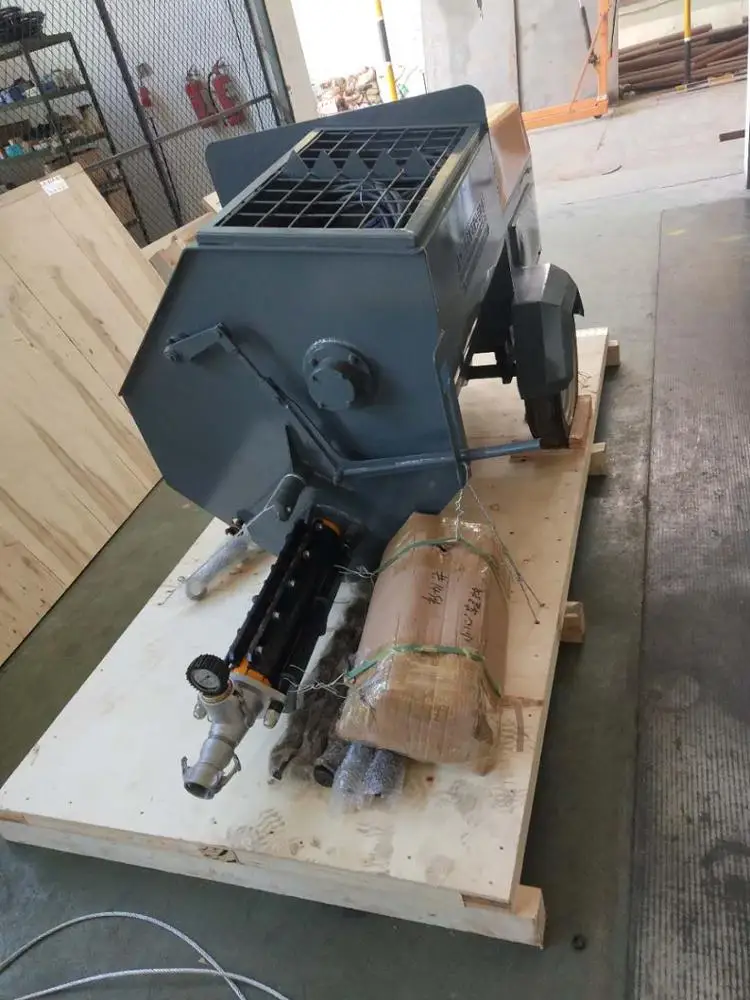

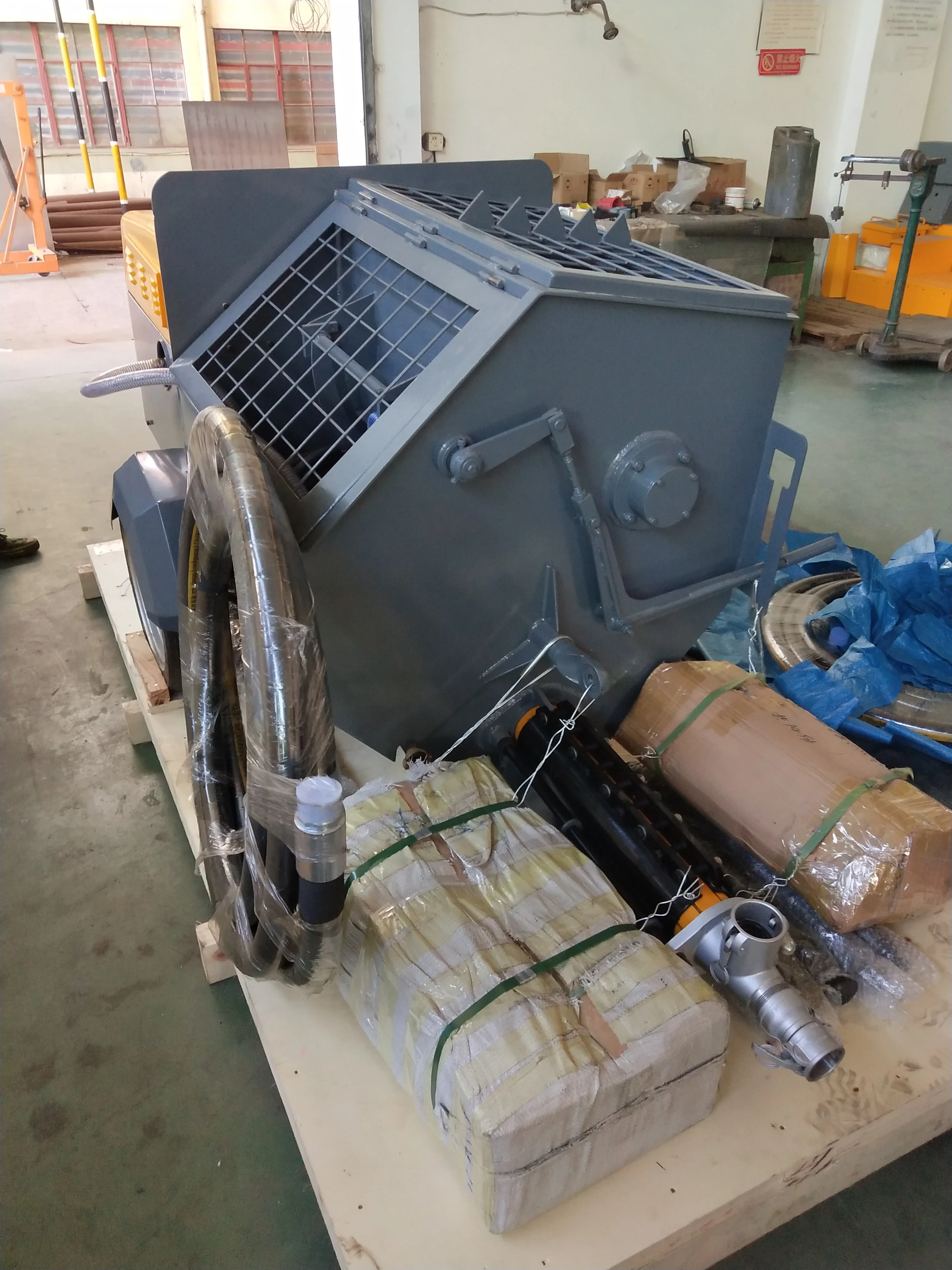

***Wooden case packing
Full container shipment---wooden pallent package
LCL shipment----wooden carton package
FAQ
1. Q: Which pump model or plastering machine should we choose?
A: To recommend the most suitable model, please tell us:
- Material: composition, max aggregate size
-use for plastering or grouting?
- Capacity (-m3/h) :
- Delivery distance (horizontally / vertically):
- Grouting pressure:
- Driven type: electric motor, diesel engine, pneumatic motor
2. Q: What is the vulnerable part? How many spares should we prepare?
A:Screw type plastering machine
Rotor and stator would be worn out after 1-4 weeks depends on material and operation period.suggest purchase 4--6 sets.
Concrete pump:
After long-time running, the rubber piston and cylinder sleeve may get worn. We will offer some spares for free.
Referring to the service life of each part, we will put a rough estimate of requested spares according to your project scale.
3. Q: Can we have customized model?
A: Yes. Customized production and OEM production are available according to your actual requirements.
4. Q: Do i need technical skills to operate this machine?
A: Yes. Please read the Operation Instruction for some basic technical skills before operating this machine, and contact us if any operation procedure is unclear.
5. Q: What should we do if there are some problems with the machine?
A: The Operate Instruction will help with routine maintenance and common problems.
Also, you can contact us for technical instruction by email, instant messenger or live video etc.
6. Q: What is the lead time?
A: 1 week if voltage is 3 phase 380v 50hz. 20-40 days if other voltage.
7. Q: How about the package?
A: The machine will be wrapped by plastic film and packed by fumigation-free wooden case along with spare parts.
8. Q: How to place an order?
A: Both online order and offline order are acceptable.
It is suggested to place online order with a Trade Assurance to get full protection for first order.
9. Q :How to pay for this order?
A: Generally, TT, 30% deposit 70% before shipment;
L/C at sight (high bank charge, not suggest, but acceptable);
100% TT in advance (especially for small amount and spare parts etc.)
