1,Use-friendly. Two hand in the desk,Push the frame have to be getother,get stnadard frame more easlier ,the guy who haven't done this before also can make a good frame;
2, Competitive price. This machine will be the best choice if the salary of worker in your city is cheap.Suit for the frame factory want good quality underpinner but need saving the cost ;
3,Quality and Durable. One machine can work for more than 10 years if you operate step by step. Most of frame factory in China use this machine produce good quality frame with less problem.
Technical data.:
product size
L470*W450*H800mm
max. nailing width
120mm
max. nailing thickness
115mm
Operation system
220V / 0.4~0.6MPa
available v-nail type
UNI
available v-nail size
5/7/10/12/15mm
product weight
80kgs
package
wooden case
pieces per carton
1pc/carton
package size
L590*W460*H1220MM

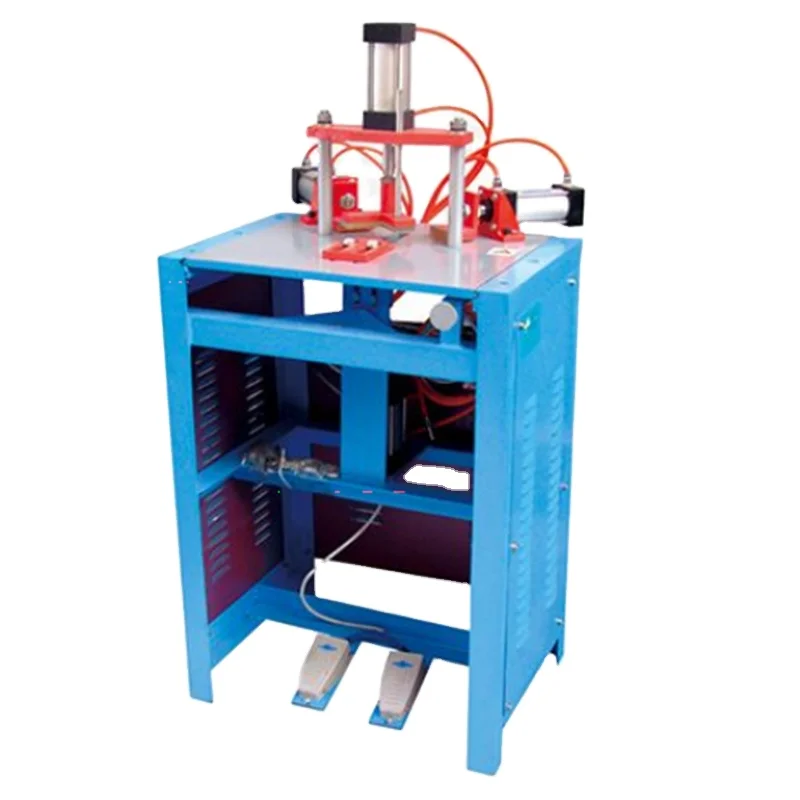

TS-J27 Air-on Underpinner is similar with TS-J26.
The advantage of this design is cheaper price, use-friendly. It can works very fast just the video as below. Use-friendly ,fast working and conpetitive price meet the needs of most factory.
Two hand on the desk, push the frame together. This can make the frames have to get together and get a nice frame.
Two button under the desk. left is make the hand push frame. right is nailing.
More Info Please please find it in the Video:
(//www.taishengframe.com/news121.html) It will show you how it working, And how fast it is.
Machine Operations
1,the choice of v-nail:the height of the v-nail should be between ½ to 2/3 of the thickness of mouldings;and could put in two nails at the same place if the moulding is too thick;
2,choose the right v-nail die-mould for the right v-nail and then lock it to the machine:
3, adjusting the v-nail front and back position properply and then lock it.
Using foot press the left side button, It can make the hands on the desk lock the frame, Let the frame won't move any more and perfect standard.
Then press the right side button, It can make the machine push the V-nails into the frame.
4, then operate the v-nail process by foot and then finish.
Our Services
Guarantee:
1,one year guarantee; after-sell services and technical guide always available;
2,Instruction manual with operation guide video;
3,Technical support avaible anytime;
4,OEM services avaible;
