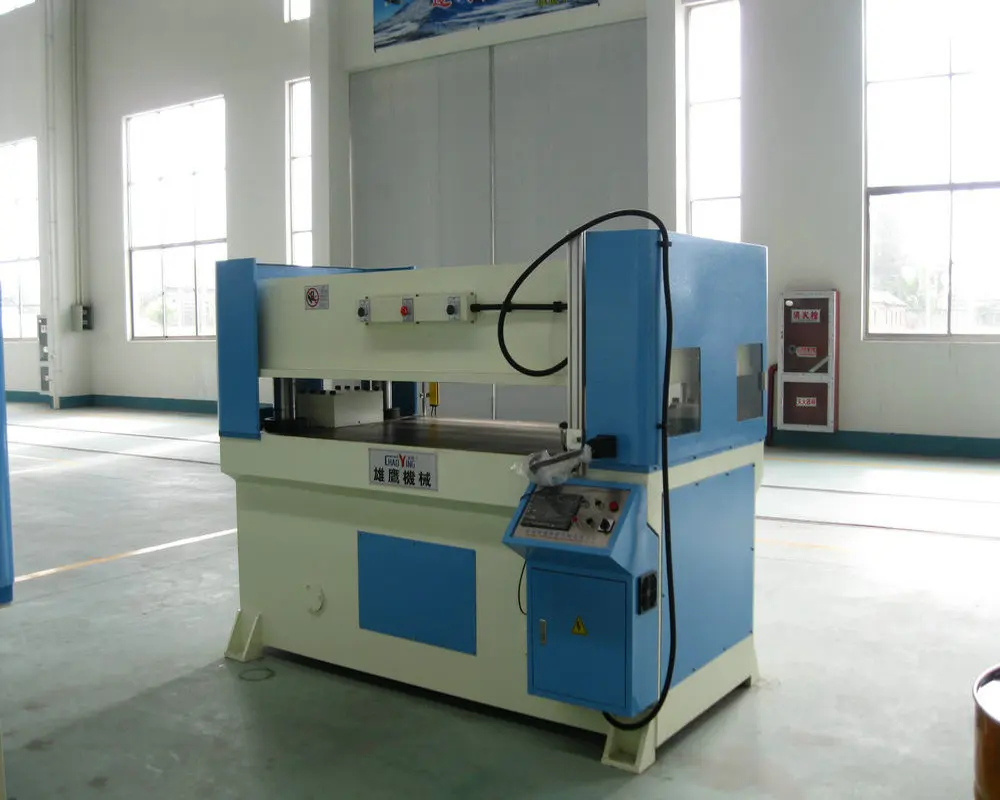

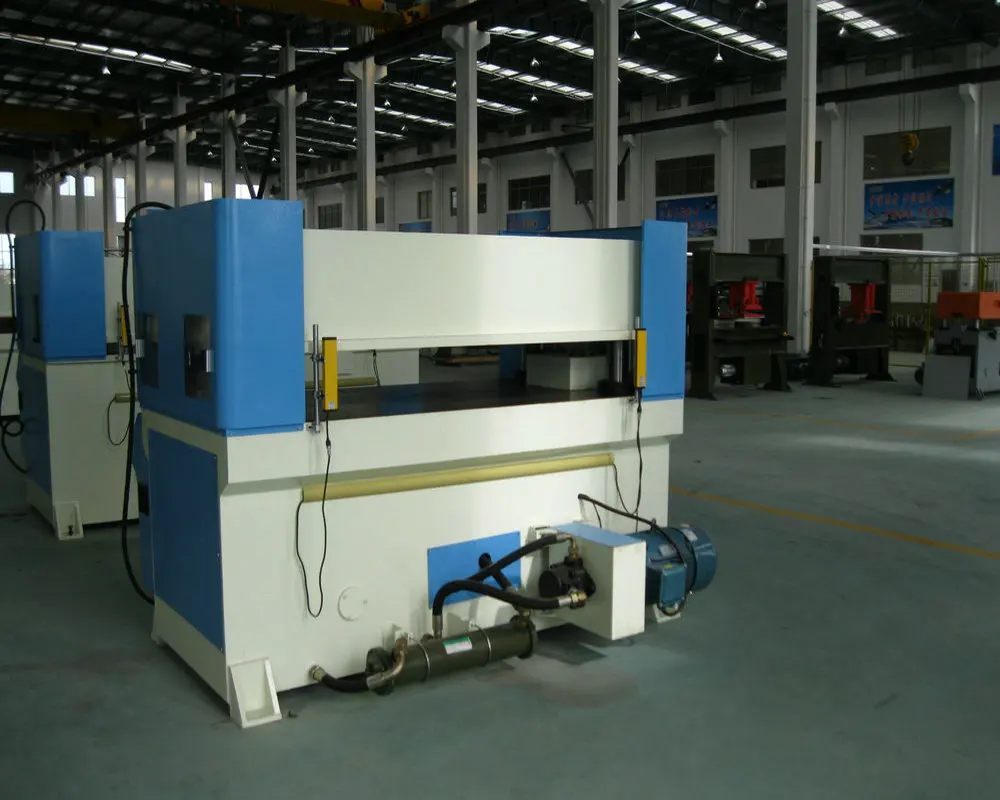

150T PVC floor material hydraulic cutting press

Product Overview

Description

Hydraulic cutting press

150T PVC floor material  hydraulic cutting press

1.the machine is suitable for cutting various nonmetal materials such as leather, plastic, plastic packing, colth, foam sheets, floor materials and etc. by die cutter.

2. The operation is labor-saving and simple, with  strong cutting force and high cutting speed.

3. The special setting mechanism makes the travel adjustment simple and accurate in conjunction with die cutter and cutting depth.

4. Operation with bands mades high safety.

Machine specification



Maximum cutting force	150T
Stroke range	0-200mm
Range between the working tables	80—280mm
Size of the upper pressing board	1680×1100mm
Size of lower worktable	1680×1120mm
Motor power	11kW
Overall dimension	2580×1700×1850mm
Net weight	5500kgs
Gross weight	5800kgs
Machine logo	CHAOYING or customerized
Machine color	gray&blue
Electronic informations	50hz or 60hz  380v /440/ 480v single phase or three phase
Hydraulic oil	46# or 68#



Machine applicable :

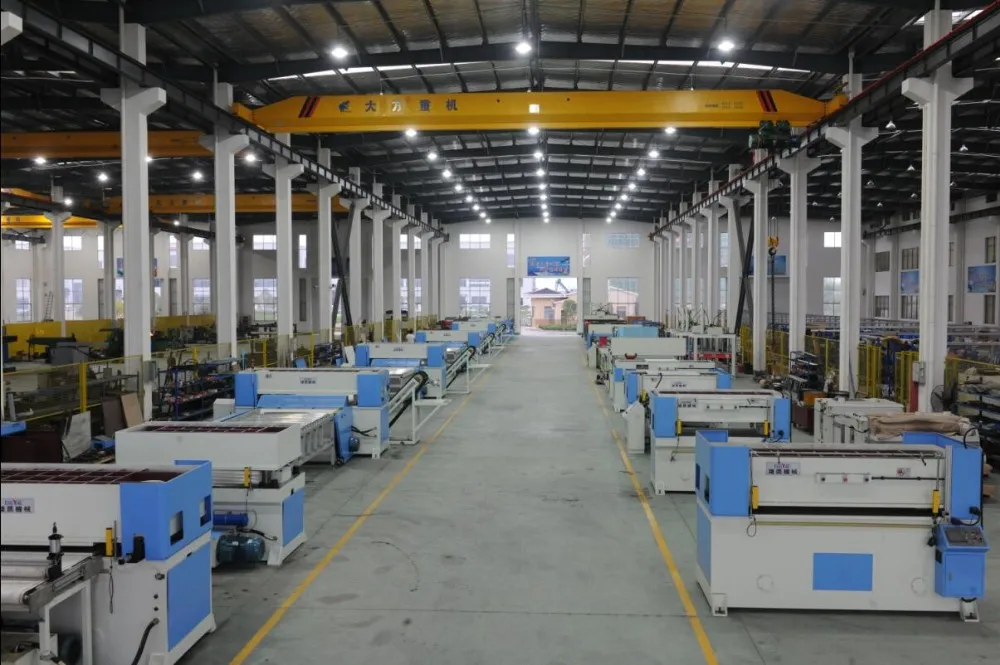

OUR FACTORY VIEWS :





OUR CERTIFICATES:





Exihibition:

The  FAQS.

1, Are you a factory or a trade company ?

we are a factory , welcome you to visit our factory and discuss our business face to face .

 2, Where is your factory located ? How can I visit your factory ?

Our factory is located in No 98 Wolong Road Daguang Town Yancheng city Jangsu Province

China .



You can take plane from Guangzhou city to Yancheng city or shanghai to yancheng . It is very

 convenient .



3, Do you attend any Fair ?



Yes , we attend some professional fairs every year :



All china leather exhibition & china international footwear fair



( in Shanghai china  )



International exhibition on shoes& leather industry



 (In Guangzhou china )



4, Can we use our company logo on your machine ?



Yes , you can use your logo if necessary .



5, How does your factory control the machine quality ?



We have some QC staffs to inspect and test the machine . every machine must be tested for

12-16 hours before leaving factory .



6, How long is your guarantee period ?



One year



Customers' visit :
