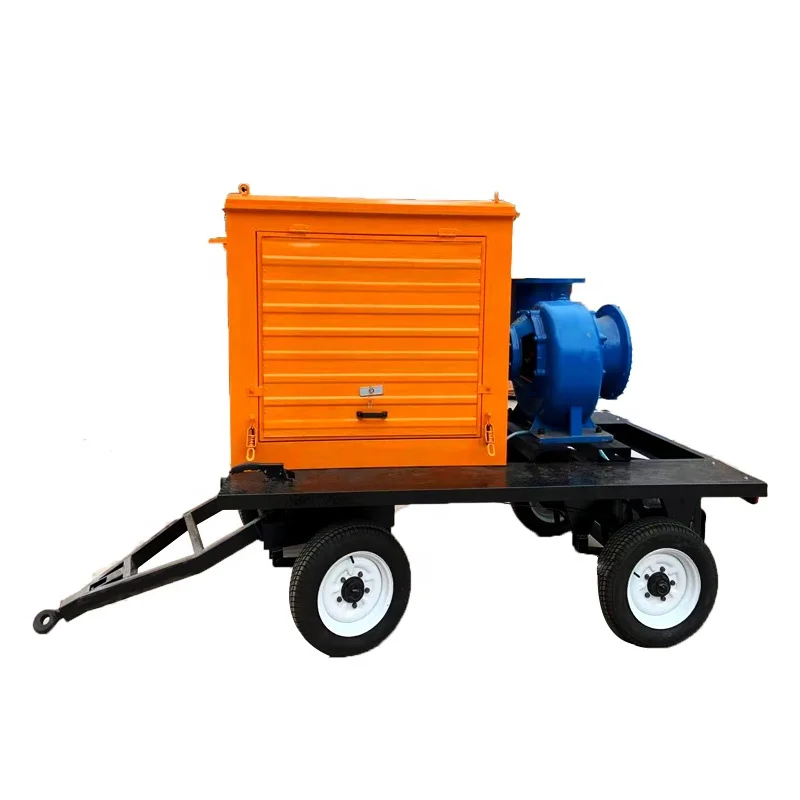

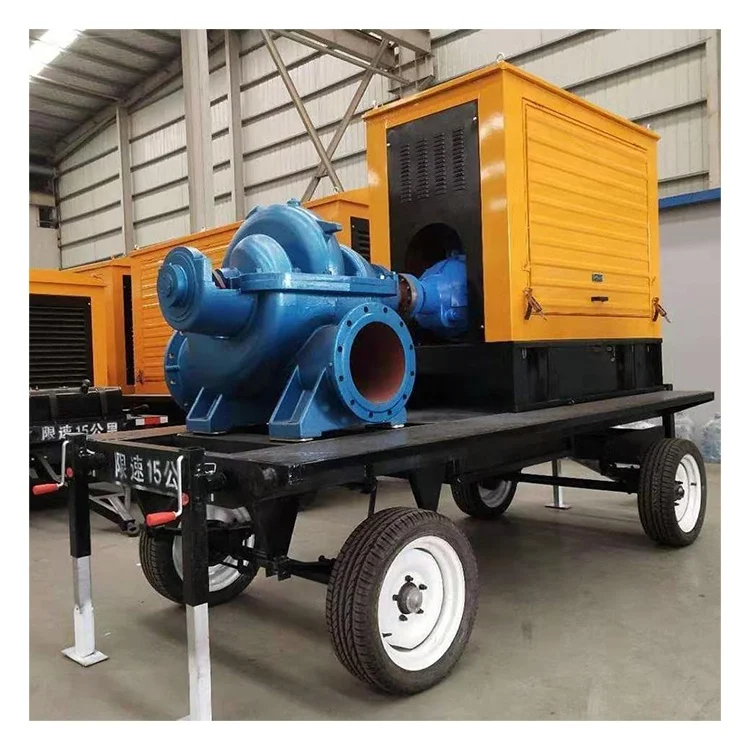

Centrifugal double suction diesel engine water pump 1100 m3/h outflow
- Category: >>>
- Supplier: Weifang U-Power Co. Ltd.
Share on (60008616139):
Product Overview
Description
Diesel Water Pump
This pump is applied in pumping fresh water, river water, corrosive water, impurity water, dirty water, etc.
Such as
1. Irrigation
2. Fire fighting
3. Industry water
4. Mine water pump
5.Transport water with salt or any other impurity things
-- Features
1. Using world famous WEICHAI, CUMMINS diesel engine, with global warranty.
2. Ten years experiences make us more professional than others.
3. Perfect after sale service: 1year/1500hrs.
4. Environmental protection, energy saving and durable using, low noise, low
emission, low fuel consumption.
5. Once establish business relationship in the long way, can share our VIP price.
6. Quick delivery: 7-15 working days delivery time.
7. Our company is in Weifang city, it's a power city, and it’s near by famous
WEICHAI POWER.
-- Our Products
There are so many kinds of engines for you.
I'm sure there will be one good for you! Let us choose one!

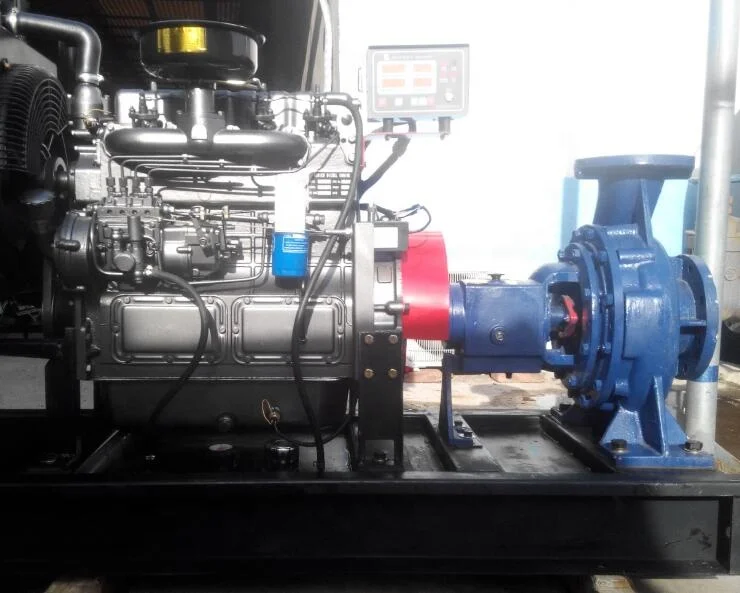

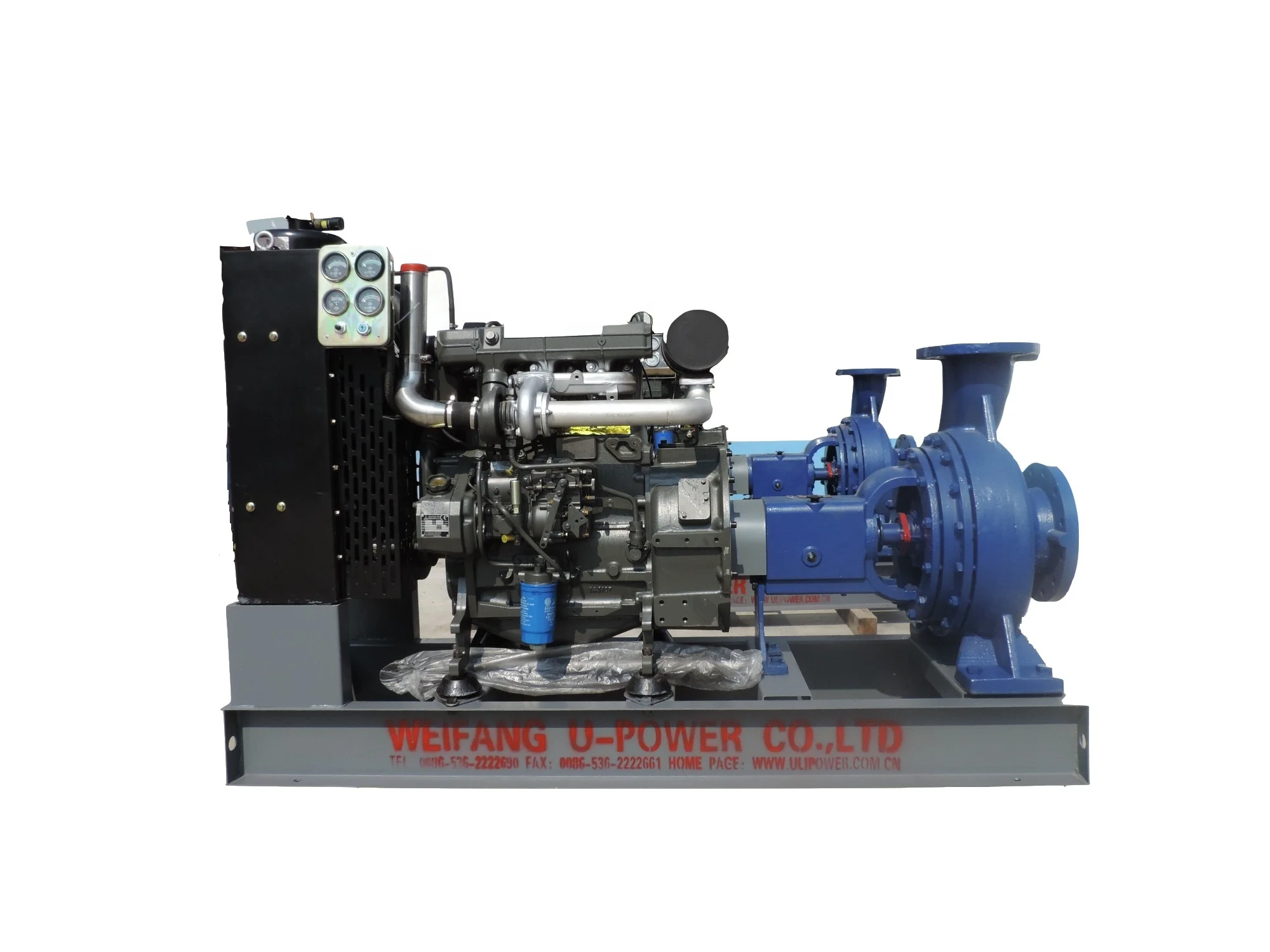

Irrigation diesel water pump set
You can choose this engine when you need a pump to irrigation!
Selected Water Supply Solutions: Example 1
| Model of Diesel pump set | 30GPK01(Q=186m³/h H=27.8m) |
| Usage | FARM IRRIGATION |
| Treated Water | FRESH WATER/RIVER WATER |
| Model Diesel Engine | ZH4100D (OEM Ricardo Diesel Engine) |
| Rated Output/Max output(KW) | 30KW(41HP)/33KW(44HP) |
| Rated Speed (r/min) | 1500 |
| Starting Method | 12V DC Electric motor |
| Cooling Method | closed water cooling |
| Governing Method | Mechanic governing |
| Intake Method | natural aspiration |
| Cylinders | 4 |
| Bore/Stroke | 100/115mm |
| Type | closed water cooling,in-line,4 stroke,humid liner,direct injection |
| Model Water Pump | IS150-125-315A |
| Type | sigle grade,sigle suction,centrifugal pump |
| Outflow/head lift | 186m³/h,head lift:27.8m |
| Suction lift | 7m |
| Shaft Power | 18KW |
| Inlet diameter | 150mm(6inch) |
| Outlet diameter | 125mm(5inch) |
| Casing material | cast iron |
| Shaft material | cast iron |
| Impeller material | cast iron |
| Sealing method | stuffing sealing |
| Display/Control System | Display oil pressure,charging current,water temperature,oil temperature. |
| Standard Equipments | Diesel engine: 1set |
| Water pump: 1set | |
| 5" Outlet flexible hose:1000m(20m/coil)===>best quality | |
| 5" Connection joint:50sets(Aluminium alloy)===>best quality | |
| Bottom valve with flange and seal gasket:1set,bolt&screw:8 sets | |
| Inlet flange(6") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet flange(5") with seal gasket:1set,bolt&screw:8 sets | |
| Outlet ball valve with short steel pipe for priming water:1set | |
| Oil filter:1set | |
| Fuel filter:1set | |
| Air filter:1set | |
| Display meters: 4set | |
| Flexible shaft joint: 1pc | |
| Common base with fuel tank(8hr working):1set | |
| Battery:DC 12V*1 | |
| Accessary spare parts | |
| Technic file: 1set | |
| Unit Price | FOB QINGDAO, |
| Payment Terms | T/T30% deposit,after collection,arrange production.The 70% should be paid before the shipment. When got full payment,we release the full set of Original DOCS. |
| Delivery Time | 10 working days after received 30%deposit |
| MOQ | 1SET |
Our Company
Weifang U-Power Co., Ltd. is located in China power city-Weifang city, Shandong province.We are the company that specilized in diesel engine machine with the alternator, pump and gear box and so on. U-Power is the high-tech industry and export enterprise.
Our company is specilizede in R&D, prodction and seling in diesel generator sets, diesel pump sets, diesel engine hydraulic submersible pump,diesel arine sets and other diesel power equipment system.
Our Service
The warranty is 1500 running hours or 1 year (whichever comes first).
The after-sale service and spare parts are available from our company.
Welcome !
