HX CJ 330 Embossed 1 / 4 Napkin Folding Machine

Product Overview

Description

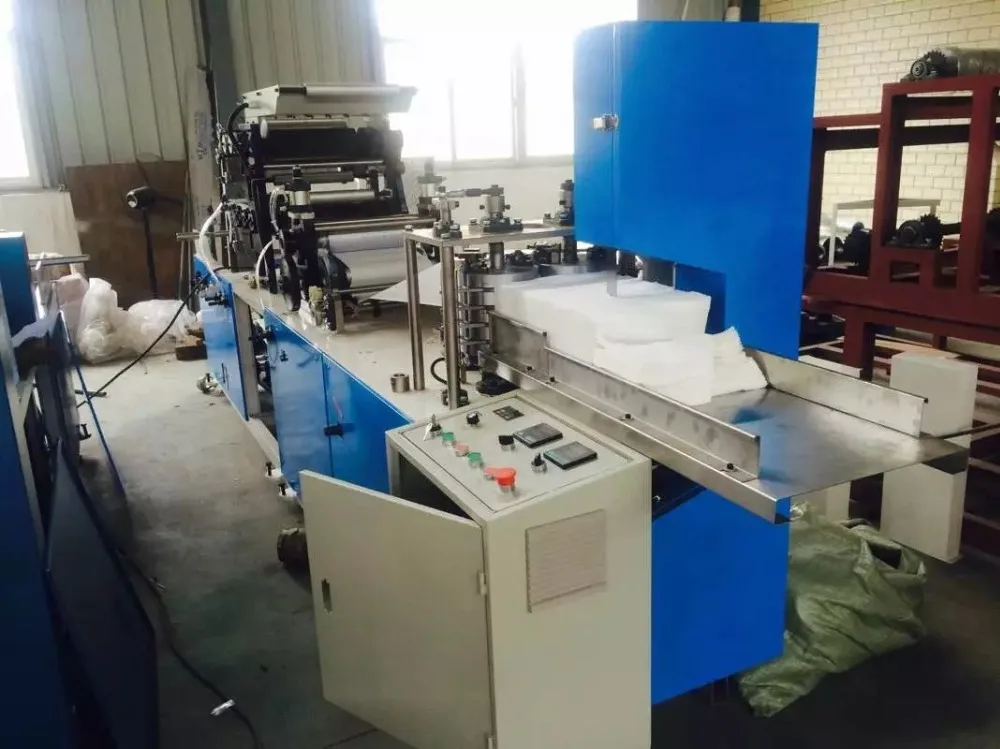

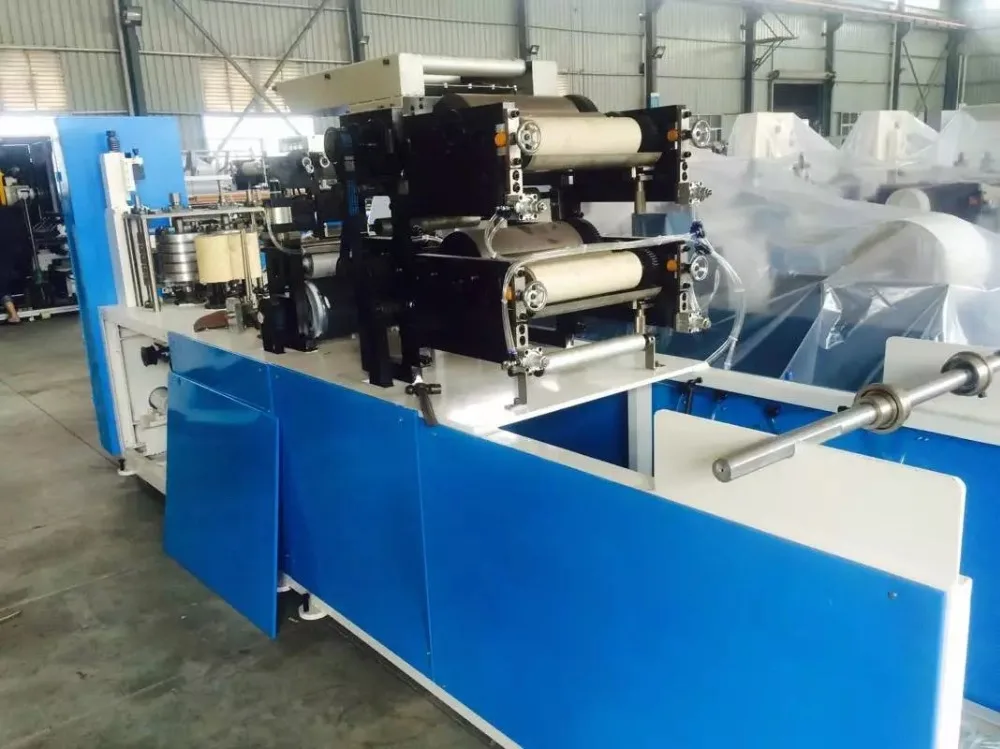

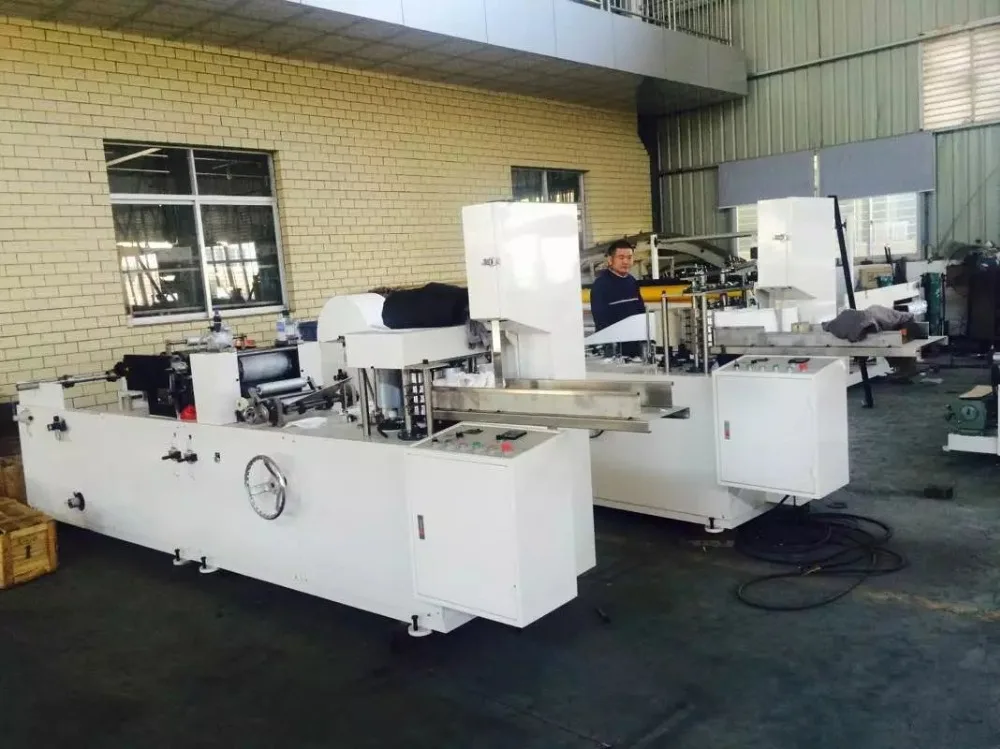

                             HX-CJ-330 Embossed 1/4 Napkin  Folding Machine

Color Printing Embossing Napkin Folding Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin open. Clear and bright with printing, overlay accuracy, high speed stationary, is the processing of special equipment for high-grade napkins.

 Samples

Function and Features

1.  Transmission belt drive configuration

2.  Color printing deviceadopts flexible printing, the design can be flexibly according to you need replace, useprofessional color printing anilox stringink roller

3.  Pattern matching paper rolling device, pattern significantly

4.  Electronic counting dislocation row of output

5.  Folding board with mechanical hand with the folded shape, cutting through the band saw cutter

6.  Other standard models can be customized



The Main Technical Parameters

Product unfold size	400*400mm
Product fold size	200*200mm
Raw material jumbo roll size	1100 mm
Jumbo roll paper core diameter	76.2 mm
Working capacity	300~400pcs/min
Color printing	Can choose
Embossing unit	Steel to wool
Counting unit	Electronic counting
Machine power	3.7KW
Dimension	5200X800X1500mm
Weight	About 1600kg



 Packing

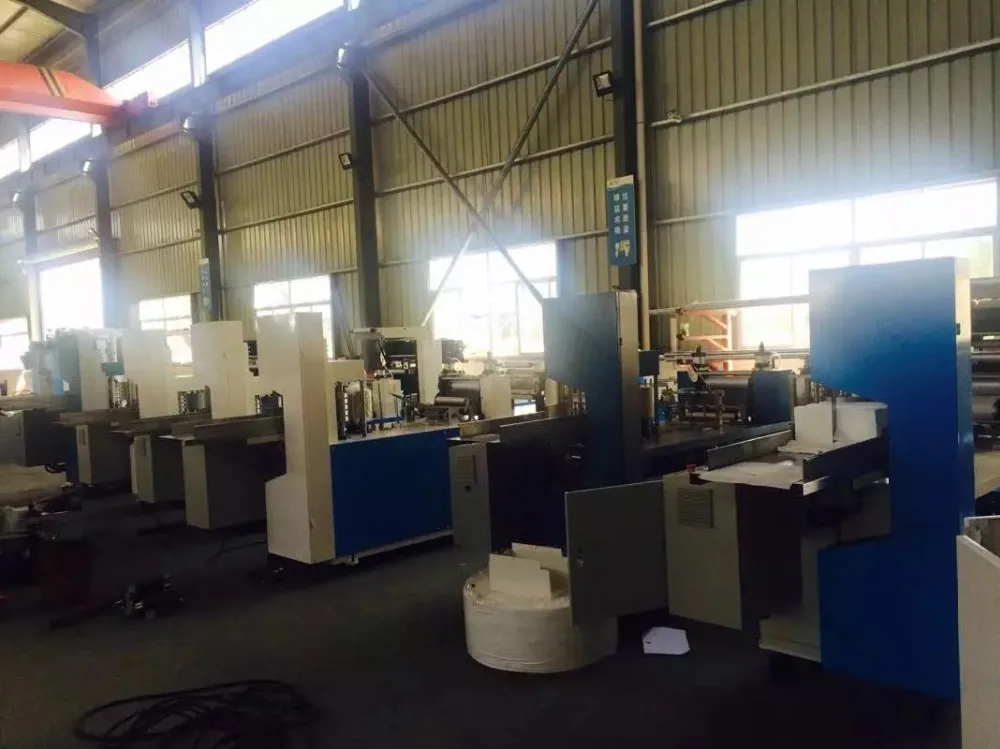

Workshop

 We Process Most Spare Parts Ourselves

Spare Parts Room

                                                                   Exhibition Show



                             WE LOOK FORWARD TO OUR COOPERATION
