Digital Cable TV Solution 8 12 16 24 Channels H.264 HD MI to DVB T RF Modulator Mpeg4 Encoder Modulator
- Category: >>>
- Supplier: Hangzhou Dtvane Technology Co. Ltd.
Share on (60008953964):
Product Overview
Description
The main function
Convertes your HDMI to Digital RF to TVs

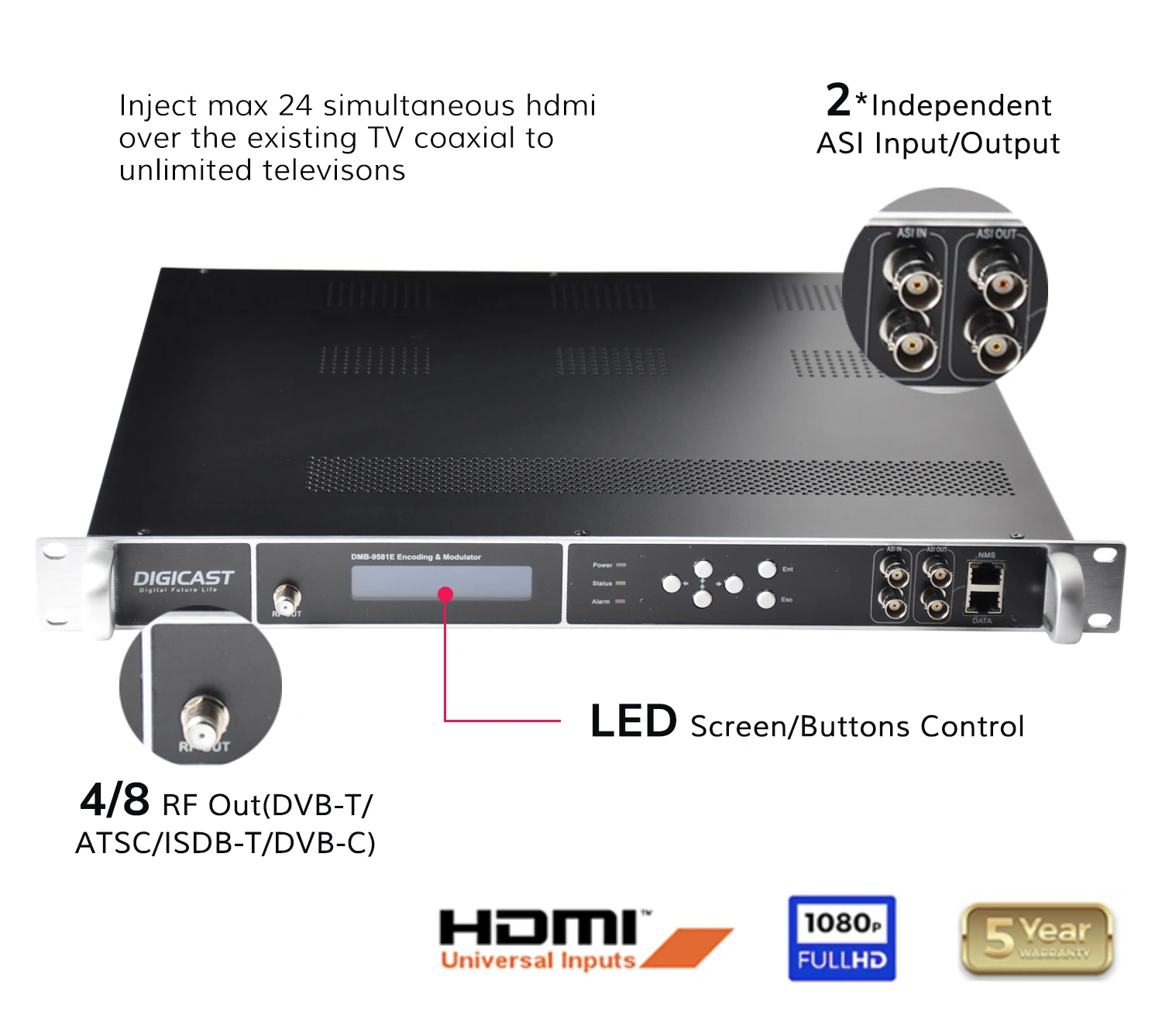

1: Plug-in-Play HDMI Video Distribution system, drives to unlimited TVs directly
2: Max 24 simultaneous hdmi over the existing tv coaxial
3: 4/8 separate multiplexing and Up-converter modulating carrier out
4: Support IP input and output for internet besides coaxial
5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers
2: Max 24 simultaneous hdmi over the existing tv coaxial
3: 4/8 separate multiplexing and Up-converter modulating carrier out
4: Support IP input and output for internet besides coaxial
5: PSI & LCN full control to edit Programs Names, PIDs, Channel Numbers
Flexible inside boards combination for Various System
1: Input FTA tuners,IP, HDMI,ASI option, you can chose one or some of them as input
2: Output RF(frequency),IP,ASI,Tuners option, you can chose one or some of them as output
3: Fully customized for your system
2: Output RF(frequency),IP,ASI,Tuners option, you can chose one or some of them as output
3: Fully customized for your system
Product Description
Features of HDMI to RF Modulator
Support modulation modules DVB-T, DVB-C, ATSC-T, DVB-S, ISDB-T/Tb and DTMB switchable from web
Support H.265 HEVC,H.264 HD video encoding optional
Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface
Features of HDMI to RF Modulator
Support modulation modules DVB-T, DVB-C, ATSC-T, DVB-S, ISDB-T/Tb and DTMB switchable from web
Support H.265 HEVC,H.264 HD video encoding optional
Audio encoding: MPEG-1 Layer 2, LC-AAC, HE-AAC
Support PID, PSI/SI compilation and LCN setting
Equipped with multiplexing module, able to multiplex local programs with external TS
Support TS over IP out, applied to IPTV applications.
Support IP empty packet filtering capability
Cut-off memory capability
Management of support web browser via Ethernet interface
Support software upgrading by Ethernet interface
SPECIFICATION | ||||||
H.265 HEVC HD Encoding Module | Video input: 8/12/16/20/24 HD MI Video compression standard: MPEG-2, H.265 HEVC HD video encoding Resolution input : 1920×1080@60P, 1920×1080@60i, 1920×1080@50P, 1920×1080@50i,1280×720@60P, 1280×720@50P 720×576@50i,720×480@60i output: 1920×1080@30P, 1920×1080@25P,1280×720@30P, 1280×720@25P, 720×576@25P,720×480@30P Audio input: HD MI Audio compression standard: MPEG1 Layer II(default),(LC-AAC, HE-AAC optional) Audio sampling rate: 48KHz Audio bit-rate: 64 ~ 320kbps | |||||
ASI Input | Channel: 2*ASI Interface: BNC, 75 ohm Input bit-rate: ≤100Mb/s Packet mode: Byte mode Packet length: 188/204 Bytes | |||||
ASI output | Channel: 2*ASI(Independent) Standard: compliant with EN 50083-9 ASI Output loss: >10dB Interface: BNC, 75 ohm | |||||
IP Output | TS over IP Outputs: 8*SPTS over IP(UDP/RTP/RTSP) Support empty packet filtering Interface: RJ45 (10/100M) | |||||
Output MODULATION MODULES (optional) | ||||||
DVB-T Modulation | Channel: 4*DVB-T frequency Modulation standard: EN300 744, EN304 744 Bandwidth: 6M, 7M, 8M Constellation: QPSK, 16QAM, 64QAM FET mode: 2K, 8K Guard interval: 1/4, 1/8, 1/16, 1/32 FEC: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥42dB RF output frequency range: 30~960MHz, in 1KHz steps RF output level: -30~10dBm (81~97dbµV), in 0.1dB steps ACLR: 55dB | |||||
DVB-C Modulation | Channel: 4*DVB-C adjacent frequencies Modulation standard: J.83A(Europe), J.83B(North America), J.83C(Japan) Constellation: J.83A-6/32/64/128/256QAM; J.83B-64/256QAM; J.83C-64/256QAM RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30 ~ 960MHz, in 1KHz steps Symbol rate: J.83A-5 ~ 7MSymbol/s, J.83B - fixed; J.83C - fixed Out-of-band rejection: 55dB Bandwidth: J.83A - 8M, J.83B - 6M, J.83C - 6M | |||||
ATSC-T Modulation | Channel: 8VSB*4 adjacent frequencies Modulation standard: ATSC A/53 Constellation: 8VSB RF output level: -30~-10dBm (81~97dbµV), in 0.1dB steps MER: ≥40dB RF output frequency range: 30~960MHz, in 1KHz steps | |||||
DTMB Modulation | Channel: 4*DTMB frequency Modulation standard: GB20600-2006 Bandwidth: 8MHz Constellation: 4QAM, 4QAM-NR,16QAM, 32QAM, 64QAM Qty. of modulation carriers: 1(single carrier) or 3780(multi-carriers) Guard intervals: PN420, PN595, PN945 Internal error correction code: LDPC Encoding efficiency: 0.4, 0.6, 0.8 Interlace depth: 240, 720 MER: ≥42dB ACLR: 55dB Frequency range: 110 ~ 960MHz, in 1KHz steps RF out level: -26dBm ~ -10dBm, in 0.5dB steps | |||||
ISDB-T Modulation | Channel: 4*ISDB-T frequency Modulation standard: ARIB STD-B31 Modulation mode: mode 1(2k), mode 2(4k), mode 3(8k) Constellation: DQPSK, QPSK, 16QAM, 64QAM Internal code: FEC (1/2, 2/3, 3/4, 5/6, 7/8) External code: RS (204, 188) Guard interval: 1/4, 1/8, 1/16, 1/32 Bandwidth: 6MHz RF output frequency range: 30 ~ 960MHz, in 1KHz steps MER: ≥42dB RF output level: -26dBm ~ -10dBm, in 0.1dB steps | |||||

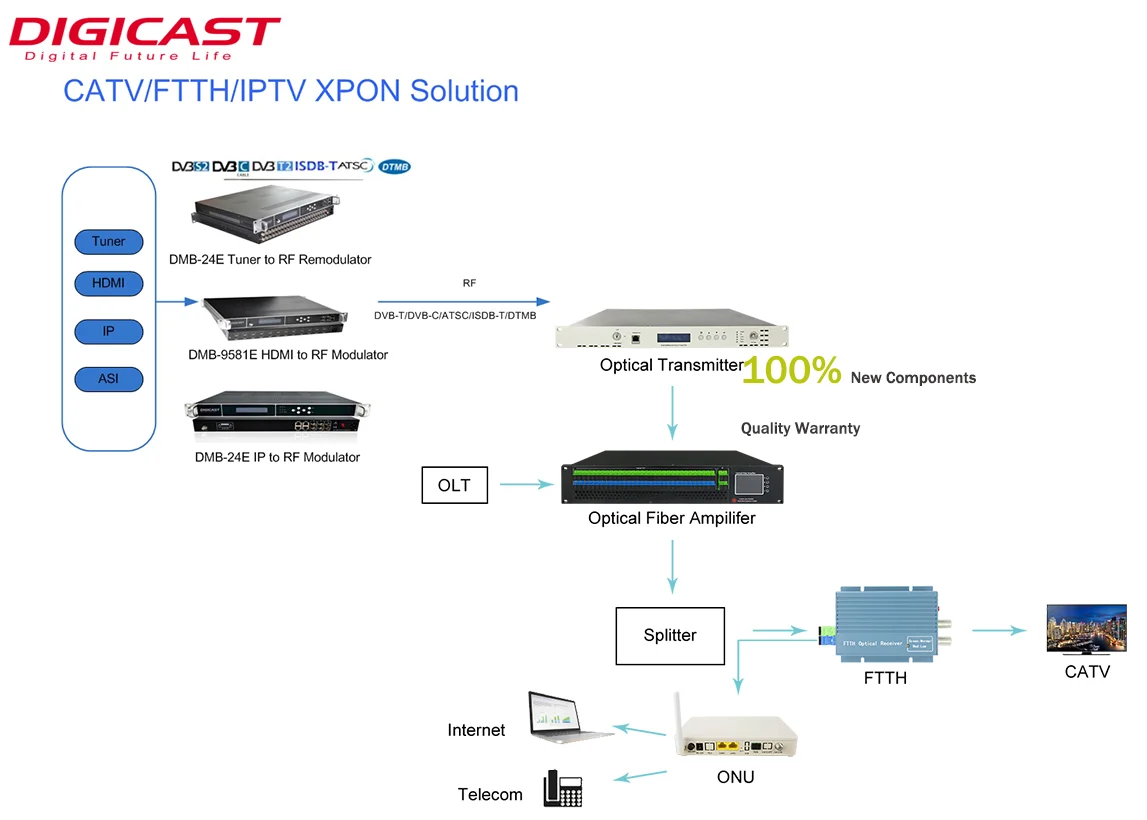

Application & Diagram

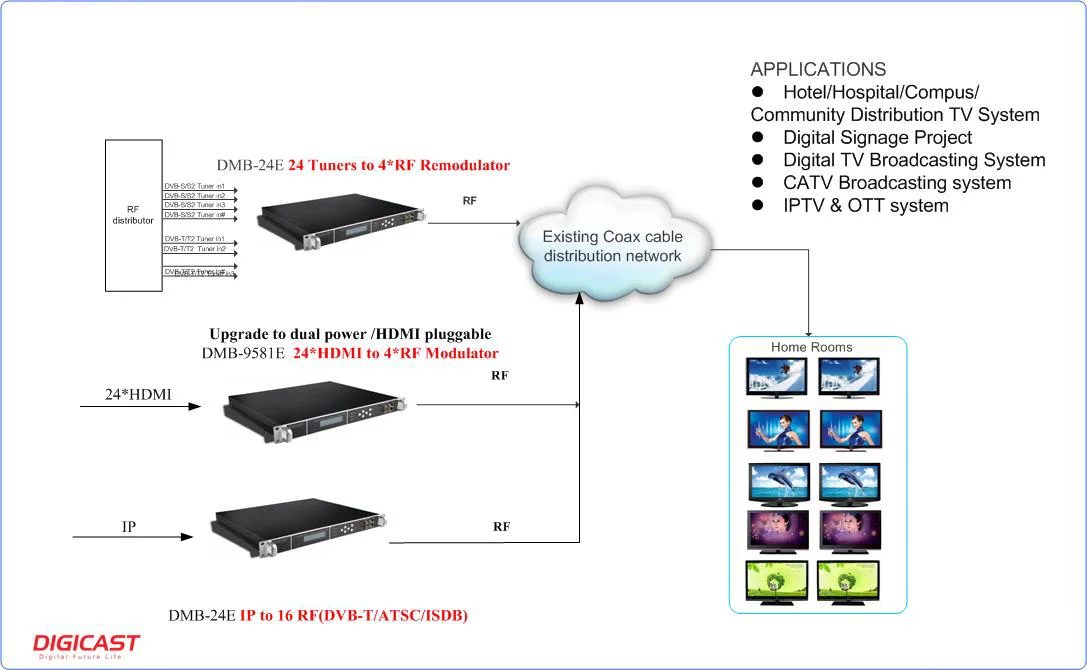

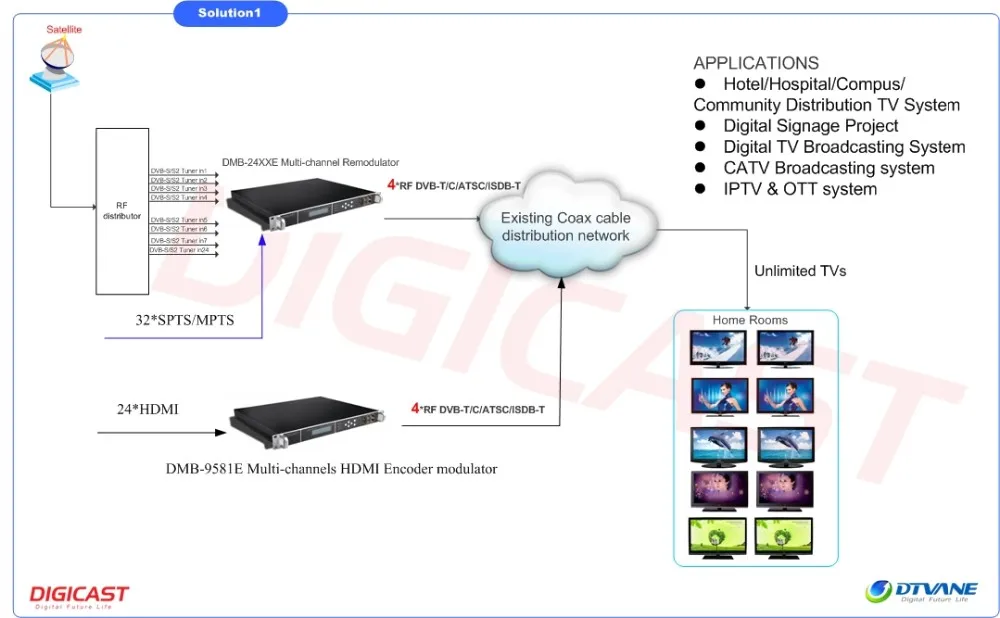

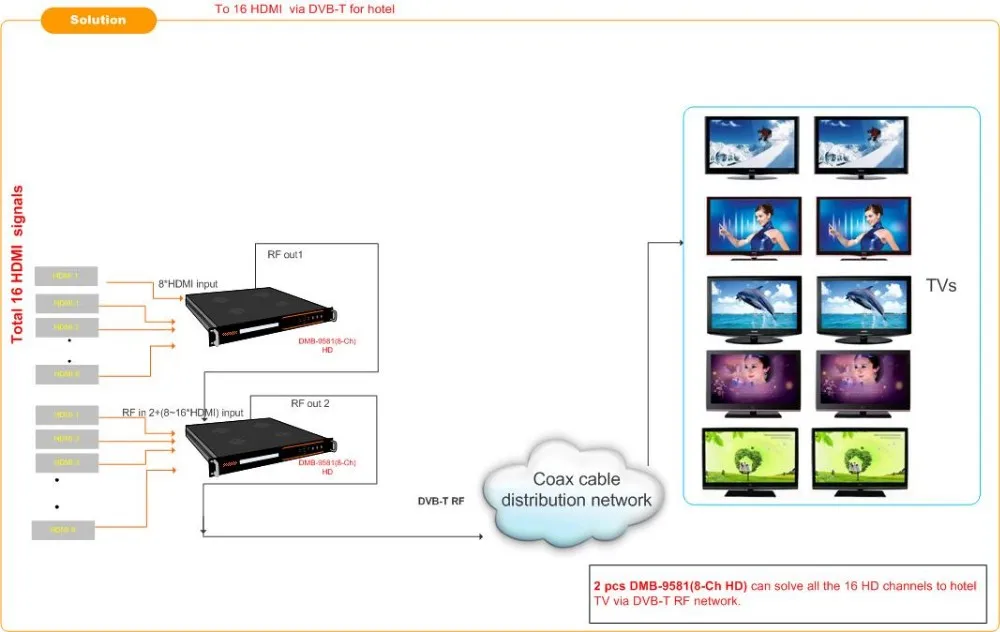

Insert More programs to existing coaxial system
DIGICAST as leader manufacturer of Digital TV headend equipment, provide different products to meet various project application
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
Widely used in Hotel,Hospital and DVB-T,DVB-C,ATSC,ISDB-T digital TV Broadcasting system
DMB-24E FTA Tuner to RF Remodulator
Input: FTA 24 tuners+2*ASI input +128*MPTS/SPTS UDP/IP input
Output: 4/8 RF output (DVB-C /ATSC /DVB-T/ISDB-T)+1*MPTS & 127* SPTS UDP/RTP IP Output+2*ASI
DMB-24E IP 16 or 32 RF Modulator
Input: 3 IP 1000M port,each port 128*MPTS/SPTS UDP/IP input+6*ASI Output : 16 or 8* DVB-T/ATSC/ISDB-T 32 or 16 DVB-C QAM out + 8*MPTS/SPTS out DMB-9580 MPEG2 SD RF Modulator
Input: 24*CVBS input +128*MPTS/SPTS+2*ASI input Output: 4 or 8 RF output +1*MPTS/127*SPTS out+2*ASI
DIGICAST Modulator series widely used as the headend equipment for FTTH system
Fiber Transmitter
Fiber store’s Optical transmitters are special optical transmitting equipment in HFC broadband transmitting network. The product which use direct optical intension, low RF-signal input level, excellent air proof and fast-heating capability, make it possiblework at any kind of bad environment. It can transmit analog TV signal, digital TV signal by optical fiber
EDFA
DIGICAST EDFA series with 8,16,32,64 ports option,20,21,22,23dbm,+WDM optionAs optical amplifier, EDFA is the most widely deployedone in the WDM system.
ONU (Optical Network Unit)
DIGICAST ONU series widely used in GPON EPON System
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
WIFI,CATV,IP, Voice different configuration to meet various customer project requirements
Factory&Warehouse
FAQ
Q4: What about your Warranty?
A4: All products has 5 years' warranty
whatever you ordered from our Agents or from us directly , as long as it is DIGICAST Brand,we offer original factory Warranty
and technical supports online/phone, repair services by our experienced after-sales specialist.
Service time: 9:00AM~23:59PM(GMT+8)
Q5: What is your Lead time and method of Shipment?
A5: we are factory ,adequate inventory, Generally delivery within 1-2 workdays after payment confirmed , all goods have to go through 100% QC testing and Aging
Shipping by International express TNT.Fedex,DHL,UPS door to door service, it will take 3-6 workdays to your designated address
Q6: What's your Payment method supported?
A6: We accept T/T bank transfer, Paypal(Credit Card), Western Union, MoneyGram ,Alibaba Trade Assurance,etc.
Q1:What is the application for your encoder
A1: Our Video to IP Encoder series designed for streaming the Video/Audio channels to Media Live Platform(Wowza/Ustream,Facebook...) and Servers
Best Partner for IPTV&OTT Project, also can be used for Live Applications Churchs, Schools, Classrooms, GYM, Airport, Business, Trains, homes, video conference and so on
Q2: Can I get some Samples for testing?
A2: Yes, sample order acceptable . Furthermore you can check the web management by remote, we can sending the testing TS files, pushing the streaming to your servers
Our professional engineers will offer the services according your testing requirements
Q3: Can you provide OEM service as per our request?
A3: Yes, DIGICAST as the original factory , our R&D department can realized function customization based on your project application .
also we offer Brand OEM services to global Agents &Clients
Please consult the sales for detailed requirements.
