Высокоскоростная веб камера ELP 1920x1080 Mjpeg 30fps 640x480 Mjpeg 100fps с usb модулем
- Category: Webcams >>>
- Supplier: Shenzhen,Ailipu,Technology,Co.,Ltd.
Share on:
Product Overview
Description
ELP Webcam 1920x1080 Mjpeg 30fps 640x480 Mjpeg 100fps high speed usb camera module usb webcam ELP-USBFHD01M-L21
Product Description
Features
Features
1) 1/2.7 CMOS OV2710 Sensor, 2 Megapixel USB webcam , with wide angle 2.1mm lens
(2.8mm, 3.6mm, 6mm, 8mm,12mm, 2.8-12mm varifocal, fisheye lens... optional), lens changable.
2) High speed USB2.0, high frame rate, can be used to shoot fast move object or kinds of games, for example golf game...
1920X1080 Mjpeg 30fps 1280x720 Mjpeg 60fps 640x480 Mjpeg 100fps

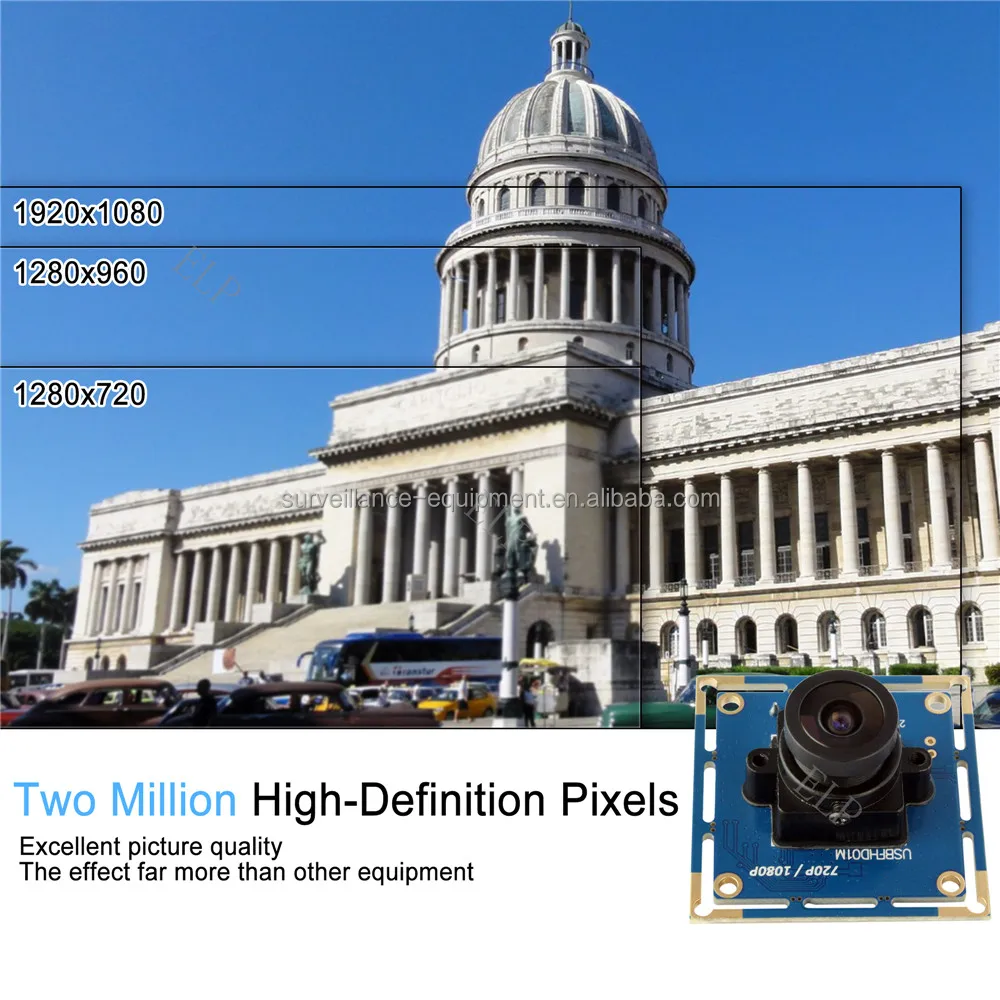

3) 200W,2.0Mega Pixel ,Max. Resolution 1920X1080
Support IR Cut, optional to add IR LED Board

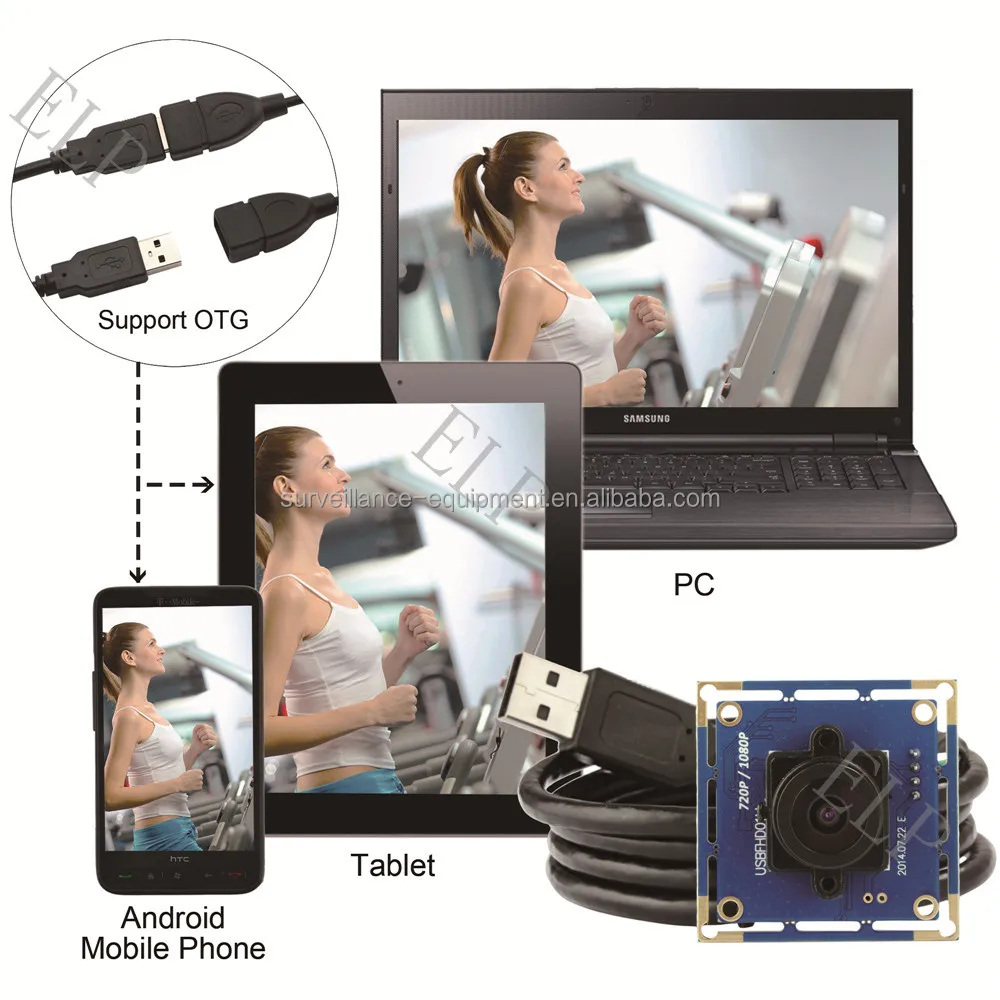

Support OTG, can connect your mobile via OTG Cable
3) Support OS: Camera with UVC for use in WinXP/Vista/WIN7/WIN8/Linux with UVC/Mac-OS X 10.4.8 or later/Wince with UVC/Android 4.0 or above,
Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other camera software and hardware.
4) With standard 1m cable (3m, 2m, 5m optional, also can customize the cable).
5) Many applications, well used in many machines, atm machine, medical machine, automatic vending machine, industry machine..
6) Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
Specifications
| Model | ELP-USBFHD01M-L21 ( 2.1mm lens) |
| Standard | 2.0megapixel USB Camera Board (32*32/38*38mm optional) 2.1mm Lens 1m USB Cable |
| Sensor | 1/2.7" CMOS OV2710 |
| Lens size | 200W, 2.0megapixel, |
| Max. Resolution | 1920(H)x1080(V)pixels |
| Picture format | MJPEG or YUY2 optional |
| Performance | 320X240 QVGA MJPEG @120fps/ 352X288 CIF MJPEG @120fps 640X480 VGA MJPEG@120fps/ 800X600 SVGA MJPEG@60fps 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@60fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
| USB Protocal | USB2.0 HS/FS, USB1.1 FS |
| Support free driver | USB Video Class(UVC)1.1 |
| Auto exposure AEC | Support |
| Auto white blance AEB | Support |
| Adjustable parameters | Brightness/Contrast/Color saturation /Definition/Gamma/WB |
| OTG protocol | Support OTG function,Directly connect your mobile phone |
| Night vision | Support IR cut Optional to add IR LED board |
| voltage | DC 5V |
| current | 150mA |
| work temperature | DEGREES(-20~70) |
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above |
Pictures Display
Applications Show
Application
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site
monitoring, environmental monitoring, etc.
Used for all kinds of machine as below
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system, automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.
Effect
FAQ
♦Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
♦Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
♦What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
♦Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
♦What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens
♦What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
♦What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
♦Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
♦Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
♦Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
