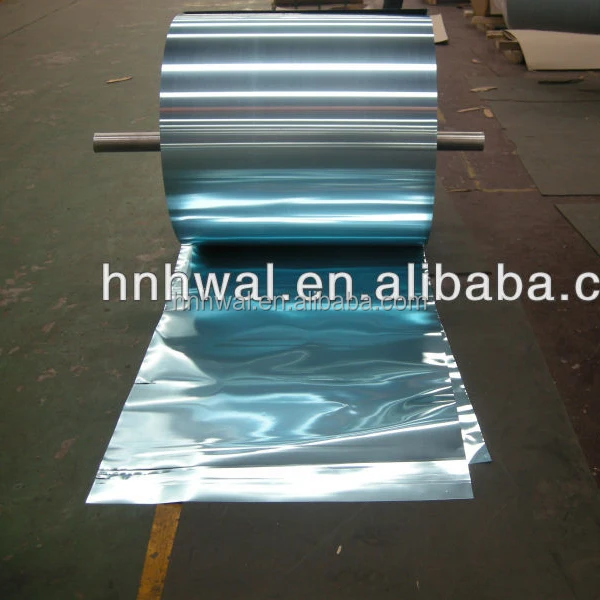

Hydrophilic aluminium air conditionar foil for air conditioner/radiator
- Category: Metal Foil >>>
- Supplier: Henan Huawei Aluminum Co. Ltd.
Share on (60009337964):
Product Overview
Description
Hydrophilic aluminium air-conditionar foil for air conditioner/radiator
Product Description
Aluminium air-conditionar foil
Alloy No.:8011 1100 1030B 3102
Temper:O H22 H24 H16 H26 H18
Color: Blue,Golden,White
Thickness:0.08-0.20mm Width:50-1500mm
1.Name: hydrophilic aluminium Foil for Air-Conditioning
2.Alloy No.: 8011
3.Temper: O H22 H24 H16 H26 H18
4.Size: Thickness: 0.08-0.2mm(tolerance:+/-0.01) Width: 50-1500mm(+/-1)
5.Inner Diameter:76.2/152.4(Aluminum, Steel or Paper Core)
6.Outer Diameter:500-1000mm
7.Machinary Property:
| Base Alloy | Base temper | thicknessmm | Tensile strength σb MPa | Requires non-proportional extension strength N/mm2 | Elongation δ % | Cupping Value IE mm |
| 1100 | 0 | 0.095-0.220 | 85-110 | ≥50 | ≥20 | ≥7.2 |
| H22 | 100-130 | ≥65 | ≥18 | ≥6.5 | ||
| H24 | 115-140 | ≥90 | ≥16 | ≥6.0 | ||
| H26 | 125-155 | ≥110 | ≥10 | ≥5.5 | ||
| H18 | ≥160 | \\ | ≥2 | \\ | ||
| 8011 | 0 | 105-130 | ≥50 | ≥22 | ≥7.5 | |
| H22 | 115-140 | ≥65 | ≥20 | ≥7.2 | ||
| H24 | 125-150 | ≥90 | ≥16 | ≥6.5 | ||
| H26 | 130-160 | ≥110 | ≥12 | ≥5.8 | ||
| H18 | ≥180 | \\ | ≥2 | \\ | ||
| 3102 1030B | H24 | 0.095-0.180 | 120-140 | ≥100 | ≥15 | ≥6.0 |
| H26 | 130-160 | ≥110 | ≥10 | ≥5.5 |
| Film quantity | Total | 1.00-1.80 | 0.50-0.60 | |
| layering | Anticorrosive coating | 0.80-1.30 | 0.05-0.06 | |
| hydrophilic coating | 0.20-0.50 | 0.45-0.54 | ||
| lubricating layer | \\ | |||
| Coating Adhesion | Cross cut test | 100% | 100% | |
| Cupping test | no peeling | 100% | ||
| Bending test | no peeling | 100% | ||
| Primary Hydrophilia | Contact Angle | ≤10° | ≤10° | |
| Degreased Contact angle | ≤20° | ≤10° | ||
| Continuous | Running water dipping | ≤25° | ≤20° | |
| Hydrophilia | Dry & wet circulation | ≤30° | \\ | |
| Corrosion resisting | Salt test | ≥9.5 (500hr) | ≥9.0(332hr) | |
| Humidity test | ||||
| Heat resisting | 200°C | no change | \\ | |
| 300°C | turn to brown | no change | ||
| Dissolvent resisting | ≤1% | \\ | ||
| Alkali resisting | no change | \\ | ||
| Press oil resisting | no change | no change | ||
| Coating smelling | No off-flavor | No off-flavor | ||
8.Quality: Chemical Composite and Mechanical Property are meted with GB/T, ASTM, ENAW, JIS Standard
9.Surface Quality: be free from Oil Stain, Dent, Inclusion, Scratches, Stain, Oxide Dicoloration, Breaks, Corrosion, Roll Marks, Dirt Streaks and other defect which will interfere with use.
10.Application: Air-Conditioning
11.Packing: First, plastic cloth; Second, Pearl Wool ; Third, wooden cases with dry agent ,without fumigation,wooden box
12.Certificate: ISO9001:2000, SGS and ROHS(if client request, paid by client), MTC(plant provided), Certificate of Origin(FORM A, FORM E, CO)
13.Month Capacity: 4000mt / month
14.Exporting Port: DALIAN,TIANJIN,SHANGHAI,QINGDAO
15.Payment:TT or LC at sight
Aluminium air-conditionar foil
Our Customer
Our Customer
Team
Our Services
- Reply in 24 hours
- Different sizes are available according to buyer’s requirement,accepting MOQ 1 TON.
Certifications
Certificates
FAQ
1. Are you a manufacturer?
Yes, we are pure aluminum foil and laminated aluminium foil material manufacturer and we have our own factory since 2009.
2. What’s your product range?
Foils:Aluminium foil container,Tobacco foil,Cable Aluminum Foil,Air conditioner Foil,Aluminium foil tape,
Electronic Foil,Industrial Foil,Food&Pharmaceutical Foil,Blister foil,Art&Decoration Foil,Aluminum Foil Container,
and other composite products such as Aluminium-Plastic composite products,Aluminium-Paper composite products and so on.
New packing material:Aluminium foil tape,Aluminium foil lid,Aluminium foil heat seling film,Colored aluminium foil,Aluminium packing bag,Aluminium+paper+PE laminated packing material,
PVC/PP/POF/PE/OPS/PET Shrink Film,Instant noodle cover paper,Medical used compound paper,
Milk and juice packing foil,
3. What is your MOQ?
Normally our MOQ is 3 tons for pure and laminated aluminiu foil. But we could also make the products for you if your quantity doesn’t reach our MOQ. As for we have our minimum volume of business per order.
Therefore as long as you pay us the minimum volume of business, even if your quantity less than 3 tons, we could also make the bags for you according to your demand.
Normally our MOQ is 3 tons for pure and laminated aluminiu foil. But we could also make the products for you if your quantity doesn’t reach our MOQ. As for we have our minimum volume of business per order.
Therefore as long as you pay us the minimum volume of business, even if your quantity less than 3 tons, we could also make the bags for you according to your demand.
4. Do you have stock products to sell?
Yes. Actually we have many kinds of aluminium foil for stock selling.
5. What’s the information should I let you know if I want to get a full quotation?
Alloy
Temper
Thickness
Width
I.D and O.D
Application
Quantity
7. How do you ship the products?
By sea
By air
By railway:(to Europe and Middle Asia)
About us:
Henan Huawei Aluminium Co., Ltd.
Henan Huawei Aluminum Co., Ltd is a privately-owned enterprises established in 2001, is located in Huiguo Town which is the famous Aluminum Capital in Henan Province, China. There are 1,200 employees including a R&D team with 26 specialists, and covers an area of 250,000 square meters.
Now our main products include Al Coil, Sheet, Plate, Circle, Strip and Foil, with the annual output more than 200,000 MT and Export volume accounts for 40%.
With the accumulation for more than 18 years, HWALU has established its Brand in domestic and abroad. At the present stage, our development strategy is to launch International Trade in a more cost-effective manner. So we cherish all the real feedback from our customer, dedicate to providing the clients with satisfactory service and strive to improve our production quality and efficiency.
"QUALITY IS SUPREME, REPUTATION GOES FIRST" is our objective.
HWALU always welcome you!
