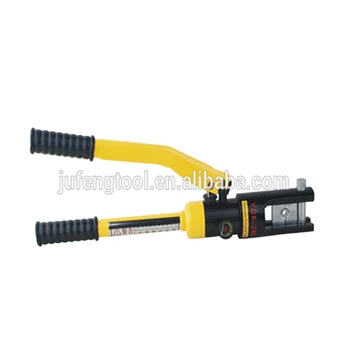

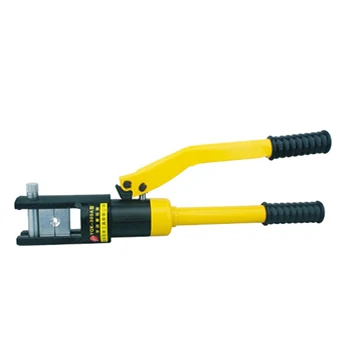

YQK 240 Hydraulic Crimping Tool /Aluminum Copper Cable Compression Wire Hydraulic Hand Crimper

Product Overview

Description



Description

pipe crimping tool YQK-240Crimping

range:16-240mm
Crimping force : 12T

Crimping range :16-240mm

Max travel :18mm

Accessories:16 , 25 , 35 , 50 , 70 , 95 , 120,150,185,240mm



Delivery time

we have products in warehouse ,can send goods in 10-25 days after accept payment

Payment

T/T best ,or paypal

Packing

one pc in one plastic box ,fore plastic box in one paper box



specification

 EP-510 Quick Hydraulic Pliers(Strap safety set)



Crimping range	50-400mm2
Max Pressure	16T
Max travel	38mm
Accessories	50,70,95,120,150,185,240,300,400mm2
Crimping type	Besiege Pressure















EP-430 Quick Hydraulic Pliers(Strap safety set)



Crimping range	50-400mm2
Max Pressure	16T
Max travel	30mm
Accessories	50,70,95,120,150,185,240,300,400mm2
Crimping type	Besiege Pressure

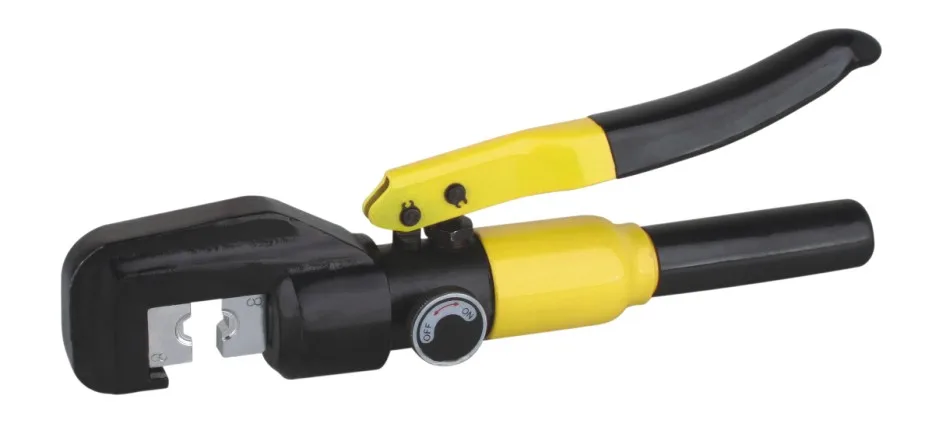

• ITEM No.:YQK-70
• Press-joint range:4-70mm²
  Max Pressure:8T
  Max Travel:10mm
  Mould:4,6,8,10,16,25,35,50,70mm²
  crimping type:besiege pressure

• Item No	YQK-70
  Crimping range	4-70mm2
  Max pressure	6T
  Max travel	10mm
  Accessories	4,6,8,10,16,25,35,50,70mm2
  Crimping type	Besiege pressure








ITEM No.:YQK-300

• Press-joint range:16-300mm²
  Max Pressure:15T
  Max Travel:22mm
  Mould:16,25,35,50,70,95,120,150,185,240,300mm²
  crimping type:besiege pressure

• Item No	YQK-300
  Crimping range	16-300mm2
  Max pressure	10T
  Max travel	18mm
  Accessories	16,25,35,50,70,95,120,150,185,240,300mm2
  Crimping type	Besiege pressure
