Glass Door Display Walk In Freezer Storage Cold Storage Refrigeration

Product Overview

Description

glass door display cold room with polyurethane panels



glass door display cold room Product Description

glass door display cold room is a new product with various standard dimension sizes. The storage capacity of

it may be specified or selected according to customer's requirements. The storage temperature of the glass door display cold room is displayed and controlled by digital thermostat for precise control

temperature and temperature adjustment to achieve the utmost energy efficiency and perfect storage of food.



glass door display cold room feature:

1.Using all parts of the main foreign brands, running more secure;
2.A unique way of cooling than traditional high-efficiency by about 30%;
3.To adopt environment-friendly refrigerant and fluorine-free refrigerant;
4.Mute design, low noise and give you a quiet office space;
5.Condensation unique: half of the natural convection, half of the air, even if the wind blocking dirty condenser, compressor's not easy to cause damage;
6.The production of stainless steel liner;
7.Round cavity design, easy to clean;
8.Outside the door silicone door seals tight blockade of air-conditioning;
9.R232 interface (optional) to help data analysis;
10.The removable cleaning dust,
11.According to the domestic high and wide doors designed for the handling and do not have to put in place to worry about;
12.PU extra-thick insulation so that heat and strengthen the structure;
13.With lights and shelvings



glass door display cold room specification:



Glass Doors	50mm panel(2~10C)	75mm panel(0~-5C)	100mm panel(-5~-20C)
1 DOOR	905*950*>1965mm	955*950*>2015mm	1005*950*>2065mm
2DOORs	1663*950*>1965mm	1713*950*>2015mm	1763*950*>2065mm
3DOORs	2421*950*>1965mm	2471*950*>2015mm	2521*950*>2065mm
4DOORs	3179*950*>1965mm	3229*950*>2015mm	3279*950*>2065mm
5DOORs	3937*950*>1965mm	3897*950*>2015mm	4037*950*>2065mm
6DOORs	4695*950*>1965mm	4745*950*>2015mm	4795*950*>2065mm
7DOORs	5453*950*>1965mm	5503*950*>2015mm	5553*950*>2065mm
8DOORs	6211*950*>1965mm	6261*950*>2015mm	6311*950*>2065mm
9DOORs	6969*950*>1965mm	7019*950*>2015mm	7069*950*>2065mm
10 DOORs	7727*950*>1965mm	7777*950*>2015mm	7827*950*>2065mm



glass door display cold room introduction:

1. glass door display cold room panel

1)Panel test specification

No.	Inspection Item	Unit	Technology requirement	Inspection result
1	Density	kg/m3	32~50	43
2	Compressing strength(10%deformation)	Kpa	≥ 160	200
3	Bending Stregth	Kpa	≥ 245	331
4	Absording rate	%	≤ 4	3
5	Heating coefficient	W/m.k	0.024	0.021
6	Average burning time(vertical)	S	≤ 30	3
7	Average burning height(vertical)	s	≤ 250	250

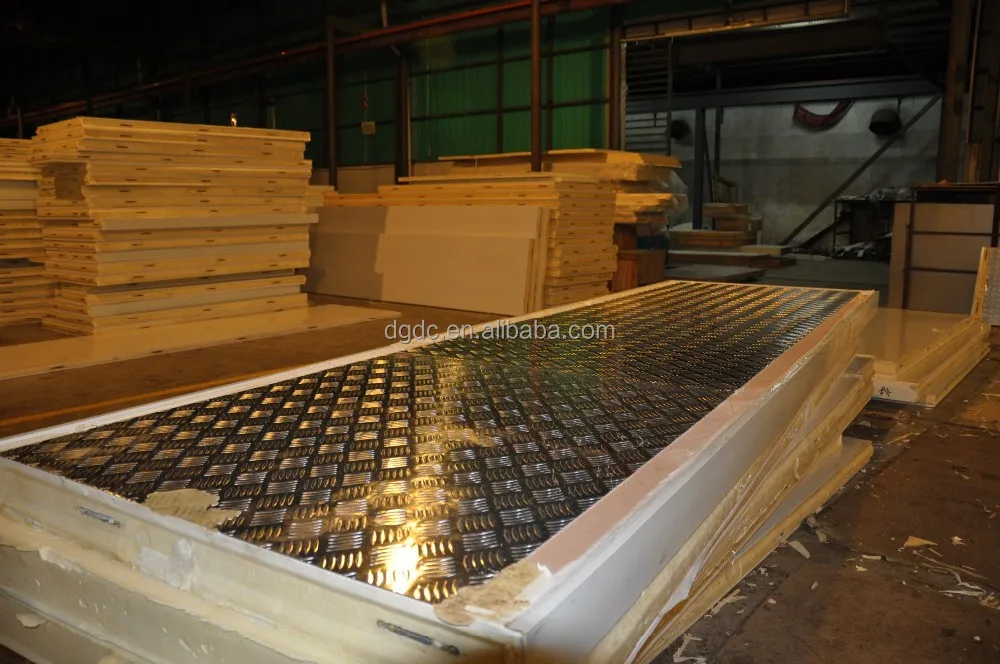

2) glass door display cold room Panel advantages:

1. Our panel foaming material is Germany Brand BASF . The whole panel average density above 43kg/m3 which

enable the panel with better thermal conductivity of  0.021W/(m.k). The national standard is 0.024W/(m.k), which mean our panels will save the energy consumption of 12.5% than national standard.

2.All the panels we produce are with fire retardant, self extinguish, Fireproofing Grade is B1. It refers to the safety problem.

3.The steel sheet we purchase from Baosteel and POSCO which are the biggest steel factories in the world, they promise the painted galvanized steel they produce will not fade in 15~20 years

4.Gasket is around the edge of each panel , when panel lock together,the cool air will not leak,and the hot air can not come in.



2. glass door display cold room parts

1)Plastic coated shelf



2)Light and glass door heating tube switch

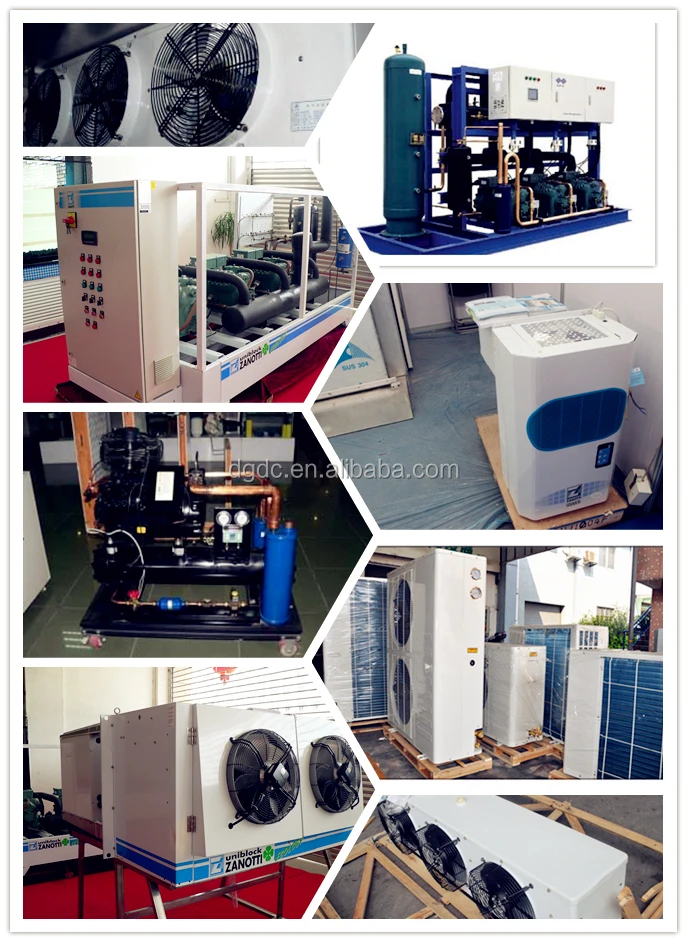

3. glass door display cold room refrigeration unit



4. glass door display cold room installation

5. glass door display cold room package



6. glass door display cold room production procedure





glass door display cold room project:



glass door display cold room exhibition:



glass door display cold room certificate:

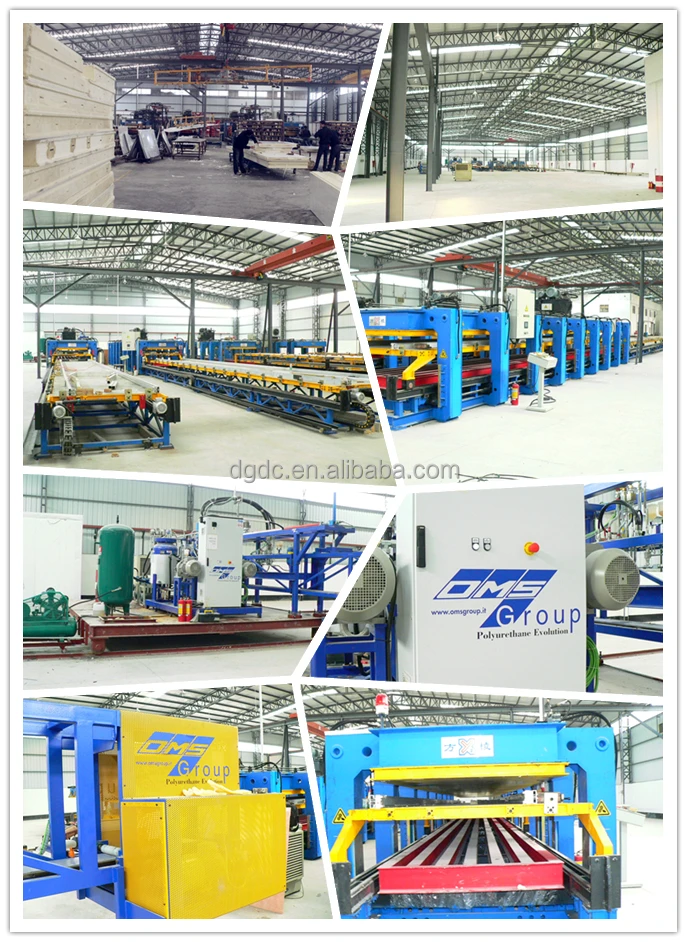

Factory picture:
