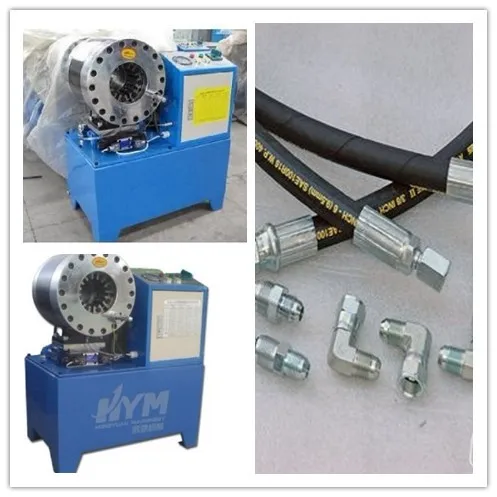

DX 68 hydraulic hose crimping machine

Product Overview

Description

1.Company information:

Transportide® industrial limited is one of the largest manufacturers of hydraulic hoses, conveyor belts and related rubber products in the world. Established in 1989, our factory is located in Zaozhuang Industrial Park, Shandong, China.

Since then, thanks to our commitment in R&D and strict quality control, our products have been enjoying the reputation of best quality and competitive price. Now we have seven production lines, four distribution warehouses and products involving seventy-five categories and more than one thousand types.

In 2010, Transportide has established two new production facilities for greater production capacity and further reduce the manufacturing cost. We will never stop our efforts to offer our customers with best products and best prices.



2.Specification:

        Max hose ID:2" -spiral Hose

Theoretical Crimping Force(Ton):407

Max. Pressure(Mpa):31.5MPA

Die Opening & Closing(mm):+/-40

Max Opening(mm):136

Motor Size(Kw):4

Operating Voltage(V):380v-3Ph-50Hz---220v-1ph-50Hz

Full Crimping Circle (Seconds):10

Accuracy(mm):0.02 Max.

      Standard dies: 15,19,23,27,31,36,41,47

      Optional dies: 53,58,67

Un-even(mm):0.1 Max.

Weight(Kg):200

Dimensions(Length×Width×Height):670×490×780(mm)

Die-sets Chart:

·  The Die Number with "*" tag means it is an Optional Die-set.

·  Die-sets with specs other than the Chart can be made to order.

Die No.	Range(mm)	Length(mm)	Die No.	Range(mm)	Length(mm)
15	15-19	75	41	41-47	75
19	19-23	75	47	47-53	75
23	23-27	75	53*	53-58	75
27	27-31	75	58*	58-64	75
31	31-36	75	67*	67-73	75
36	36-41	75	*Optional Die-sets



3.Packing

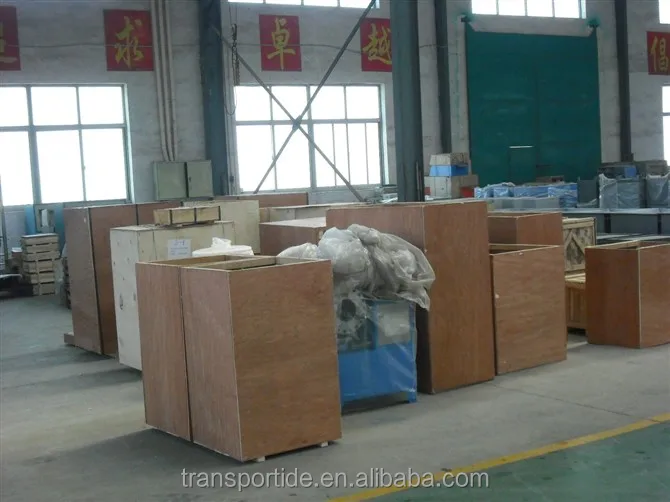

Be packed with pp cloth in wooden cases



4.Delivery time:

Within 14days upon receipt of deposit



5.Payment term:

We can accept TT OR LC Whether which term is better for you.

Any suggestion,please let me know.



6.Certificate:

ISO certificate



7.FAQ

Q. How to contact Transportide?
A. by email: stephen at transportide.com
by phone: +86 532 83865370 / 83871846
by fax: +86 532 83865073
by mail: 21 W. Donghai Rd. #601
Qingdao, 266071 P.R.China
by Alibaba, Visit US

Q. How long will it take to finish an order of 20foot container?
A. Brand "TRANSPORTIDE®" 30days, OEM brand 45days.

Q. What's your MOQ (minimum order quantity)?
A. 1) 20foot container's quantity. (abt. 30000M for hose)
2) Sample order is acceptable for the first time.

Q. What's your payment term?
A. 1) By T/T 30% deposit in advance, by T/T the balance against the fax (scanning copy) of original B/L.
2) L/C at sight.

Q. What's trade term that your quotations base on?
A. 1) FOB
2) CIF
3) CFR

Q. Which Chinese port do you usually deliver the goods?
A. Qingdao port.
