This deep hole honing machine is specialized to process cylindrical deep hole parts.It can drill holes,bore holes and honing. Inner chip removal method(BTA),which means,oil feeder supplies oil,oil flows through cutting area and brings chips(which is inside boring bar) to the back conveyor of machine. When boring,it adopts push boring method,oil feeder supplies oil,cooling liquid conveys chips to the head of machine. This machine can be also equipped with hydraulic harmomegathus honing head. Machine has associated hydraulic system,cooling system and chip-removal system.

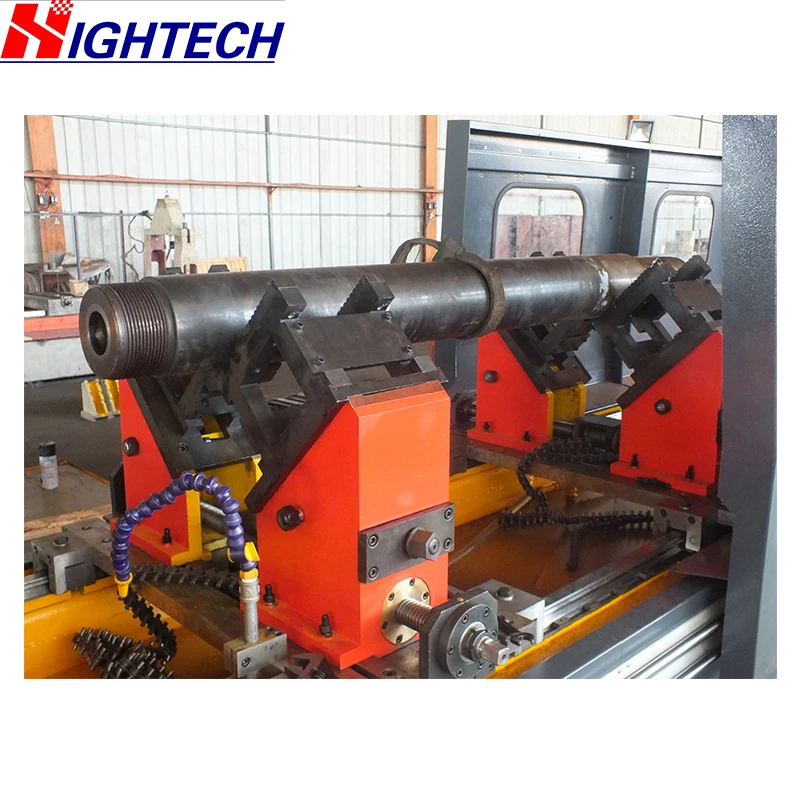

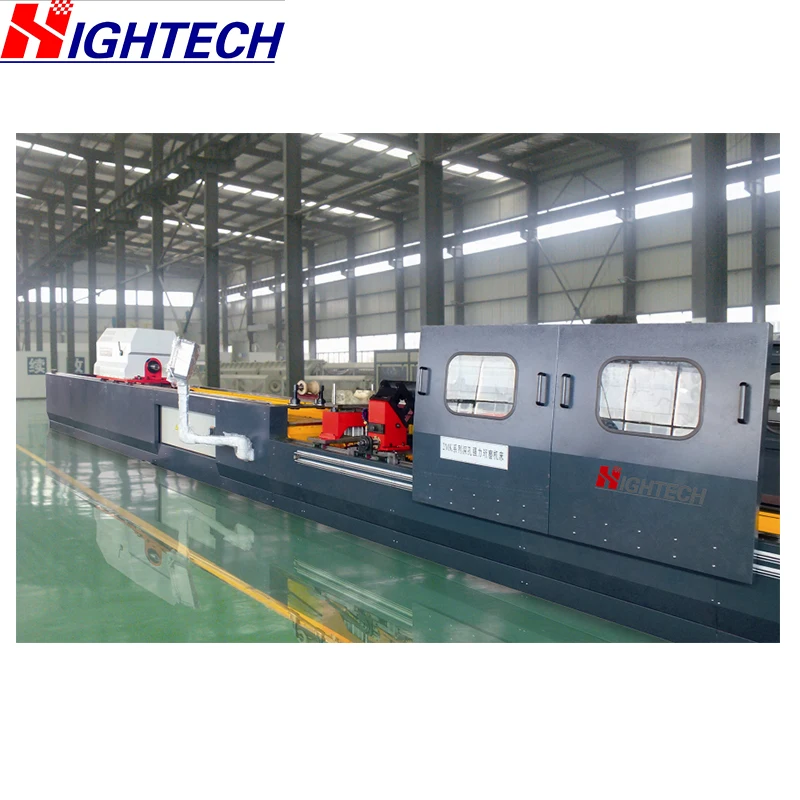

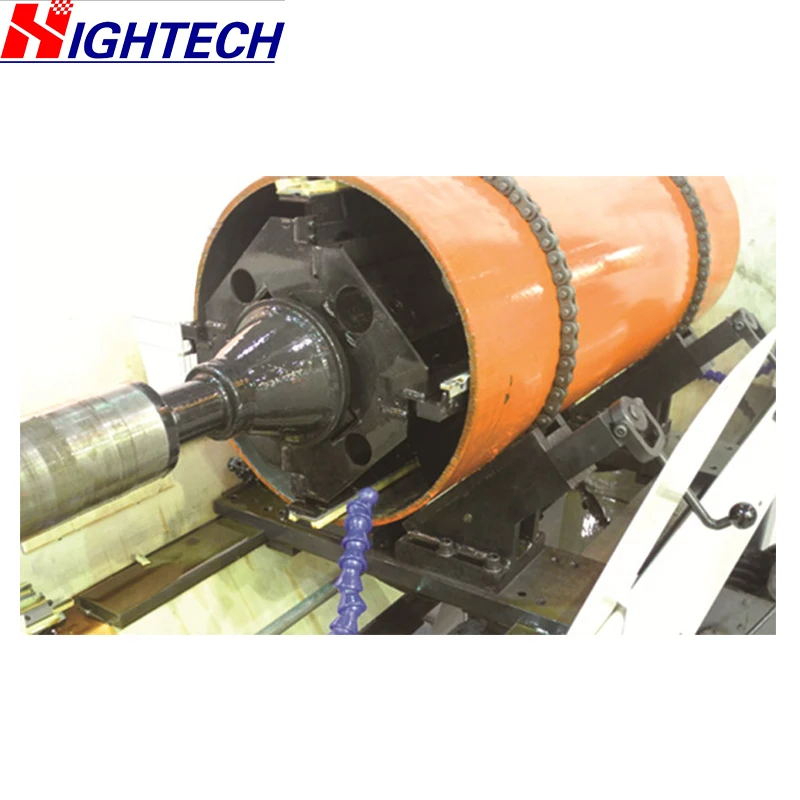

Detailed Images
Main Parameters
1
Honing diameter
Φ60~200mm
2
Center height
400mm
3
Process depth
600~8000mm
4
3-jaw chuck diameter
Φ500mm
5
Clamping range of center rest
Φ50~400mm
6
Main motor
N=30kW,n=1460r/min
7
Spindle speed
50~800rpm,12 grades
8
Boring bar box motor
N=15kW,n=1460r/min
9
Boring bar box spindle speed
50~400rpm,12 grades
10
Feeding speed
5~5000mm/min(stepless)
11
CNC system
SIEMENS 808D
12
Feed motor
40N.M,SIEMENES servo motor
13
Oil feeder motor
32N.M,CTB servo motor
14
Cooling pump motor
N=5.5kW,n=1440r/min(4 groups)
15
Nominal pressure of cooling system
2.5MPa
16
Cooling system flow rate
100,200,300,400L/min
17
Cooling tank volume
4000L
18
Cooling pump flow rate of honing
50L/min
19
Cooling tank volume of honing
950L
