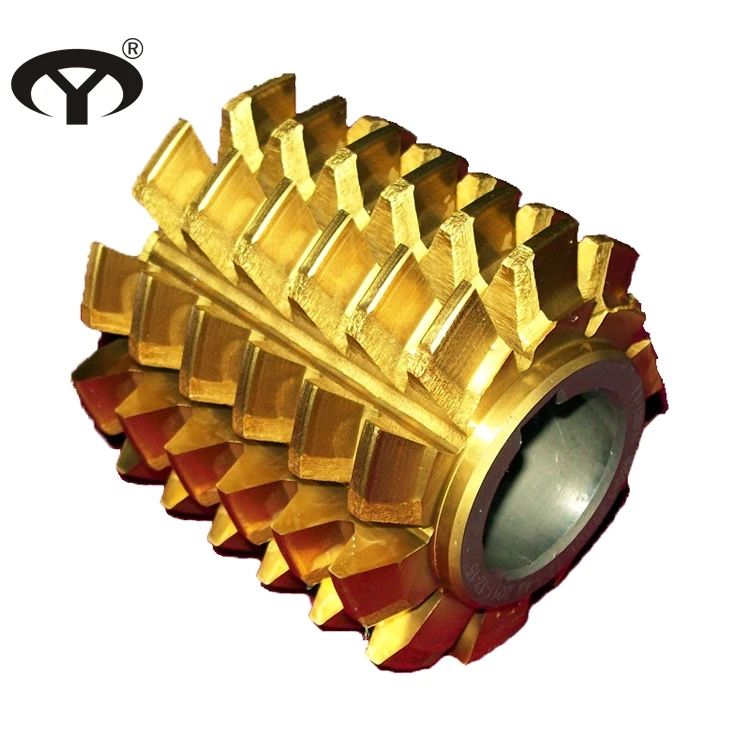

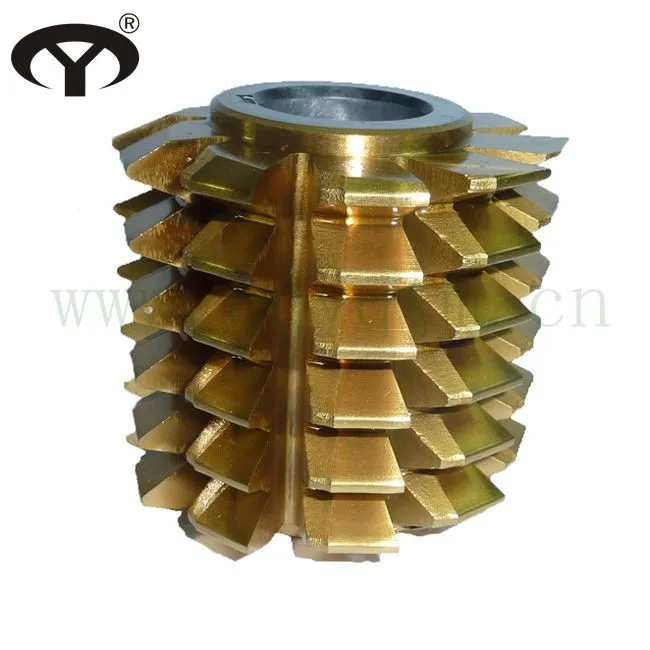

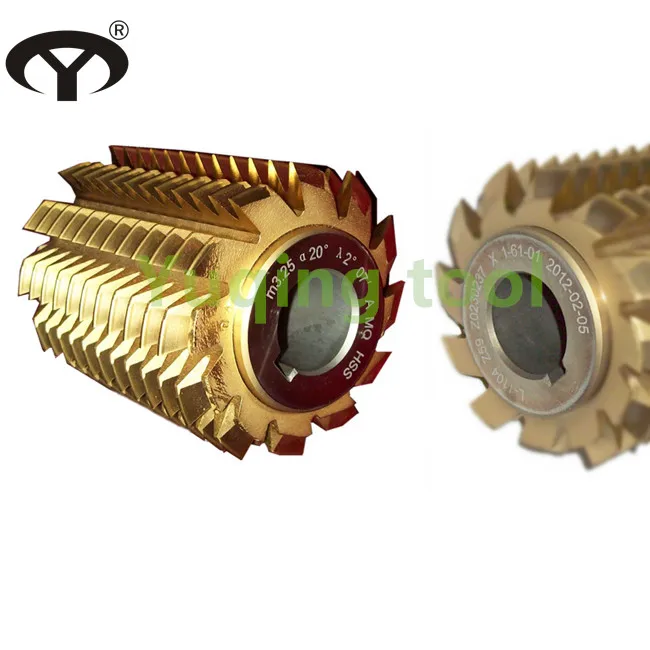

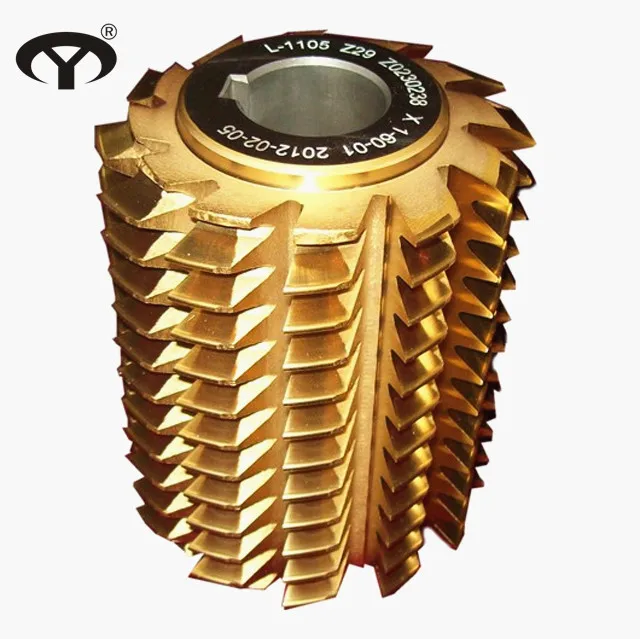

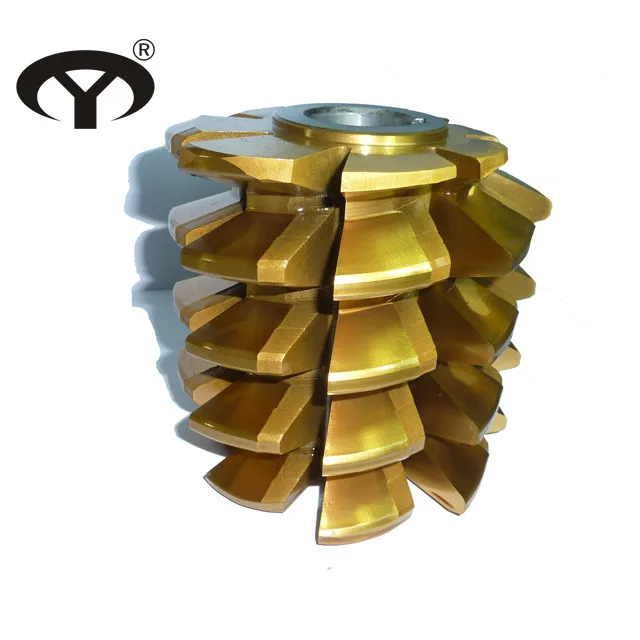

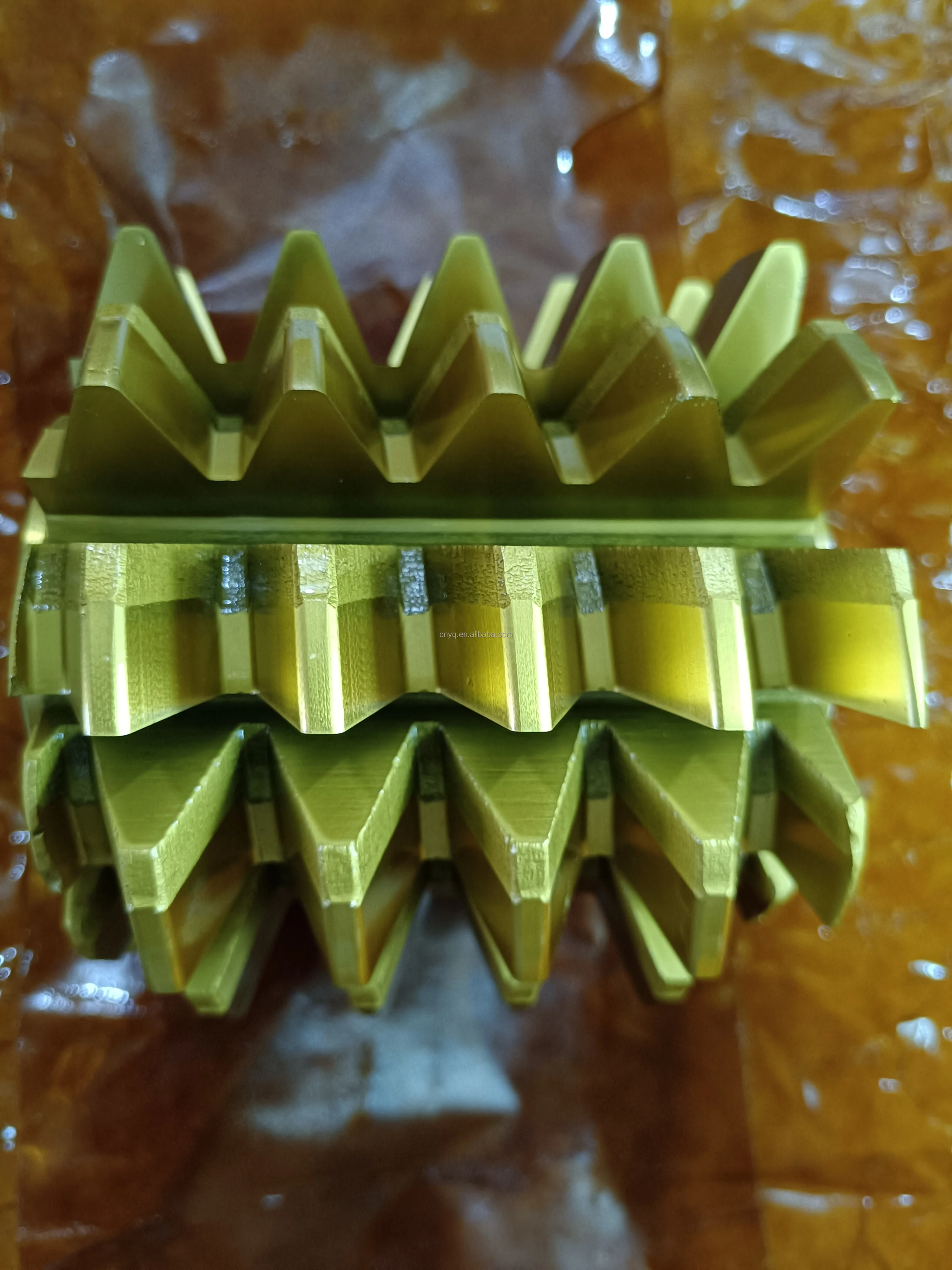

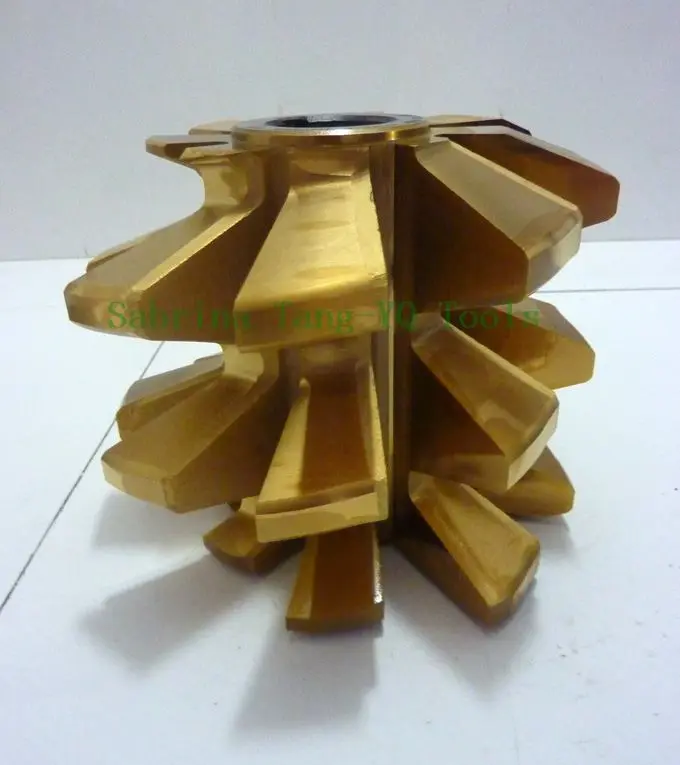

HSS M2 gear cutting tools, gear tools, gear hobbing cutter with TIALN

Product Overview

Description

HSS M2 gear cutting tools, gear tools, gear hobbing cutter with TIALN

Specification table of module gear hobbing cutter :



Module	Outside Dia.	Overall Length	Hole Dia.
1	50	40	22
1.25
1.5	55	45
1.75
2		50
2.25	60
2.5	65	55
2.75
3	70	60	27
3.25	75	65
3.5		70
3.75	80
4		75
4.25	85	80
4.5		85
5	90	90
5.5	100	95	32
6	105	100
6.5	110
7	115	105	40
8	125	115
9	140	130
10	150	135































Hob cutter series :  gear hob , pre-shaving gear hob, pre-grind gear hob, involute spline hob, parallel side spline hob, ground sprocket hob , and timing pulley hob.





Production process of HSS M2/M35 module gear hobbing cutter gear cutting tool :







Material Introduction:



A. W6Mo5Cr4V2 (GB)  M2( ASTM), S6-5-2(DIN), SKH51(JIS)
   chemical composition:C 0.85, Si 0.38, Mn 0.35, P≤0.030, S≤0.030,  Cr 4.10, W 6.00, Mo 4.80 V 1.85
   main application:It is widely used for making all kinds of cutters and durability cold-work die



B. W6Mo5Cr4V2Co5 (GB), M35( ASTM), 1.3243(DIN), SKH55(JIS)
   chemical composition: C 0.93, Si 0.38, Mn 0.35, P≤0.030, S≤0.030, Cr 4.10, W 6.30, Mo 4.80 V 1.85, Co 5.00
   main application:It is often used for making blades with  high-speed and great cutting difficulty as it’s good abrasive resistance





W6Mo5Cr4V2(M2),W9Mo3Cr4V(W9),W18Cr4V(W18),W6Mo5Cr4V2Al(M2Al),W6Mo5Cr4V2Co5(M35),W2Mo9Cr4VCo8(M42),W4Mo3Cr4VSi(4341),W4Mo2Cr4VSi(4241)
