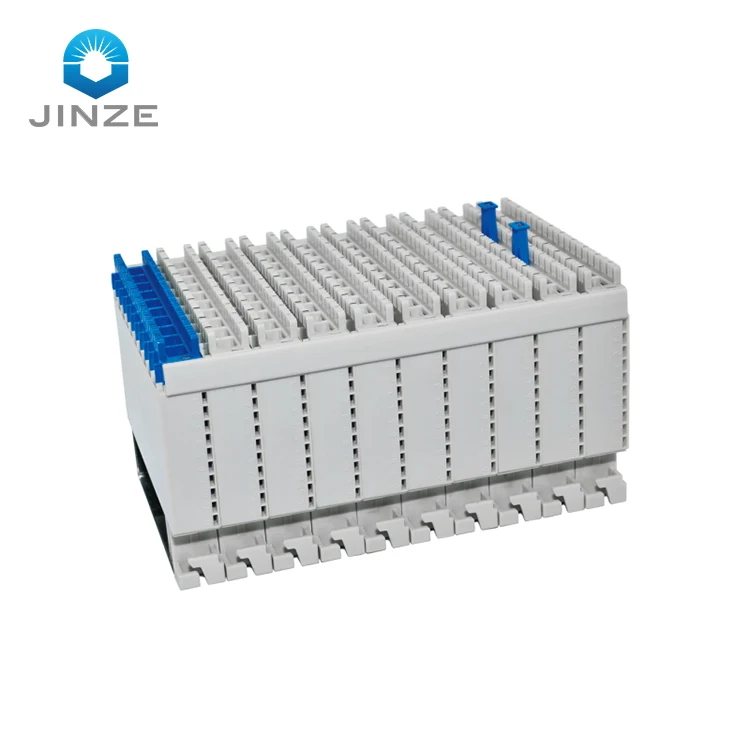

100 пар защитных клеммных колодок mdf

100 pair test Connection Block

Specifications

1.Protect connection block.
2.Main Distribution Frame have horizontal and vertical types.

Summary

Main Distribution Frame constitute by the frame body, connection block, test module, alarm systems, test equipment, protection unit and so on, MDF is use to connection with the switch and the user cable, patch cord, over current, over voltage protection and alarm test function, the implementation of YD/T694-2004 standard products.


Features:

1. All aluminum alloy frame, rigid, elegant appearance, a variety of cable connecting all with Built-in card access methods, safe and reliable.

2. There are many dimensions, structure for the use of protection unit and connection block to meet the new, update, modification, maintenance needs.

3. With four-grade alarm, can use access control, security and other system monitoring the implementation of centralized control or centralized alarm remote interfaces.

4. Contact reed plated with gold or bright tin, flame retardant engineering plastic used. Has a good over-voltage protection and over-current failure to protect.

5. The frame has perfect grounding system.

Technical parameters:

1. Work conditions:

(1) Working temperature: -5 ~ +40 (degree)

(2) Relative humidity: < 85% (30 degrees)
(3) Atmospheric pressure: 70 ~ 106 (kpa)
(4) Storage temperature: -25 ~ - +55 (degrees)

2. Performance parameters:
(1) Insulation Resistance ≥ 1000MΩ
(2) high-voltage protection> 3000V (DC) / mm without breakdown, no arc.
(3) Contact Resistance ≤ 7mΩ between reed wire and terminal into the connection between the contact resistance ≤ 3mΩ
(4) Pull strength: ≥ 25N

Our Company is a professional manufacturer of telecommunication products with an experience of 27 years.
If you haven't found the exact item you are looking for in our website, please send us details,we can develop moulds on our own.
We would like to establish long term business relationships with your company.
Honesty+Professional+Best Service+Competitive Price+Qualified Product =Long-term Cooperation
Welcome to our website ! If you have any questions , pls do not hesitate to contact with me!

//www.chinajinze.com

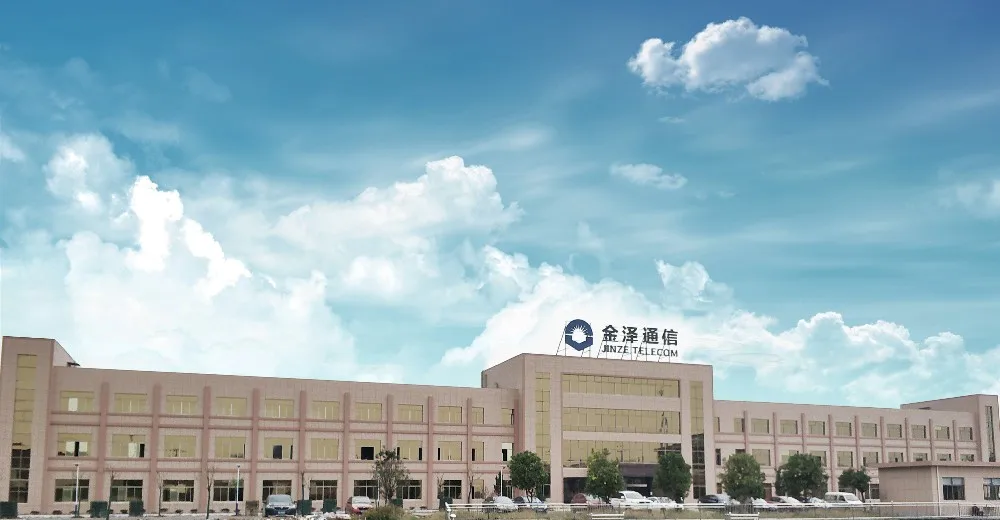

Ningbo Jinze Telecommunication Equipment Co.,Ltd. was founded in 1994.We have a complete R&D system,advanced production and testing equipments,and have established a quality assurance system in accordance with the ISO9001 standards.

After more than 20 years of development in the communication and network field,our company now provides a full range of products and solutions in FTTH(FTTX)system,Generic Cabling system (ALL-LAN),and MDF system.The products have past the tests from the Ministry of Information Industry of China.

Jinze always keeps 'quality,service'as the guiding principle.With the innovative technology and scientific management,we are ready to effectively provide all kinds of standard products and customized products for you!

Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
