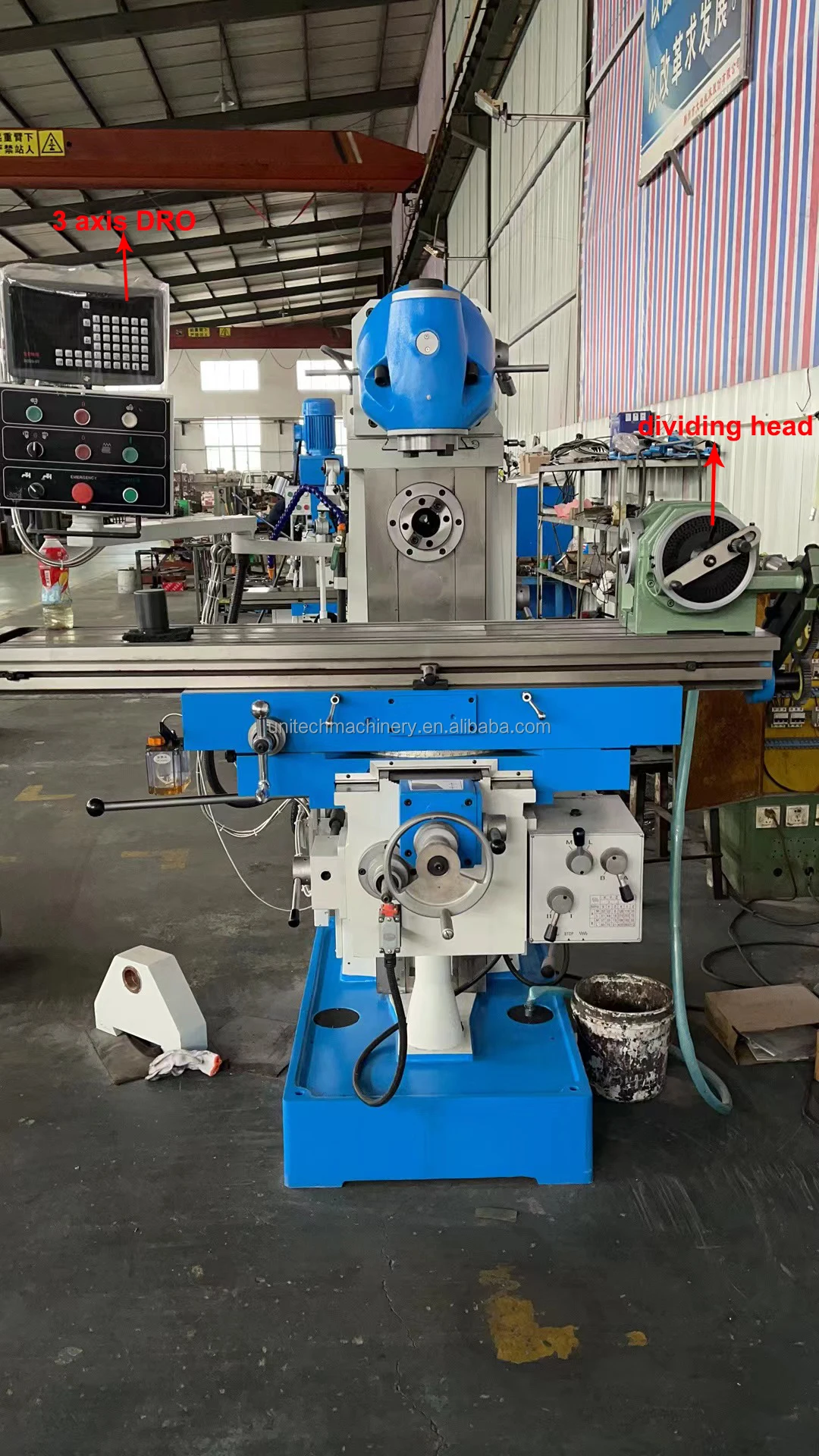

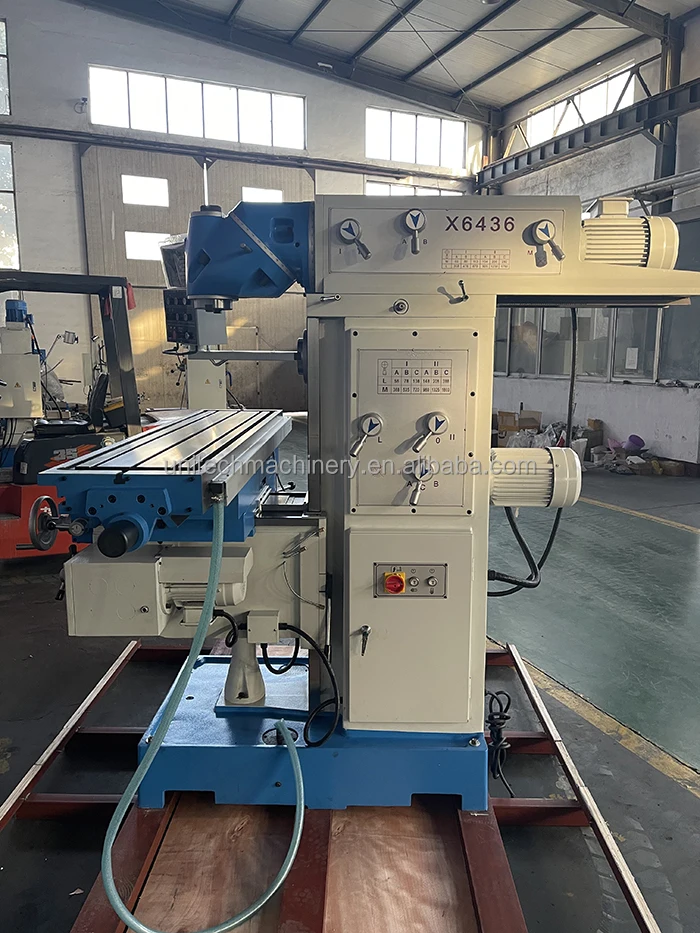

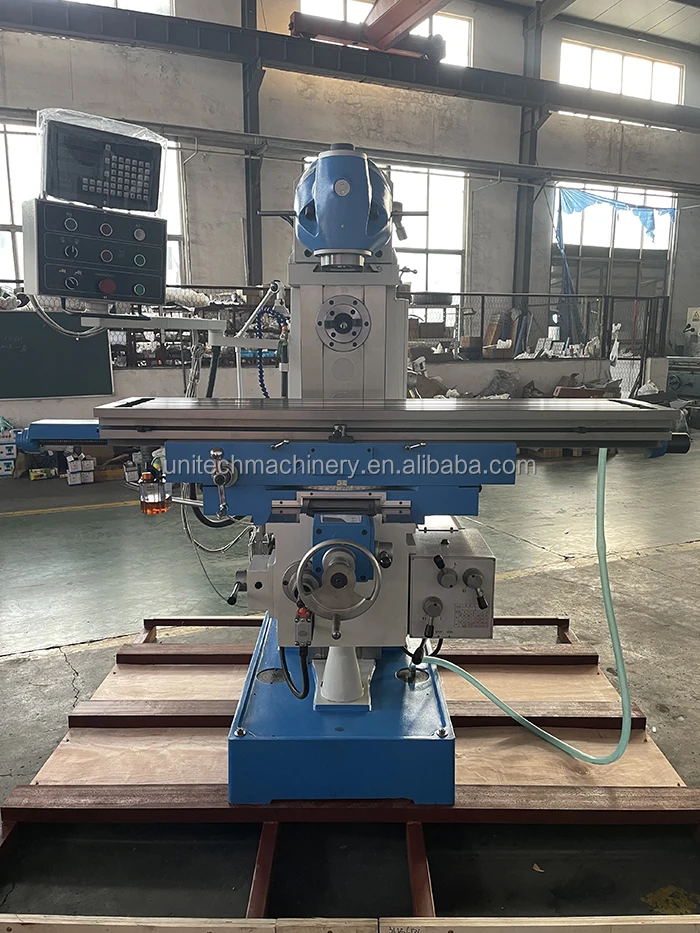

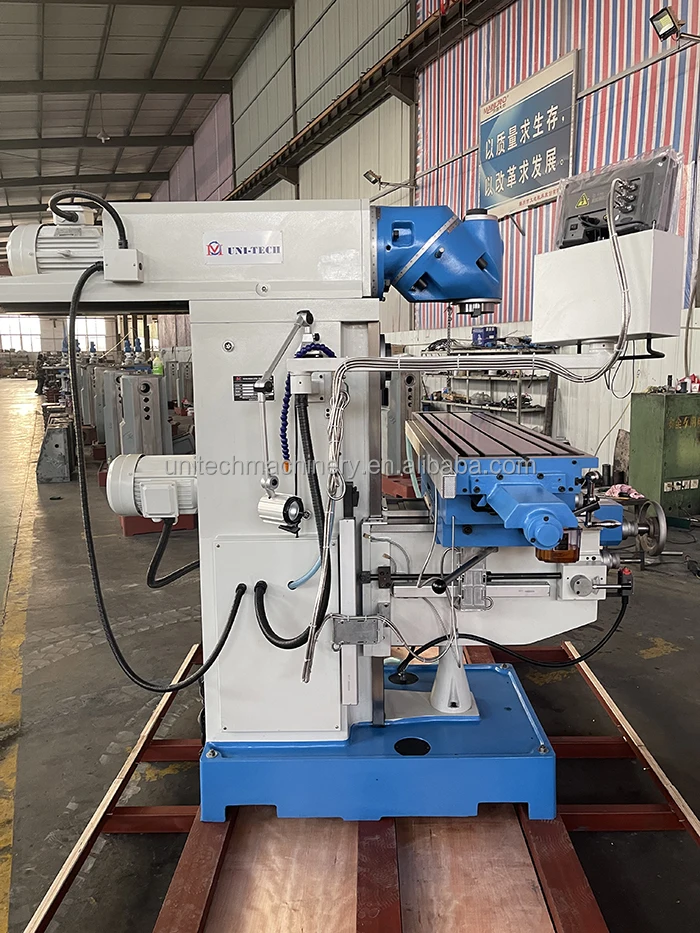

Universal Rotary mill Head horizontal and vertical Milling Machine X6436
Main features of Universal Rotary Head Milling Machine

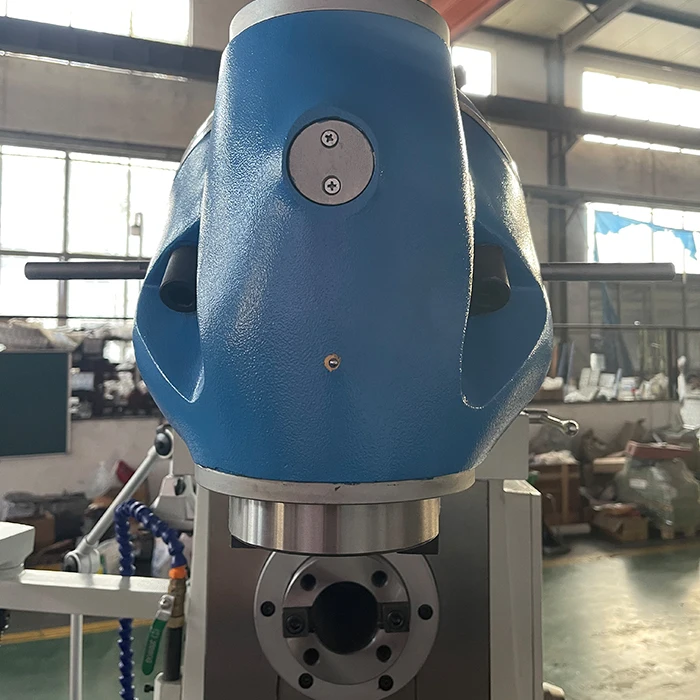

1.The machine is with universal milling head,it can swivel 360 degrees.
2.The table can swivel left and right side 35 degrees.°

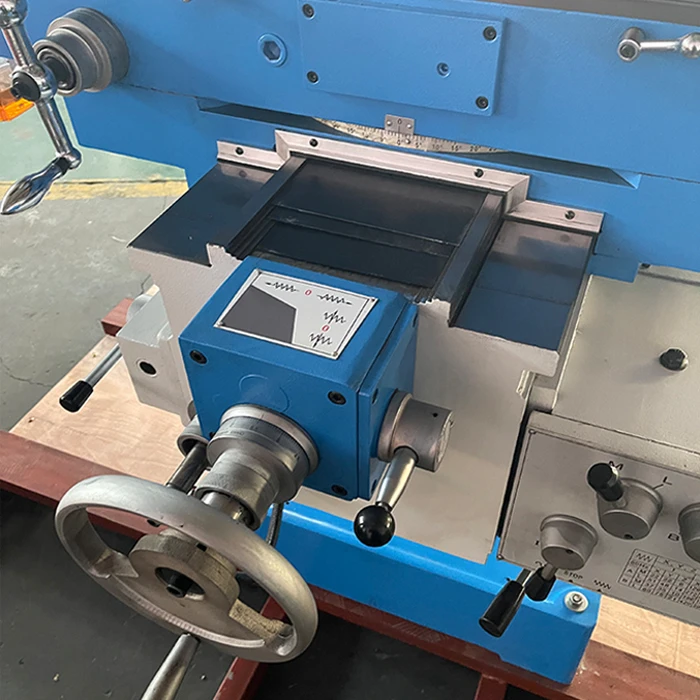

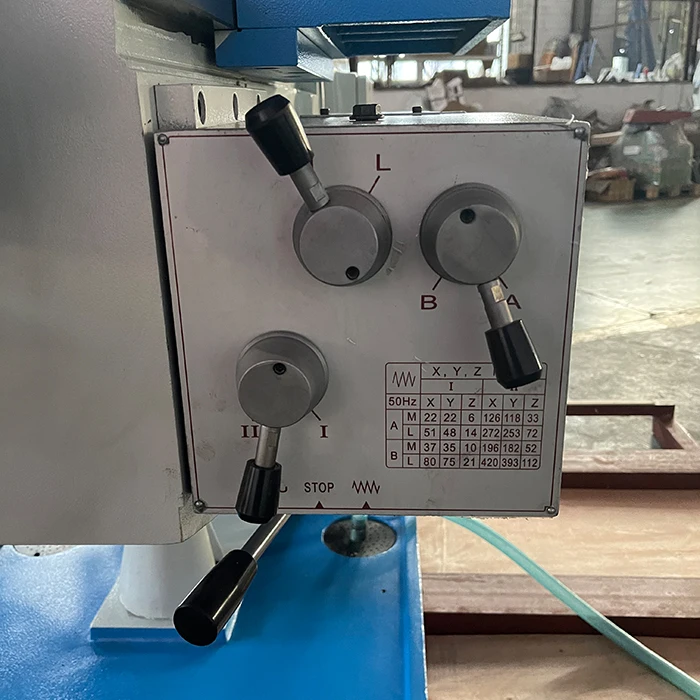

3. The machine can automatic feed on three axes controlled through one gear box.
4.The ram is movable forward and backward.
5. The table can be extended to 1600mm, and X travl is increased to 1300mm simultaneously 1600MM,X 1300MM
6. The machine is equipped with operation panel which is convenient for the operator.
Specificationsof Universal Rotary Head Milling Machine
Model |
| unit | X6436 |
TABLE |
|
| |

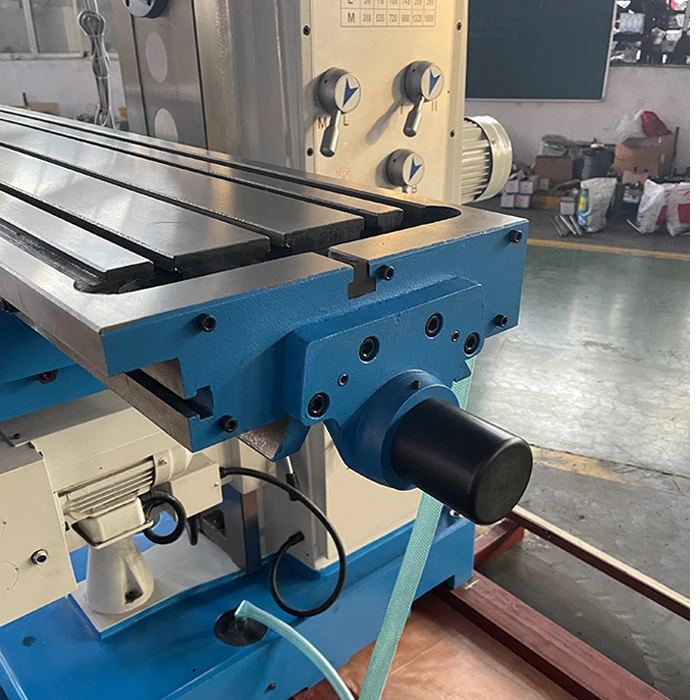

Table size | mm | 1600X360
| |
T slot | no | 5 | |
Size ( Width ) | mm | 14 | |
Centre distance | mm | 95 | |
Max. load of Table | kg | 400 | |
swivel of table | degree | ±45º | |
machining range :- |
|
| |
table Longitudinal travel(manual/auto) | mm | 1300 | |
table Cross travel (manual/auto) | mm | 290/280 | |
table Vertical travel(manual/auto) | mm | 390 | |
MAIN SPINDLE :- |
|
| |
Spindle taper |
| ISO50 | |

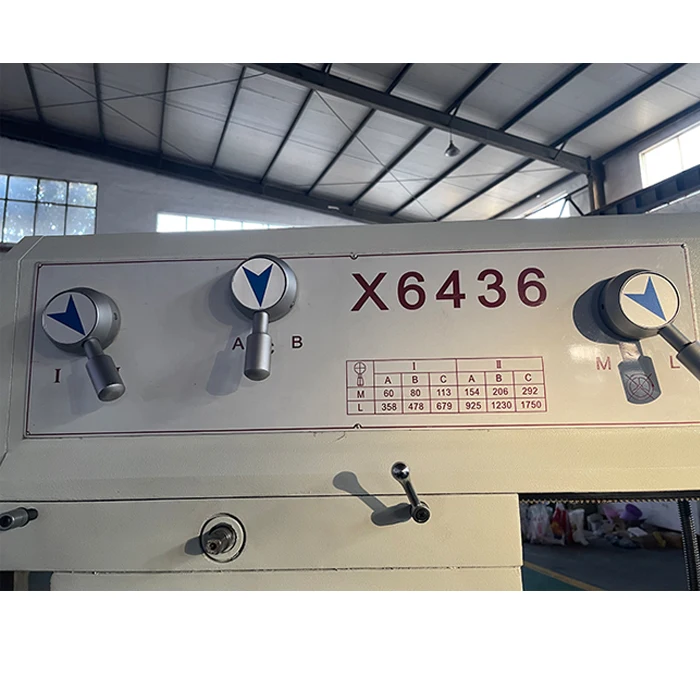

spindle speed /step -- Vertical | rpm | 58-1800/12 | |
--Horizontal | rpm | 60-1750/12 | |
swivel angle of swivel head | degree | 360º | |
Distance between spindle axis and table surface. | mm | 0-400 | |
Distance between spindle axis and surface of ram | mm | 175 | |
arm travel | mm | 500 | |
FEEDS :- |
|
| |
Longitudinal/cross feed | mm / min | 22-420(X)/22-393(Y) | |
Vertical/step | mm/min | 10-168(Z) | |
Longitudinal/cross rapid speed | mm / min | 1290(X),1205(Y) | |
Rapid Traverse vertical | mm/min | 513(Z) | |
POWER :- |
|
| |
main motor | kw | 4(H./V.) | |
--others |
|
| |
overall dimension | cm | 198x202x190 | |
N/W,G/W | kg | 2200/2400 | |
Optional accessories of Universal Rotary Head Milling Machine
Packaging & Shipping
Package and shipment of Universal Rotary Head Milling Machine
Exhibition & certif
