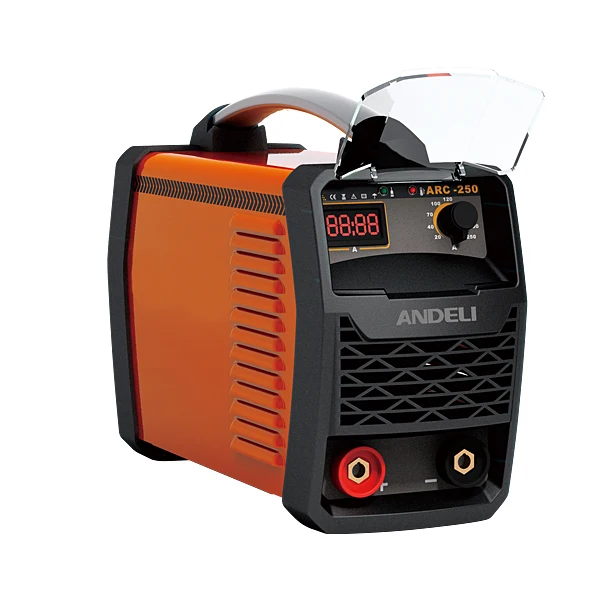

Portable electric welding machine, three phase, DC inverter, 250A

Product Overview

Description





Portable electric welding machine, three phase, DC inverter, 250A







Why choose us?





1. 20 years - Andeli Group Co.,Ltd is founded in 1993. 2. 12 share holding companies - Andeli have owns 12 share holding companies in Shanghai, Hunan, Zhejiang, UAE. 3. 300 cooperating companies - We have over 300 cooperating companies. 4. 3000 workers - We have over 3000 workers. 5. USD150,000,000 - The total assets is USD150,000,000. 6. 235,000 square meters - The area of Andeli is 235,000 square meters. 7. Certification - We have passed ISO9001:2000 Quality Management System and CCC, ROHS, CE, CB, SIMKO, KEMA……













1.Technology parameter
Advanced full-bridge field stop IGBT inverter technology, frequency 20KHZ,significantly reduced the size and weight of the welder.
Advanced auxiliary power supply design, leading to a wider range of welding power source.
Advanced control options, significantly improved the performance of welding, perfect satisfying the demand of welding technology.
Widely used in various acid, alkaline electrode welding.
Easy with the arc, little spatter, current stability, and good forming characteristice, ect.
Adjustable arc-start feature, significantly improved arc welding performance.
Automatic force current increasing, significantly improver welding performance in welding with long wire cable, remote welding can be realized addition option on wireless remote control, making easier remote welding.
Available on two features-steep drop & ramp down, meet different customer needs.
Normal Accessories: Earth clamp 1pcs, fast joint 2pcs, allen-key 1pcs.
2.Specification



Parameter	ARC-200 (ZX7-200)	ARC-250 (ZX7-250)	ARC-315 (ZX7-315)	ARC-400 (ZX7-400)
Rated input voltage(V)	1 Phase AC220±15%	3 Phase AC380±15%
Rated input current(A)	32	15	20	28
Rated input capacity(KVA)	7.1	10	13	18
No-load voltage(V)	63	70	70	70
Output current(A)	20-200	20-250	20-315	20-400
Rated working voltage(V)	28	30	32.6	36
Drive adjustment(A)	-	0-70	0-100	0-100
Duty cycle(%)	40	60	60	60
Efficiency(%)	85	85	85	85
Power factor	0.93	0.93	0.93	0.93
Weight(kg)	5.5	15	18	34
Overall dimension(mm)	313x140x198	465x230x390	500x210x345	510x270x480

3.Guide of welding different metals

Material of work piece	Thickness (mm)	Dia.Welding rod/ carbon rod	Adjustment current(A)	Suitable model
Carbon steel, Stainless Steel, Alloy Steel	1.5-5.0	2.5/3.2	20-200	ARC-200
	1.5-10.0	3.2/4.0	20-250	ARC-250
	1.5-15.0	3.2/4.0/5.0	20-315	ARC-315
	2-20	3.2/4.0/5.0	20-400	ARC-400





 Product Detils :





01.  100% seamless, full-chip technology of the control panel,greatly increase the reliability of welding machine, at the same time Saip exclusive using over-current protection system on the control panel , prevent large current shock, prevent the welder secondary damage, even Fried tube.





02.  ANDELI is the only stick with the most advanced   of the amorphous structure transformer  200G models in China, the machine efficiency is over 32%, compared to "ferrite" is extended more than twice the life.





03.  Recent wind blowing straight type design, welding machine can work in the high temperature of 60C , load rate of 100%.





04.  From Germany's Siemens technology imported from IGBT single pipe, quality guaranteed.





05.  Cooperate with industry leading capacitor production enterprises, 4470uf, high quality, to ensure the high-efficiency and stable output of the electric welding machine.





06.  Super-size capacity of the radiator,to improve welding efficiency by more than 26%.





07.  Interlayer duct patent technology, completely prevent dust into the upper and lower plate, and cause a short circuit to improve the service life of welding machine; All lines adopt insulation layer leather processing, saip want to manufacturing the best welding.





08.   ANDELI electric welding machine production in line with international safety standards, each welder has a grounding design.





More Display :





Main Components of Different (our welding machine and the other):





Machine Inside View:





Accessorie:





* BUY WITH CONFIDENCE.

* QUALITY MACHINES MANUFACTURED BY ANDELI.

* FULL SERVICE AND PARTS BACK UP.

* 24 MONTHS WARRANTY.



The data in the above table is only for reference. Please subject to the nameplate on the device.
