FG FD300 Handheld IR laser illuminator 6X objective lens built in LCD display digital night vision monocular scope

Product Overview

Description

FG-FD300 Digital Night Vision Scope, equipped with high sensitivity sensor, integrated LCD-Screen and IR laser illuminator, is a great gadget which enable you to observe target daytime, at night and in complete darkness.



Uses:

• Security and surveillance

• Scouting and guarding

• Search and rescue

• Wildlife observation

• Camping fun / Exploring caves

• Nighttime navigation

• Night fishing and boating



Functions:

• Image display

• Image preview

• Delete

• Picture shoot

• Movie record

• Manual brightness control

• Color/B & W image display

• Digital zooming

• Download to pc

• Show on TV or monitor



Benefit:

The old generation image-intensifier tube is replaced by an integrated system of high sensitivity sensor, micro LCD-screen and IR LED illuminator, and help you penetrate the cover of darkness with more true-to-life detail. No much blurrier green images using old imaging intensifier tubes.

Using H.264 and MJPEG compression technology to reach high frame rate of video output.

The design of the shortest focusing distance (25cm) makes it possible to read a newspaper or

a note with this powerful gadget.

Two-Years’ Warranty.

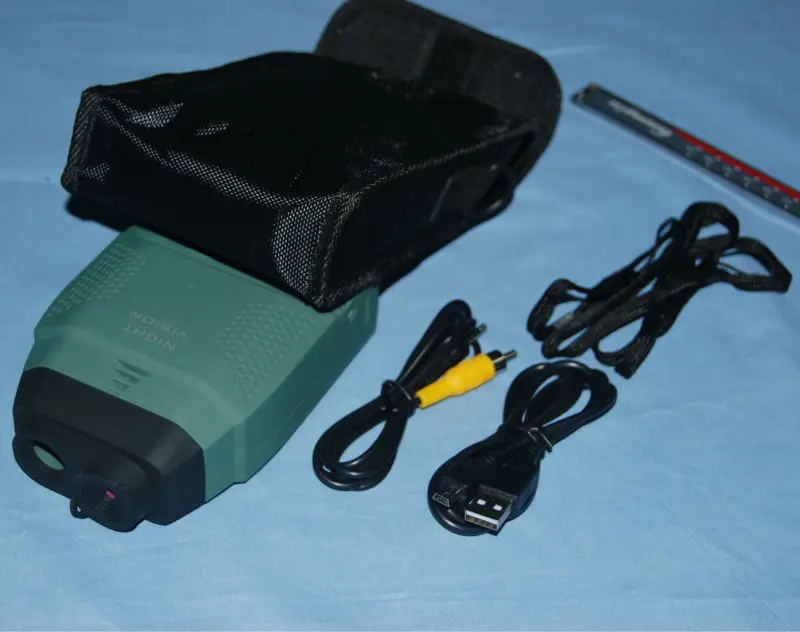

Accessories:

1. Night vision device; 2. MINI USB cable

3. A/V cable

4. Neck strap

5. Storage pouch

6. User manual

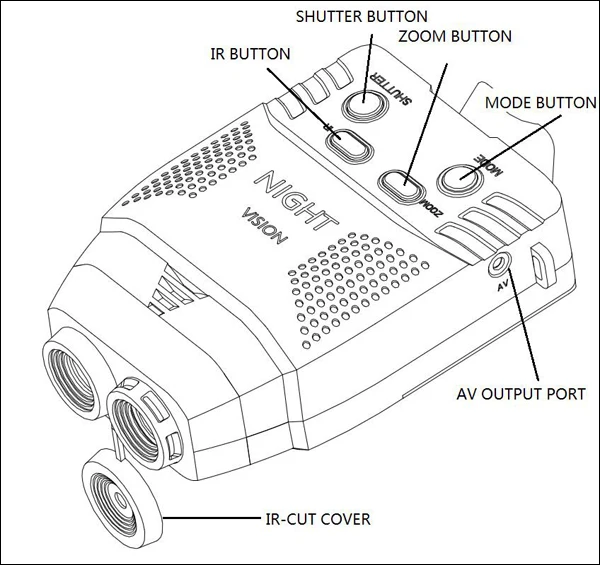

Front View:

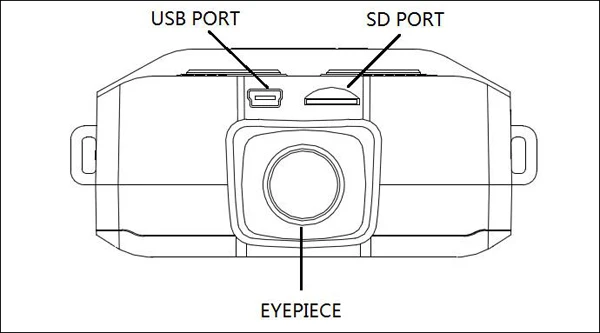

Rear View:

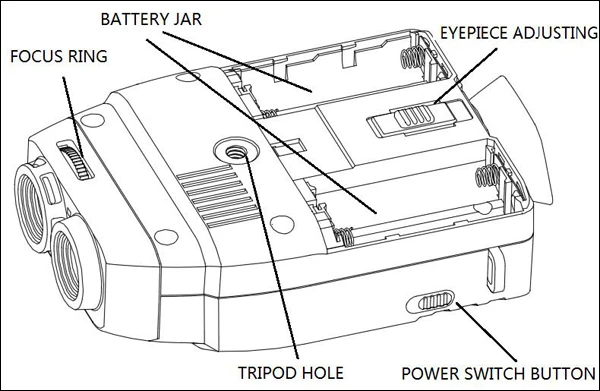

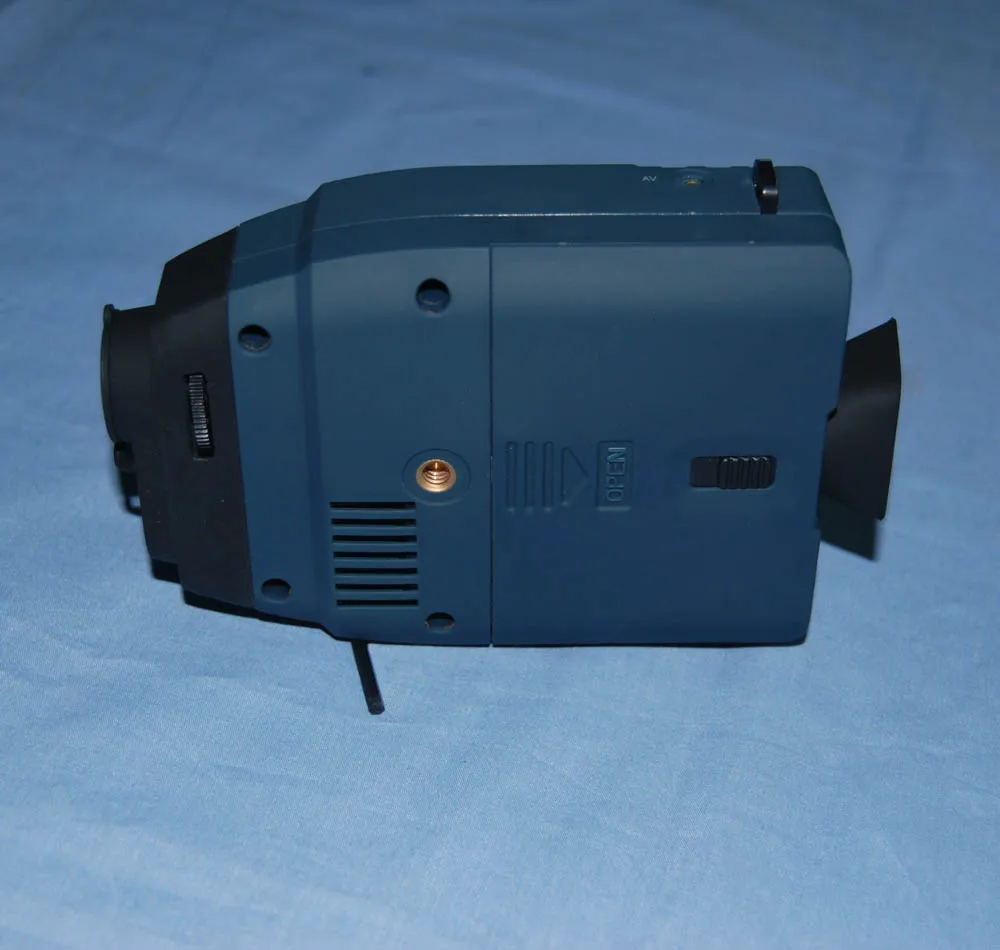

Bottom View:

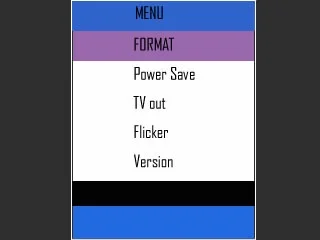

Message shown on LCD screen in menu operation mode:

1. Format: Select to format the micro SD card.

2. Power save: The NV can be set to automatically shut down when not operating after the selected period of time.

3. TV out: The video output mode can be set to NTSC (North America) or PAL (Europe).

4. Flicker: Anti flicker settings 50Hz or 60Hz.

5. Version:  Displays the version of this device.



Specifications:

1	Magnification	6X
2	Objective diameter	15.0 mm
3	Exit pupil distance	14~21 mm
4	Field of view	14°
5	Mini focus distance	25cm (distance of distinct vision)
6	Detection distance	300 m (vehicle) / 100 m (man)
7	Identification distance	100 m (vehicle) / 30 m (man)
8	Effective distance of built-in IR lamp	30 m
9	Size of imaging sensor	1 / 5”
13	Sensitivity of sensor	6.8V/ Lux. sec
10	Active resolution of sensor	640*480
11	Picture resolution	640*480
12	Video resolution	640*480
13	Recording format of video	H.264
14	Screen resolution	320*240
15	Equivalent size of screen in view	Watching a 35” screen at 2 m away
16	Digital image output	USB port
17	Analogue signal output	Video port (NTSC / PAL)
18	Storage of picture and movie	To support 1GB~32GB SD card
19	Power of built-in IR lamp	3 W
20	Wavelength of IR lamp	850 nm
21	Power supply	AA battery X 4 (not included)
22	Working life of battery	5 hours
23	Dimensions of device	134X92X47mm
24	Weight of device (without battery)	250 g
25	Accessories attached	USB cable, AV cable, Mini SD card



OEM / ODM:

1. To print clients' logo or model name on the surface of rubber shell.

2. To change color of rubber shell on client's demand.

3. To offer native language version of menu shown on LCD according to clients' requirement.

4. To equip extra LED lamp and fresnel lens for long distance view and field illumination control.
