green roof drainage board

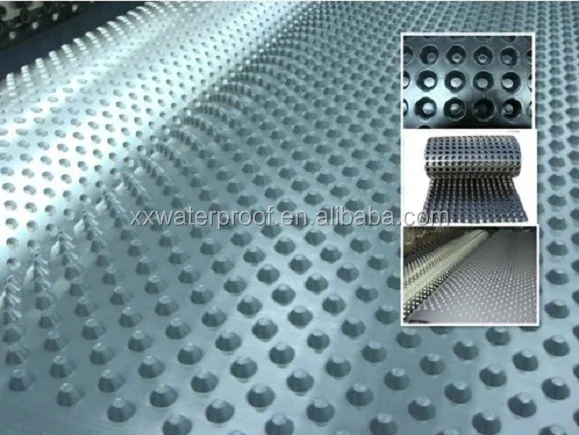

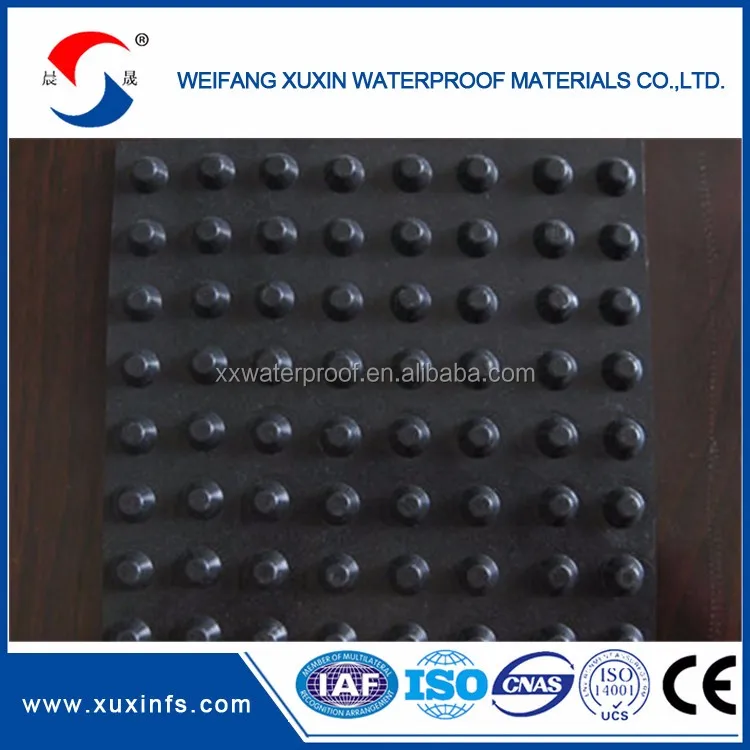

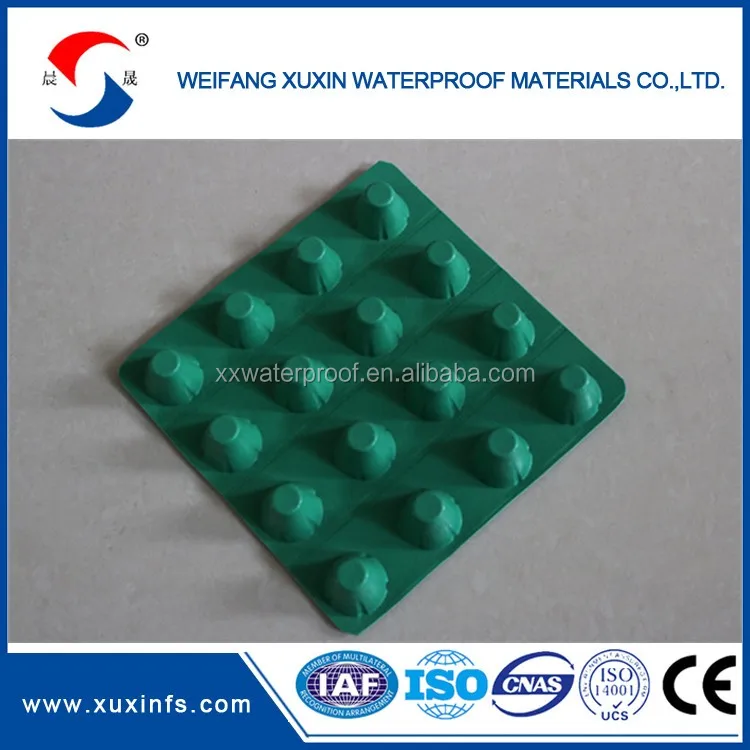

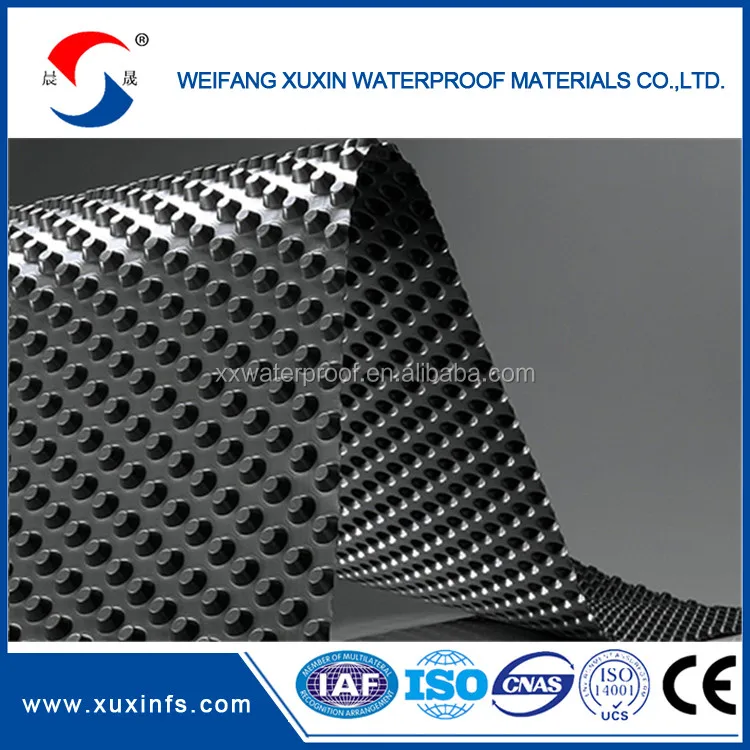

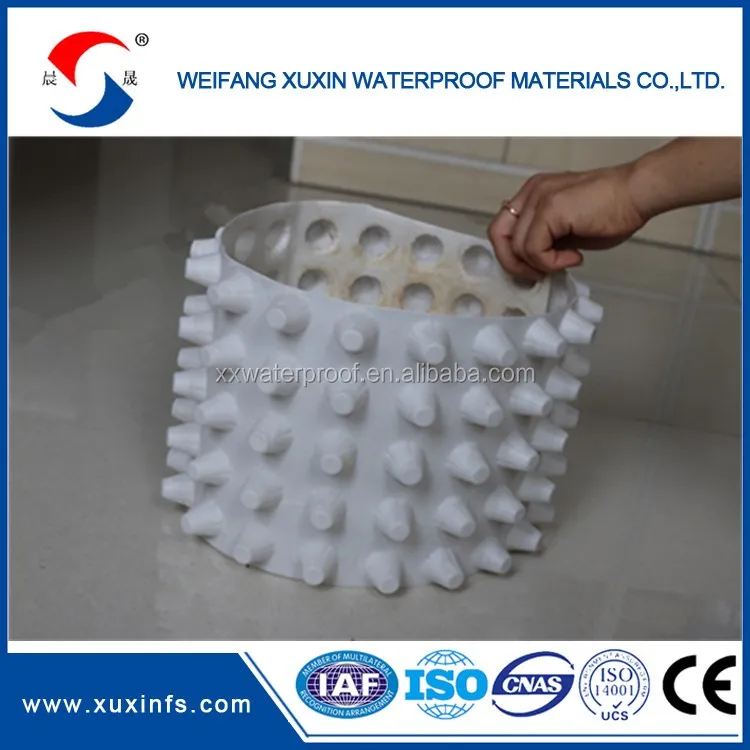

Green roof Drainage board

Green roof drainage board with a special plastic sheet extrusion process will be closed to the protruding

cylinder shell to form a bump-like membrane, shell continuous, with a high degree of three-dimensional space

and some supports, can resist the long-term high-pressure, no deformation. Shell top cover geotextile filter

layer, to ensure that the drainage channel will not be blocked by foreign objects and, as particles or concrete  backfill.

Specification:

1. Dimple height:8/12/16/20 mm
2. High compressive strength
3. Width:1m or 2m

4. Color: Black, white or other
5. Resistance to chemicals, root penetration, microorganism
6. It won't rot when in contact with soil or growing medium

7.Material:HDPE

8.Weight:650g/m2----1270g/m2

9.Thickness:1.0mm----1.5mm

10.Whole thickness(single or double side):10mm----40mm

11.Tensile loading:>150kpa --- >300kpa

12.Drain capacity:5.6—24.8cm3/s

Application:

 Landscape engineering, garage top greening, roof garden, football field, golf course, beach project.

Municipal engineering, road base, subway, tunnel, landfill.

Construction engineering, upper or bottom layer of building foundation, basement wall, bedding filtration and heat insulation.Traffic engineering, highway, railway basement, dam and slope

Parameter Index:

   standard packing(or as requested)
