Honeycomb ceramic infrared industrial lpg gas burner for drying oven HD82

Product Overview

Description

 Product Name: Honeycomb ceramic infrared industrial lpg gas burner for drying oven

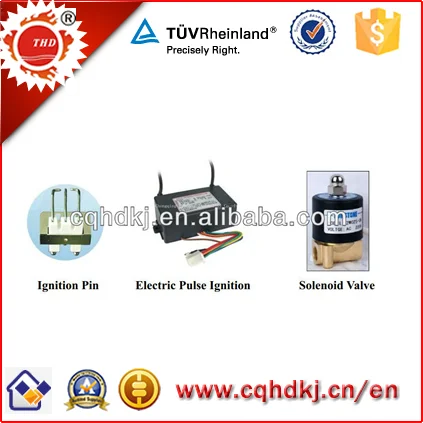

Spare parts for Honeycomb ceramic infrared industrial lpg burner for drying oven

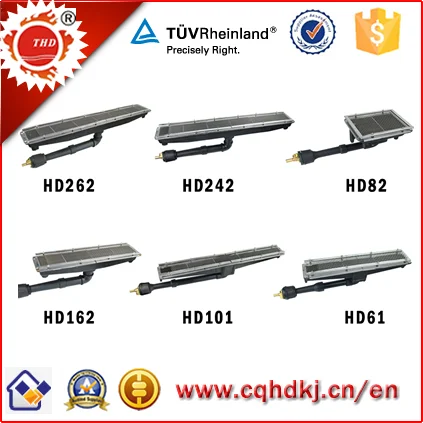

Specification of Honeycomb ceramic infrared industrial lpg burner for drying oven



MODEL	Dimension	Weight	GasType	Heat Output		Consumption
	mm	kg		KW/h	Kcal/hr	NG(m3/h)	LPG(kg/h)
HD61	423*80*94	3.8	NG/LPG	2.4	2030	0.18	0.18

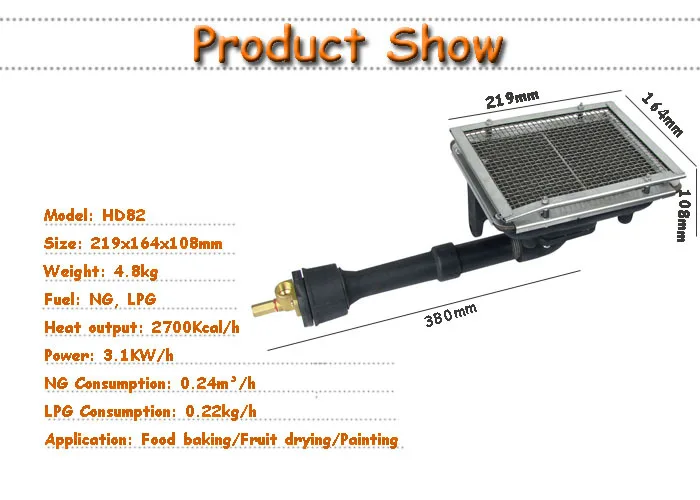

HD82	219*164*108	4.8	NG/LPG	3.1	2700	0.24	0.24
HD101	690*80*115	6.9	NG/LPG	3.9	3380	0.3	0.29
HD162	570*130*175	8	NG/LPG	6.3	5400	0.49	0.47
HD242	840*130*175	11.7	NG/LPG	9.4	8120	0.75	0.71
HD262	930*130*175	13	NG/LPG	10.9	9360	0.8	0.82







Material of Honeycomb ceramic infrared industrial lpg burner for drying oven

1. Shell: Cast Iron

2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated

3. Nozzle: brass

4. Up cover: stamped stainless iron





Advantages of Honeycomb ceramic infrared industrial lpg burner for drying oven





Infrared catalytic gas burner is  good choice industrial drying,baking or curing oven,especially in tunnel&converyor oven,saving production & equirpment cost,demand of space is small and easy to control......It martched with auto-igntion,safe controller and keep stable temperature.Now is already widely used industrial drying,especially  in metal curing & food baking.......

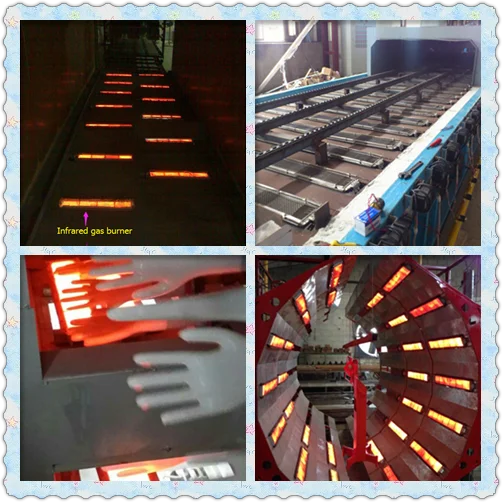

Application of Honeycomb ceramic infrared industrial lpg burner for drying oven















--- Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater. Using catalytic, it could save 10~20% energy than non-catalytic infrared heater.



--- Chongqing Haodong Technology Factory produce bbq gas grill burner, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.















And we have TUV Certificate, pls. click following link to check:



//cqhdkj.en.alibaba.com/company_profile/capability_assessment.html







Our sevices:



Please contact me online, or just send me an email.



We promise reply you and will solve any problem after sell at first time.



Kathy Tang

Mobile, What's app, Wechat: 0086-18423473470

Skype: tyc9744
