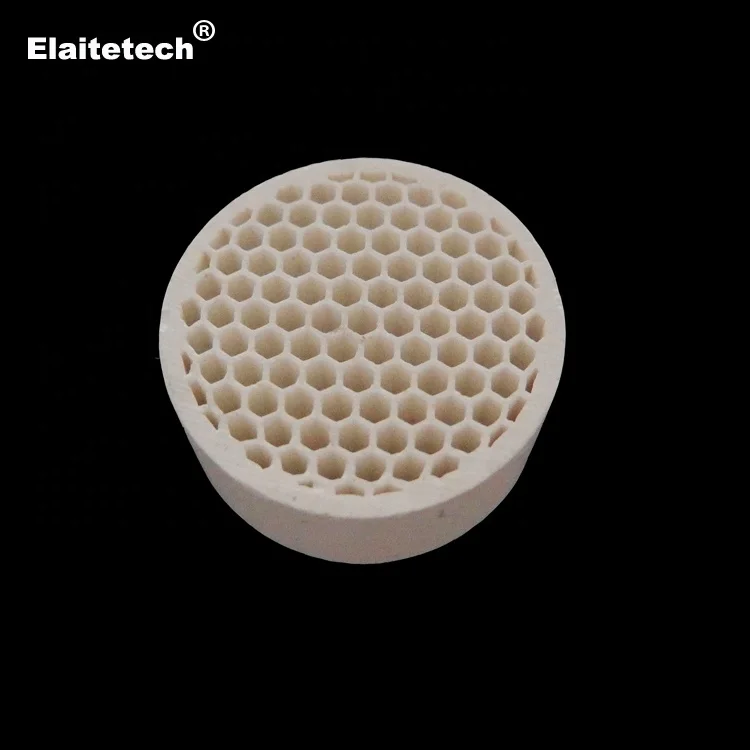

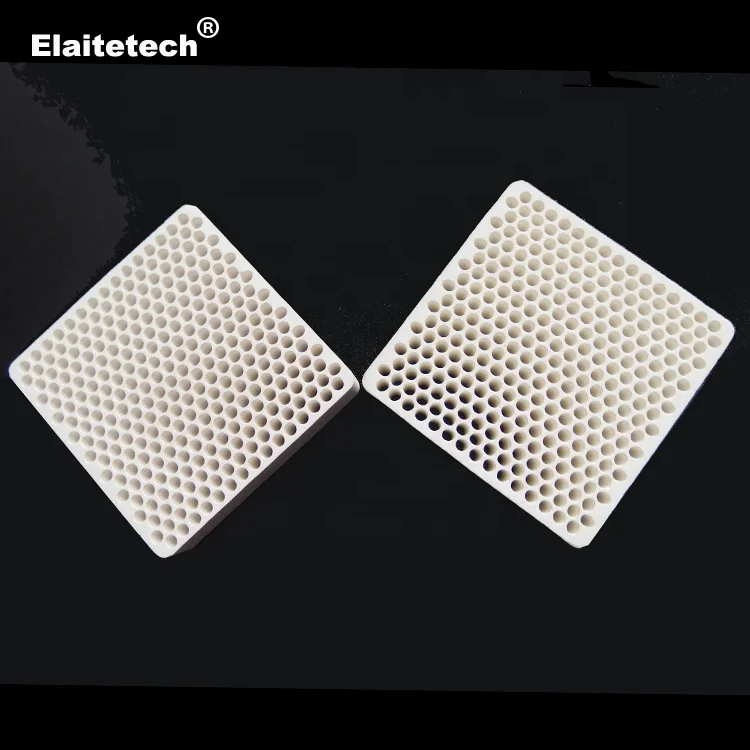

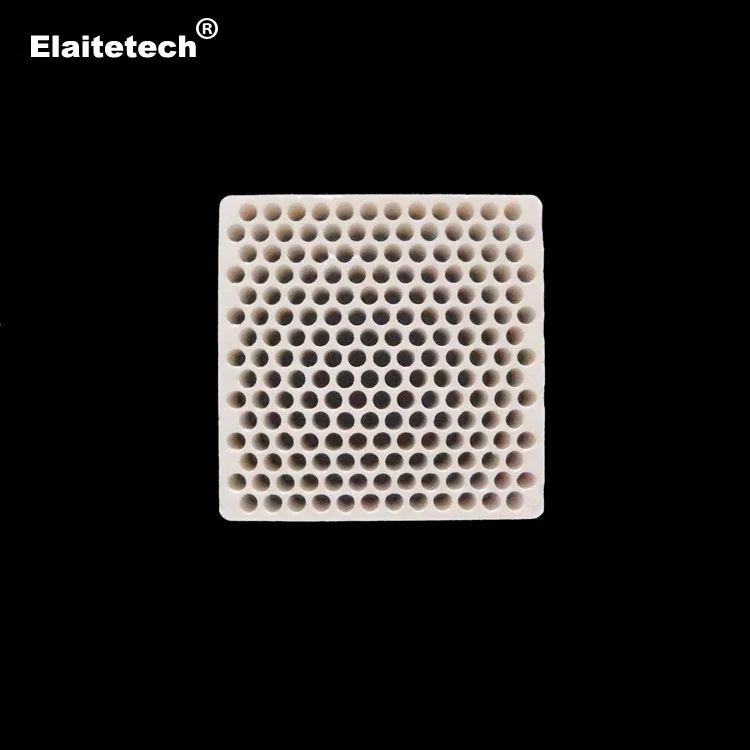

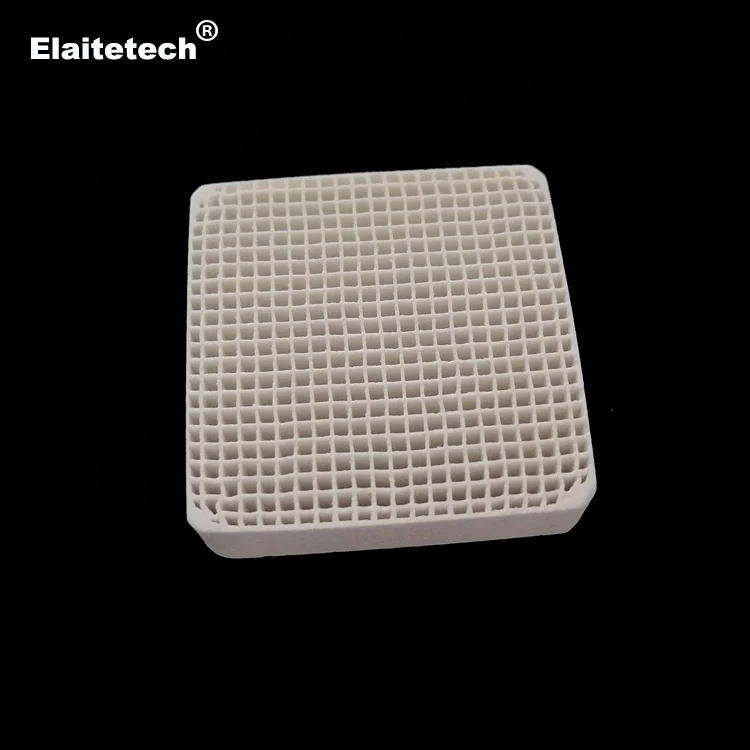

Porous alumina casting industrial extruded honeycomb ceramic filters for foundry

Extruded honeycomb ceramic filter is a very effective molten metal filter, which using a straight-hole parallel to straight-channel, multi-pass design ensures the product of high strength and thermal shock performance, also the casting pouring time. The straight-hole design ensures balance between flow rate and intensity, it remove impurities and residue particles, and improve surface quality and mechanical performance of casting, also reduce the rejection rate of casting, raise the life span of the casting and reduce casting cost.
Extruded honeycomb ceramic filter is able to get rid of the metal impurity, refractory scrap, solid refractory alloy, sinter and molten metal liquid when casting products, reduce the air vent of castings, raise the casting quality, and reduce the cost. It has small resistance, high strength, high temperature resistance, corrosion resistance and good thermal shock resistance and excellent filtering adsorption performance.

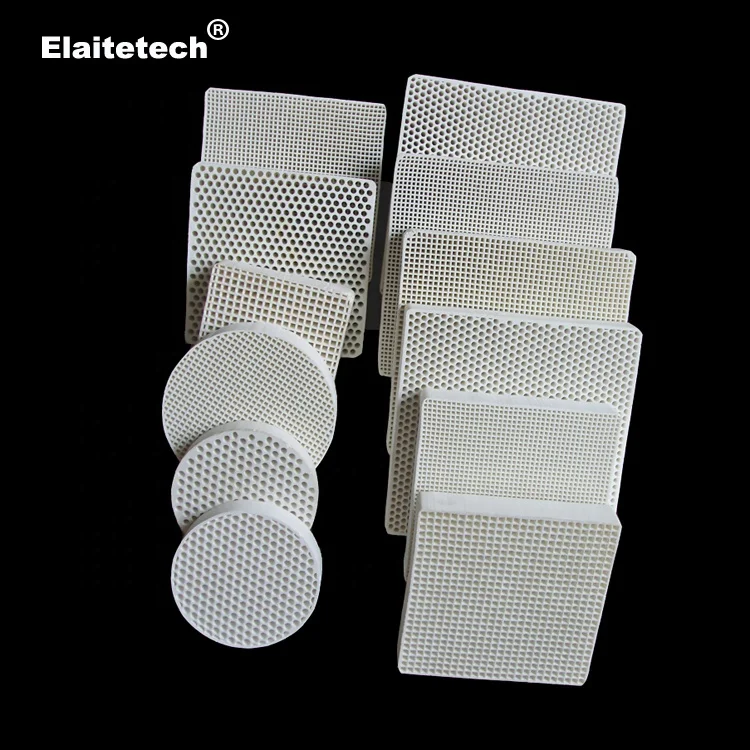

We can produce a series of filters with different shape, size, wall thickness, hole type and aperture. They are widely used in foundry industries of steel, iron, aluminum and copper etc.

Technology: Extruded.
Pore density: 100PCSI, 200PCSI, 300PCSI, etc.
Cell shape: Square, round, hexagon, triangle.
Available range of size: 25 mm to 200 mm.
Available range of thickness: 12 mm to 22mm or as per client’s requirements.
Appearance shape: Round, square and rectangle
Material: Cordierite, mullite, corundum mullite, zircon mullite, zirconia-corundum, high aluminum, silicon carbide and etc.
Maximum working temperature: 1350°C, 1500°C, 1600°C, 1650°C.
Application: Grey iron, ductile iron and malleable iron, aluminum, aluminum alloy, copper, stainless steel and so on.

Performance Index

1. Excellent thermal shock resistance.
2.Unique cellular designs make metal liquid reducing the vortex and reducing the bubbles in the casting.
3. Accurate extrusion die make product quality extremely stable and consistency.
4. Obvious filter effect.
5. Improving the casting surface performance and improving the density of the casting.
6. Improving metal structure and quality prolong the working life of the casting.
7. Good chemical stability, not affected by of melted metal, no change in its chemical compound.
8. Precise dimension and can be used in production line automatic filter mounting equipment.
