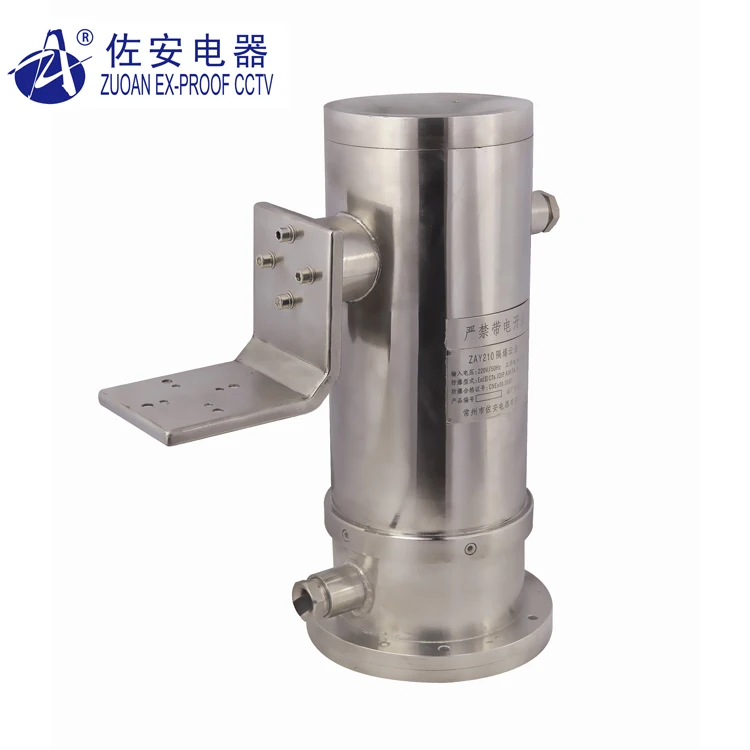

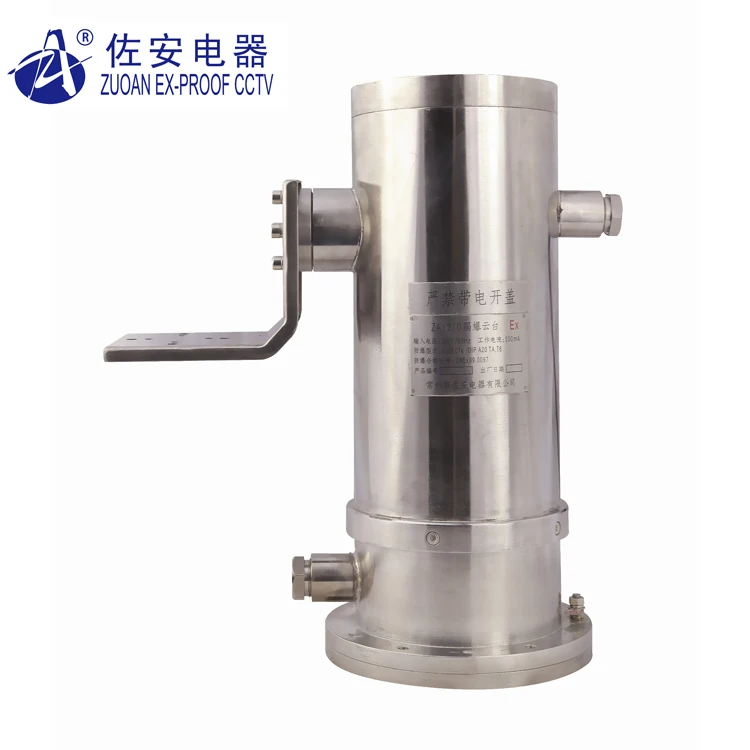

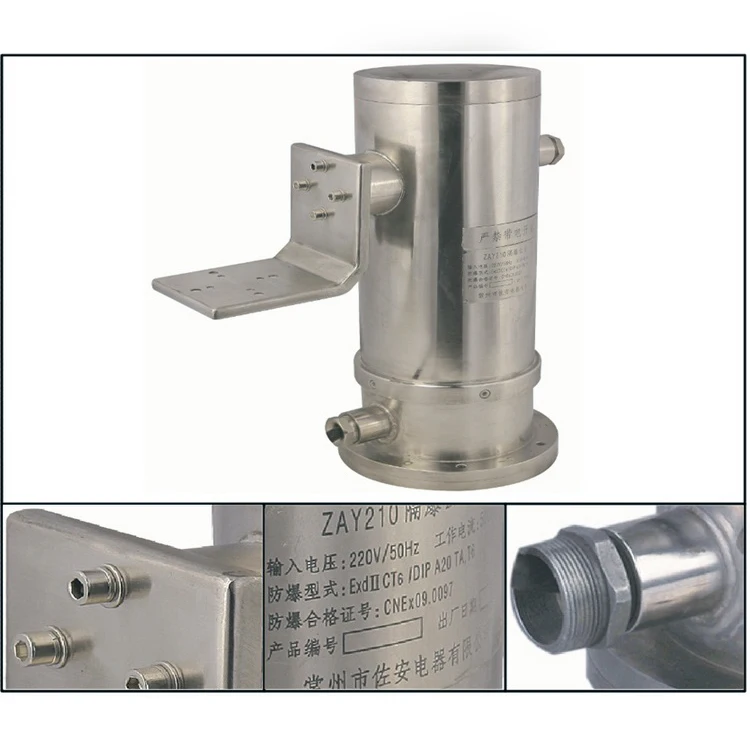

ZAY210 EXPLOSION PROOF STAINLESS STEEL STEPPER MOTOR PAN TILT
Product Summary :
ZAY210 is entirely manufactured by stainless steel 304/316, make the best solution in hot, explosive, corrosive or harsh environments, where standard aluminum /plastic cctv camera housing would be rapidly damaged by heat and corrosive agents, or not fit for, especially in inudstry indoor working place installation.
ZAY210 Explosion Proof stepper motor Pan Tilt can accomplish up and down, left and right, the four orientation movements according to command. It is applicable for the circumstances of volatile gas, such as hydrogen(H2)and hydrocarbon gas in the plants(except C2H2).
ZAY210 Explosion Proof stepper motor Pan Tilt has the powerful and permanent magnetism electrical motor inside.
Moreover there is self-locked, which makes it keeps fixed location in the strong wind. Besides, there are no blind angles in the supervision spot, according to the actual situation.
With stringent certifications, explosion-proof CCTV housed cameras enable safe, effective surveillance for chemical sites, oil and gas facilities, food processing plants and numerous other hazardous environments. such as Chemical factory, petrochemical processing plant, pharmaceutical plant, Oil refinery plant, Gas station,Oil tank truck, Natural gas project,
Marine, offshore/ onshore oil drilling platform, coal mine, Grain storage, winery storage, fertilizer storage ect.
Product Parameter:
| Model | ZAY210-S | ZAY210-S-IP | ||
| Atmospheric pressure | 80KPa~106Kpa | |||
| Auto keep temperature | –25°c~+60°c (-13°~140°F) | |||
| Relative Humidity | ≤95% (+25°c) | |||
| Certifications | CNEX: ·ExdⅡCT6 /·DIP A20 TA, T6 | |||
| CNEX certificate no. | CNEx: 13.4247 | |||
| Ingress Protection | IP68 | |||
| Power supply | AC220V,110V,24V | |||
| Electric current | 1500mA | |||
| Load rating | 10KG | |||
| Material | SS304 (industrical chemical factories, outdoors and so on) SS316L(in highly corrosive areas such as marine, petrochemical, naval and offshore platforms) | |||
| Package HxWxT | 366*233*372mm 14.4x9.2x14.6in | |||
| Net weight | 10.5KG /23.1LBS | |||
| Varibale angle | horizontal rotation: 360° continuous vertical rotation:-90° to +75° | |||
| Varibalespeed | rotation speed: 6°/S | |||
| Mechnical self-locking | yes | |||
| Control way | RS 485 | |||
| Control protocol | PELCO-D/PELCO-P, other | TCP/IP | ||
| Communication way | AV | network | ||
| Relative Products | ZAY200B, pan and title for ZAF100A,100B,102, 106 camera housingseries ZAY210, pan and tilte for ZAF 103,1031, 104,105 camera housing series. ZAY210 suit with ZAZ610 (ZAZ210-B-S) ZAY200B, suit with ZAZ200B-B | |||
What is hazardous locations/ area?
Hazardous locations/ area refer to a place where contains of flammable gas, vapor, VOCs( volatile organic chemicals) dusts, powder. In industry plants like chemical process plant, oil, natural gas, petroleum, offshore platform, refinery, coal mine, handling of large quantities of flammable liquids, dust, gas creates a risk of leaks. Many other area would also have a dangerous concentration of flammable substances during process upsets, equipment deterioration or maintenance, or during an incident.
What is explosion proof products?
To meet the criteria for the explosion proof rating, all explosion proof products have an enclosure, which must be able to contain any explosion originating within its housing and prevent sparks from within its housing from igniting vapors, gases, dust, or fibers in the air surrounding it. it is the enclosures ability to prevent an internal spark or explosion from causing a much larger blast.equipment must meet the temperature requirements of the specific application in which it is to be installed. This means that the operating temperature of the motor (and its enclosure) or other component cannot be greater than the lowest ignition/combustion temperature of the gases or dusts in the atmosphere where the component is to be installed.
What’s the vandal proof/ vandal resistant camera?
A vandalproof camera is a camera and housing intended to resist vandalism, making sure the camera will continue to operate in conditions where people attempt to break it or impair its function.
Buyers should not use vandal proof products in hazardous area, or replace the vandal proof products
as explosion proof products.
