Type molecular sieve 13X APG is specially designed to co-absorb CO2 and H2O for air cryo-separation industry. It has largeer capacity and faster adsorption speed for removal of CO2 and H2O to prevent the bed gelation, it is suitable for any air cryo-separation plants of any size and any types in the world. Typical Chemical Formula Na2OAl2O32.45SIO26.OH2O SiO2 : Al2O3 ≈2.6-3.0
Technical Parameter
Properties

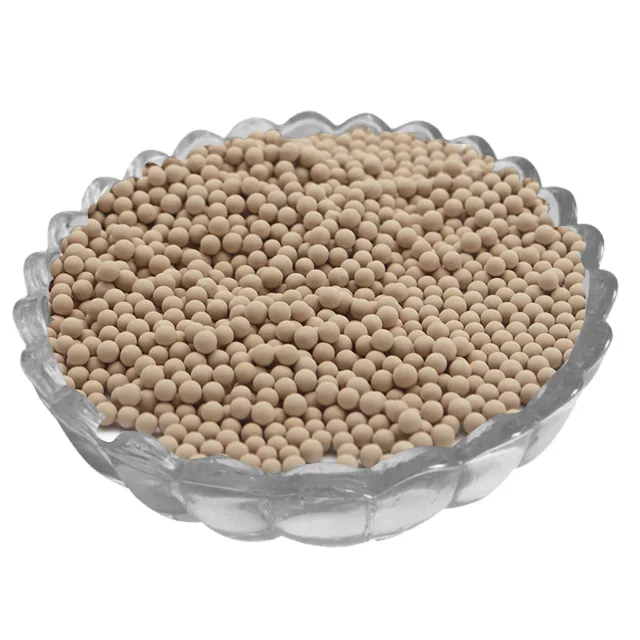

Beads
Pellets
Items
Unit
8*12mesh
4*8mesh
1/16 inch
1/4 inch
Diameter
mm
1.6-2.5
3.0-5.0
1.5-1.8
3.0-3.2
Bulk density
g/ml
≥0.64
≥0.62
≥0.60
≥0.58
Crush strength
N
≥25
≥70
≥25
≥60
Static water adsorption
wt%
≥26.5
≥26.5
≥26.5
≥26.5
Static CO2 adsorption
wt%
≥18.0
≥18.0
≥18.0
≥18.0
Attrition
wt%
≤0.1
≤0.1
≤0.4
≤0.4
Moisture content
wt%
≤1.5
≤1.5
≤1.5
≤1.5
Typical applications Removal of H2O from air fro air cryo-separation application.

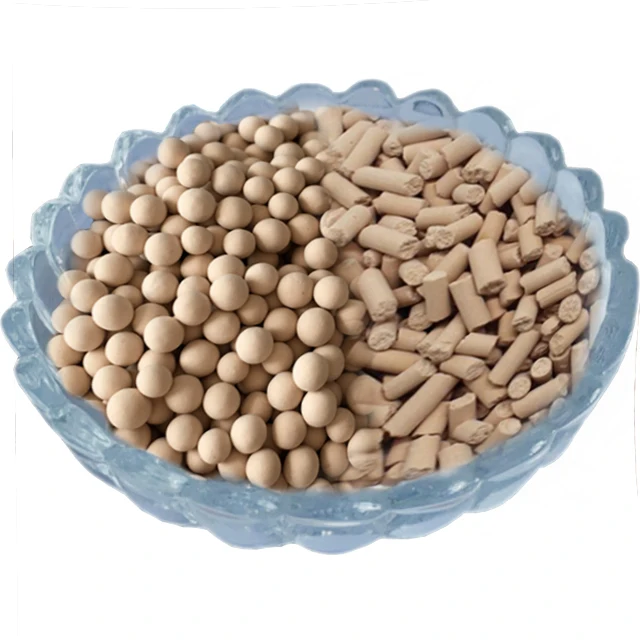

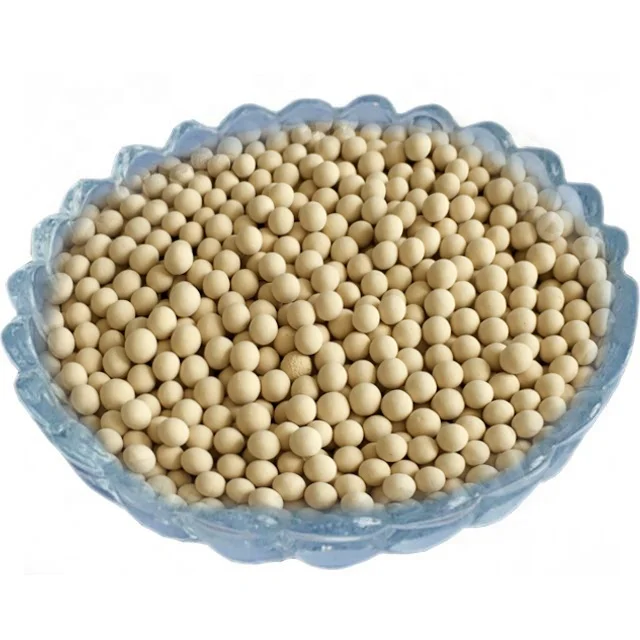

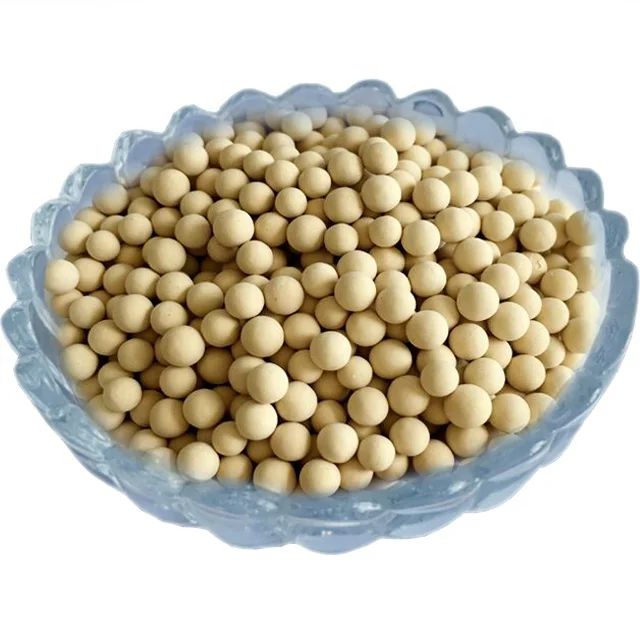

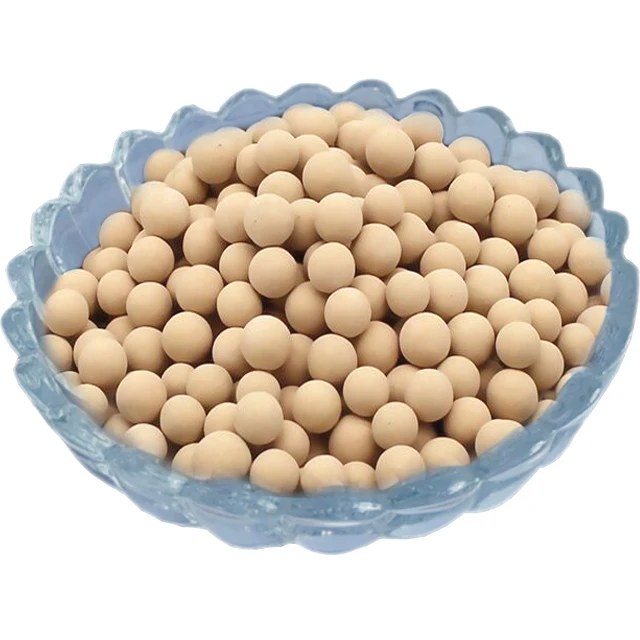

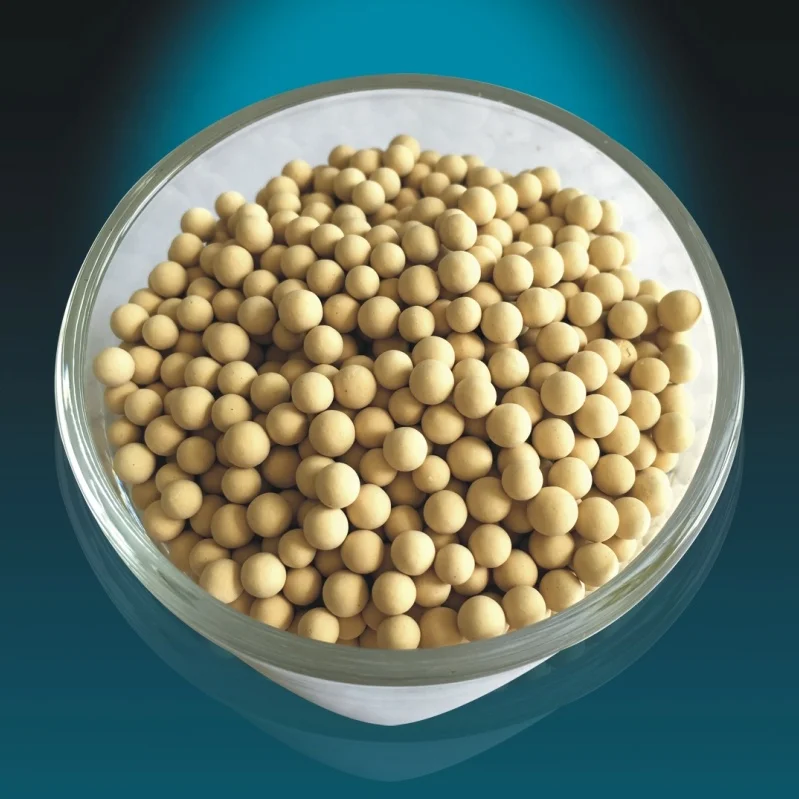

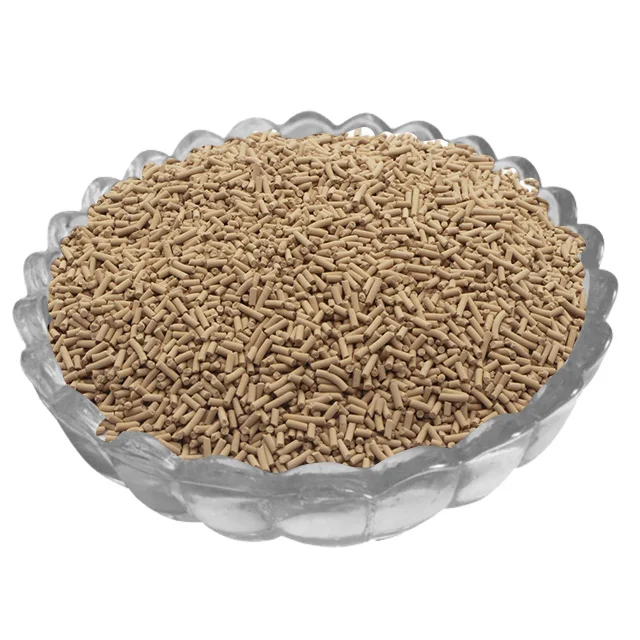

Size 13X APG- Zeolites are available in beads of 1-2 mm, (10x18 mesh) 2-3 mm, (8x12 mesh) , 2.5-5 mm, (4x8 mesh) and as powder, and in pellet 1.6mm, 3.2mm.
Attention 1,To avoid damp and pre-adsorption of organic before running, or must to be reactivated.
2,The product as a desiccant can not be exposed in the open air and should be stored in dry condition with air-proof package.
