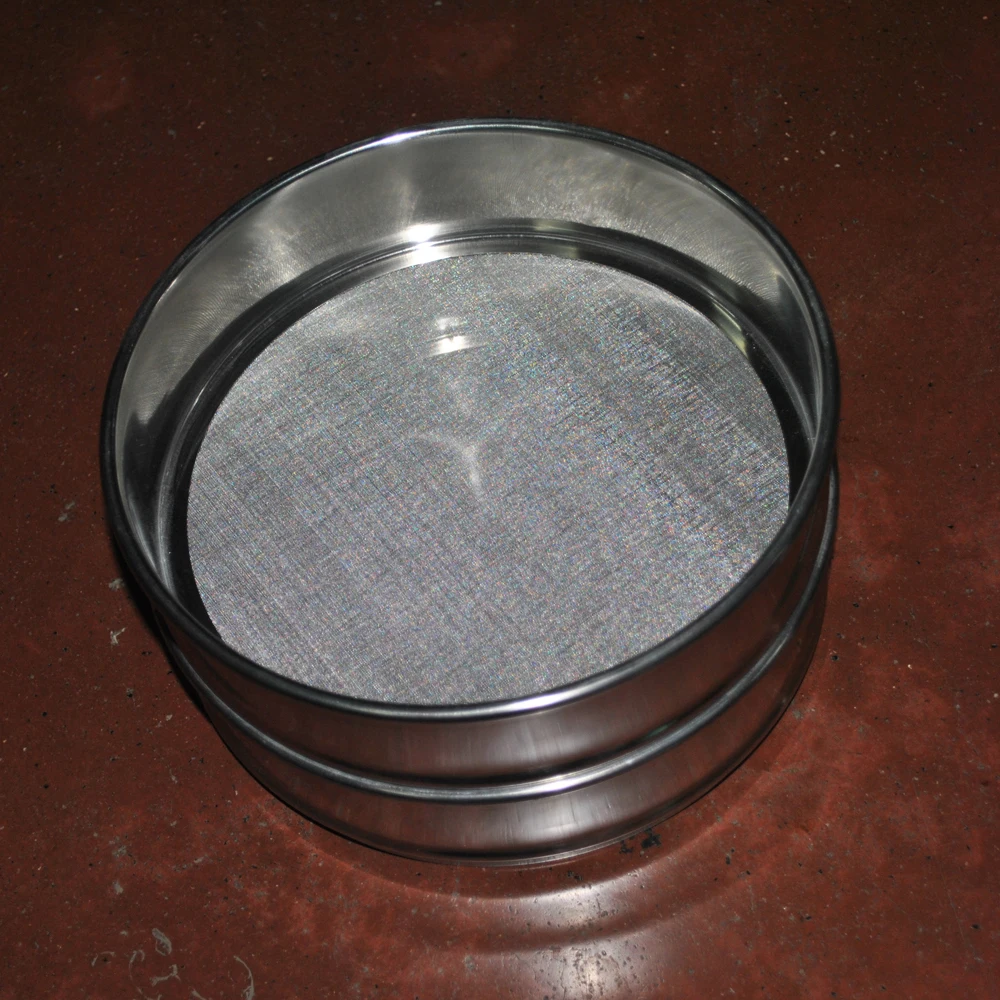

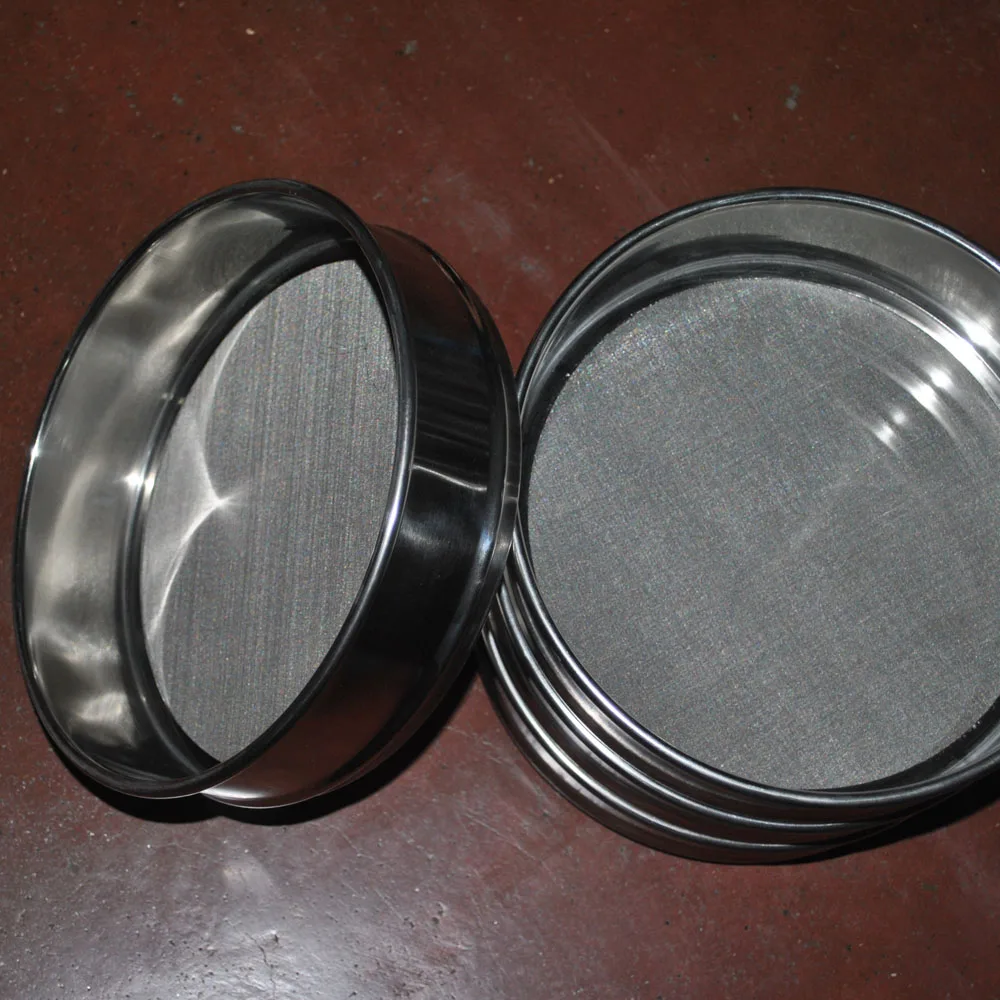

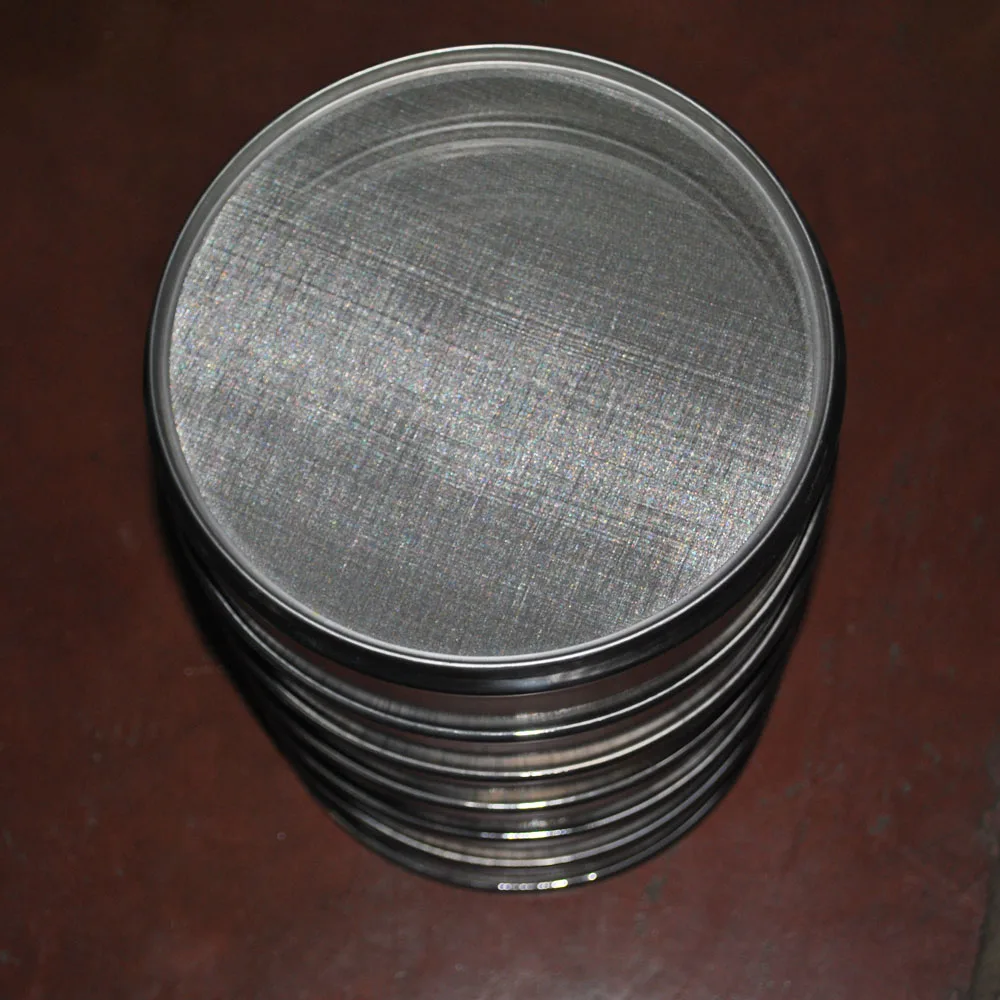

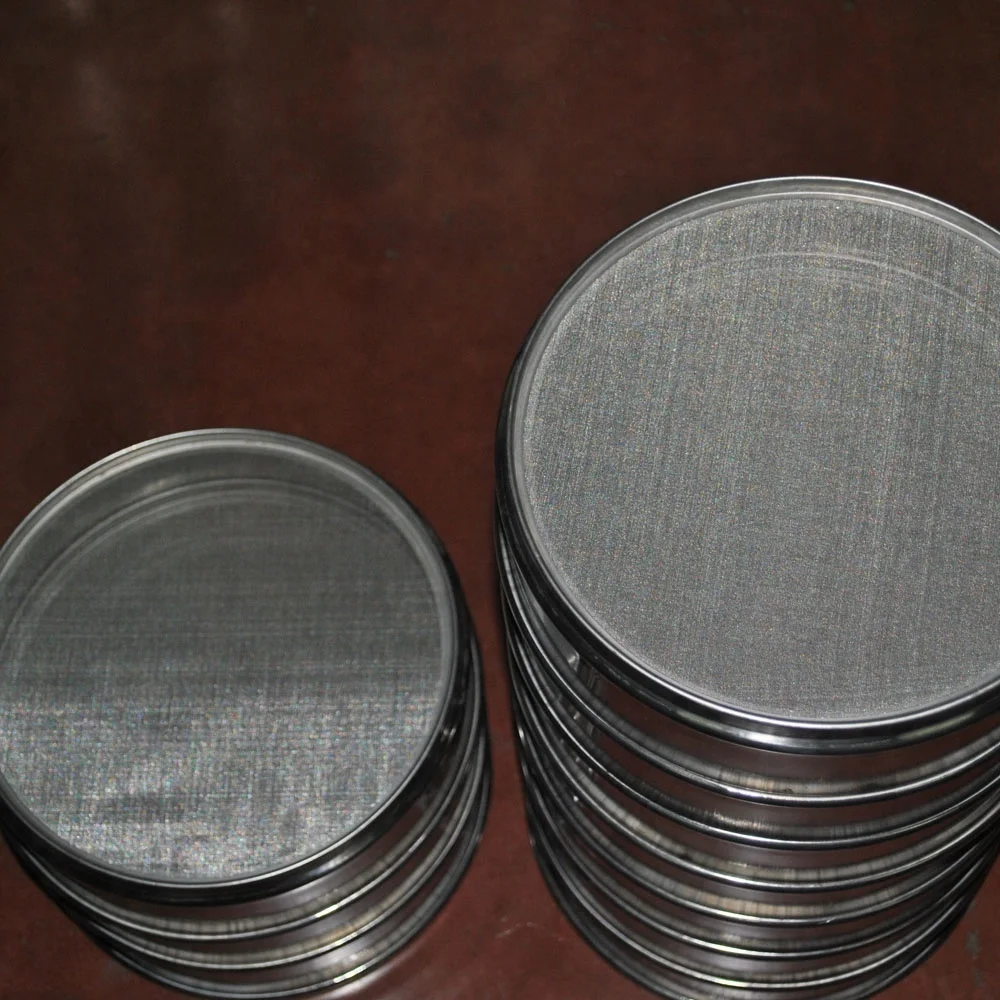

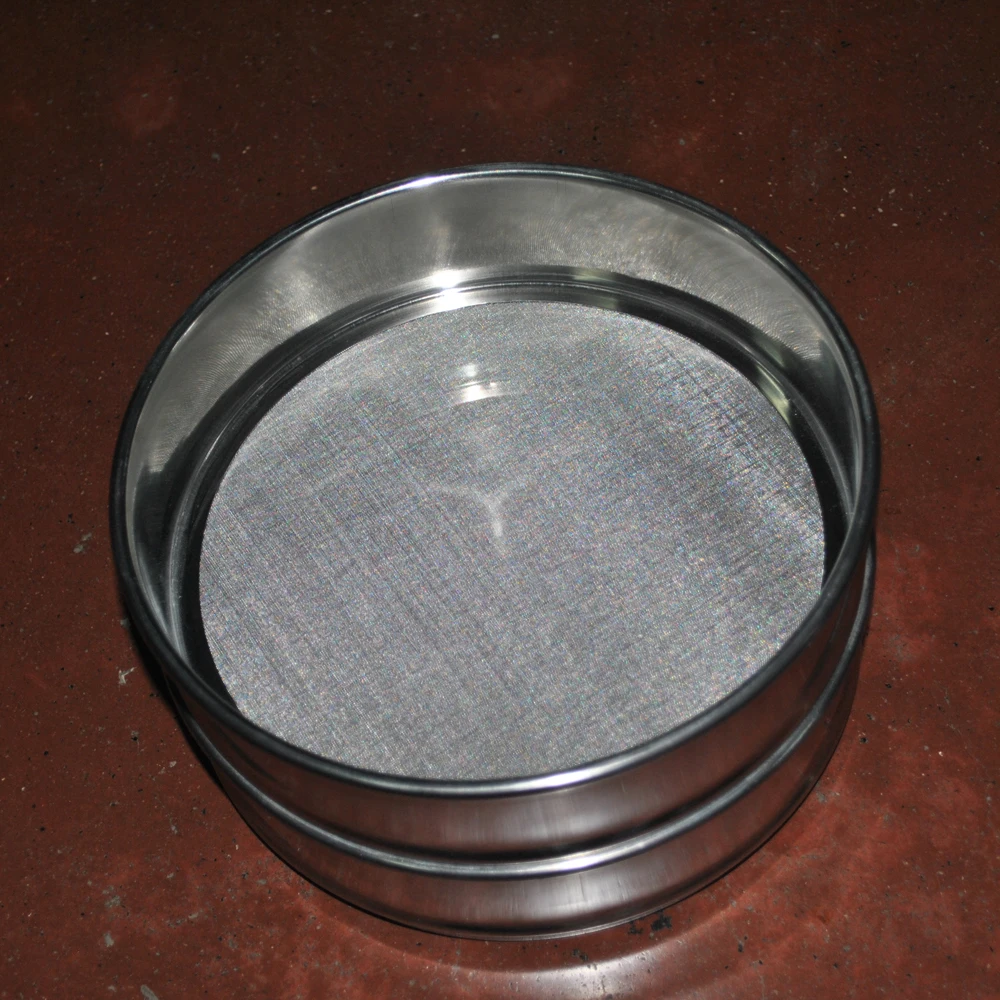

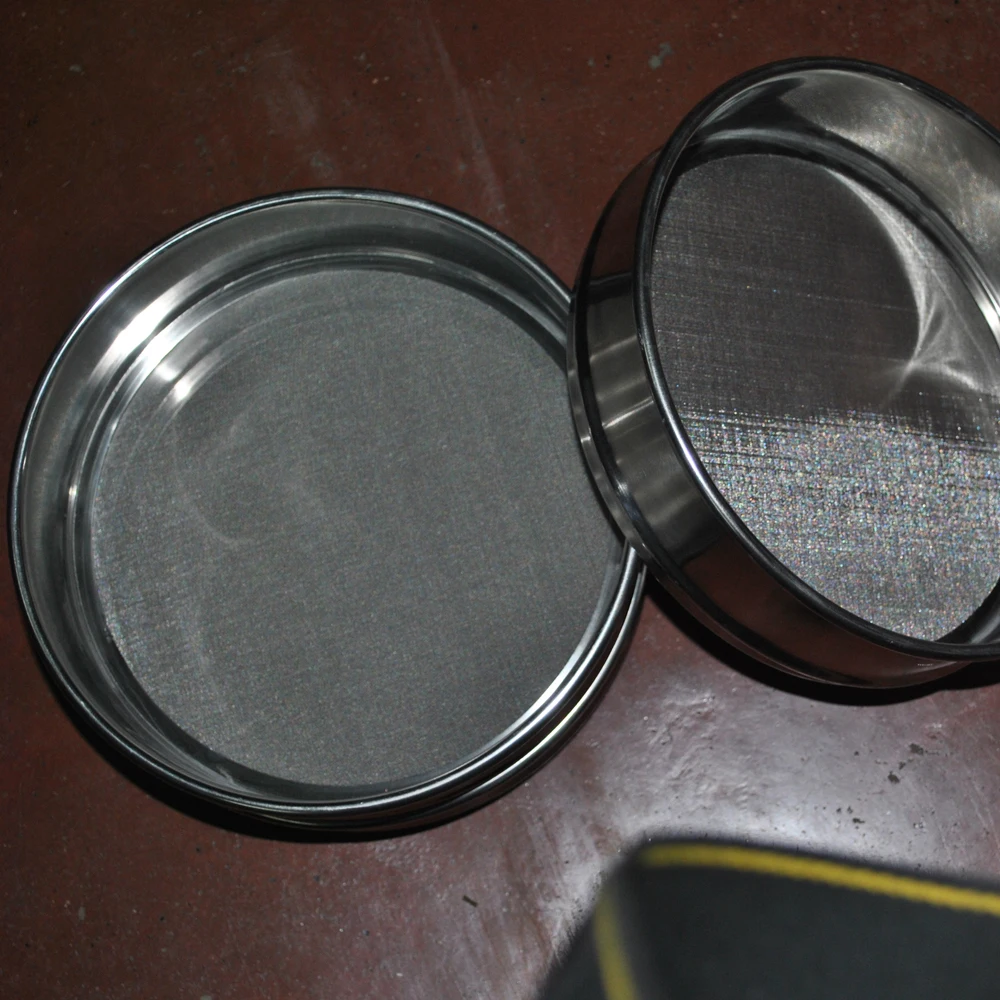

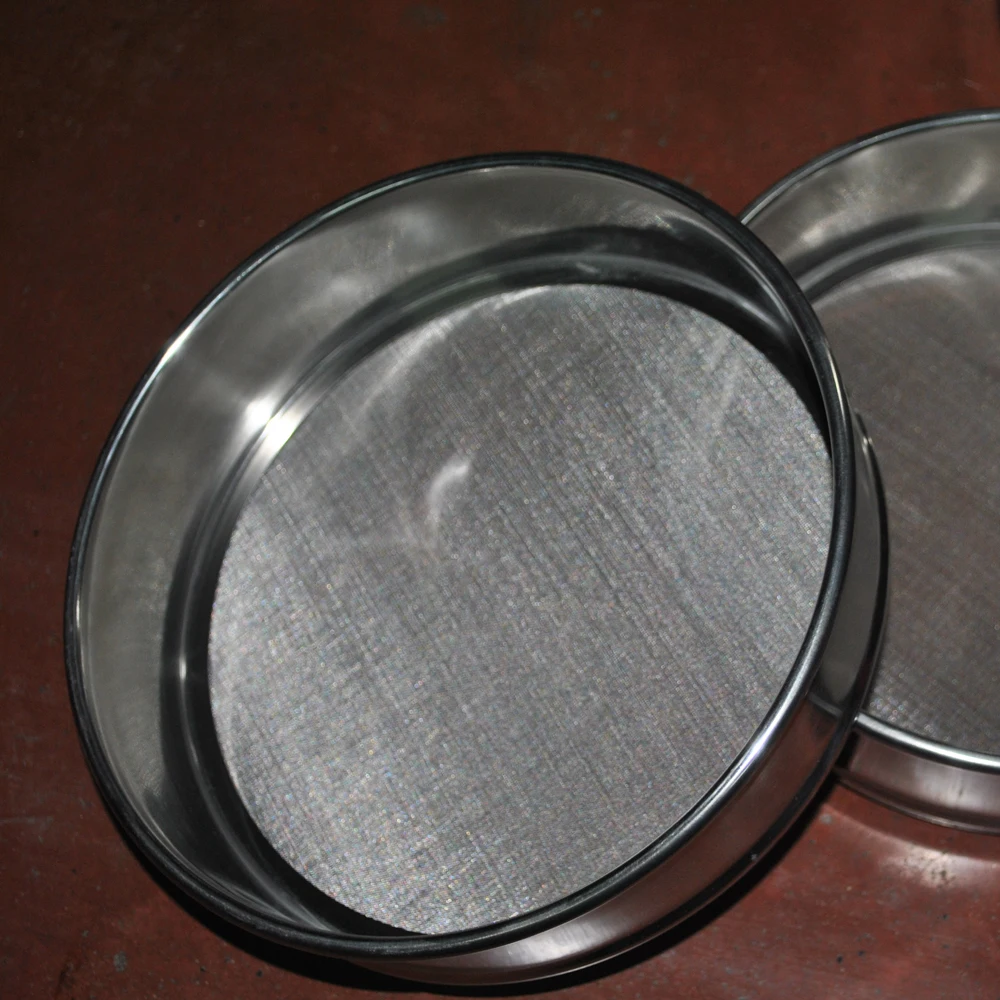

0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves

Product Overview

Description

0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves



0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves

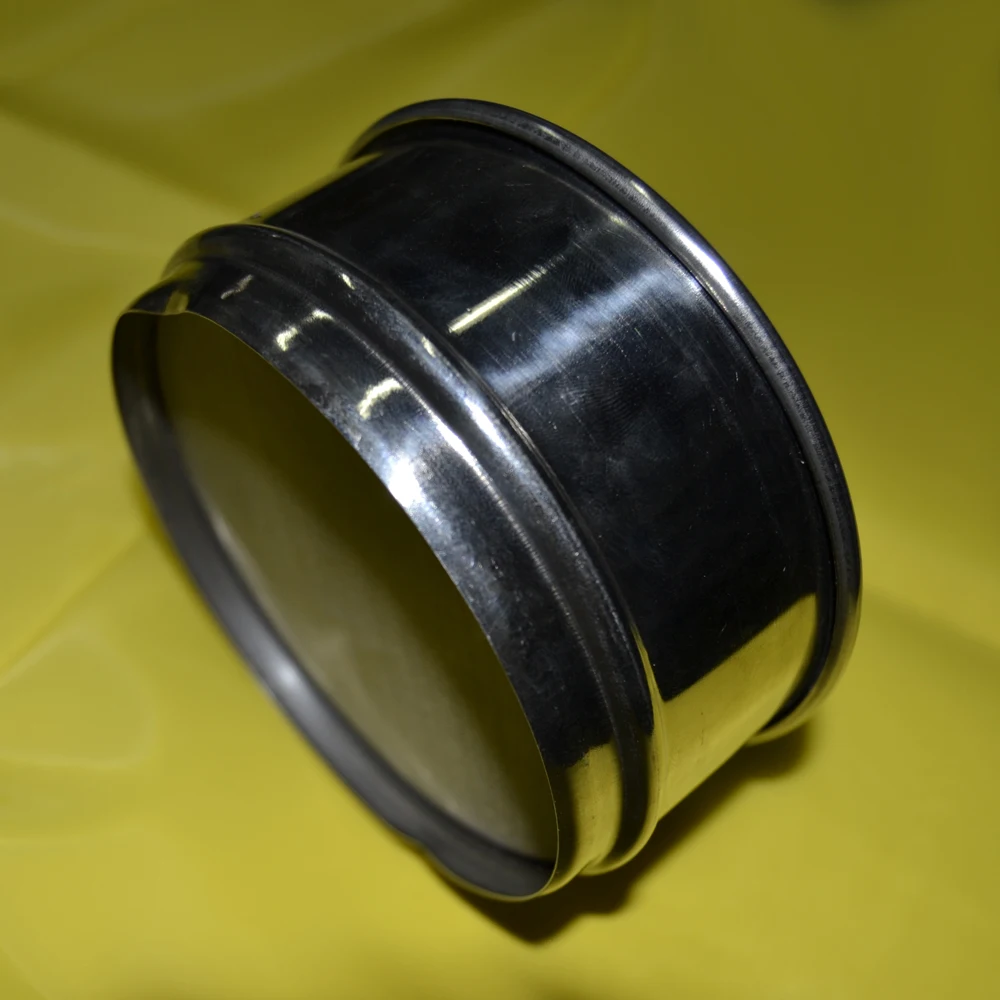

The frame of testing sieve is made of SUS 304# ,316,316L stainless steel, the thickness is 0.6 mm, firm and durable, no magnetism. Sieve and frame are soldered all around, then make a mosaic base, as the frame is two-double, so that the testing sieve is more firm and durable.

Anping Stainless Steel Standard sand Test Sieve is processed by use special electrochemistry methods, and  coat chrome, so the surface of  testing sieve is exact, glazed and wearable,it will not get distorted after long time use



Product Name	0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves
Size	10cm , 20cm , 30cm  can be customized any size
Mesh Aperture	20 micron to 3000 micron or customized aperture
Brand	PFM
OEM	acceptable
Application	Filtering or Sieving



Specifications

Mesh	Wire Dia(mm)	Opening(mm)	Material(AISI)
2mesh*2mesh	1.8	10.9	304 or 316
3mesh*3mesh	1.5	6.96	304 or 316
4mesh*4mesh	1	5.35	304 or 316
7mesh*7mesh	1	2.63	304 or 316
10mesh*10mesh	0.6	1.94	304 or 316
12mesh*12mesh	0.5	1.62	304 or 316
16mesh*16mesh	0.4	1.19	304 or 316
16mesh*16mesh	0.35	1.24	304 or 316
18mesh*18mesh	0.35	1.06	304 or 316
20mesh*20mesh	0.4	0.87	304 or 316
24mesh*24mesh	0.26	0.8	304 or 316
30mesh*30mesh	0.3	0.55	304 or 316
35mesh*35mesh	0.17	0.56	304 or 316
40mesh*40mesh	0.23	0.4	304 or 316
50mesh*50mesh	0.2	0.31	304 or 316
60mesh*60mesh	0.15	0.27	304 or 316
70mesh*70mesh	0.12	0.24	304 or 316
80mesh*80mesh	0.13	0.19	304 or 316
90mesh*90mesh	0.1	0.16	304 or 316
100mesh*100mesh	0.09	0.15	304 or 316
120mesh*120mesh	0.063	0.12	304 or 316
150mesh*150mesh	0.053	0.11	304 or 316
180mesh*180mesh	0.053	0.09	304 or 316
200mesh*200mesh	0.04	0.07	304 or 316
250mesh*250mesh	0.04	0.063	316
300mesh*300mesh	0.04	0.044	316
325mesh*325mesh	0.035	0.043	316L
350mesh*350mesh	0.03	0.042	316L
400mesh*400mesh	0.03	0.33	316L
450mesh*450mesh	0.028	0.028	316L
500mesh*500mesh	0.025	0.026	316L





BJPFM Screen's 0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves

How to choose the mesh count of sieves?

General flour sieve is 60mesh  , 80mesh

Chinese medicine powder , mask pwder screen is generally 80mesh

Pearl powder is generally fine, with 5mesh of soybeans, and 18 mesh of rice, 12 mesh and 14mesh of southern ring.

The insect dung sieve using the 30mesh





Application of 0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves



Lab Standard Soil Test Sieve in Aperture 3mm-0.02mm is applied to exact mesh analysis, test, measure, classification for powdery material in lab, hospital, pharmacy, foodstuff, metallurgy, construction etc departments.

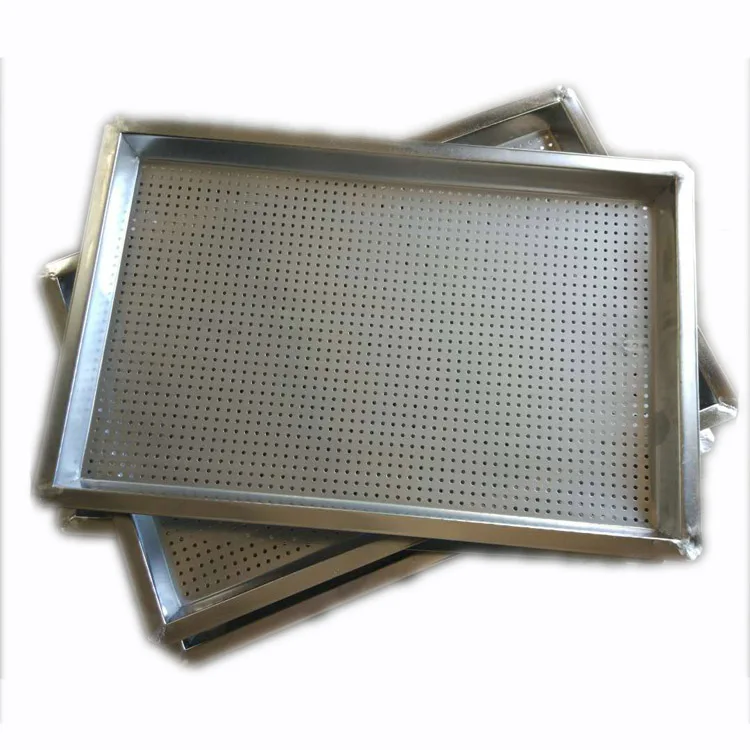

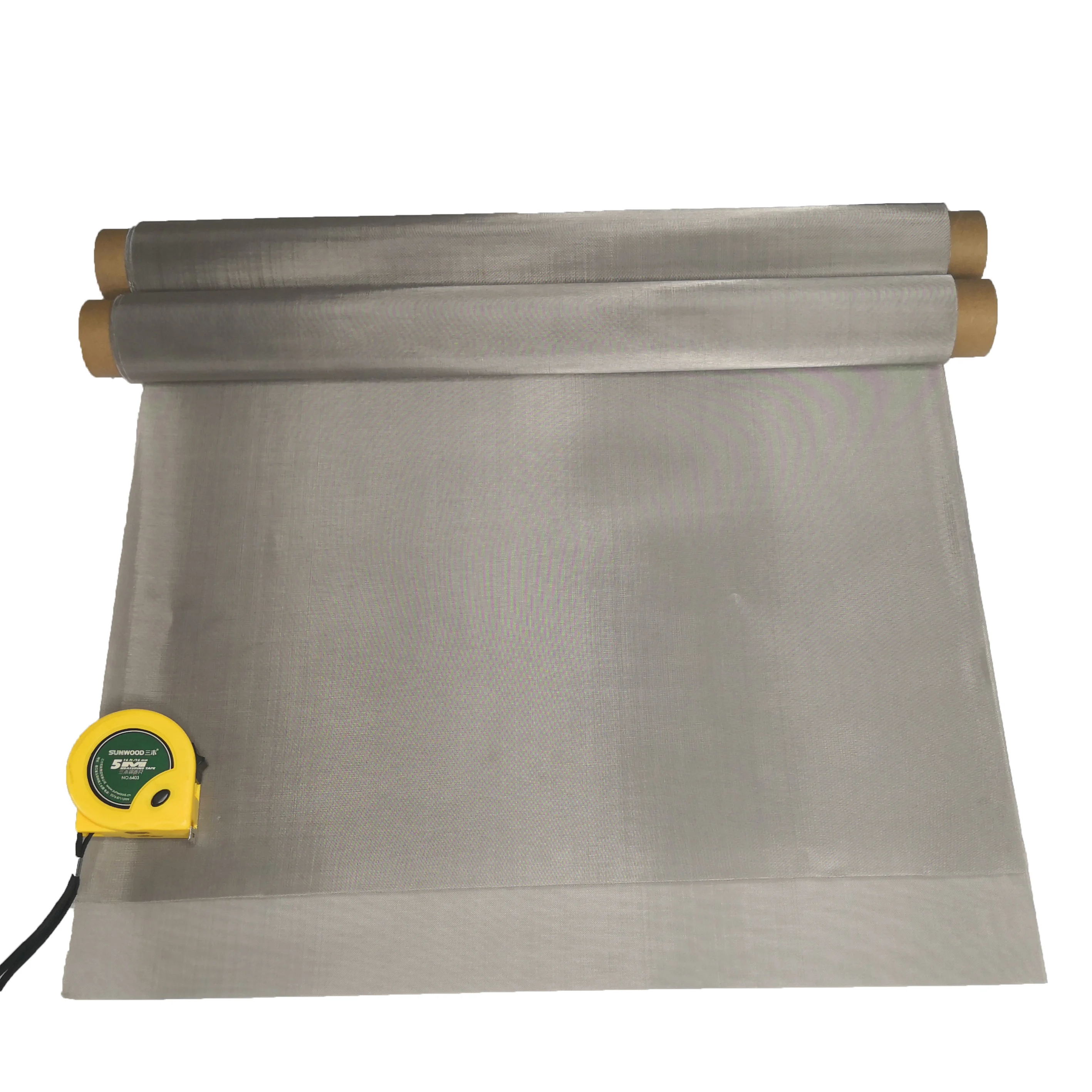

Stainless steel filter mesh	Nylon filter mesh	Stainless steel mesh tray



Packaging:

0.02mm to 3mm holes Stainless Steel Lab Standard Soil Test Sieves
1.Plastic film inside,plywood case outside.
2.customized.

Delivery :
1. for small quantity, shipped by courier.
2. for large quantity, shipped by air or by sea.
3. tracking number will be emailed to you after the order has been shipped.
4. If you have forwarder in China, we can send to your forwarder for free.







1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply to you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me feedback. If you have any questions about the problem, contact us, we will offer the solve way for you.

5.Sample testing support.

6.Changing for new if dissatisfaction.



Q1. What are your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered a patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. How long is your delivery time?
A: Generally it's 3-5 days if the goods are in stock or it's 7-10 days if the goods are not in stock and depending on quantity.

Q3. What are your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.

Q4. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q5. Do you test all your goods before delivery?
A: Yes, we have a 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
