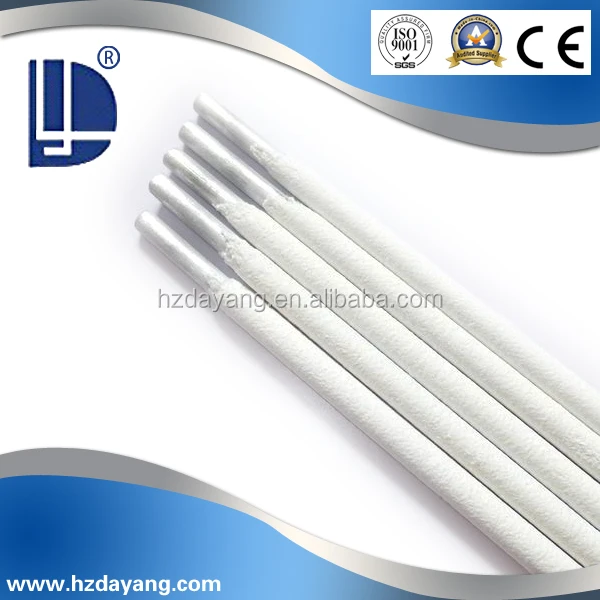

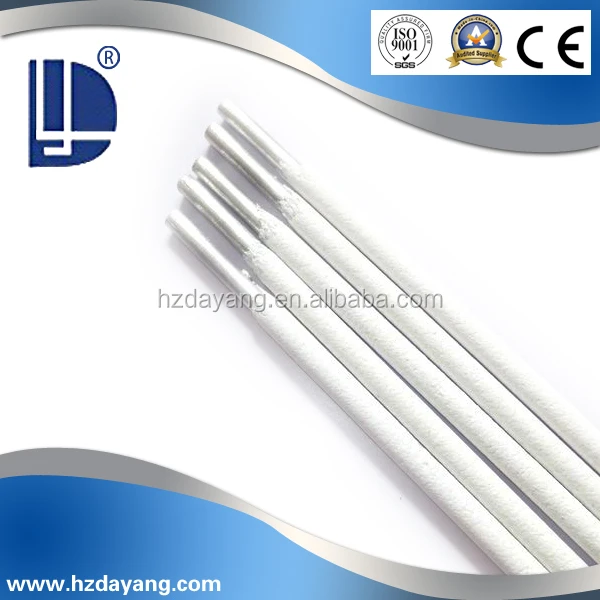

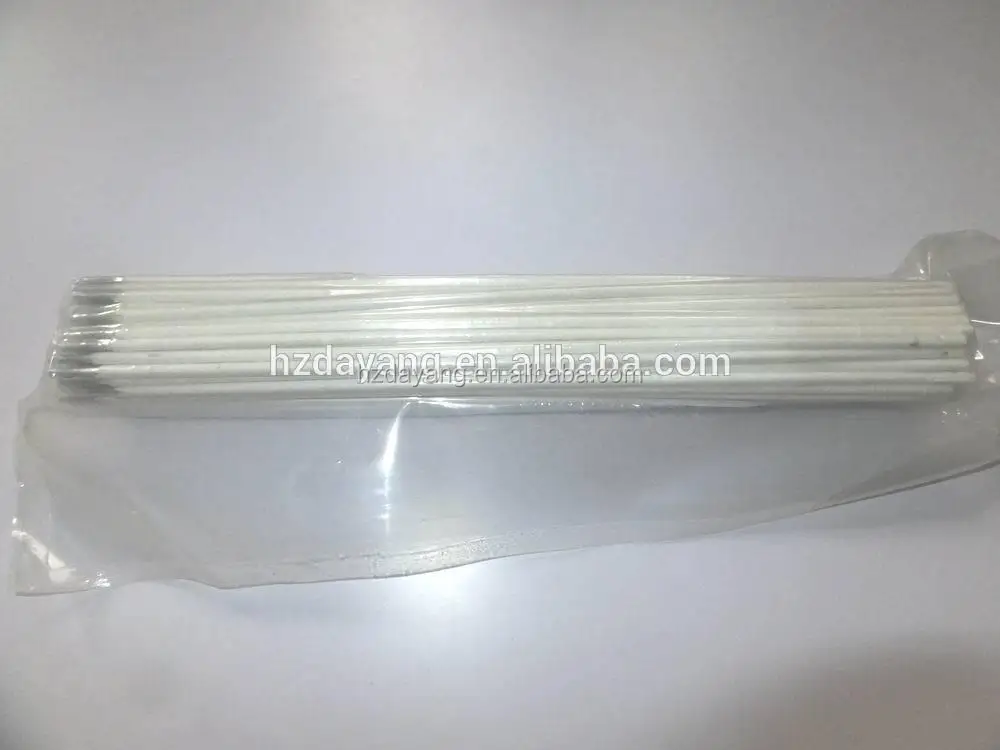

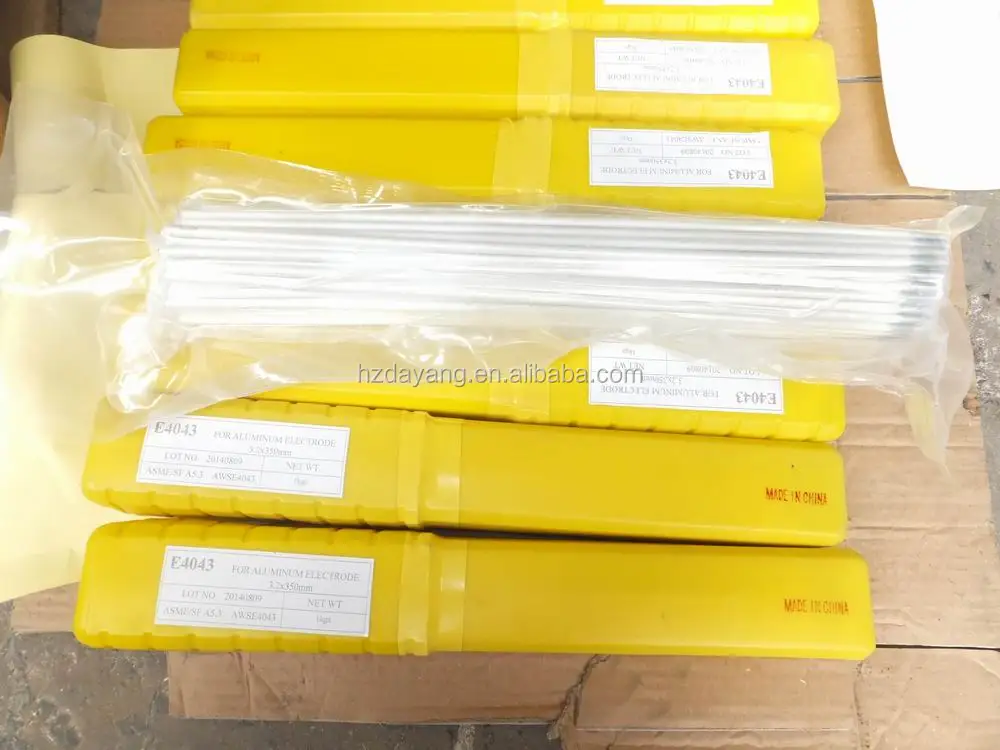

300 450mm length electrode welding rod 1/8 inch 4043 aluminum electrode

  Specifications:

Alloy: 4043 CTD Conforms to Certification: AWS A5.3

Alloy: E4043 CTD

  AWS Chemical Composition Requirements:

Si = 4.5 - 6.0 Zn = 0.10 max

Fe = 0.80 max Ti = 0.20 max

Cu = 0.30 max Be = 0.0008 max

Mn = 0.05 max Al = Remainder

Mg = 0.05 max Other = 0.05 each - 0.15 max total

  Deposited Chemical Composition % (Typical):

Si = 5.00  Cu = 0.20

Ti = 0.11  Al = Balance

  Recommended Operation of Welding Rods:

Weld parameters are dependent on diameter, of weld material and position of welding including base plate thickness.

  Application:

E4043 CTD is a coated electrode designed for maintenance welding of aluminums and aluminum alloys, such as 5454, 5154,  6052, 6063,  700 series.- The proper choice of aluminum filler metal mainly depends on the base metal properties to be achieved and Welding technique.  Post weld cracking, corrosion resistance and behavior under elevated temperature also need to be taken into consideration. Cracking usually can be minimized by choosing a filler metal alloy of higher alloy content then the base metal.

• Vehicles, bridge-engineering, machine-engineering,


• steel structures, shipping manufacture, building and containers.

  Advantages:

1.Fewer spatters

2.Easy to restrike

3.Less smog

4.Good off slag, high deposition efficiency
