Soft pack 3.2v li polymer battery cell with 2000cycles 3.2v 20ah lifepo4 li polymer battery for 3.2v solar battery

Product Overview

Description

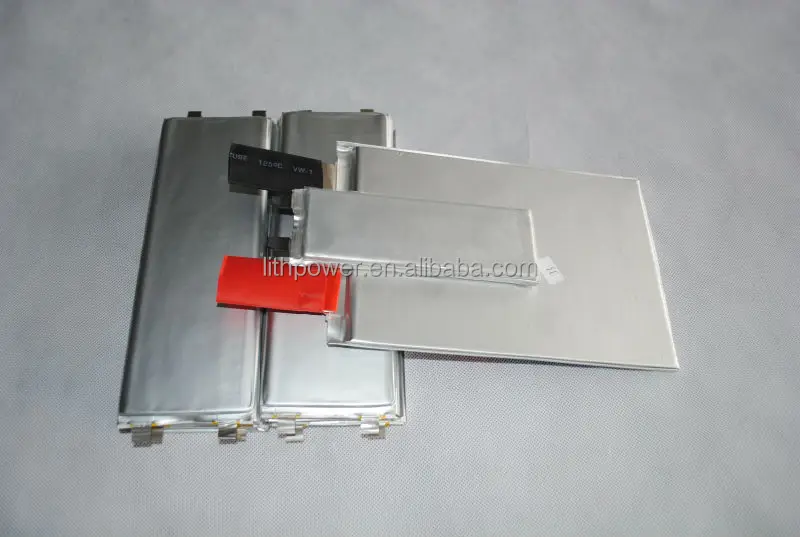

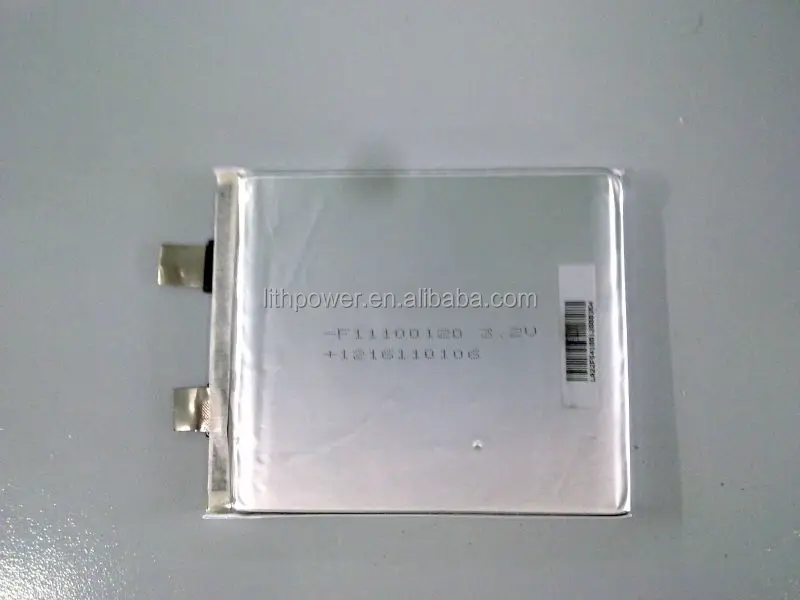

 High power lifepo4 3.2v li polymer battery cells, 3.2V 20AH lifepo4 punch battery, softpack 3.2v 20ah li-polymer battery cells. High power lifepo4 3.2v solar battery cell 3.2V 20AH, and with long lifecycle lifepo4 3.2v li-polymer battery , lifepo4 18650-1.5AH and 26650-3.3Ah

lithpower offers 3.2v lifepo4 softpack battery cells, 3.2v20ah lifepo4 softpack battery cell, lifepo4 3.2v10ah softpack cells. high power lifepo4 3.2v softpack battery cells,2000cycles 3.2v softpack lifepo4 battery cells

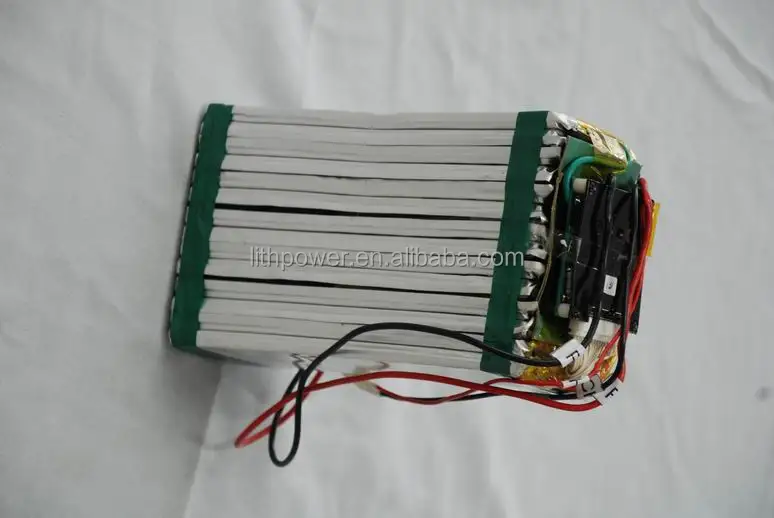

SHENZHNE LITHPOWER provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution. We provides a vertical supply chain from LiFePO4 single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.

UL/CE approved LiFePO4 cells; MSDS testing on modules, qualified built-in BMS; Good record in quality and UN38.3 for dangerous goods transportation.

 lith power offers different 3.2v lipolymer battery, high power lipolymer 3.2v battery, long life 3.2v lipolymer battery, 2000cycles lipolymer battery 3.2v.

Model		14500E LiFePO4 Cell	18650E LiFePo4 Cell	26650E LiFePO4 Cell	18650P LiFePO4 Cell	26650P LiFePO4 Cell	18650E NCM Cell	26650E NCM Cell	Soft Pack/Punch Cell
Nominal Capacity		550mAh	1.5/1.6 Ah	3.3 AH	1.1 AH	2.3 AH	2.2Ah	4.5 Ah	5Ah/6Ah/8AH/10AH/20AH
Nominal Voltage(V)		3.2	3.2V	3.2V	3.2V	3.2V	3.7V	3.7V	3.2V
Max. Voltage(V)		3.65	3.65V	3.65V	3.65V	3.65V	4.2V	4.2V	3.65V
Standard Charge Current(C)		0.2-0.5C (CC-CV)	0.2C-0.5C (CC-CV)	0.2-0.5C (CC-CV)	0.2-0.5C (CC-CV)	0.2-0.5C (CC-CV)	0.2-0.5C (CC-CV)	0.2-0.5C (CC-CV)	0.2-0.5C (CC-CV)
Max. Constant Discharge Current(C)		1-2C	1-2C	1-2C	10-20C	10-20C	1-2C	1-2C	1-2C
Max. Pulse Current		3C	3C	3C	30C	30C	3C	3C	3C
Approx. Weight(g)		23g	48g	88g	48g	88g	48g	88g	Flexible
Approx. Dimensions		14X50mm	18X65mm	26X65mm	18X65mm	26X65mm	18X65mm	26X65mm	Flexible
Cycle Life(80% DOD)		>2000 cycles	>2000 cycles	>2000 cycles	>2000 cycles	>2000 cycles	>800 cycles	>800 cycles	>2000 cycles
Self-discharge Ratio/month		≤3%	≤3%	≤3%	≤3%	≤3%	≤3%	≤3%	≤3%
Temperature	Charge	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C	-10°C~45°C
	Discharge	-20°C~55°C	-20°C~55°C	-20°C~55°C	-20°C~55°C	-20°C~55°C	-20°C~55°C	-20°C~55°C	-20°C~55°C
	Storage	-10°C~35°C	-10°C~35°C	-10°C~35°C	-10°C~35°C	-10°C~35°C	-10°C~35°C	-10°C~35°C	-10°C~35°C



Battery Comparison

         Smaller size, normally 1/3 as large as conventional SLA battery;

• Lighter weight, normally 1/3 as conventional SLA battery;


• Longer cycle-life, SLA battery is about 300cycles while LiFePO4 battery can be 2000 cycles or more;


• Good performance in deep discharge,LiFePO4 battery can be 100%DOD while SLA battery is 60%∼70%DOD,which means LiFePO4 battery will need less capacity in the same condition;


• Totally environmental-friendly
