Vertical Metal Drilling Machine Z5140 Z5150

Product Overview

Description

Vertical Metal Drilling Machine Z5140 Z5150

Manufacturer for more than 20 years

Only focus on Milling Machines and Drilling Machines











Vertical Metal Drilling Machine Z5140 Z5150

1.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.

2.High accuracy, high efficiency, high automation and high flexibility.







 Specification of Vertical Metal Drilling Machine Z5140 Z5150



Specification	Unit	Z5140B	Z5140B-1	Z5150B	Z5150B-1
Max drilling diameter	mm	40		50
Spindle taper		MT4		MT5
Stroke of spindle quill	mm	250
Spindle box travel(manual)	mm	200
Spindle speed steps		12
Spindle speed range	r.p.m	31.5-1400
Spindle feed steps		9
spindle feed range	mm/r	0.056-1.80
Table size	mm	560 x 480	800 x 320	560 x 480	800 x 320
Longitudinal/cross travel	mm	-	450/300	-	450/300
Vertical travel	mm	300
Max distance between  spindle and table surface	mm	750	550	750	550
Main motor power	kw	3
Overall size	mm	1090x905x2465	1300x1200x2465	1090x905x2465	1300x1200x2465
Net weight	kg	1250	1350	1250	1350

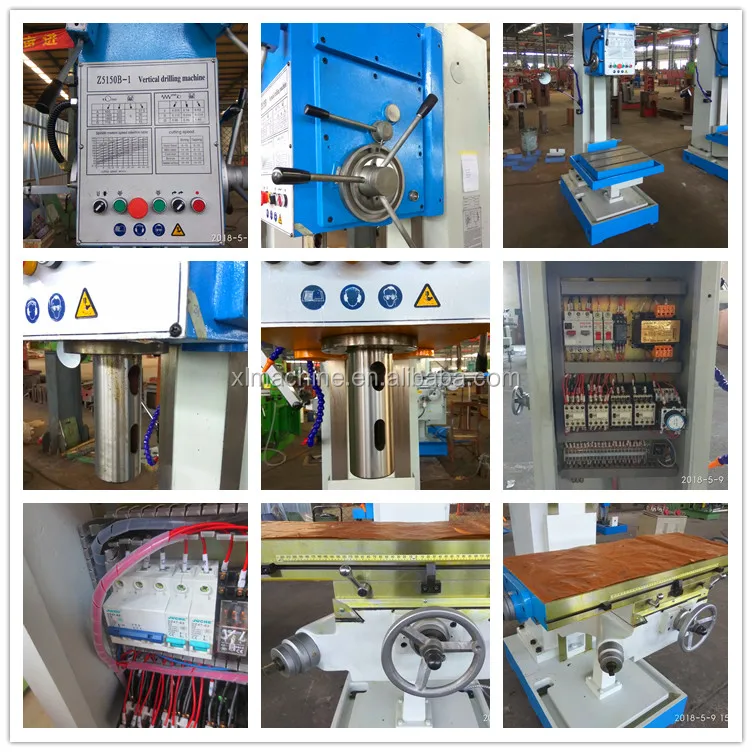

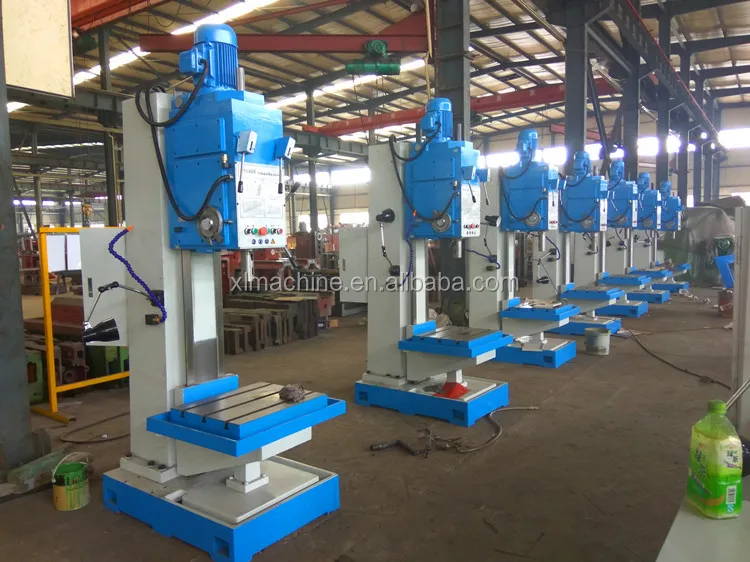

Vertical Metal Drilling Machine Z5140 Z5150 Detail

1. ZK5140B and Z5140B-1 Square Column Vertical Drilling Machine are universal drilling machine.the max drilling diameter is 40mm.

2.ZK5150B and Z5150B-1 Square Column Vertical Drilling Machine are universal drilling machine.the max drilling diameter is 50mm.

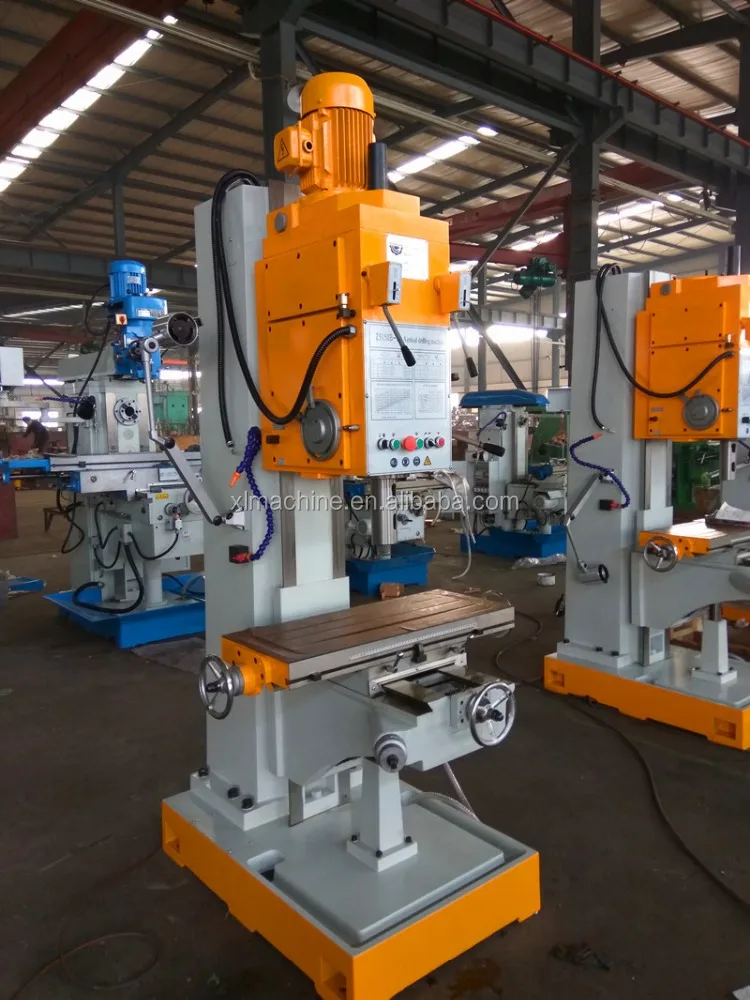

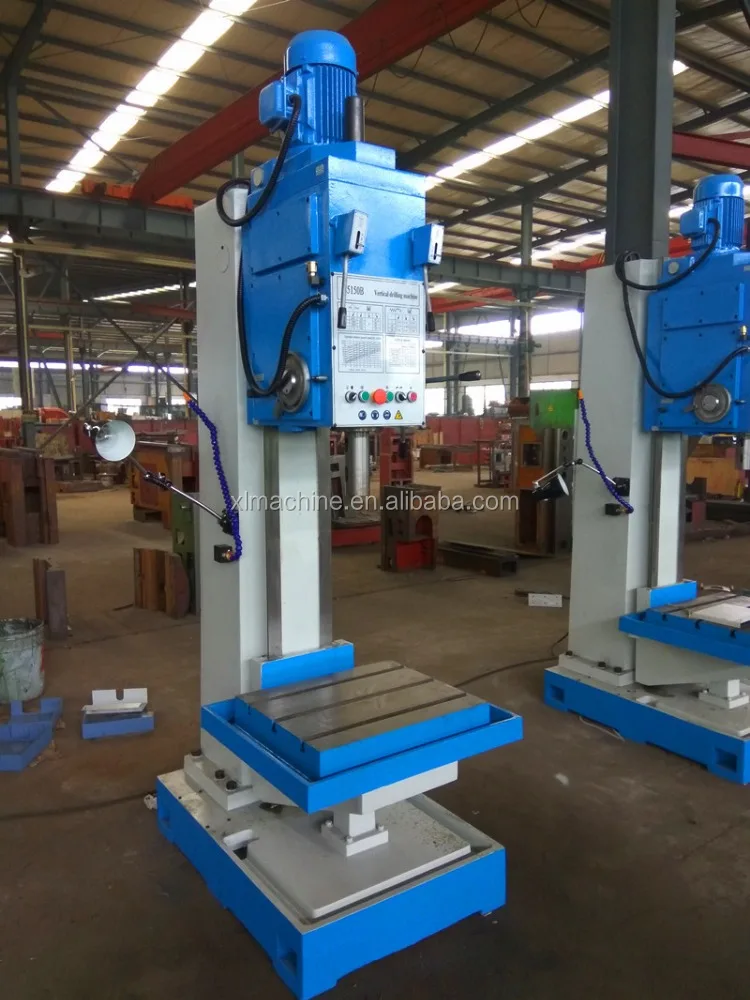

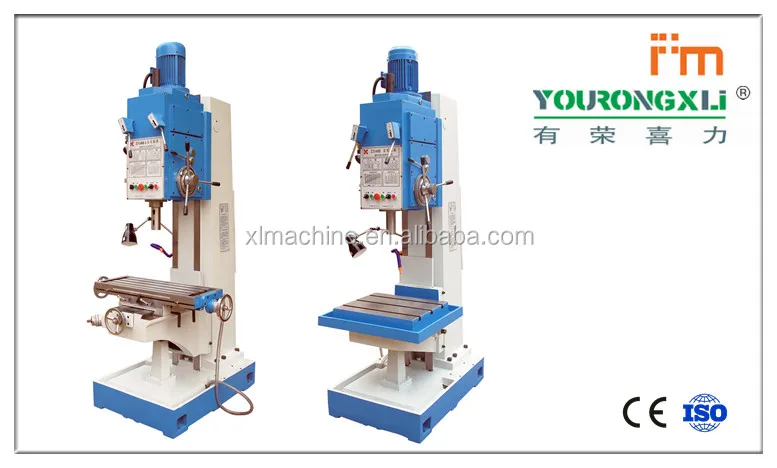

3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.



 5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.







Tengzhou Xili Machine Tool Co.,Ltd. and Shandong Rourong Machine Tool Co.,Ltd.

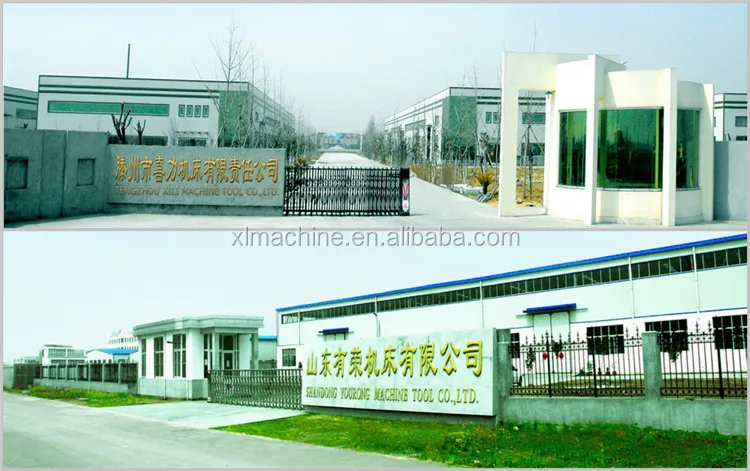

It covers an area of 70000 square meters, with the building zone about 30000 square meters, including Tengzhou XILI Machine Tool Co.,Ltd.  Shandong YOURONG Machine Tool Co.,Ltd. There are more than 800 workers with a technical center of provincial level.It is one of the biggest manufacturers of milling machines in south of Shandong Province.



The main products have developed to 7 series in recent years: CNC Planer-type machining center , CNC vertical machining center, CNC horizontal machining center series, CNC milling machine series, Knee-type milling machine series, planer-type milling machine , Single-face milling machine series,Vertical drilling machine series, Drilling and Milling machine series.
