pipe inspection camera for sale TEC Z710DM sewer pipe inspection camera

Specification

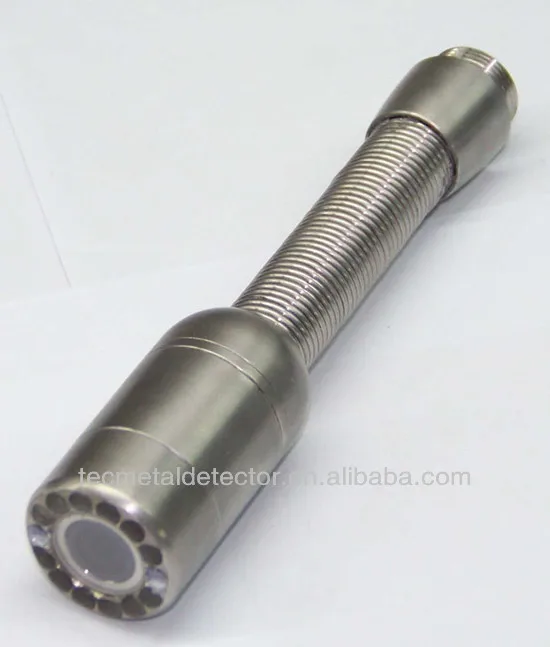

camera

1.camera size:23mmx120mm   front size:45mm

2.Camera case material:stainless steel house stainless steel 304

3. Camera glass material:sapphir glass

4. sensor size:1/4 inch

5.Total Pixels:PAL:720X576    NTSC: 720X480

6. view angle:120°.

7. camera light:12PCS white LEDS.

8. Special gold point touch connector

9. waterproof:IP68

10.camerawork current:100MA      camara power supply:DC 12V

11. LEDS ADJUASTABLE.

12.Work temperature:-10°C-50°C

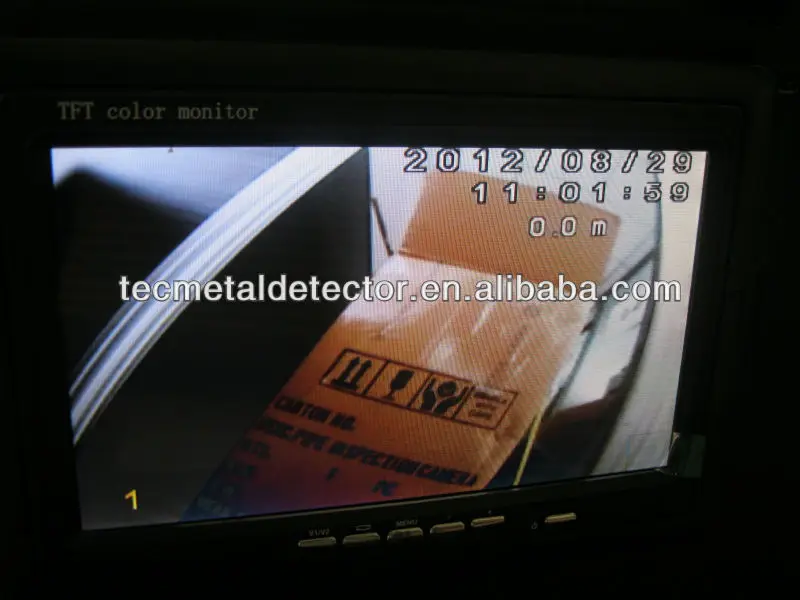

monitor

1. monitor size:  7inch  TFT color monitor

2. monitor Total Pixels:1440X234

3. monitor power supply:DC 12V

4. osd language: english

5. up,down  left,right adjustable.

6. 16:9  4:3 model

7. sunshade includ

8. waterproof connector

9. Work temperature:-10°C-50°C

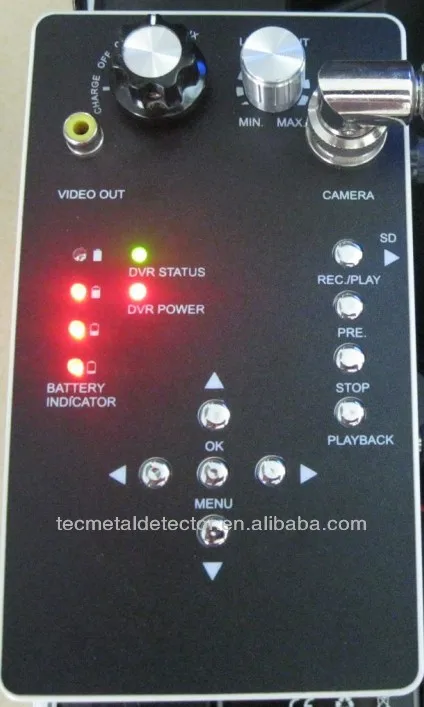

DVR

1. DVR power supply: 12V

2. DVR work current:  200MA

3. storage medium:SD card (max 32G)

4. dagital clock and dagital calendar

5. DVR Total Pixels: 720X576   (D1)

6. picture snap and movie record

7. movie format: AVI

8. audio record (yes)

9. double earphone output

Audio input unit

1. micphone

2. clip type

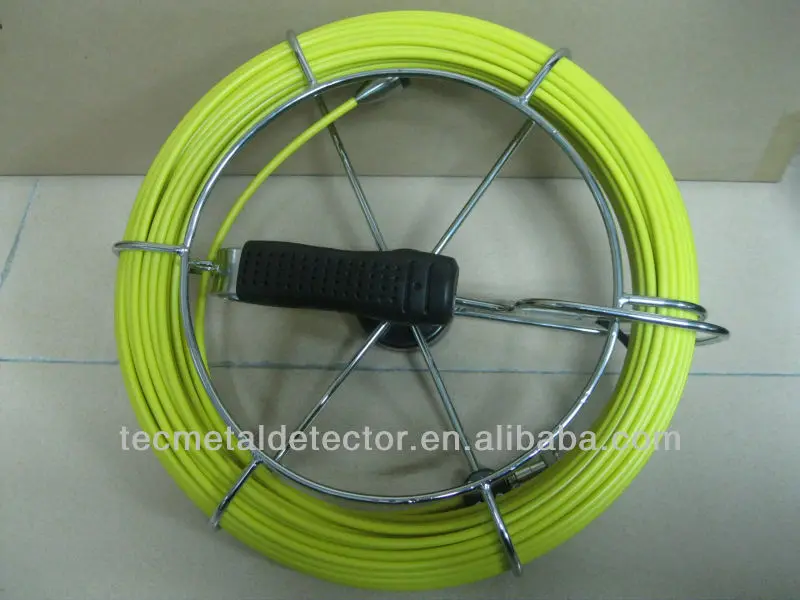

Cable wheel

Cable size:320MM(diameter)X110(h)

Wire material: fiberglass rod

Fiberglass length:20M( standard)

Fiberglass diameter:4.8MM

Fiberglass color:yellow

battery

Battey pype:  12V 4000MAH     rechargable li –ion battery(18650)

Tatal work time :  more  7  hours.

charger

input: AC90-260V        output: DC 12V    1000MA

Output cable length:1.5M

DC plug diameter :2.1MM

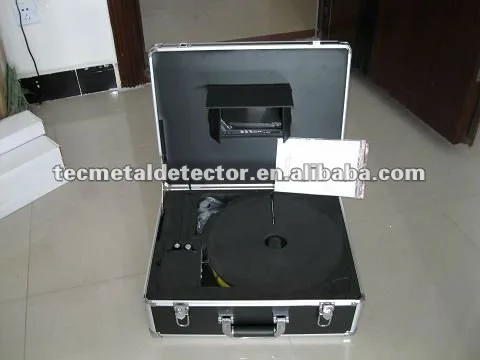

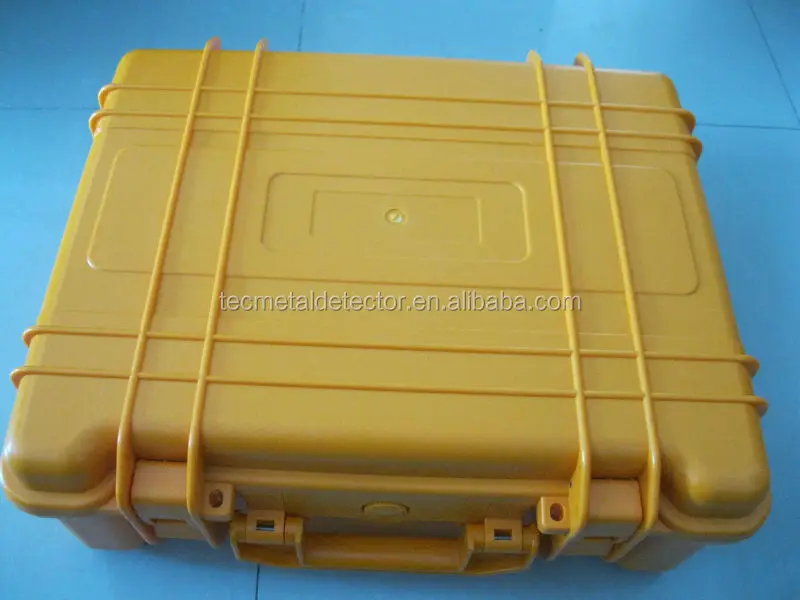

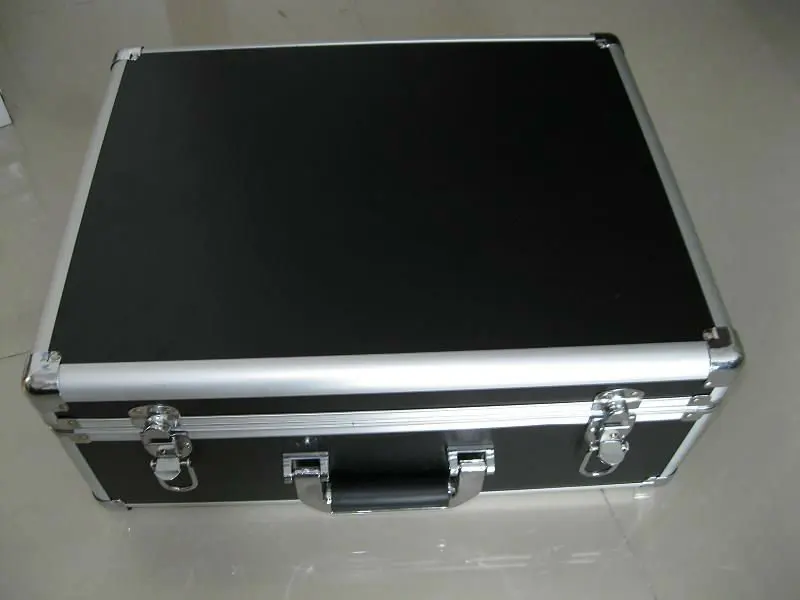

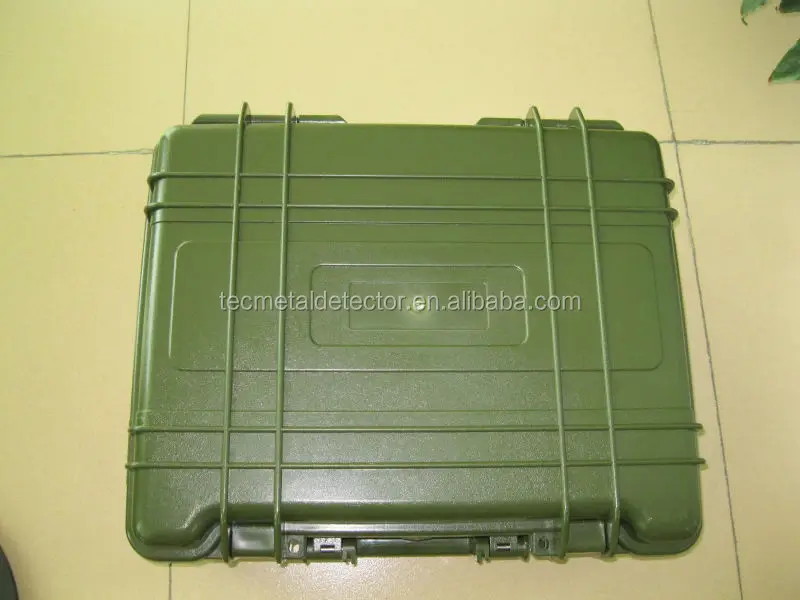

box

box material:fire protection

Box size:48cm x 39cm x 19.5cm

SKIDS size

1. SKIDS1:material POM Φ40MM

2. SKIDS2:material POM Φ80MM

Weight

net weight: 7.5KG  Single

gross weight: 12KG Single
