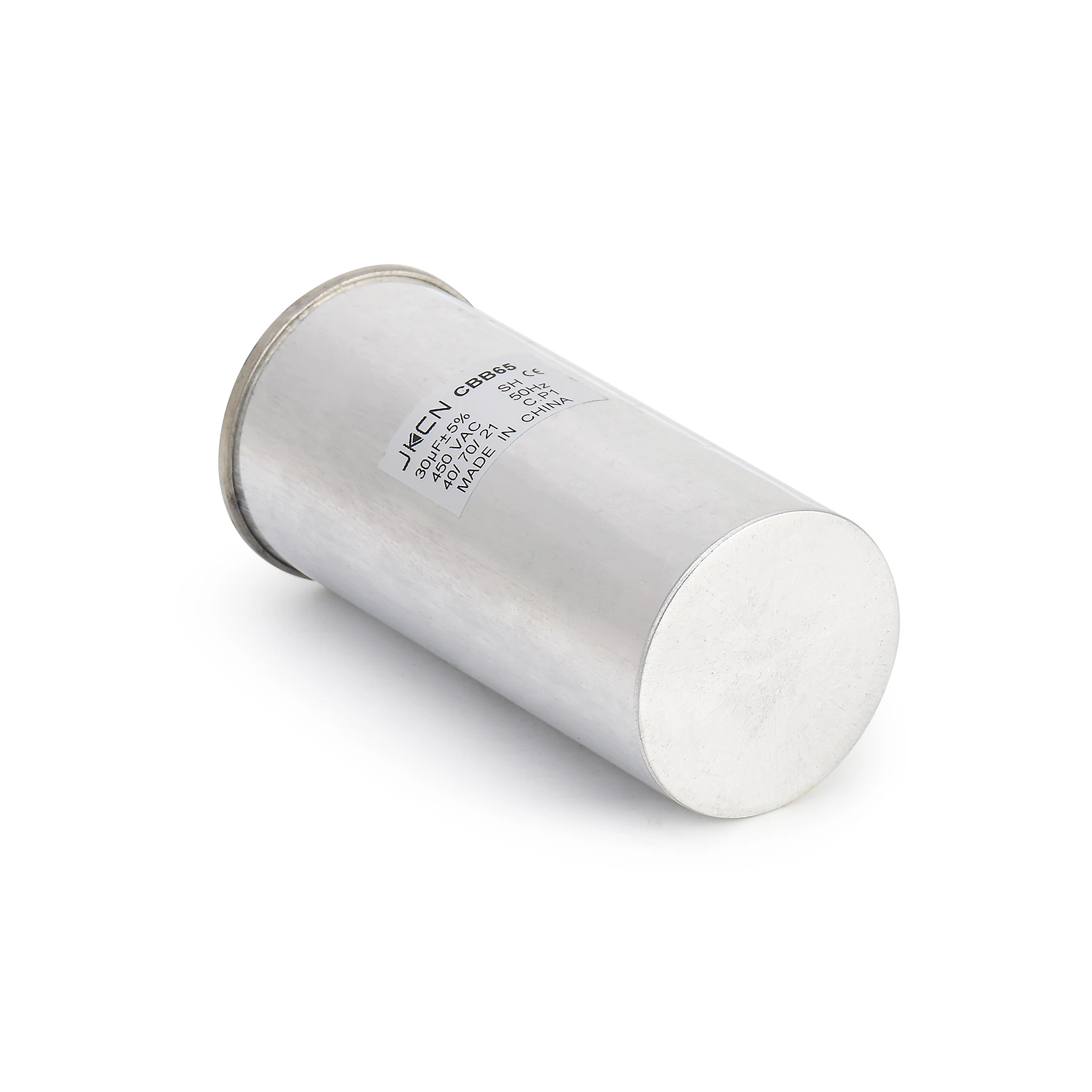

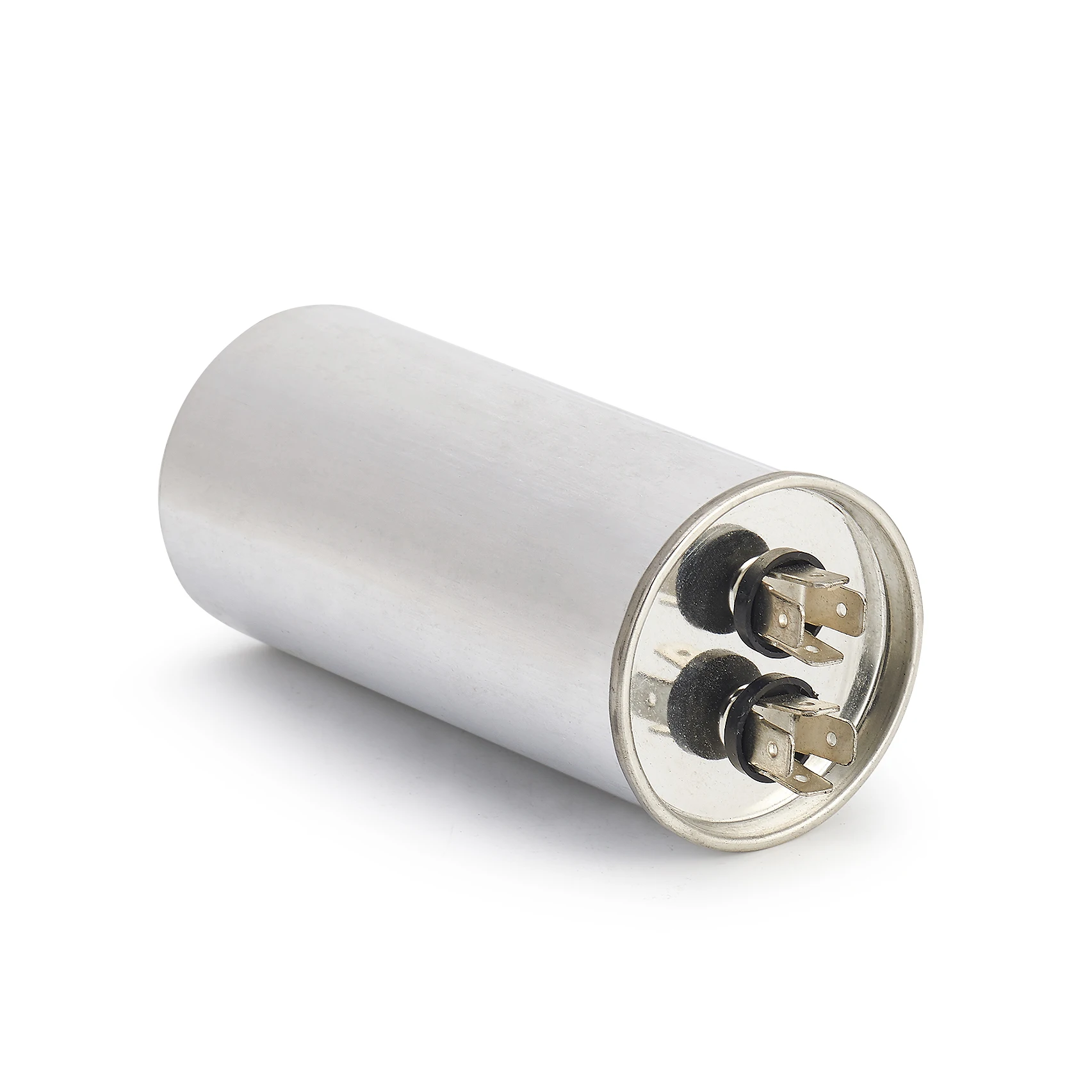

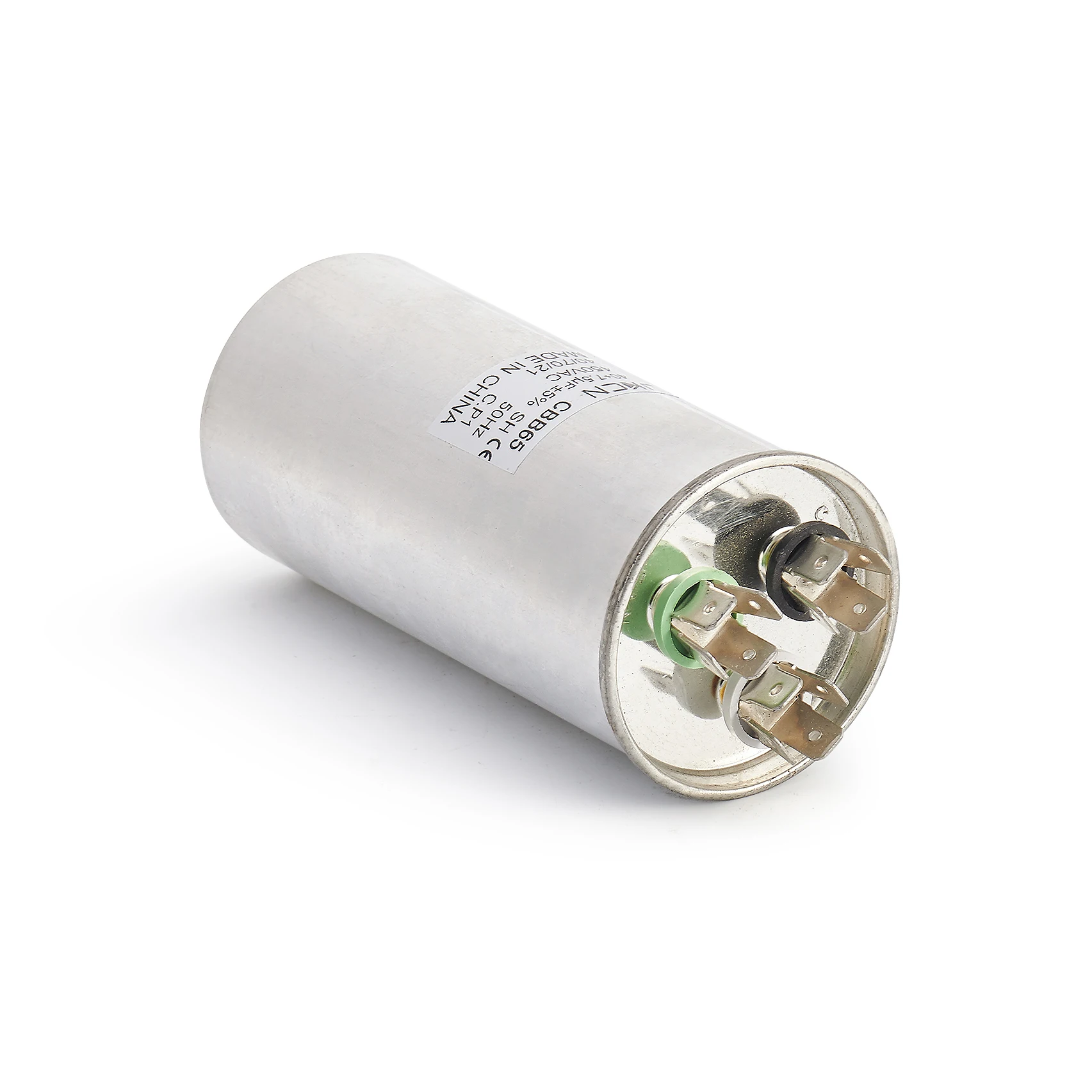

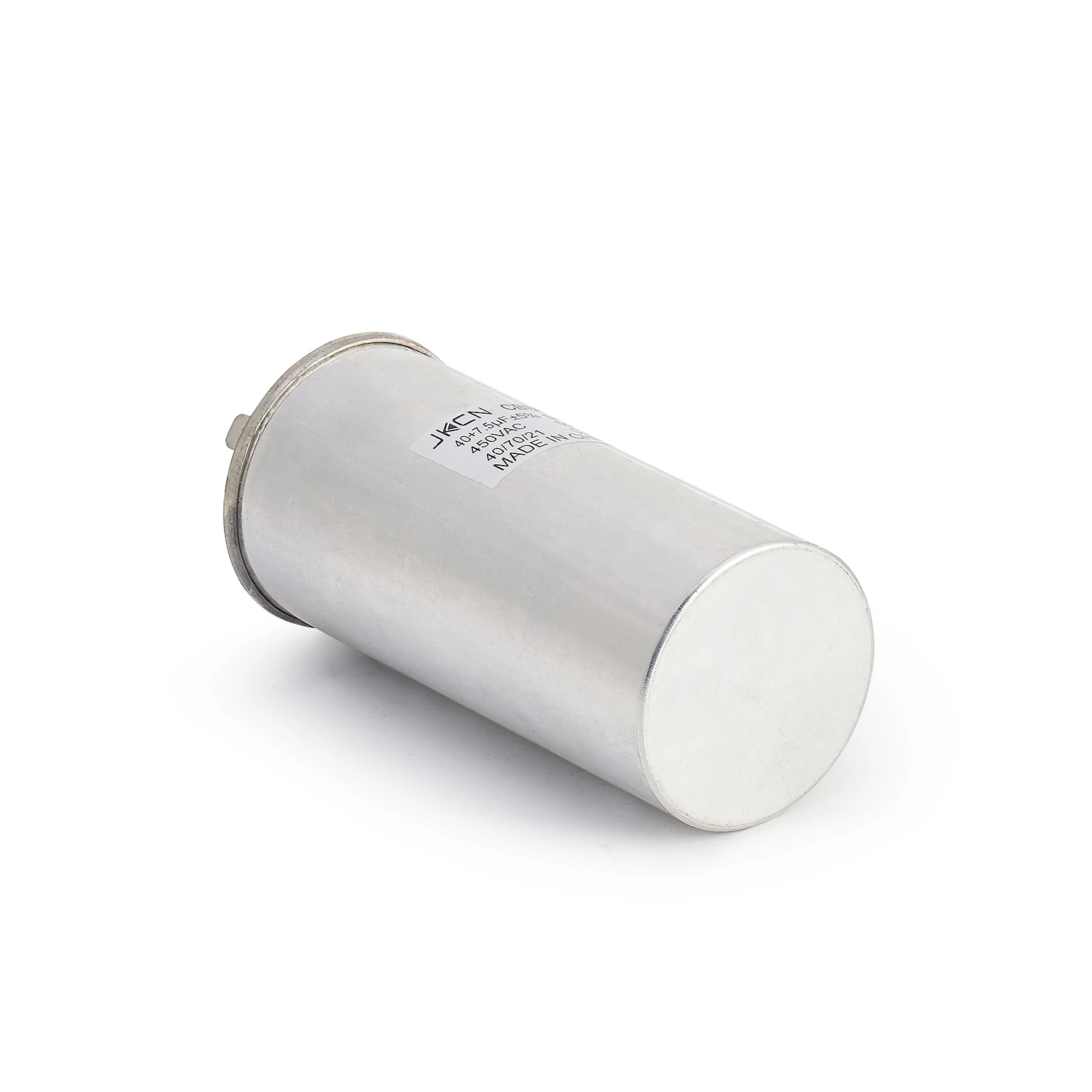

cbb65 air conditioner capacitor film aluminum electrolytic capacitor

Product Overview

Description









 FREE PRODUCT SAMPLES

Aluminium Capacitor is  explode-proof structure,applicable to 50/60Hz start and operation in air conditioner,refrigerator etc.  With CE, UL,CQC and RoHS certificates for our capacitor.

Features of sh capacitor cbb65 air conditioner capacitor



1. Capacitance: 5uf ~ 100uf


2. Capacitance tolerance: +/-5% to +/-10%


3. Working voltage: 250 to 500VAC


4. Temperature range: -40 to +70 degrees Celsius


5. Lead material: AMP 250 tin-plated brass QCs


6. Aluminum can design with safety mechanism device, offering long life and reliable service


7. Small size, small loss and self-healing proper

Technical indicators of   of sh capacitor cbb65  air conditioner capacitor



1.Rated voltage: 200V,250V,400V,450V,500V

2.Rated frequency:50/60Hz
3.Operation mode:Continuous
4.Tangent of loss angle: ≤ 0.2%

5.Capacitor deviation:±5%,±10%

6.Top allowable overvoltage:1.1Un

7.Top allowable overcurrent:1.3In

8.Insulation:Between terminal:2Un.2seconds;None permanent arcover.Between pole and shell:3KV.2seconds;None arc over.



Application   of sh capacitor cbb65  air conditioner capacitor



Purpose: Applicable in starting and operating of monophase asynchronous motor with the frequency between 50 to 60 Hz. Of antiflaming characteristics.

Use for motor running in househeld electric appliances as washing machine, aircon-Ditioner Refrigerater 50-60Hz AC powersupply. Safe protection constrution.

We could design and manufacture as customer's specified specs and dimensions. We can products with any voltage,capacity,outlet line structure and installing requirements.



sh capacitor cbb65  air conditioner capacitor

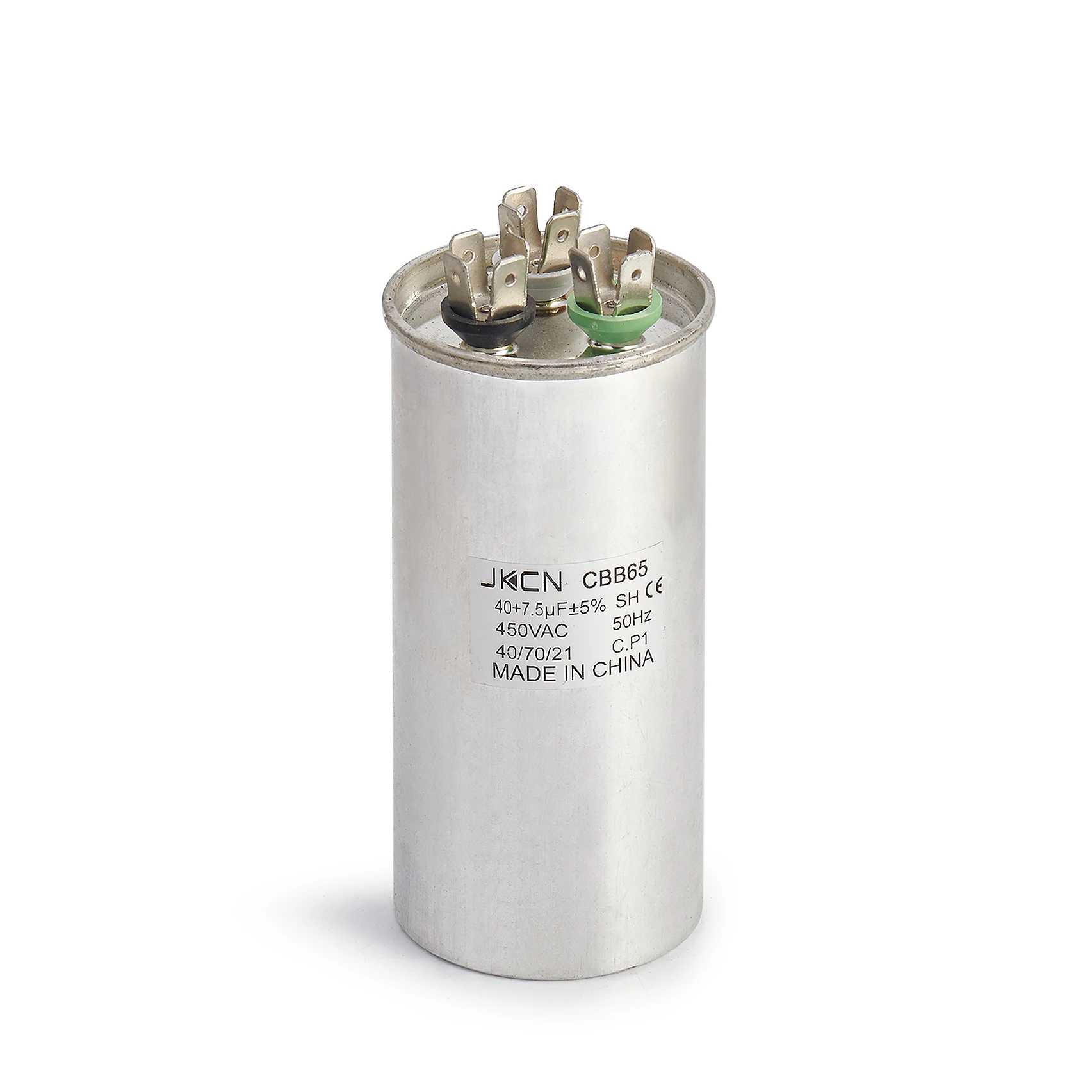

sh capacitor cbb65 40/70/21 sh  air conditioner capacitor





sh capacitor cbb65 40/70/21 sh  air conditioner capacitor
