Brief Description

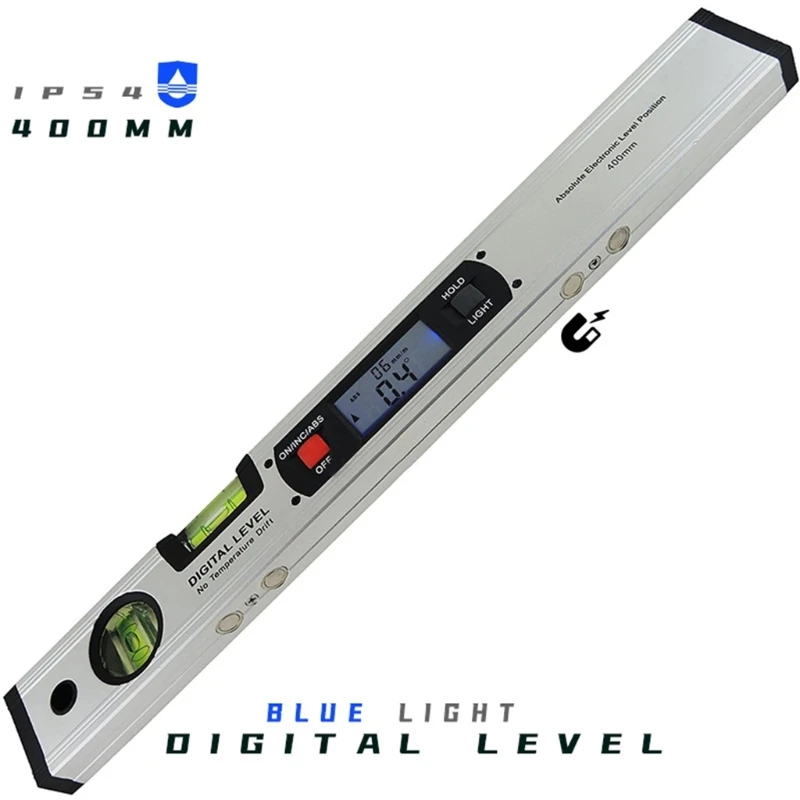

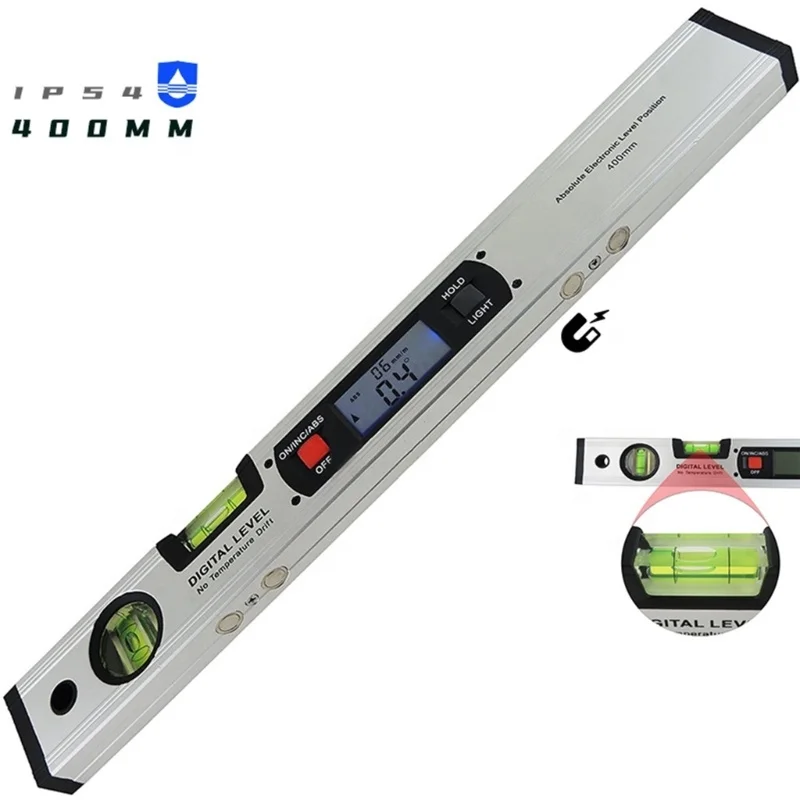

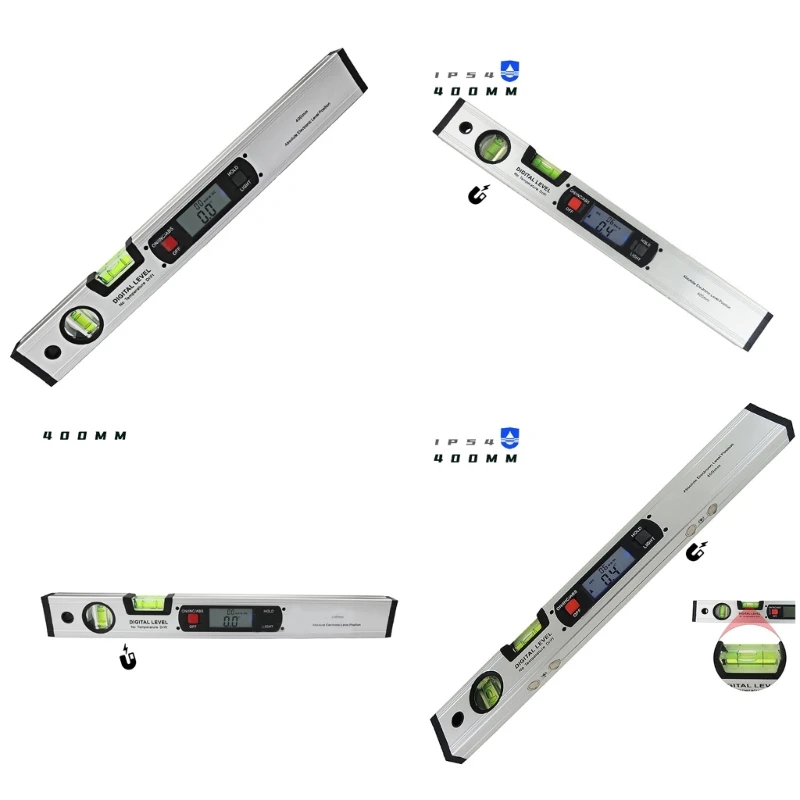

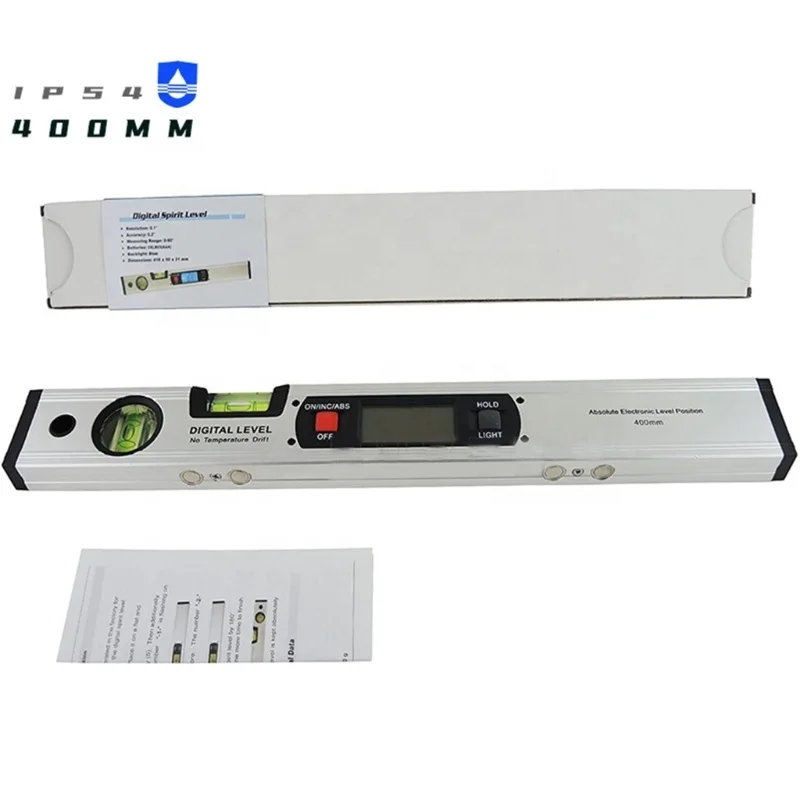

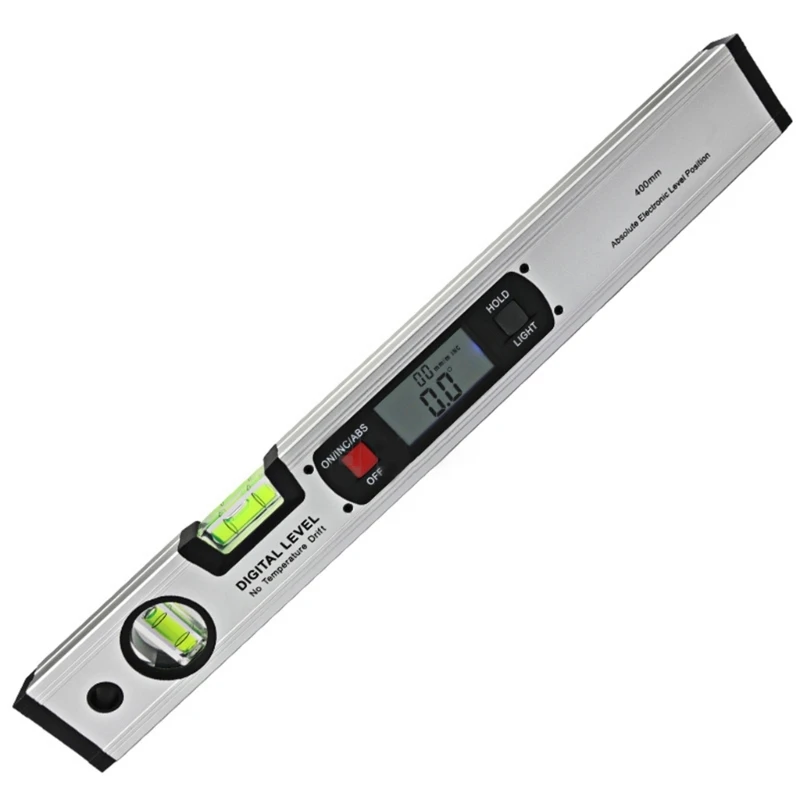

4 x 90° (total 360°) range and resolution 0.1° for wide variety of applications. Compared with traditional protractors, this protractor has bottom plate with 4 strong magnets so that it can firmly attach to metal surfaces. Vertical & horizontal spirit bubbles are also equipped.

backlight. It is 41.6cm long and more convenient for users to draw strange lines with slope measurements. In addition, the reading is always displayed upright even the protractor is upside down.

reference surface zero to measure relative angle, then it will give a result of measured slope angle. With absolute angle measurement, you will able to test whether the working surface is on the level. You can use this function to check roof slopes and wheel alignment etc. This meter works great for miter and table saws, detailed applications are listed as follows.

Applications

  Automotive

  Drive line measurement

  Race car wing & chassis adjustment

  Wheel alignment

  Frame straightening

·   Industrial

·   Machine tool set up

·   Lathe and mill alignment

·   Quality assurance verification

·   Range of motion measurement

·   Drive shaft alignment

·   Medical

·   Setup of precision machines

·   Road or rail-track layout

·   Satellite or aerial alignment

·   Drainage angles and run-off slopes

·   Tool setting on lathes

·   Setting blade angle of circular & miter saws

·   Setting work piece angle for milling

·   Grader and tractor work alignment

·   Platform monitoring

·   Suitable for built wood and metalwork projects

·   Create straight edges when assembling furniture

·   Ensure wallpaper and cornices are level for decoration

·   Measuring and adjusting alignment of sliding carriages and extension tables to cast saw benches

·   Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table

·   Favored by cabinetmakers & furniture workshops for setting up machinery such as saw benches, planer thicknesses, spindle molders and lathes to ensure that they are set true

Features

·                  Base plate with 4 built-in magnets for attaching on metal surfaces

·   Portable design & simple operation

·   High accuracy and resolution

·   Measuring range of 4 x 90° (total 360°)

·   Degree and mm/m of slope in conversion

·   Absolute & relative measurement modes

·   Enter absolute angle measurement mode every time being turned on (no matter change the batteries)

·   Large and clear LCD with backlight

·   Vertical & horizontal spirit bubbles equipped

·   Measured data hold

·   Displayed readings remain upright to enable easy viewing at all angles

Specifications:

·   4 magnets on base plate

·

·

·

·

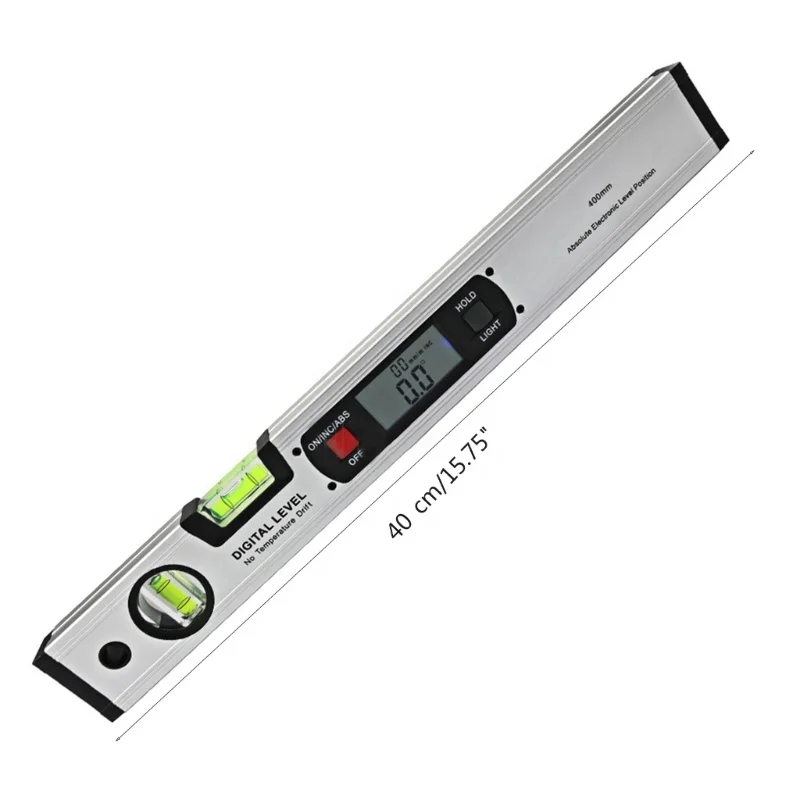

·   Dimensions: approx. 416 (L) x 50 (W) x 21 (D) mm (16.22’ x 1.95’ x 0.82’ inch)

·   Weight: 330 g
