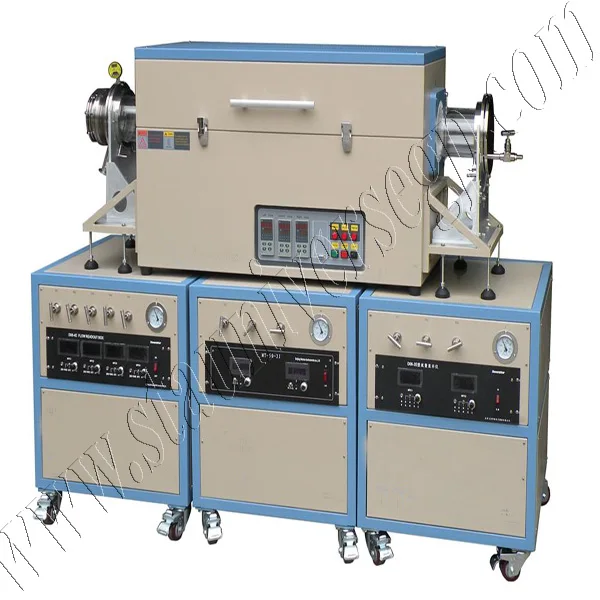

STA high temperature 1200 degree three zone vacuum tube furnace

Product Overview

Description

STA high temperature 1200 degree three -zone vacuum tube furnace



Vacuum tube furnace is the development of special graphene growth furnace, also applies to the faster heating and cooling requirements of a CVD experiment. STA-1700TF vacuum furnace using open-type tubular furnace, bottom rail is mounted straight, when growing after the pulling furnace so there is sufficient space to ensure the test sample out of the furnace, to achieve rapid cooling requirements





Characteristics:





1. Quick diffusing rate
2. Large loaded-amount, low procession cost
3. Surface friction coefficient is small
4. Low brittleness
5. Stable performance
The furnace atmosphere and temperature are uniform and controllable, assuring the process stability and improving the quality of working nitriding.
6. Easy for operation
When the furnace is working, the inner pressure presents periodical change, so does the nitrogen potential, which allows one segment of nitride to replace two or even three segments, simplifying the process and the operation is simpler as one furnace can replace 4-5 sets.
7. Wide adaptability, uniform diffusion layer



Model: STA-1700C-TF
Main Specifications:
Inside Chamber Size	Dia60x300mm(diameter2.5" x 12") (support customized size)
Standard Working Temperature	1500oC ( continuous )
Maximum Working Temperature	1650oC  ( < 3 hrs)
Furnace chamber	split type
Max. vacuum	-0.1MPa
Temperature Control	30 steps programmable and PID automatic control
Heating Rate	0~ 40.C/ min (suggestion: =< 20.C )
Temperature Accuracy	+/- 1 .C
Furnace structure	Double shell with fan cooling
Heating Element	MoSi2 heating elements
Thermocouple	B type
Working Voltage	AC 208-240V  Single/Three  Phase  60/50 Hz (or according to your requirement)
Max. Power	7KW
Net Weight	150kg
Detailed Description
STA-1600C-TF tube furnace is a precision bench-top furnace using quality ceramic MoSi2 rods as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition. It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1.C and 30 segments programmable up to 1600.C

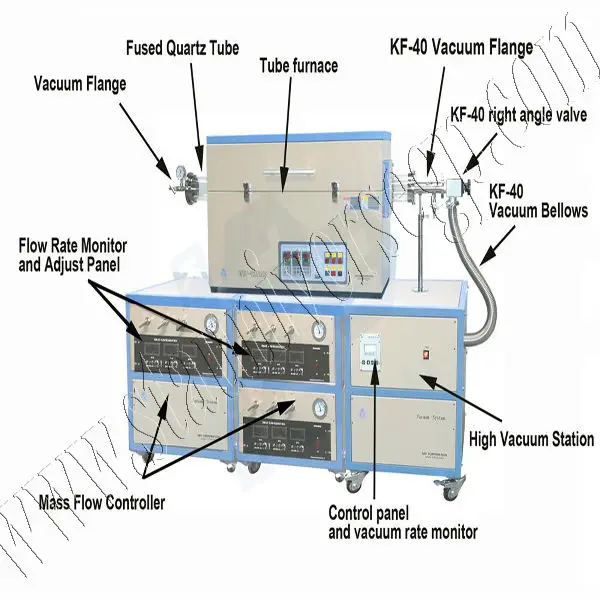

Standard package included with the furnace
Part description		Quantity
Tube plug		4pcs
quartz tube		1pc
vacuum pump		1pc

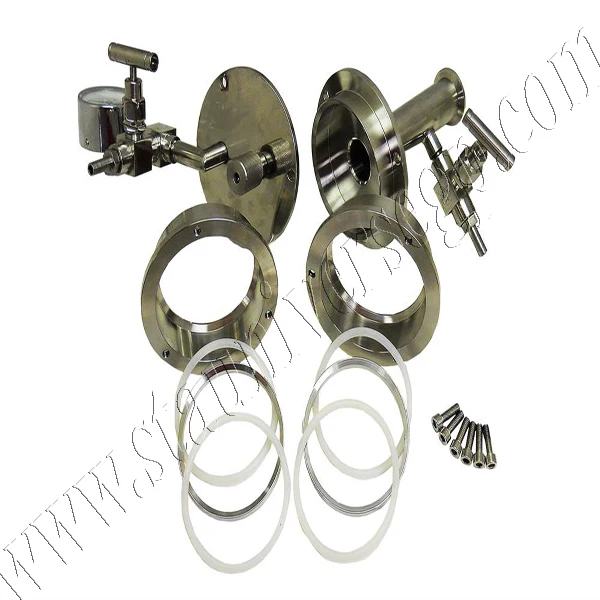

Sealing flange		1set
vacuum gauge		1pc
Thermal couple		1 pc
Stainless steel hook		1 pc
Thermal gloves		1 pair
Operation manual		1 pc
Standard Sizes:
Model	Chamber size (Outer diameter of furnace tube x heating length)	Max. Temperature
STA-1600MT	Dia40x300mm (1.5"x12")	1650.C
STA-1600MT	Dia40x450mm (1.5"x18")	1650.C
STA-1600MT	Dia60x300mm (2.5"x12")	1650.C
STA-1600MT	Dia60x450mm (2.5"x18")	1650.C
STA-1600MT	Dia80x300mm (3.0"x12")	1650.C
STA-1600MT	Dia80x450mm (3.0"x18")	1650.C





if you have any other requirment,we could produce according to your size or drawing!!!



Welcome to contract me .









Why choose STA



High puriy material make sure high max working temperature,

Tight tolerance make sure the right installation.

Large quantity products in stock ensured fast delivery

Large capacity reduce the prices



1.What's your advantage to other suppliers?



We have our own factory which has more than 15years experience in producing and exporting aluminium titanate ceramic products,

we also have good business relations with some other factories.

Our goods’quality is high and price is reasonable and delivery is fast.



2.Can you produce as our drawing?



Yes,we have skilled technical engineer who can make products according to your photos or drawings.



3.After-Sale service:



1) 24 hours service for customers.

2) quality issue, we accept reworking if quality is not reach your requirements.

3) sample available for free

4) CE service acceptable. welcome your artwork.
