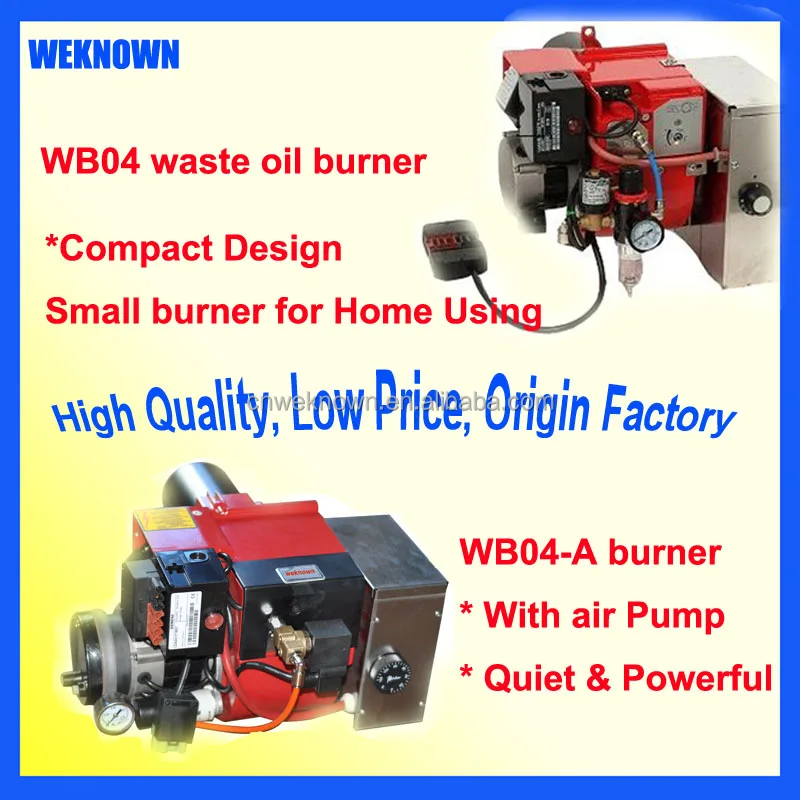

WB04 waste oil burner heater

Product Overview

Description

WB04 burner is not with air pump

Most waste oils are suitable for our burner, such as waste engine oil, diesel oil, cooking oil, waste vegetable oil, etc.

Unique design for waste oil, the burner has been exported to many countries for 5 years, INCLUDE EUROPE, USA, AFRICA, SOUTH AMERICA, ASIA. good reputations have been wined from all our customers, looking forward to receiving your order, and cooperating and developing together.

Product Description





Model	WB04-A  / WB04
Oil Consumption	2-4KG/H
Output Power	17-50KW
Output Heat	20,000-50,000Kcal/H
Motor	90W
Nozzle	1*1/2"
Tube Diameter	89MM
Power Supply	220V,50HZ
Net Weight	20KG





1. Automatic working, easy operation and maintenance.

2. Output heat can be adjustable.

3. No easy wear parts, long span life.

4. Siemens electronic control system, safe and reliable.

5. CE approved.



PARTS WITH BURNER:

1) Transfer oil pump: 1pcs

2) Air controller: 1pcs

3) Install flane: 1pcs

4) Asbestos gasket: 1pcs

5) Outlet-inlet pipe: 2pcs

6) Overlow pipe: 1pc

7) Install screw: 4pcs

8) Inner six angle spanner: 1pcs

9) Nozzle spanner: 1pcs

10) Oil filter: 1pcs

11) Oil line cnnector: 4pcs



Detailed Images



















Packaging & Shipping







Company Information





Buyer Feedback



Any needs, please contat with us freely, we are here to serve you!
