Belt drive Exercise Bicycle Pedal Power Generator

Share on (60014103205):


Price:

Quantity:


Product Overview

Description

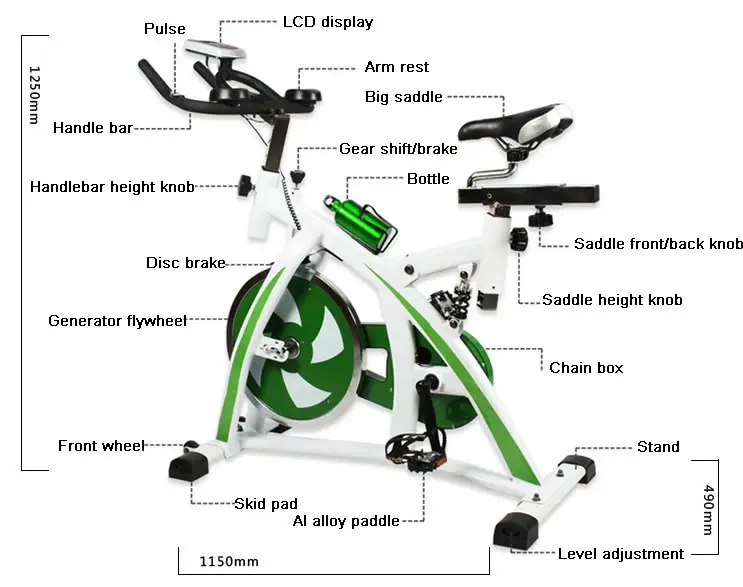

High quality exercise bike
Integrated with permanent magnet generator
Cycling for exercise while generating power
Belt drive, lower noise than chain drive
Stepless tension control mechanism

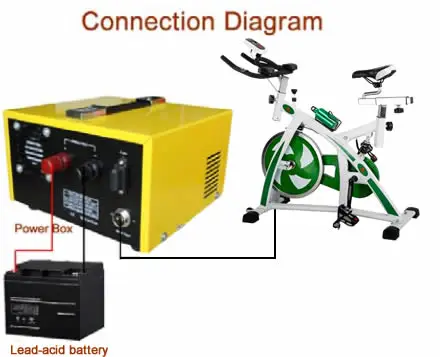

Charge 12V battery bank with over-voltage protection
Portable power box is optional
Output power: 200-300w, Max.800w
DC output: 14.5V

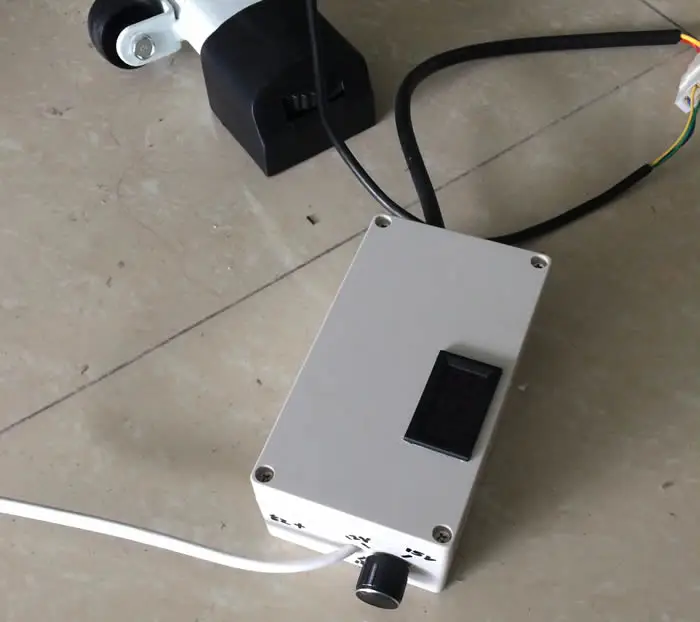

Voltage converter for different output voltages is available
Rated speed: 40~70rpm
Bike loading weight: max. 250kg
Dimension: 1250*490*1150mm
