Кассета гидравлический динамометрический ключ

Product Overview

Description

Characters:



1. Hydraulic torque wrench, made of ultra-high strength aluminum-titanium alloy, thin design, double - acting, high speed and big corner;
2. clamping type, interchangeable plug - ins, no need of special tools, torque repetition accuracy as high as ±3%;
3, 360°×360° and 180°X360° rotary hose connectors, which are suitable for compact occasions and convenient for positioning.
4, wrench strength design is sufficient, the overall reaction arm, fewer movable parts, durable and reliable;
5. Can work with metric and imperial hexagonal insert socket, which can realize that one power head is equipped with multiple insert socket for simultaneous use;
6. Most of them are used in special working conditions: double nuts, bolts are too close to the equipment wall, bolts are too long, nut spacing is too small, etc.

7. If needed, can work with our back-up wrench, more convenient.

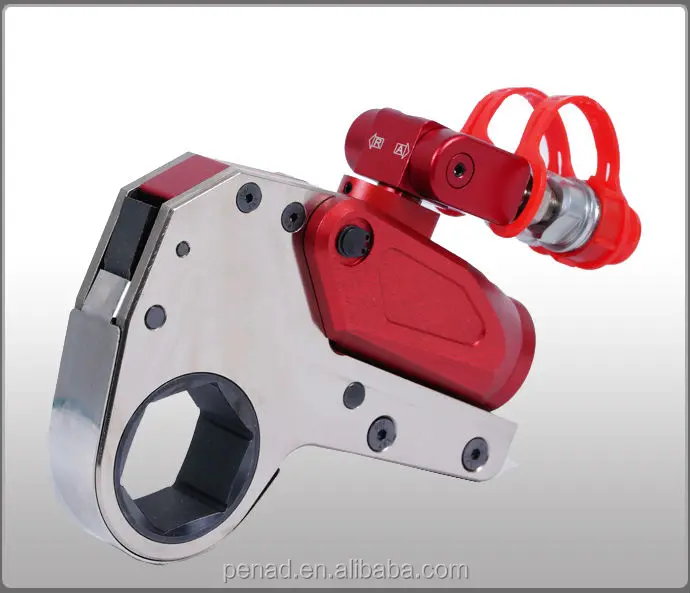

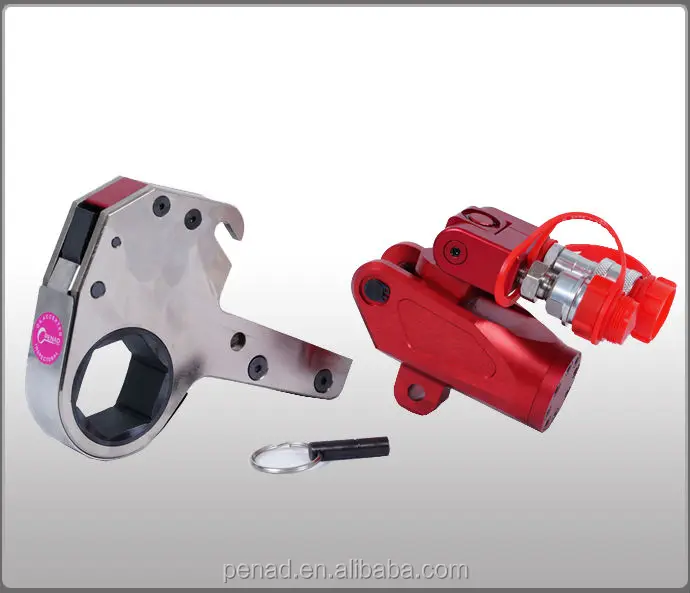

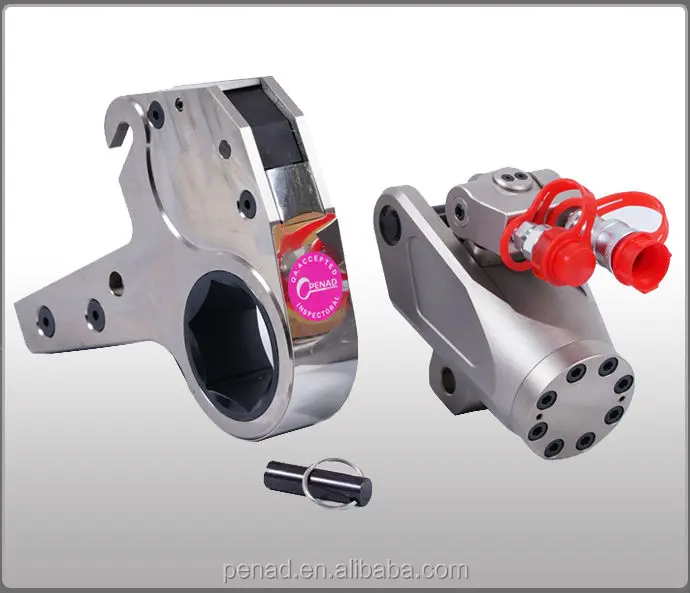

Details of products:

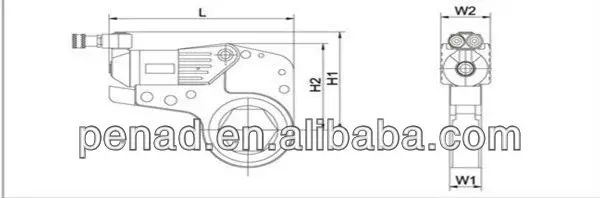

 Products drawings:

Selection Chart:

SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH
MODEL	2PDCT		4PDCT		8PDCT		14PDCT	18PDCT	30PDCT		50PDCT
TORQUE(N.m)	232-2328	241-2414	585-5858	647-6474	1094-10941	1177-11774	1852-18521	2695-26958	488-41882	4459-44593	7081-70813
NUT SIZE(S)	19-55	60	34-65	70-80	41-95	100-105	50-117	65-130	110-155	160-175	105-225
POWER HEAD WEIGHT(KG)	0.9	0.9	1.7	1.7	3	3.1	4.6	6.5	10.4	10.4	35.5
WORKING HEAD WEIGHT(KG)	1.5	1.5	3.4	3.4	6.3	6.3	11.4	14.3	20.5	20.5	42
L	196	196	258	263	30	311	360	388	430	441	493
H1	126	129	163	173	192	201	225	264	303	315	328
H2	102	105	136	146	168	177	2045	231	272	285	295
W1	32	32	42	42	53	53	64	71	85	85	102
W2	51	51	66	66	83	83	99	109	131	131	160
