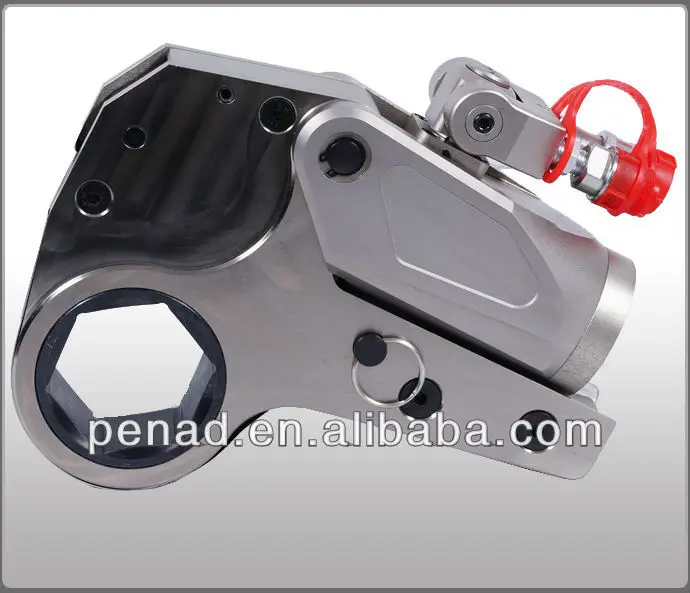

hexagon cassette hydraulic torque wrench ,BOP hydraulic torque wrench

Product Overview

Description

Characters:





 1.Hexagon cassette hydraulic torque wrench manufacturer, high quality with good performance.

 2.High strengthen aluminium-titanium alloy body.

 3.700 bar maximum working pressure,Repeat accuracy ±3%

 4.360° multi-positional swivel quick release couplings

 5.Working with the high resistance sockets, suitable for more size of screws

 6.360°Adijustable reaction arm with safety lock feature, can be used without reaction arm

 7.Replaceable square drive adapters

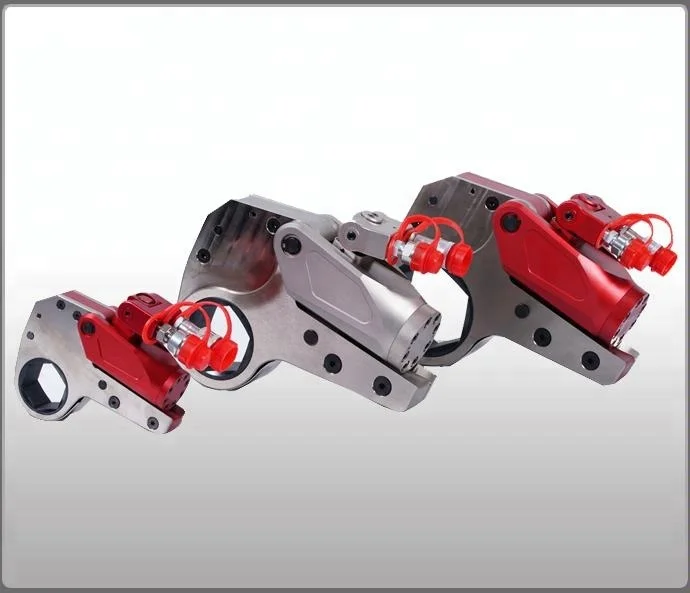

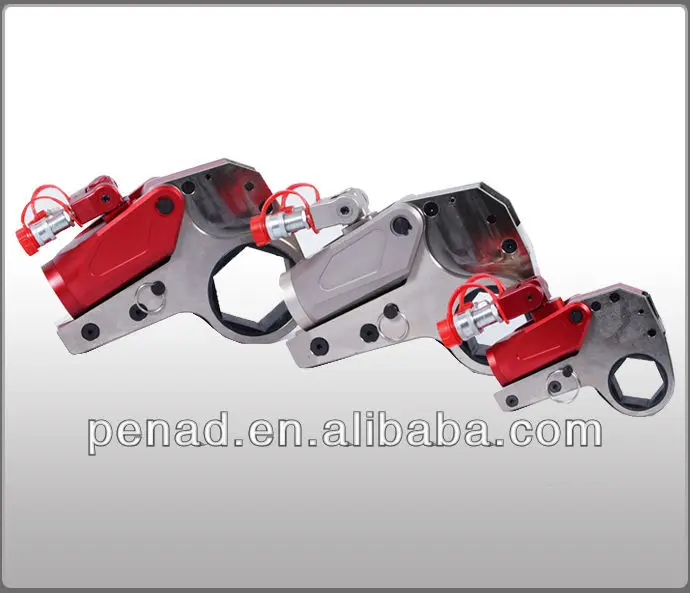

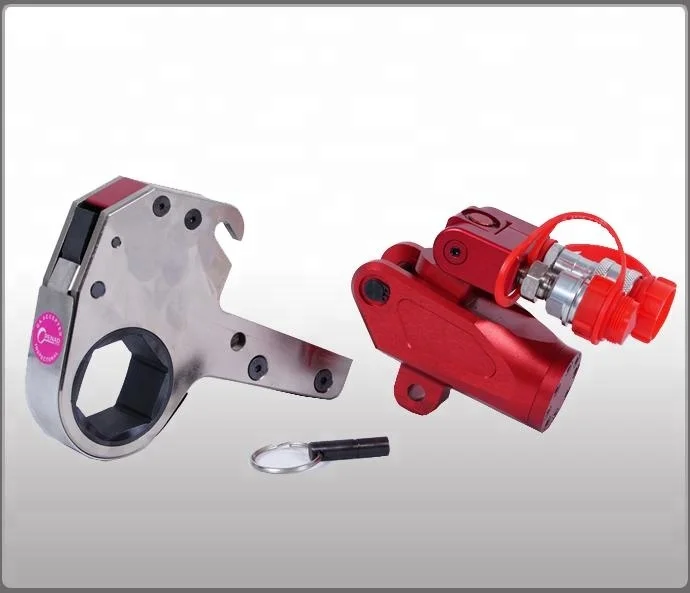

Details of products:



 Products drawings:

Selection Chart:

SELECTION CHART OF PDCT SERIES ULTRO THIN HOLLOW HYDRAULIC WRENCH
MODEL	2PDCT		4PDCT		8PDCT		14PDCT	18PDCT	30PDCT		50PDCT
TORQUE(N.m)	232-2328	241-2414	585-5858	647-6474	1094-10941	1177-11774	1852-18521	2695-26958	488-41882	4459-44593	7081-70813
NUT SIZE(S)	19-55	60	34-65	70-80	41-95	100-105	50-117	65-130	110-155	160-175	105-225
POWER HEAD WEIGHT(KG)	0.9	0.9	1.7	1.7	3	3.1	4.6	6.5	10.4	10.4	35.5
WORKING HEAD WEIGHT(KG)	1.5	1.5	3.4	3.4	6.3	6.3	11.4	14.3	20.5	20.5	42
L	196	196	258	263	30	311	360	388	430	441	493
H1	126	129	163	173	192	201	225	264	303	315	328
H2	102	105	136	146	168	177	2045	231	272	285	295
W1	32	32	42	42	53	53	64	71	85	85	102
W2	51	51	66	66	83	83	99	109	131	131	160

Workplace:



Machining Center:
