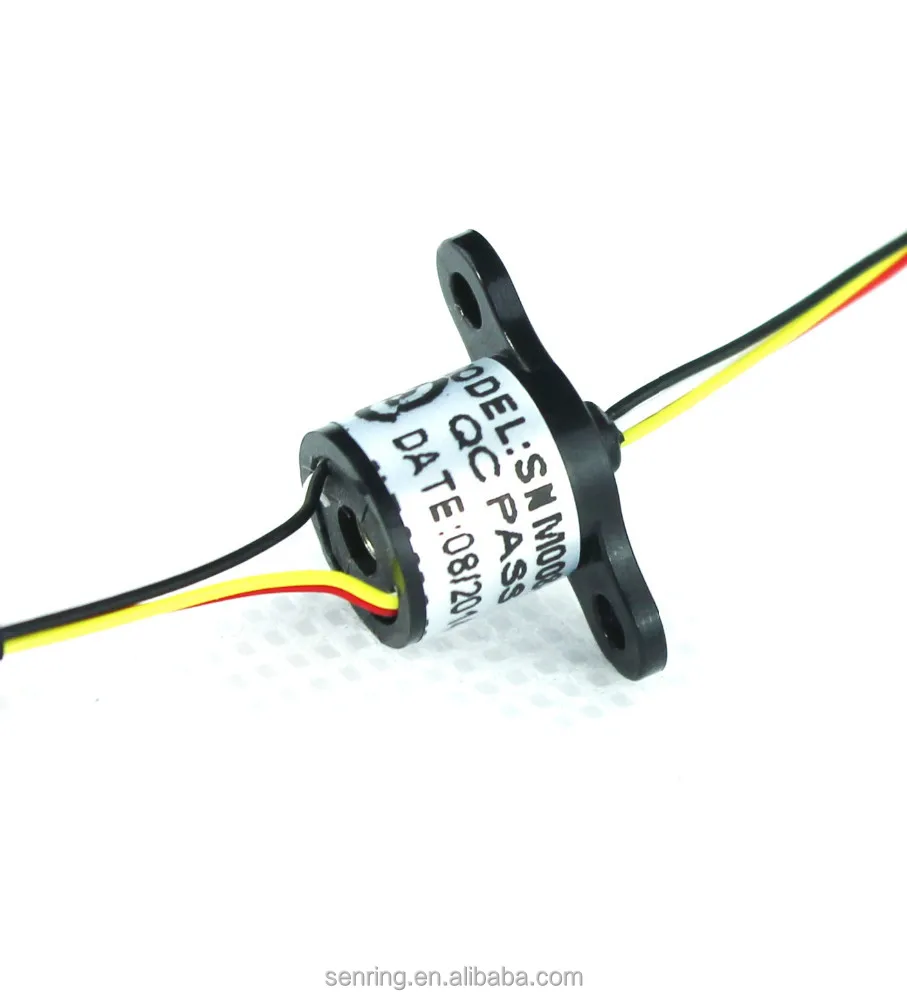

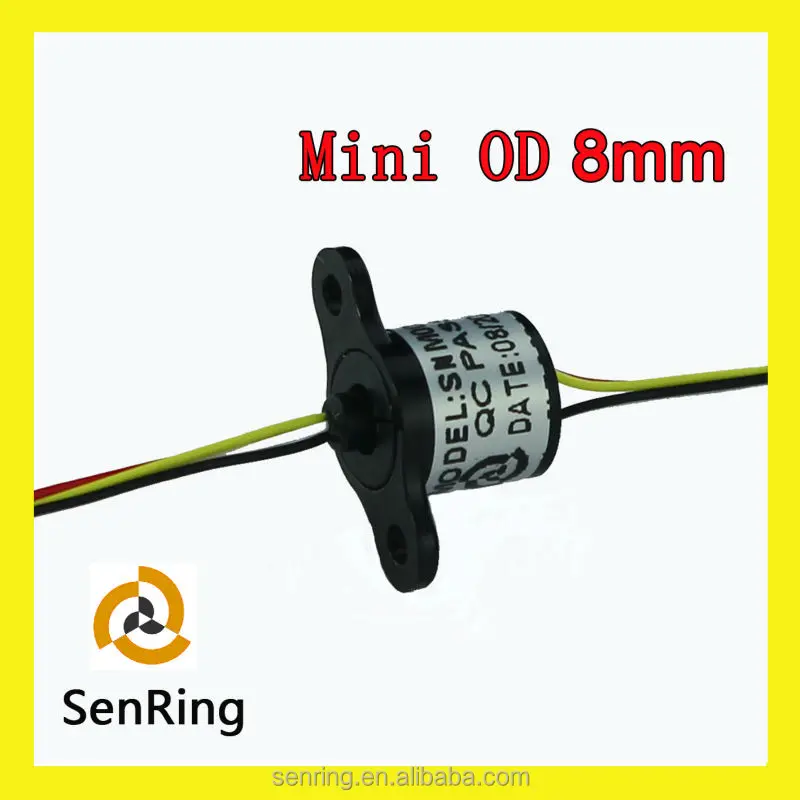

Новейшее мини кольцо скольжения капсулы OD 8,5 мм с 4 цепями/8 цепями поворотного соединения

 Specifications

• Contact Material


  Gold alloy brush,Gold plated rings





• Current Rating


  1A, per ring, maximum





• Number of Circuits


  4





• Operating Speed


  250 rpm* continuous





• Housing Material


  Engineering Plastics





• Lead Wire


  UL Teflon® Awg28,color-coded, silver-plated





• Lead Lengths


  250mm





• Voltage


  210 VDC / 240 VAC





• Operating Temp.


  -40°C to 80°C





• Torque


  Approx. ≤0.3 g·m (for reference )





• Dielectric Strength


  ≥600V@50Hz between each circuit





• Insulation Resistance


  600MΩ@ 300VDC





• Noise


  20 milliohms maximum tested @ 6 VDC, 40 milliamps when running @ 5 - 15 rpm





• Resistance to pull


  Radial 2KG,Axial 0.5KG





• Protection


  IP51




*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

• Smooth running


• Low torque


• Compact dimemsions


• Quick shippments
